Ford Explorer EV Extended Range AWD

Years of Production
When the car first came out and when they stopped making it
2024 -
This car is not available in the US, but you can still compare it with other cars

Trims

Currently Produced
Extended Range RWD Extended Range AWD

Ford Explorer EV Extended Range AWD

Technical Specifications of Ford Explorer EV Extended Range AWD

General Info

Years of Production
When the car first came out and when they stopped making it
2024 -
Country of Manufacture
Country where final assembly of the car took place
Germany
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Ford Explorer EV Extended Range AWD

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
331-352 mi No Data 298 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
82 kWh 79 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
26.5 kWh/100 mi (3.8 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 185 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V
Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 2
CCS Type 2 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: IM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
250 kW (335 hp) 501 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.1 s
Top Speed
The fastest the car can go (maximum speed)
112 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
175.9 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
81.2 in 73.7 in
Height
Car's body height (from ground to highest point)
64.5 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
108.9 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4777 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
15.9 ft3 50.2 ft3 No Data
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
2645 lb
Last Updated:
June 12, 2024
Download Specs PDF

Charging Ford Explorer EV Extended Range AWD

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
June 12, 2024
Open Charging Calculator

About Ford Explorer EV Extended Range AWD

Detailed Descriptions

The Ford Explorer EV Extended Range AWD is an all-electric all-wheel drive SUV. It came out in 2024. The car is not available on the US market.

The Ford Explorer EV Extended Range AWD has a 82 kWh battery pack, allowing it to travel up to 298 mi on a single charge. The car has an average efficiency of 26.5 kWh per 100 miles (or 3.8 miles per kWh) — ranked №151 out of 683 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford Explorer EV Extended Range AWD achieves a 0 to 60 mph acceleration in 5.1 seconds (placing it at №240 among 683 electric vehicles) and attains a maximum speed of 112 mph.

Its powertrain provides a power output of up to 250 kW (335 hp) and a torque of 501 lb-ft.

How far can it go on single charge? What is the real-world range?

Real-world range of the Ford Explorer EV Extended Range AWD is 268–328 miles (ranked №151 out of 683 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

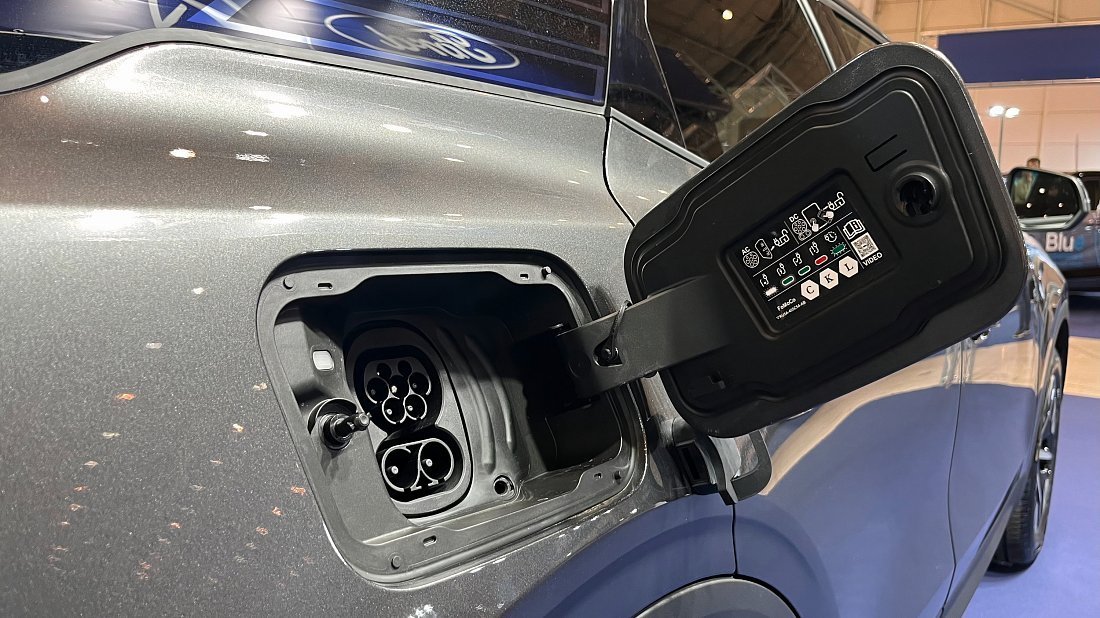

In the USA Ford Explorer EV Extended Range AWD has a CCS Type 2 charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 37 miles of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 185 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Ford Explorer EV Extended Range AWD comes in the following dimensions:

  • Length: 175.9 in
  • Width: 81.2 in (including side mirrors) or 73.7 in (excluding side mirrors)
  • Height: 64.5 in
  • Wheelbase: 108.9 in (distance between the center of the front and rear wheels)
  • Curb weight: 4777 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

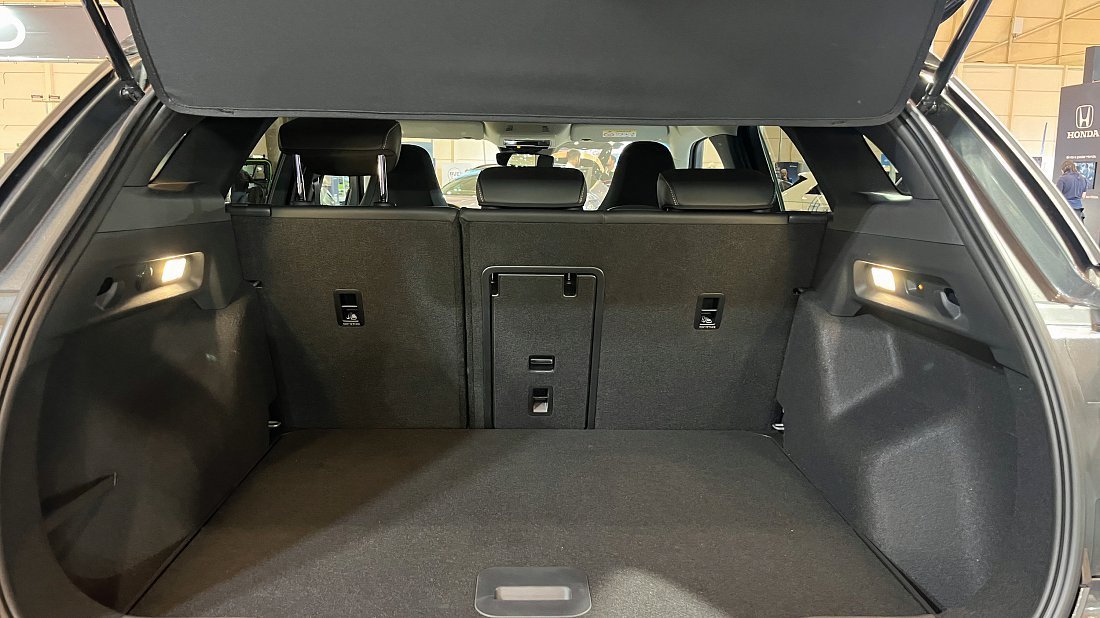

Behind the rear seats of the Ford Explorer EV Extended Range AWD, you'll find 15.9 cubic feet of storage space (ranked №355 out of 683 electric vehicles).

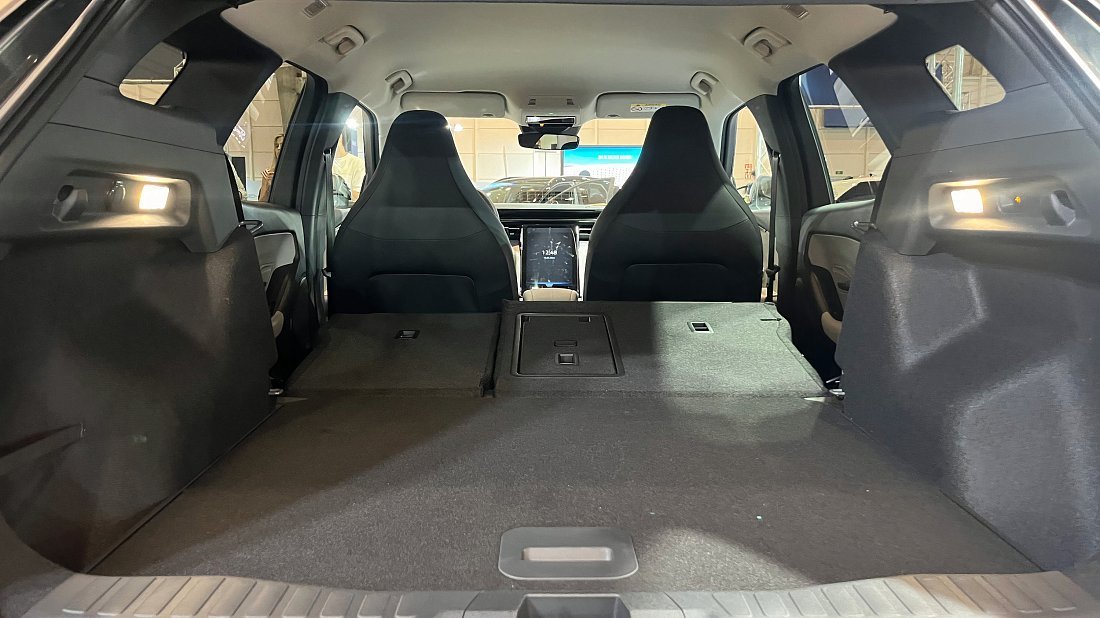

Folding down the rear seats expands the total cargo capacity to 50.2 cubic feet (ranked №307 out of 683 electric vehicles).

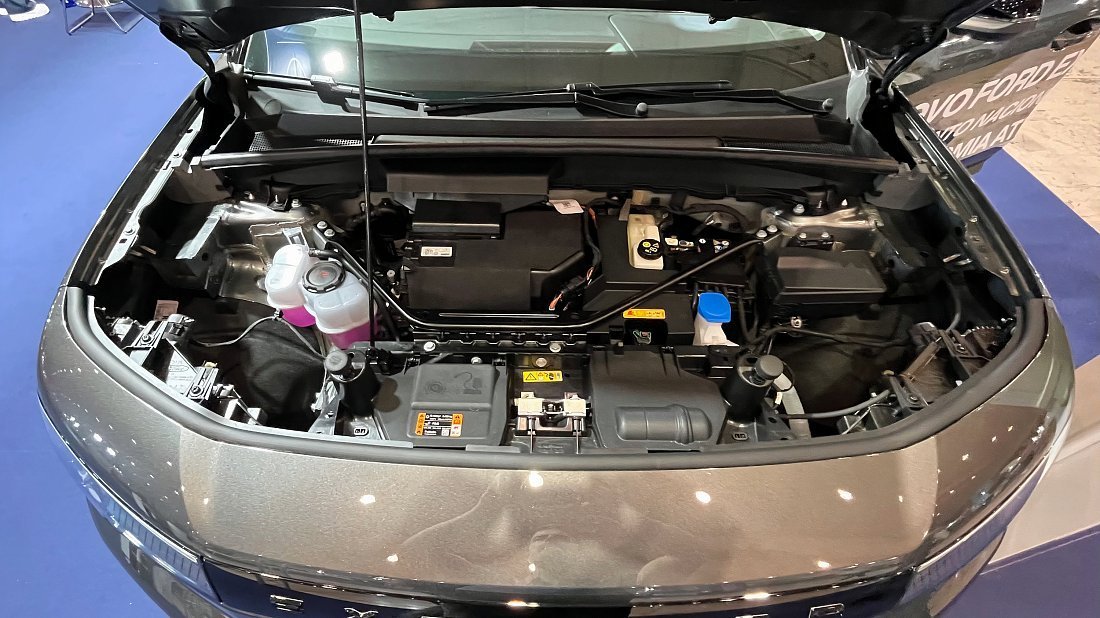

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The Ford Explorer EV Extended Range AWD can safely tow up to 2645 lbs, provided that the trailer has its own braking system.
