Technical Specifications of Ford Mustang Mach-E Extended Range AWD (2022)

General Info

Years of Production
When the car first came out and when they stopped making it
2022 - 2023
Country of Manufacture
Country where final assembly of the car took place
Mexico
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)

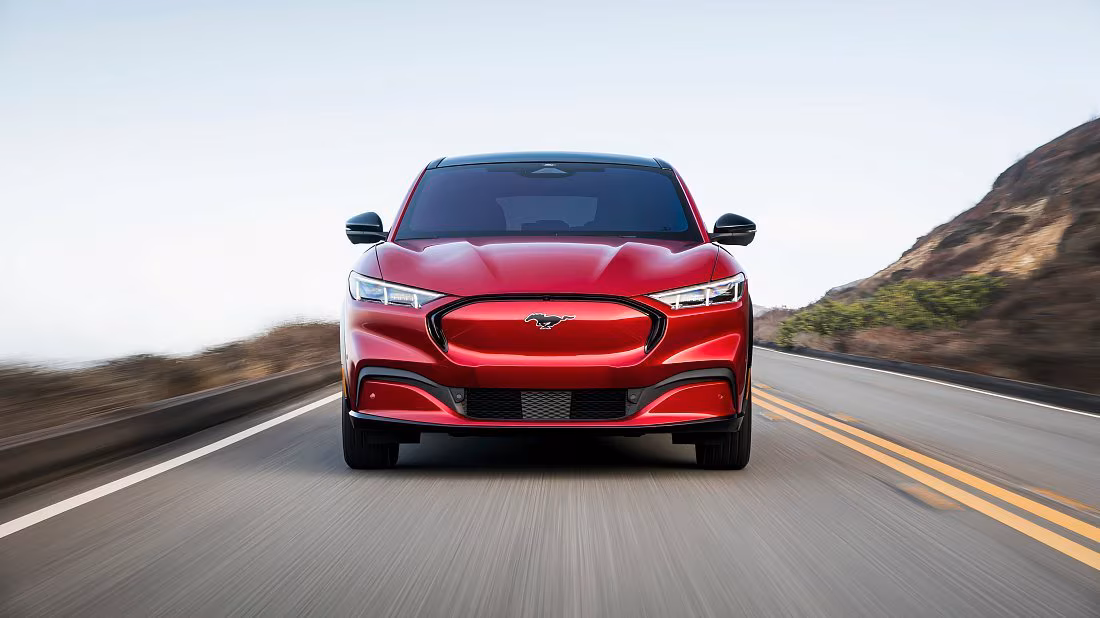

SUV Ford Mustang Mach-E Extended Range AWD (2022)

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
342 mi 277 mi 284 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
98.8 kWh 91 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
32 kWh/100 mi (3.1 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 150 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V

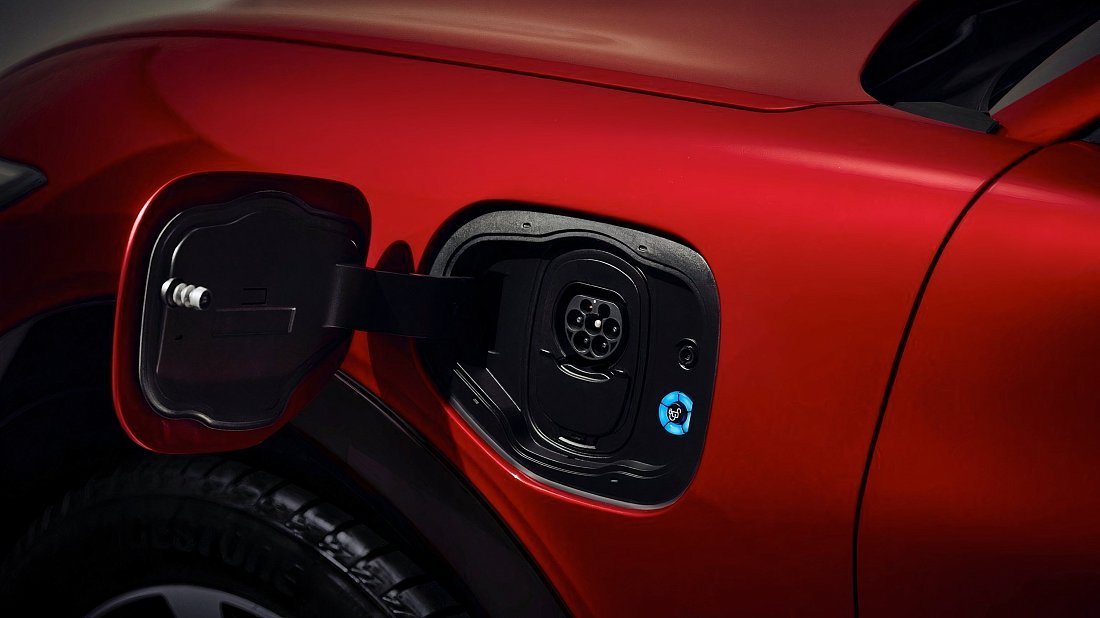

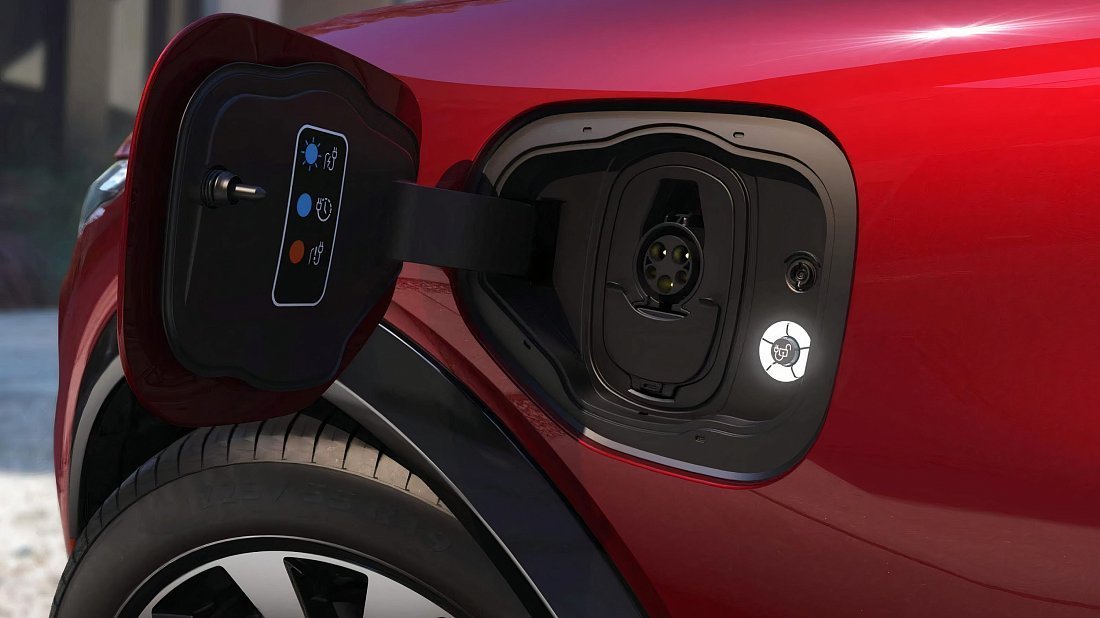

Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
258 kW (346 hp) 428 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
4.8 s
Top Speed
The fastest the car can go (maximum speed)
111 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
185.6 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
82.6 in 74.1 in
Height
Car's body height (from ground to highest point)
64 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
117.5 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4838 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
29.7 ft3 59.7 ft3 4.7 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
May 24, 2024
Download Specs PDF

Charging Ford Mustang Mach-E Extended Range AWD (2022)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
May 24, 2024
Open Charging Calculator

About Ford Mustang Mach-E Extended Range AWD (2022)

Detailed Descriptions

The Ford Mustang Mach-E Extended Range AWD (2022) is an all-electric all-wheel drive SUV. It came out in 2022 replacing the older Ford Mustang Mach-E Extended Range AWD (2020). Ford stopped making the Extended Range AWD (2022) in 2023 and replaced it with the Ford Mustang Mach-E Extended Range AWD (2023). You can still find Ford Mustang Mach-E Extended Range AWD (2022) on the used car market, with prices starting around $28,886.

The Ford Mustang Mach-E Extended Range AWD (2022) has a 98.8 kWh battery pack, allowing it to travel up to 284 mi on a single charge. The car has an average efficiency of 32 kWh per 100 miles (or 3.1 miles per kWh) — ranked №197 out of 683 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford Mustang Mach-E Extended Range AWD (2022) is equipped with a powertrain that delivers up to 258 kW (346 hp) of power and 428 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 4.8 seconds (ranked №212 out of 683 electric vehicles) and a top speed of 111 mph.

How far can it go on single charge? What is the real-world range?

Ford Mustang Mach-E Extended Range AWD (2022) achieves a How far can it go on single charge? What is the real-world range? of 256–312 miles, placing it at №197 among 683 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

The Ford Mustang Mach-E Extended Range AWD (2022) in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 31 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 150 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Ford Mustang Mach-E Extended Range AWD (2022) are as follows:

  • Length: 185.6 in
  • Width: 82.6 in (including side mirrors) or 74.1 in (excluding side mirrors)
  • Height: 64 in
  • Wheelbase: 117.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 4838 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Ford Mustang Mach-E Extended Range AWD (2022) cargo space:

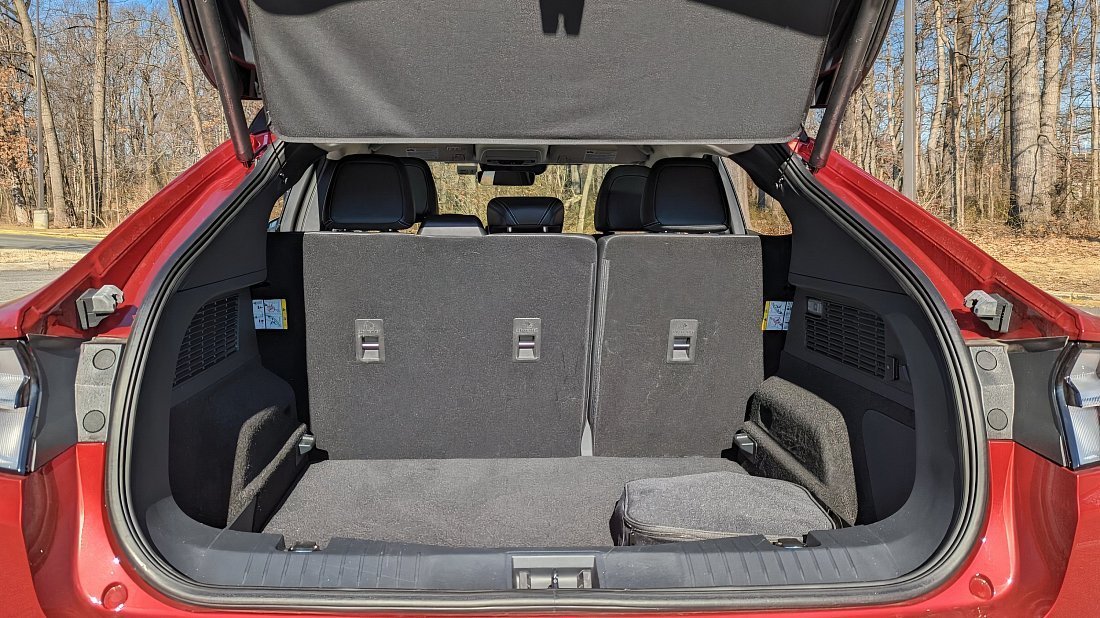

  • Trunk capacity: With the rear seats up, you get 29.7 cubic feet of cargo space in the back (ranked №82 out of 683 electric vehicles).

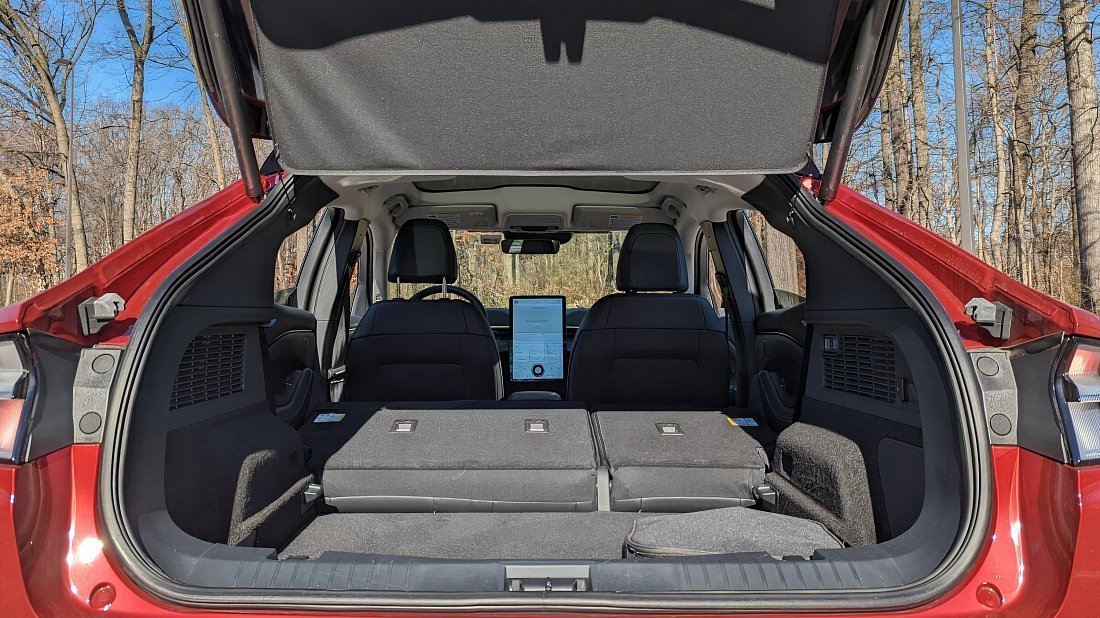

  • Max cargo capacity: Fold down the rear seats, and you open up 59.7 cubic feet of total cargo space (ranked №177 out of 683 electric vehicles).
  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 4.7 cubic feet for storing small items.
Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
