Genesis GV60 Advanced AWD 2022 - Compare Electric Car USA Specs

Technical Specifications of Genesis GV60 Advanced AWD (2022-…)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2022-…

Country of Manufacture Country where final assembly of the car took place

South Korea

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Produced

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): SUV

Range and Efficiency

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

292 mi 118 out of 233 248 mi 94 out of 155 242 mi 120 out of 242

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

77.4 kWh 60 out of 150 74 kWh 76 out of 177

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 30.6 kWh/100 mi (3.3 mi/kWh) 94 out of 204

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11 kW 10 out of 23 350 kW (233 kW at 400 V) 3 out of 81

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 800 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): AWD: PMSM (front), PMSM (rear)

Motor Total power and torque of the car's electric motor(s): Power

Torque

234 kW (314 hp) 107 out of 186 446 lb-ft 86 out of 172

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 5.3 s 36 out of 116

Top Speed The fastest the car can go (maximum speed): 124 mph 32 out of 65

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 177.8 in 112 out of 198

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

No Data 74.4 in 44 out of 92

Height Car's body height (from ground to highest point): 62.2 in 78 out of 147

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 114.2 in 50 out of 123

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 4769 lb 195 out of 437

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

15.3 ft3 98 out of 151 No Data No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

July 19, 2024

Download Specs PDF

How Far Can You Go in Genesis GV60 Advanced AWD (2022-…)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging Genesis GV60 Advanced AWD (2022-…)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

00 h 42 min

Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Not all Superchargers support non-Tesla vehicles The car’s DC charging capability at 400V stations is limited to 233 kW

Last Updated:

July 19, 2024

Open Charging Calculator

About Genesis GV60 Advanced AWD (2022-…)

The Genesis GV60 Advanced AWD (2022-…) is an all-electric all-wheel drive SUV. It came out in 2022. Brand new, the car starts around $60,550.

The Genesis GV60 Advanced AWD (2022-…) has a 77.4 kWh battery pack, allowing it to travel up to 242 mi on a single charge — ranked №378 out of 761 electric vehicles.

How powerful is it? How fast does it accelerate?

The Genesis GV60 Advanced AWD (2022-…) achieves a 0 to 60 mph acceleration in 5.3 seconds (placing it at №36 out of 116 ranked positions, among 761 electric vehicles, with some cars sharing positions) and attains a maximum speed of 124 mph.

Its powertrain provides a power output of up to 234 kW (314 hp) and a torque of 446 lb-ft.

How far can it go on single charge? What is the real-world range?

Genesis GV60 Advanced AWD (2022-…) achieves a real-world range of 242 miles, placing it at №120 among 242 ranked positions. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

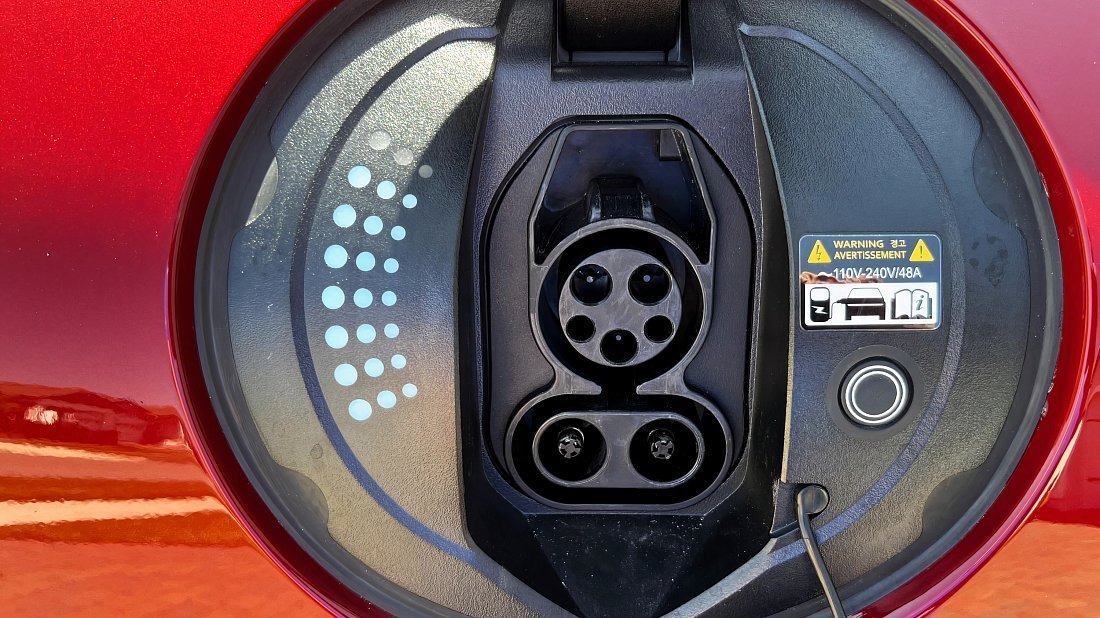

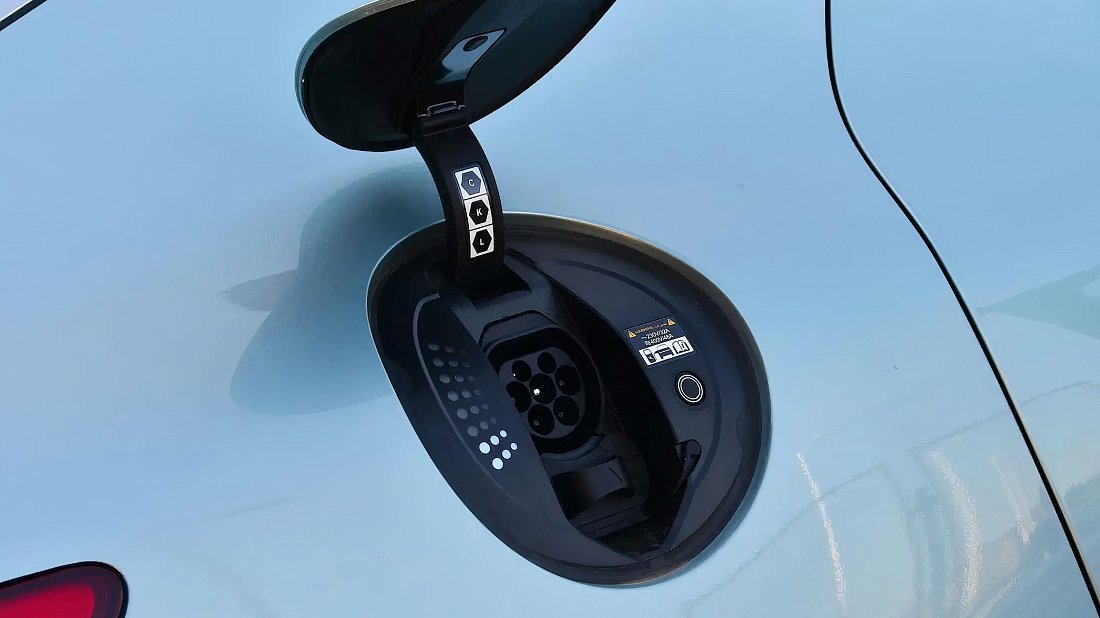

The Genesis GV60 Advanced AWD (2022-…) in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 32 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 350 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use EV Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Genesis GV60 Advanced AWD (2022-…) are as follows:

Length: 177.8 in
Width: in (including side mirrors) or 74.4 in (excluding side mirrors)
Height: 62.2 in
Wheelbase: 114.2 in (distance between the center of the front and rear wheels)
Curb weight: 4769 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

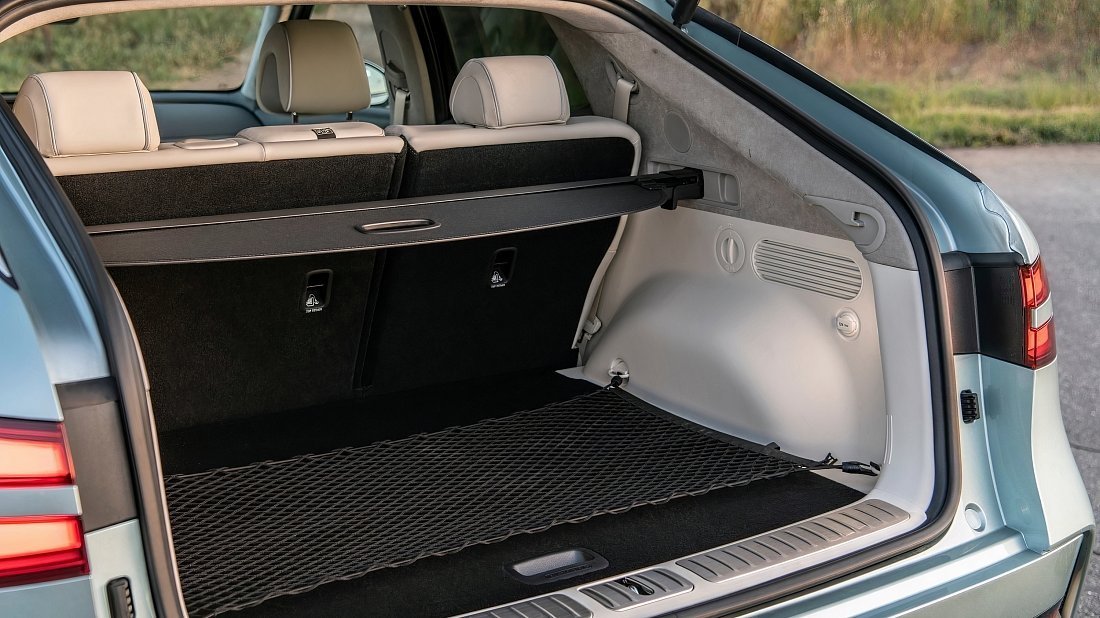

The rear cargo area of the Genesis GV60 Advanced AWD (2022-…) provides 15.3 cubic feet of space when the rear seats are upright (№98 out of 151 ranked positions, among 761 electric vehicles, with some cars sharing positions).

Folding these seats down unlocks a maximum cargo capacity of cubic feet (№ out of ranked positions, among 761 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
