Hyundai Ioniq 5 Long Range AWD

Years of Production
When the car first came out and when they stopped making it
2022 -
Price USA (new)
Manufacturer's suggested base price
$49,350
Price USA (used)
Estimated pre-owned price
$38,599

Trims

Currently Produced

Hyundai Ioniq 5 Long Range AWD

Technical Specifications of Hyundai Ioniq 5 Long Range AWD

General Info

Years of Production
When the car first came out and when they stopped making it
2022 -
Country of Manufacture
Country where final assembly of the car took place.
South Korea
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Hyundai Ioniq 5 Long Range AWD

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
260 mi
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
299 mi 282 mi
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
28.9 kWh 289 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
77.4 kWh 74 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 233 kW

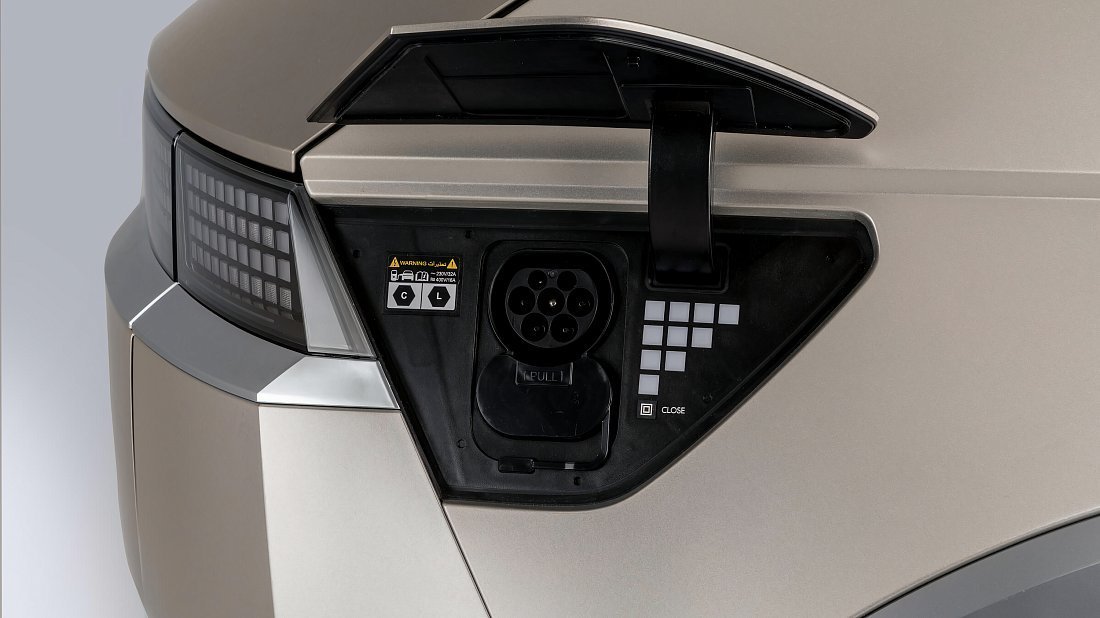

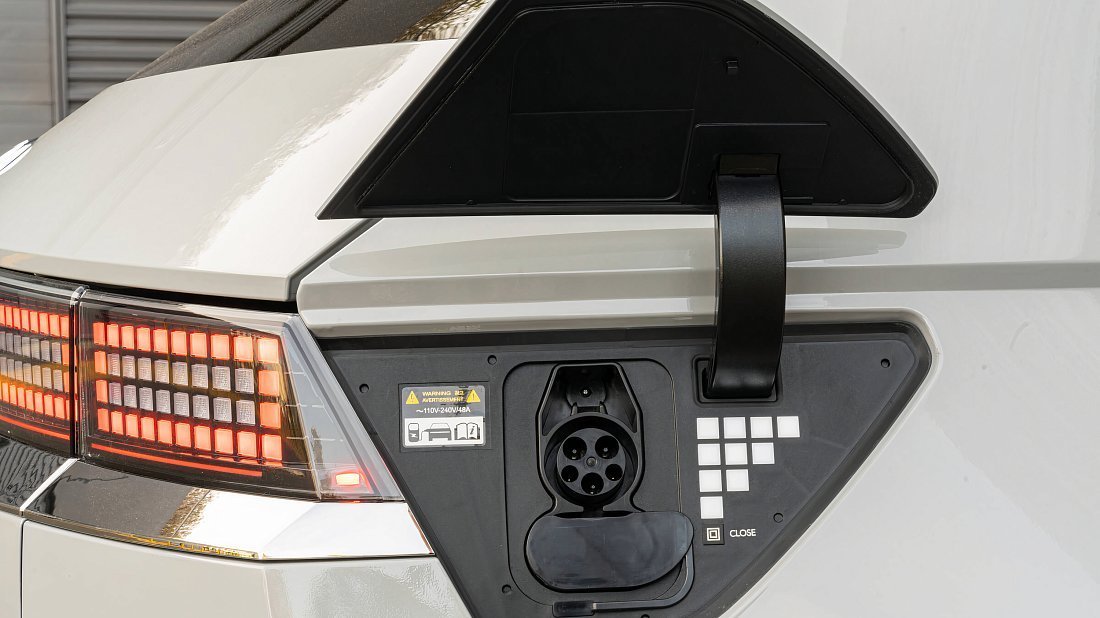

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Which wheels are powered (all, rear, or front) by the electric motor(s)
AWD
Engine
Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.
Power
Torque
239 kW (320 hp) 446 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
4.9 s
Top Speed
The fastest the car can go (maximum speed)
115 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
182.5 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
84.7 in 74.4 in
Height
Car's body height (from ground to highest point)
63.2 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
118.1 in

Cargo and Towing

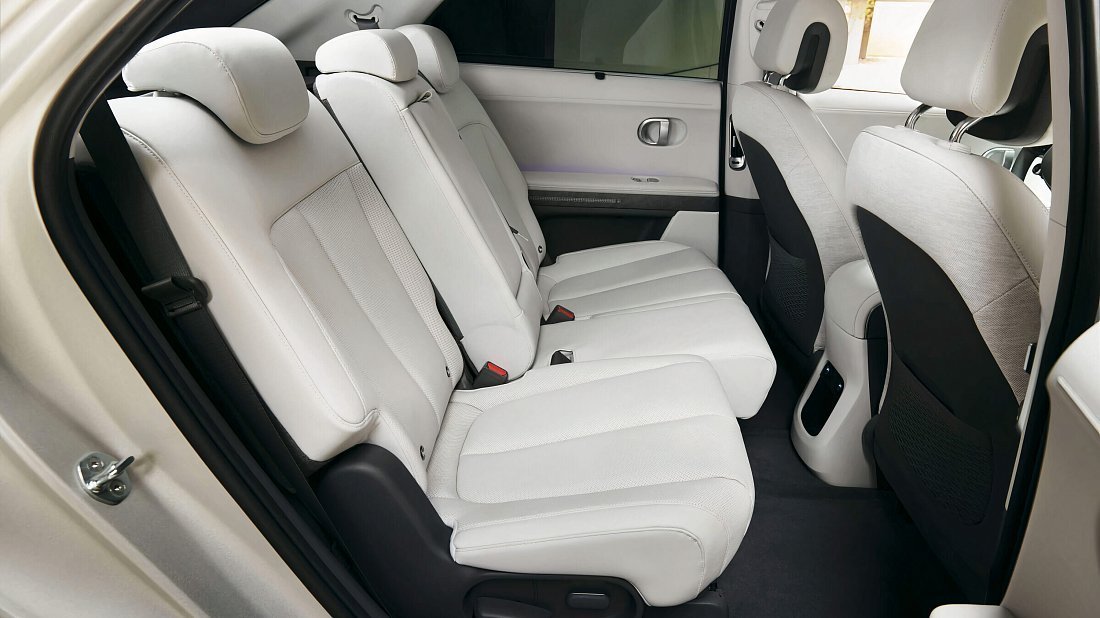

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4519 lb

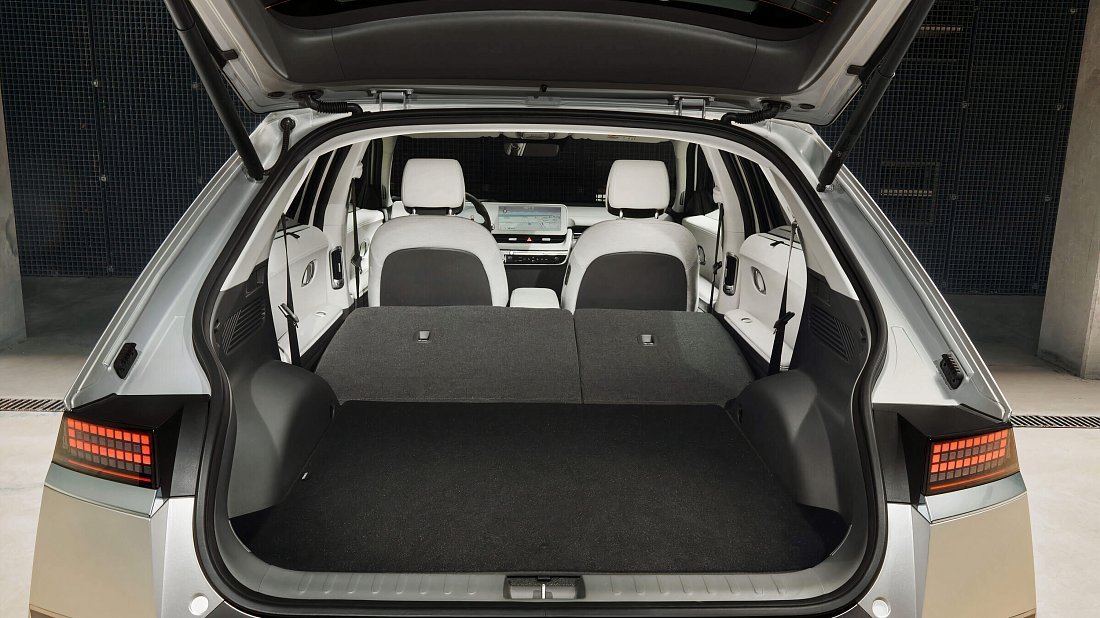

Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
18.6 ft3 55.7 ft3 0.8 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
2300 lb
Last Updated:
April 25, 2024
Download Specs PDF

Charging Hyundai Ioniq 5 Long Range AWD

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Socket specs
Socket specs
120 V, 15 A, 1-phase
Socket output
Socket output
1.8 kW
Charging 20-80%
Charging 20-80%
27 h 24 min (~6 mph)

NEMA 5-20

Socket specs
Socket specs
120 V, 20 A, 1-phase
Socket output
Socket output
2.4 kW
Charging 20-80%
Charging 20-80%
20 h 33 min (~7 mph)

NEMA 6-20

Socket specs
Socket specs
240 V, 20 A, 1-phase
Socket output
Socket output
4.8 kW
Charging 20-80%
Charging 20-80%
10 h 17 min (~15 mph)

NEMA 14-30

Socket specs
Socket specs
240 V, 30 A, 1-phase
Socket output
Socket output
7.2 kW
Charging 20-80%
Charging 20-80%
06 h 51 min (~22 mph)

NEMA 14-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
04 h 29 min (~34 mph)
Charging power is limited by the car’s on-board charger (11 kW)

NEMA 6-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
04 h 29 min (~34 mph)
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
01 h 03 min (~147 mph)

CCS DC 100 kW

Socket output
Socket output
100 kW
Charging 20-80%
Charging 20-80%
00 h 33 min (~277 mph)

CCS DC 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 22 min (~415 mph)

CCS DC 200 kW

Socket output
Socket output
200 kW
Charging 20-80%
Charging 20-80%
00 h 18 min (~519 mph)

CCS DC 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 15 min (~605 mph)
Charging power is limited by the car’s DC charging capability (233 kW)

CCS DC 350 kW

Socket output
Socket output
350 kW
Charging 20-80%
Charging 20-80%
00 h 15 min (~605 mph)
Charging power is limited by the car’s DC charging capability (233 kW)

Supercharger V2 Split 75 kW

Socket output
Socket output
75 kW
Charging 20-80%
Charging 20-80%
00 h 42 min (~221 mph)
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 22 min (~415 mph)
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 15 min (~605 mph)
Not all Superchargers support non-Tesla vehicles Charging power is limited by the car’s DC charging capability (233 kW)
Last Updated:
April 25, 2024
Open Charging Calculator

About Hyundai Ioniq 5 Long Range AWD

The Hyundai Ioniq 5 Long Range AWD is an all-electric all-wheel drive SUV. It came out in 2022.

The Hyundai Ioniq 5 Long Range AWD has a 77.4 kWh battery pack, allowing it to travel up to 254 mi on a single charge. The car has an average efficiency of 29.1 kWh per 100 miles (or 291 Wh/mile) — ranked №224 out of 586 electric vehicles.

Frequently Asked Questions

How fast is Hyundai Ioniq 5 Long Range AWD

The Hyundai Ioniq 5 Long Range AWD achieves a 0 to 60 mph acceleration in 4.9 seconds (placing it at №165 among 596 electric vehicles) and attains a maximum speed of 115 mph.

Its powertrain provides a power output of up to 239 kW (320 hp) and a torque of 446 lb-ft.

Real-world range of Hyundai Ioniq 5 Long Range AWD

The real-world range of the Hyundai Ioniq 5 Long Range AWD is 230–282 miles (ranked №217 out of 596 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

Hyundai Ioniq 5 Long Range AWD charge port type?

The Hyundai Ioniq 5 Long Range AWD in the USA is equipped with a CCS Type 1 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11 kW, which translates to roughly 34 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Hyundai Ioniq 5 Long Range AWD supports a maximum DC charging rate of 233 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use Green Cars Compare Charging Calculator.

Hyundai Ioniq 5 Long Range AWD dimensions and weight?

The size and weight specifications for Hyundai Ioniq 5 Long Range AWD are as follows:

  • Length: 182.5 in
  • Width: 84.7 in (including side mirrors) or 74.4 in (excluding side mirrors)
  • Height: 63.2 in
  • Wheelbase: 118.1 in (distance between the center of the front and rear wheels)
  • Curb weight: 4519 lbs (weight of the empty car, no people or cargo)

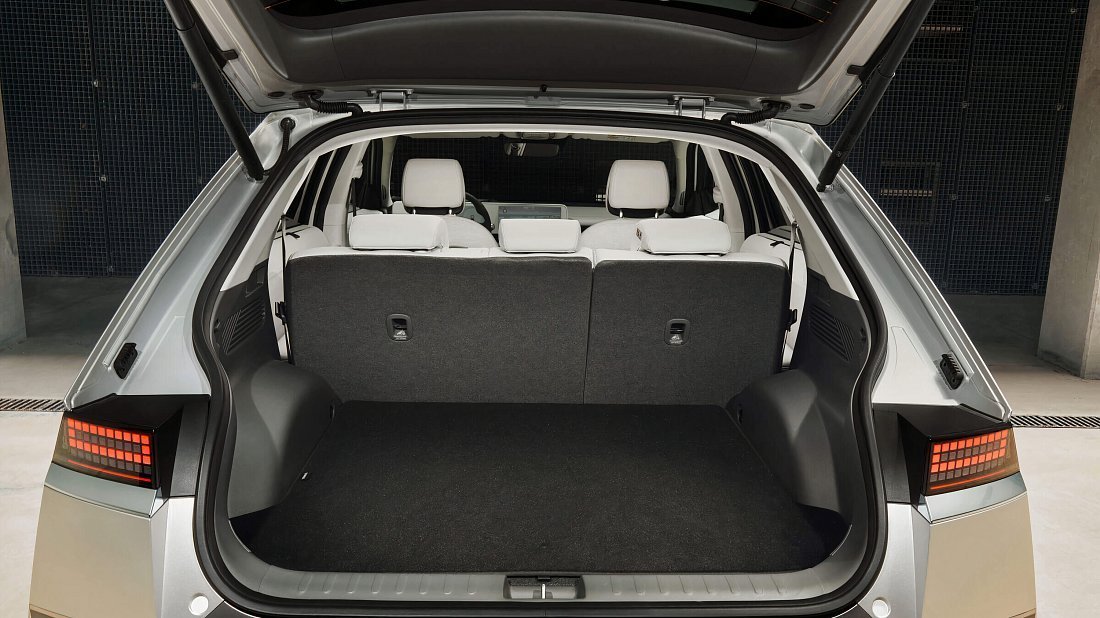

Hyundai Ioniq 5 Long Range AWD cargo capacity?

The rear cargo area of the Hyundai Ioniq 5 Long Range AWD provides 18.6 cubic feet of space when the rear seats are upright (ranked №222 out of 596 electric vehicles).

Folding these seats down unlocks a maximum cargo capacity of 55.7 cubic feet (ranked №222 out of 596 electric vehicles).

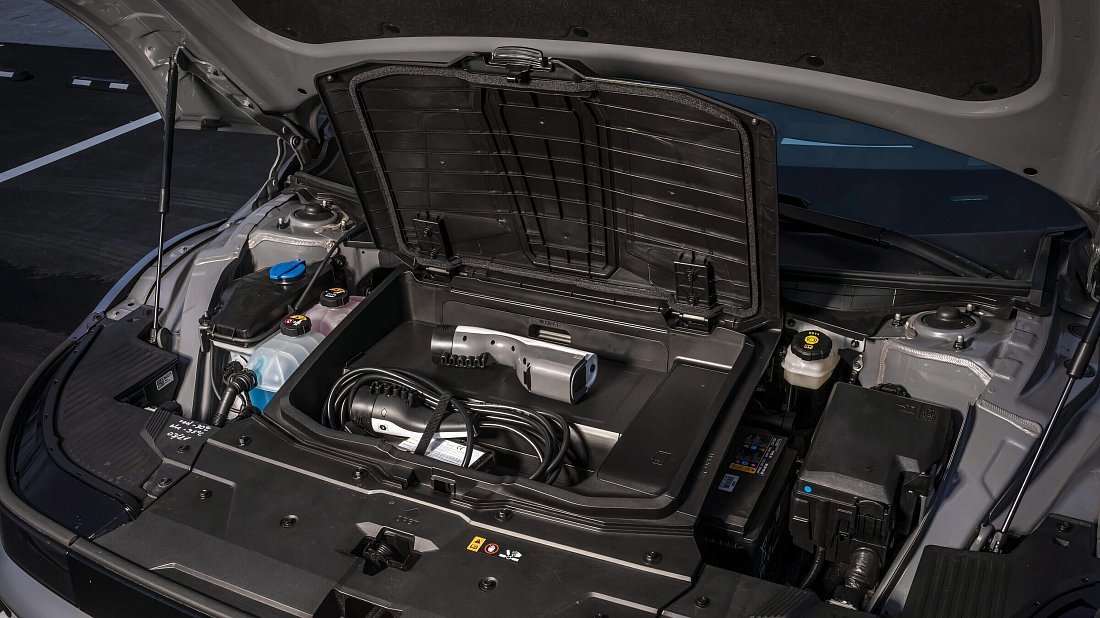

In addition, the car has a frunk, a front compartment with 0.8 cubic feet dedicated to smaller items.

Hyundai Ioniq 5 Long Range AWD towing capacity?
The Hyundai Ioniq 5 Long Range AWD can safely tow up to 2300 lbs, provided that the trailer has its own braking system.
