Hyundai Ioniq 5 Standard Range AWD

Years of Production
When the car first came out and when they stopped making it
2021 - 2022

Trims

Discontinued
Standard Range AWD Project 45

Hyundai Ioniq 5 Standard Range AWD

Technical Specifications of Hyundai Ioniq 5 Standard Range AWD

General Info

Years of Production
When the car first came out and when they stopped making it
2021 - 2022
Country of Manufacture
Country where final assembly of the car took place.
South Korea
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Hyundai Ioniq 5 Standard Range AWD

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
No Data
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
225 mi No Data
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
28.3 kWh 283 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
58 kWh 54 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 175 kW

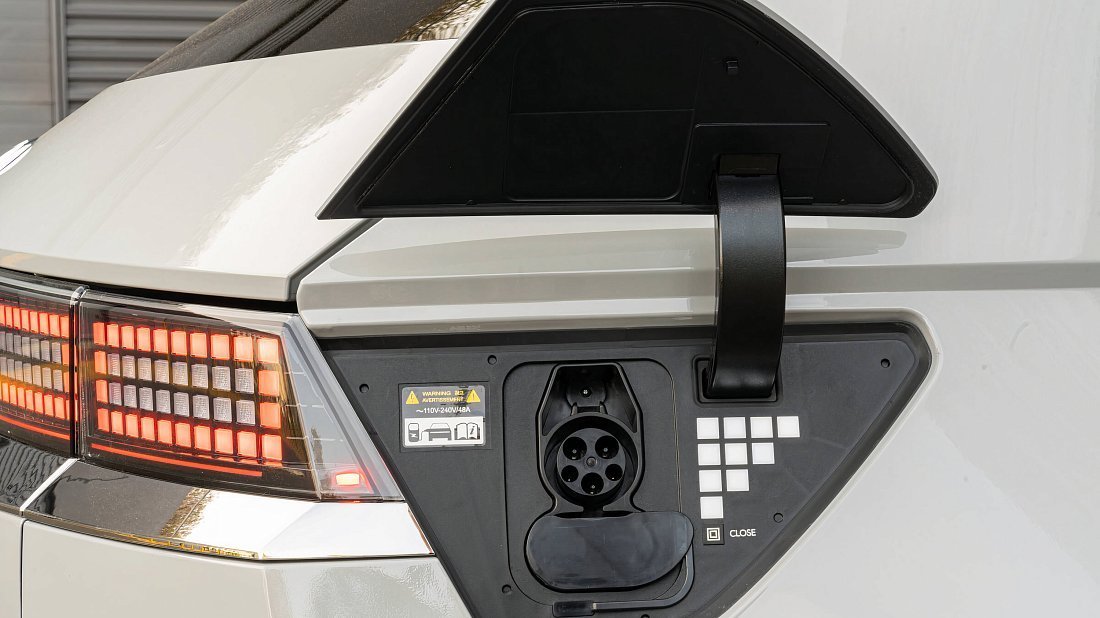

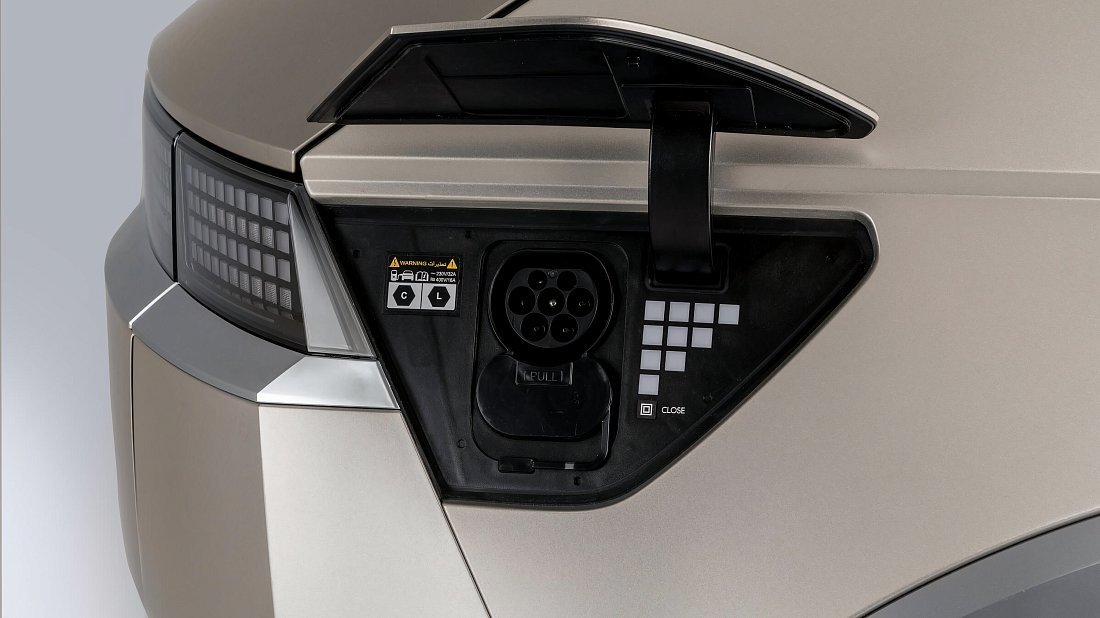

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Which wheels are powered (all, rear, or front) by the electric motor(s)
AWD
Engine
Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.
Power
Torque
306 hp (228 kW) 446 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.9 s
Top Speed
The fastest the car can go (maximum speed)
115 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
182.5 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
84.7 in 74.4 in
Height
Car's body height (from ground to highest point)
63.2 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
118.1 in

Cargo and Towing

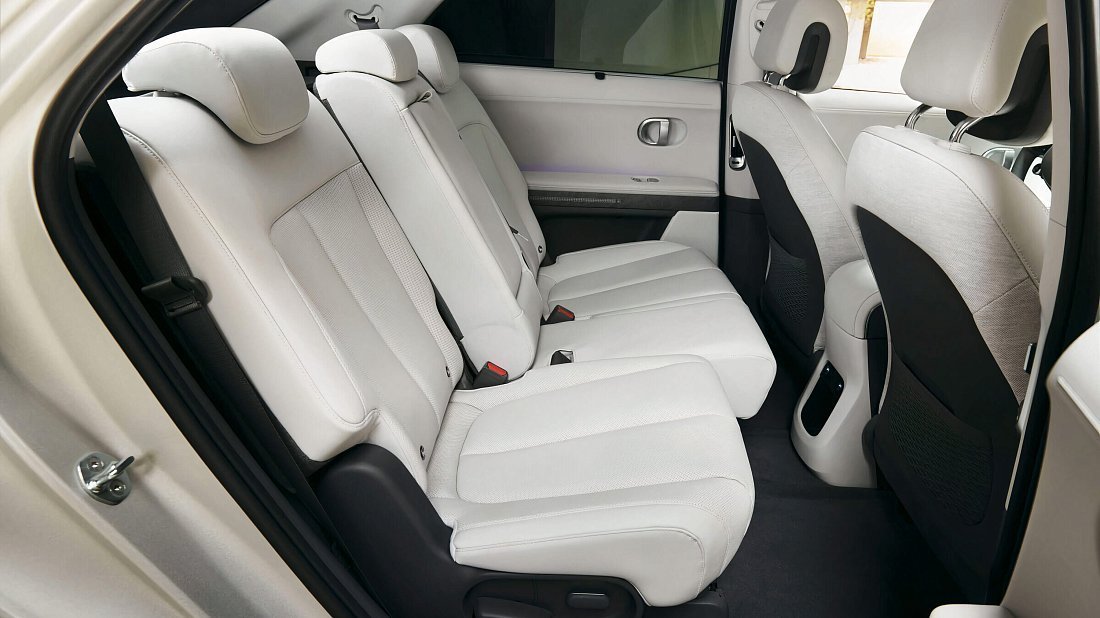

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4442 lb

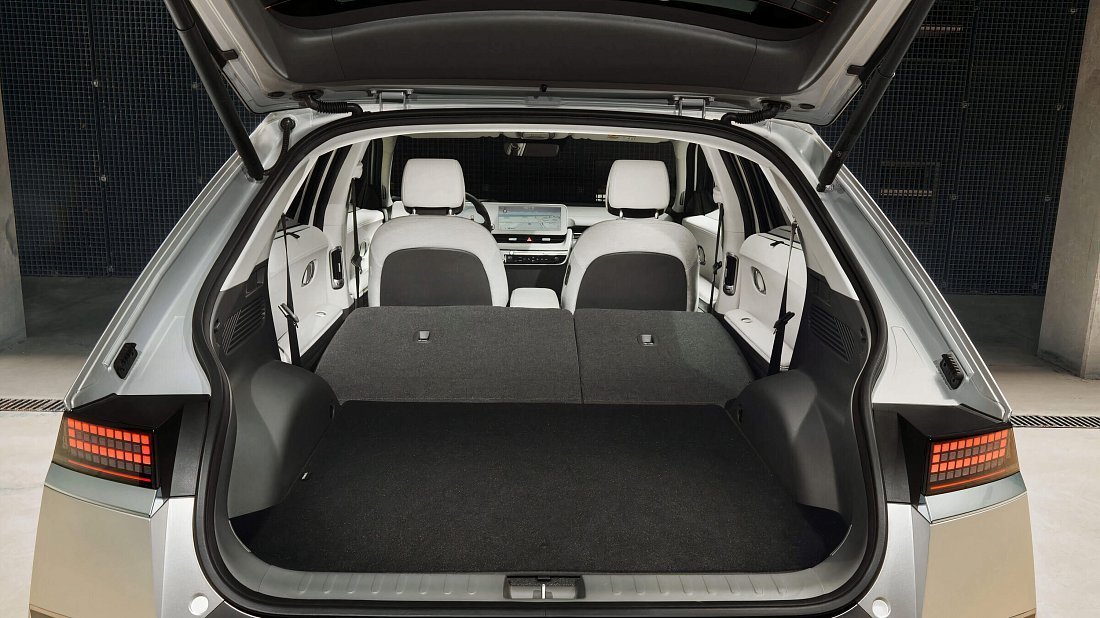

Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
18.8 ft3 56.2 ft3 0.8 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 10, 2024
Download Specs PDF

Charging Hyundai Ioniq 5 Standard Range AWD

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Socket specs
Socket specs
120 V, 15 A, 1-phase
Socket output
Socket output
1.8 kW
Charging 20-80%
Charging 20-80%
19 h 00 min

NEMA 5-20

Socket specs
Socket specs
120 V, 20 A, 1-phase
Socket output
Socket output
2.4 kW
Charging 20-80%
Charging 20-80%
14 h 00 min

NEMA 6-20

Socket specs
Socket specs
240 V, 20 A, 1-phase
Socket output
Socket output
4.8 kW
Charging 20-80%
Charging 20-80%
07 h 30 min

NEMA 14-30

Socket specs
Socket specs
240 V, 30 A, 1-phase
Socket output
Socket output
7.2 kW
Charging 20-80%
Charging 20-80%
04 h 00 min

NEMA 14-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
03 h 16 min
Charging power is limited by the car’s on-board charger (11 kW)

NEMA 6-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
03 h 16 min
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
00 h 46 min

CCS DC 100 kW

Socket output
Socket output
100 kW
Charging 20-80%
Charging 20-80%
00 h 24 min

CCS DC 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 16 min

CCS DC 200 kW

Socket output
Socket output
200 kW
Charging 20-80%
Charging 20-80%
00 h 14 min
Charging power is limited by the car’s DC charging capability (175 kW)

CCS DC 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 14 min
Charging power is limited by the car’s DC charging capability (175 kW)

CCS DC 350 kW

Socket output
Socket output
350 kW
Charging 20-80%
Charging 20-80%
00 h 14 min
Charging power is limited by the car’s DC charging capability (175 kW)

Supercharger V2 Split 75 kW

Socket output
Socket output
75 kW
Charging 20-80%
Charging 20-80%
00 h 30 min
Not all Tesla Superchargers are open to non-Tesla vehicles

Supercharger V2 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 16 min
Not all Tesla Superchargers are open to non-Tesla vehicles

Supercharger V3 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 14 min
Not all Tesla Superchargers are open to non-Tesla vehicles Charging power is limited by the car’s DC charging capability (175 kW)
Last Updated:
March 10, 2024
Open Charging Calculator

About Hyundai Ioniq 5 Standard Range AWD

The Hyundai Ioniq 5 Standard Range AWD is an all-electric all-wheel drive SUV. It came out in 2021. Hyundai stopped making the Standard Range AWD in 2022.

The Hyundai Ioniq 5 Standard Range AWD has a 58 kWh battery pack, allowing it to travel up to 191 mi on a single charge. The car has an average efficiency of 28.3 kWh per 100 miles (or 283 Wh/mile) — ranked №402 out of 575 electric vehicles.

Frequently Asked Questions

How fast is Hyundai Ioniq 5 Standard Range AWD

The Hyundai Ioniq 5 Standard Range AWD is equipped with a powertrain that delivers up to 228 kW (306 hp) of power and 446 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 5.9 seconds (ranked №242 out of 575 electric vehicles) and a top speed of 115 mph.

Real-world range of Hyundai Ioniq 5 Standard Range AWD

The estimated real-world range for Hyundai Ioniq 5 Standard Range AWD falls between 172–210 miles, ranking it №402 out of 575 electric vehicles. Several conditions can influence this range:

  • Speed: The battery drains faster at higher speeds.
  • Temperature: Extreme temperatures can impact range.
  • Terrain: Range is reduced on hilly or mountainous terrain.
  • Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
  • Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

Hyundai Ioniq 5 Standard Range AWD charge port type?

In the USA Hyundai Ioniq 5 Standard Range AWD has a CCS Type 1 charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 35 miles of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 175 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using our Charging calculator.

Hyundai Ioniq 5 Standard Range AWD dimensions and weight?

Here are the dimensions and weight for the Hyundai Ioniq 5 Standard Range AWD:

  • Length: 182.5 in
  • Width: 84.7 in (including side mirrors) or 74.4 in (excluding side mirrors)
  • Height: 63.2 in
  • Wheelbase: 118.1 in (distance between the center of the front and rear wheels)
  • Curb weight: 4442 lbs (weight of the empty car, no people or cargo)
Hyundai Ioniq 5 Standard Range AWD cargo capacity?

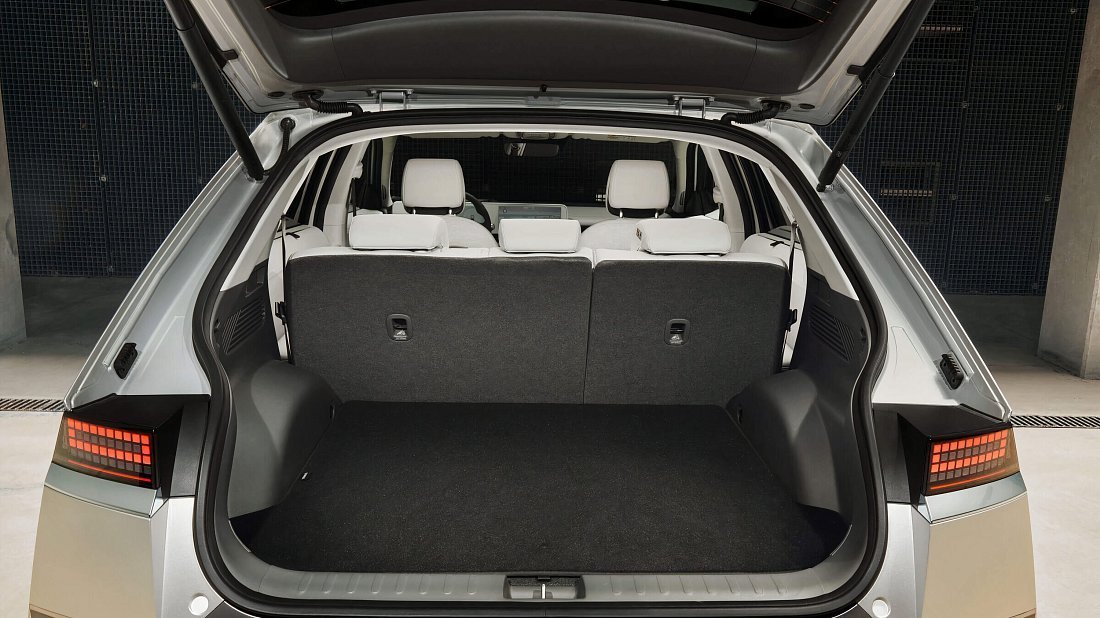

Behind the rear seats of the Hyundai Ioniq 5 Standard Range AWD, you'll find 18.8 cubic feet of storage space (ranked №196 out of 575 electric vehicles).

Folding down the rear seats expands the total cargo capacity to 56.2 cubic feet (ranked №192 out of 575 electric vehicles).

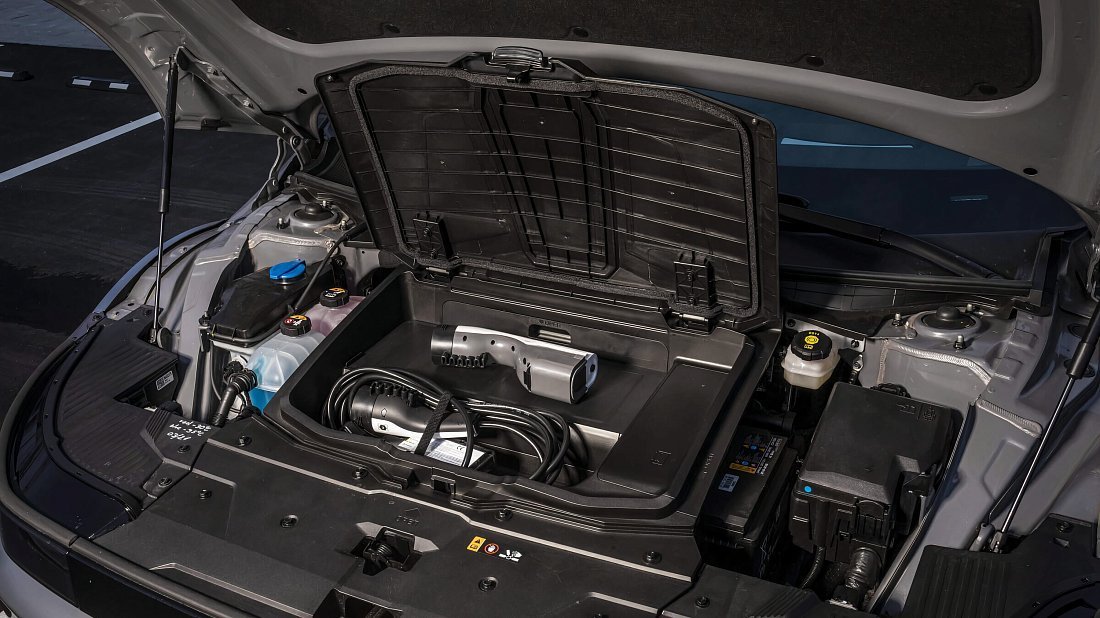

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 0.8 cubic feet for storing small items.

Hyundai Ioniq 5 Standard Range AWD towing capacity?
The car isn’t officially rated for towing.
