Mercedes EQS SUV 450+ 2022-2023 - Compare Electric Car USA Specs

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2022-2023 (Discontinued)

Market Availability: USA

Country of Manufacture Country where final assembly of the car took place

USA

Body Style Vehicle category based on its shape and layout: SUV

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

336-418 mi 23 out of 254 305 mi 55 out of 168 316 mi 56 out of 257

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

120 kWh 13 out of 169 108.4 kWh 20 out of 194

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

34.3 kWh/100 mi 130 out of 212 2.92 mi/kWh 166 out of 241

Charging

Max AC Charging: 9.6 kW 14 out of 24

Max DC Charging: 207 kW 23 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): RWD 1 motor: PMSM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

265 kW (355 hp) 102 out of 198 419 lb-ft 101 out of 191

0-60 mph Acceleration time from a standstill: 6.4 s 48 out of 118

Top Speed The fastest the car can go (max speed): 130 mph 31 out of 72

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 201.8 in 23 out of 232

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

84.9 in 33 out of 105 77.1 in 26 out of 100

Height Car's body height (from ground to highest point): 67.6 in 44 out of 158

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 126.4 in 14 out of 140

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5, 7

Curb Weight Car's weight without passengers or cargo: 5963 lb 43 out of 537

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

22.8 ft³ 47 out of 158 74.2 ft³ 34 out of 186 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

June 14, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger ( kW) Charging power is limited by the car’s DC charging capability (207 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 207 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Mercedes EQS SUV 450+ (2022-2023) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Mercedes EQS SUV 450+ (2022-2023) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

The Mercedes EQS SUV 450+ (2022-2023) is an all-electric rear-wheel drive SUV. It came out in 2022. Mercedes stopped making the 450+ in 2023 and replaced it with the Mercedes EQS SUV 450+ (2023-…). You can still find Mercedes EQS SUV 450+ (2022-2023) on the used car market, with prices starting around $72,995. The car is not available on the US market.

The Mercedes EQS SUV 450+ (2022-2023) has a 120 kWh battery pack, allowing it to travel up to 316 mi on a single charge — ranked №99 out of 911 electric vehicles.

How powerful is it? How fast does it accelerate?

The Mercedes EQS SUV 450+ (2022-2023) is equipped with a powertrain that delivers up to 265 kW (355 hp) of power and 419 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 6.4 seconds (№48 out of 118 ranked positions, among 911 electric vehicles, with some cars sharing positions) and a top speed of 130 mph.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for Mercedes EQS SUV 450+ (2022-2023) is 316 miles, ranking it №56 out of 257 ranked positions. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

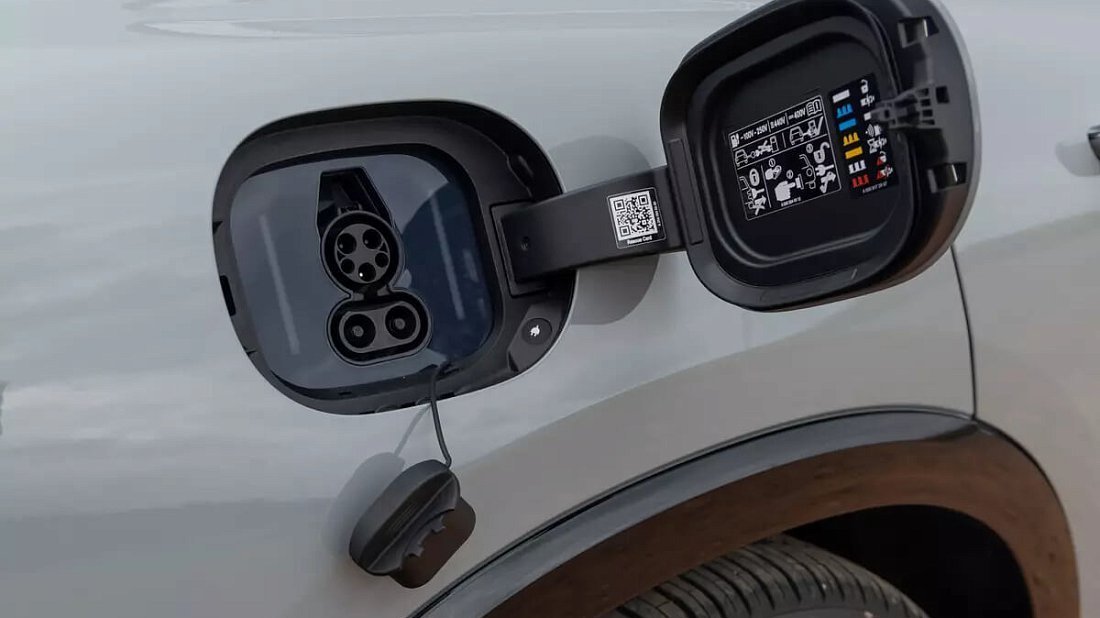

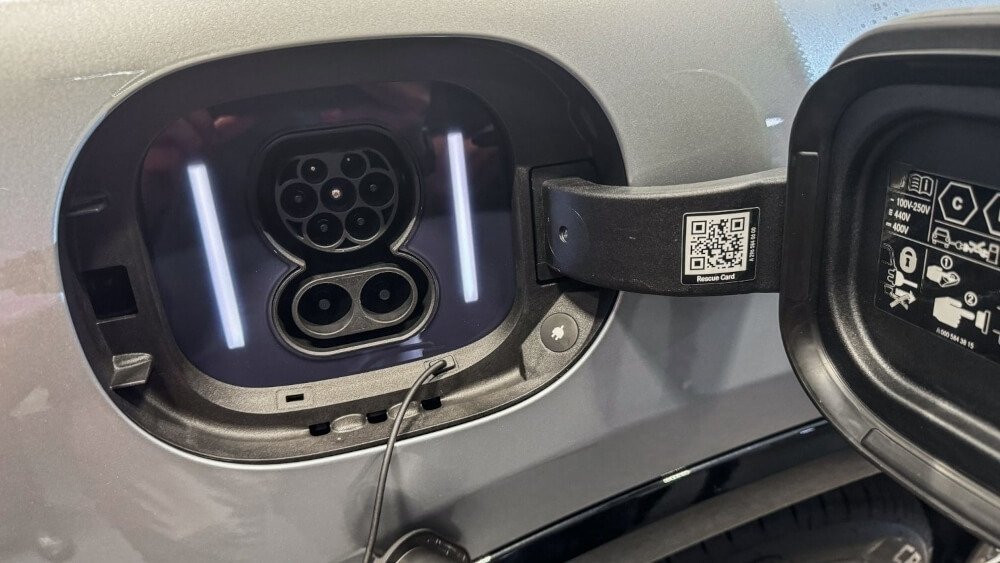

The Mercedes EQS SUV 450+ (2022-2023) in the USA is equipped with a CCS Type 1 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 9.6 kW, which translates to roughly 25 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Mercedes EQS SUV 450+ (2022-2023) supports a maximum DC charging rate of 207 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Mercedes EQS SUV 450+ (2022-2023) comes in the following dimensions:

Length: 201.8 in
Width: 84.9 in (including side mirrors) or #WIDTH_WO_MIRRORS_VALUE# in (excluding side mirrors)
Height: 67.6 in
Wheelbase: 126.4 in (distance between the center of the front and rear wheels)
Curb weight: 5963 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

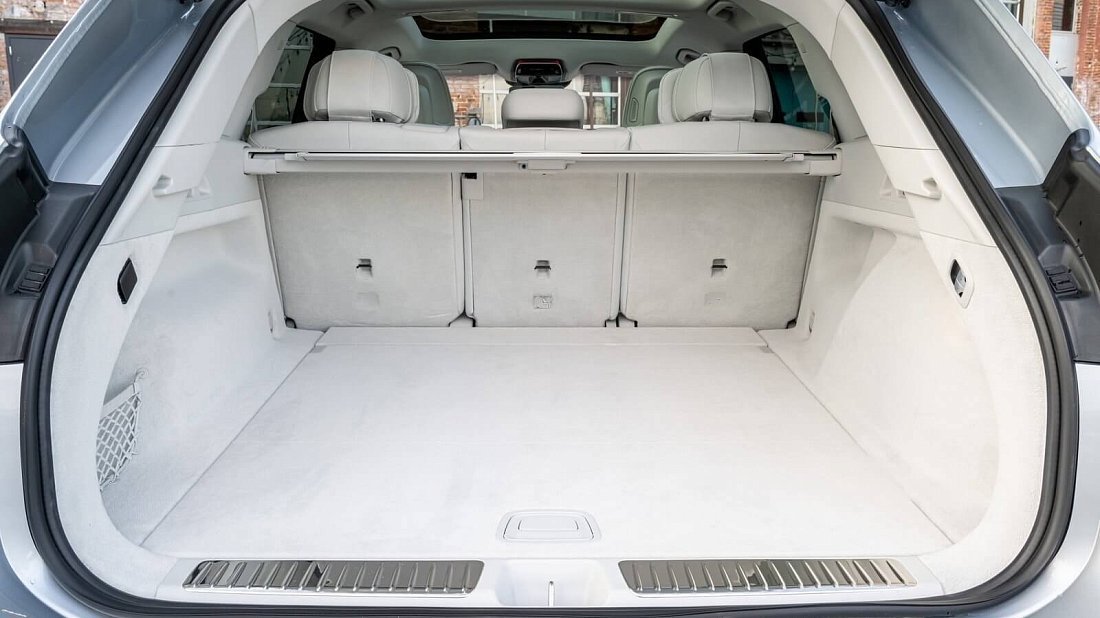

Behind the rear seats of the Mercedes EQS SUV 450+ (2022-2023), you'll find 22.8 cubic feet of storage space (№47 out of 158 ranked positions, among 911 electric vehicles, with some cars sharing positions).

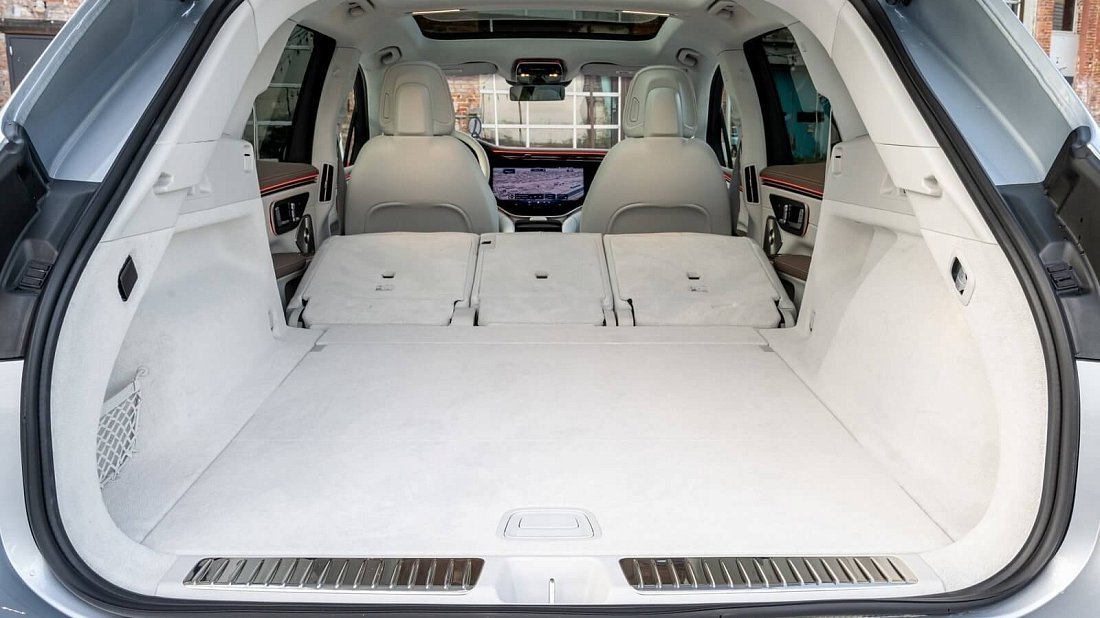

Folding down the rear seats expands the total cargo capacity to 74.2 cubic feet (№34 out of 186 ranked positions, among 911 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
