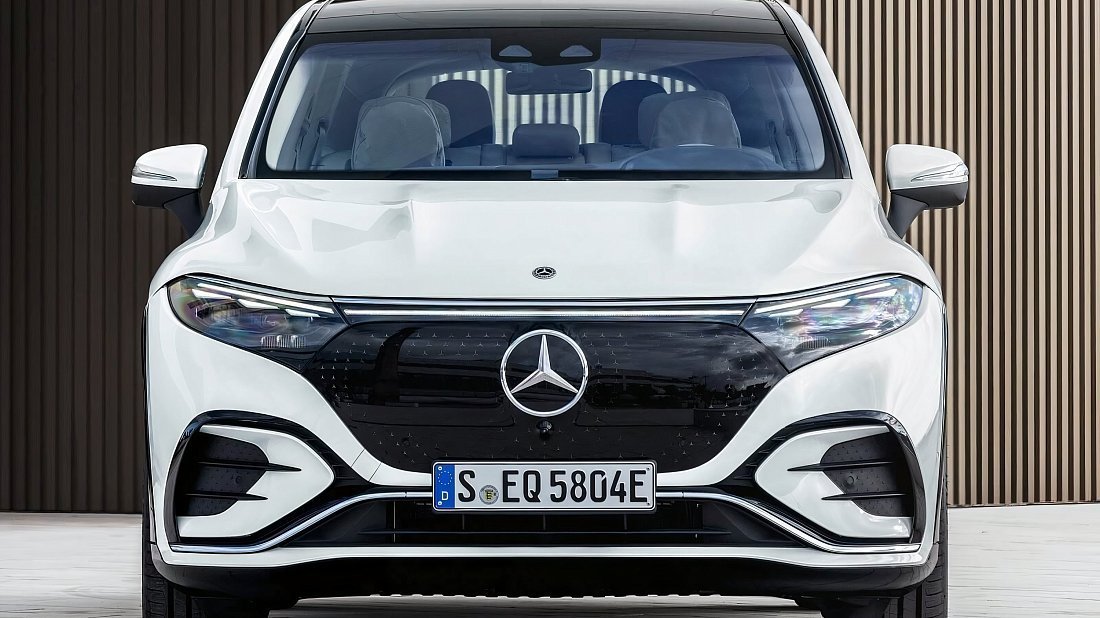

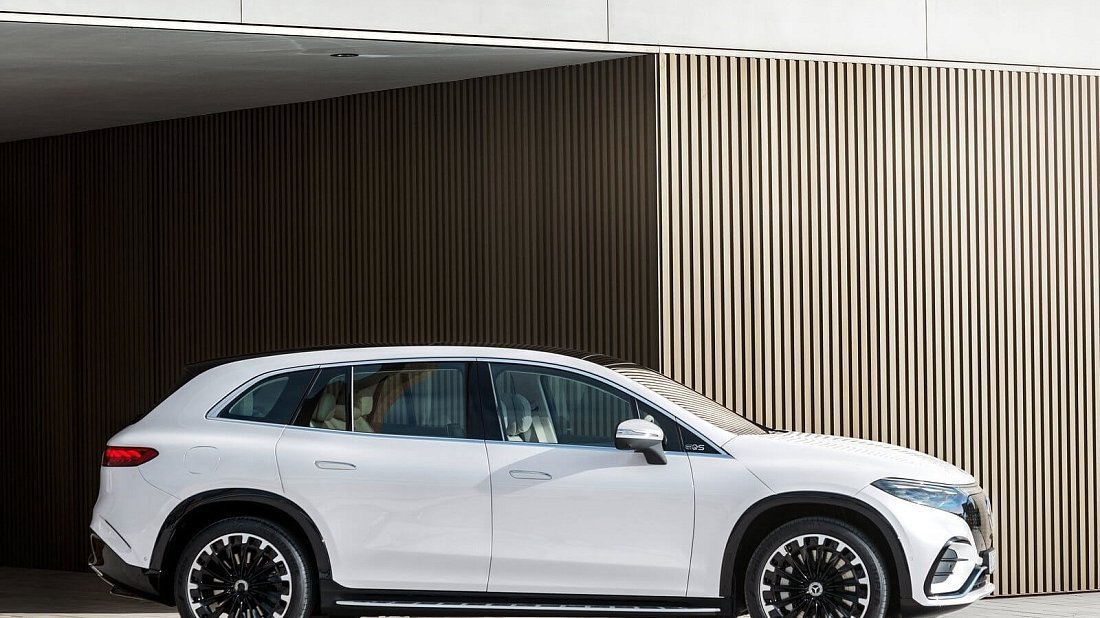

Mercedes EQS SUV 580 4MATIC

Years of Production
When the car first came out and when they stopped making it
2022-2023
Price USA (used)
Estimated pre-owned price
$90,499
In 2023 this car was replaced by: Mercedes EQS SUV 580 4MATIC (2023-…)

Trims

Currently Produced
450+ Since 2023 450 4MATIC Since 2023 500 4MATIC Since 2023 580 4MATIC Since 2023 Maybach 680 Since 2024
Discontinued
450+ 2022-2023 450 4MATIC 2022-2023 500 4MATIC 2022-2023 580 4MATIC 2022-2023

Mercedes EQS SUV 580 4MATIC (2022-2023)

Technical Specifications of Mercedes EQS SUV 580 4MATIC (2022-2023)

General Info

Years of Production
When the car first came out and when they stopped making it
2022-2023
Country of Manufacture
Country where final assembly of the car took place
USA
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Mercedes EQS SUV 580 4MATIC (2022-2023)

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
318-382 mi 285 mi 299 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
120 kWh 108.4 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
36.3 kWh/100 mi (2.8 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
9.6 kW 207 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V

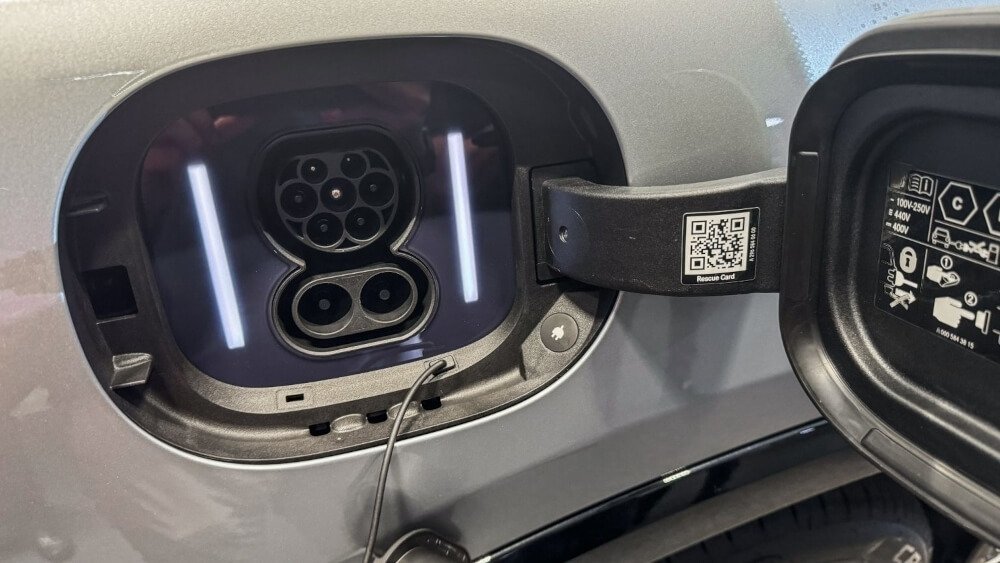

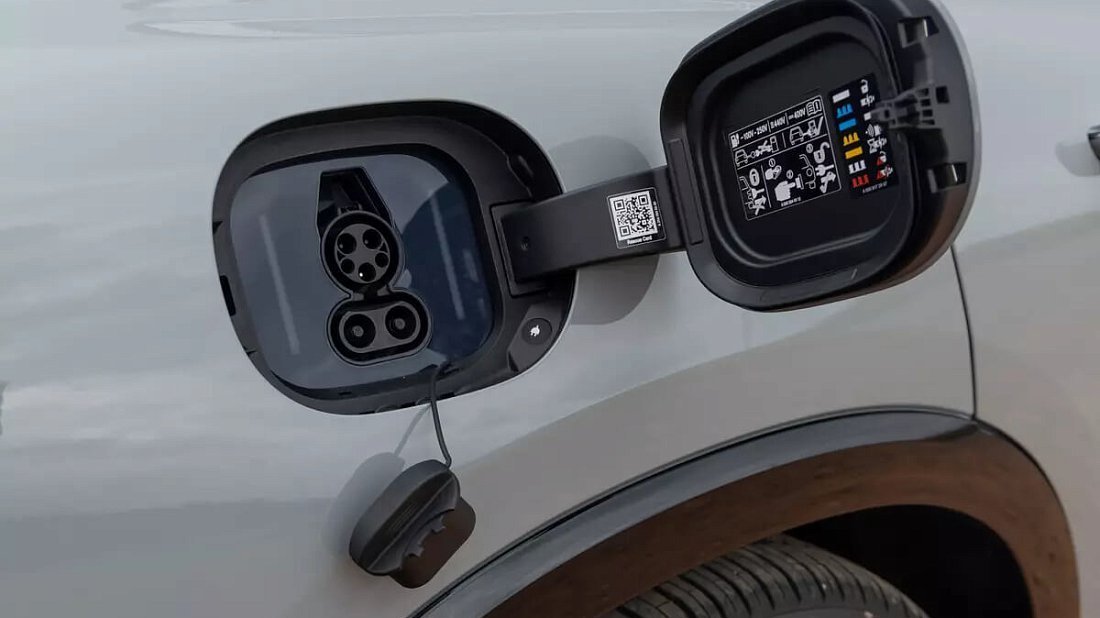

Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
400 kW (536 hp) 633 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
4.4 s
Top Speed
The fastest the car can go (maximum speed)
130 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
201.8 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
84.9 in 77.1 in
Height
Car's body height (from ground to highest point)
67.6 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
126.4 in

Cargo and Towing

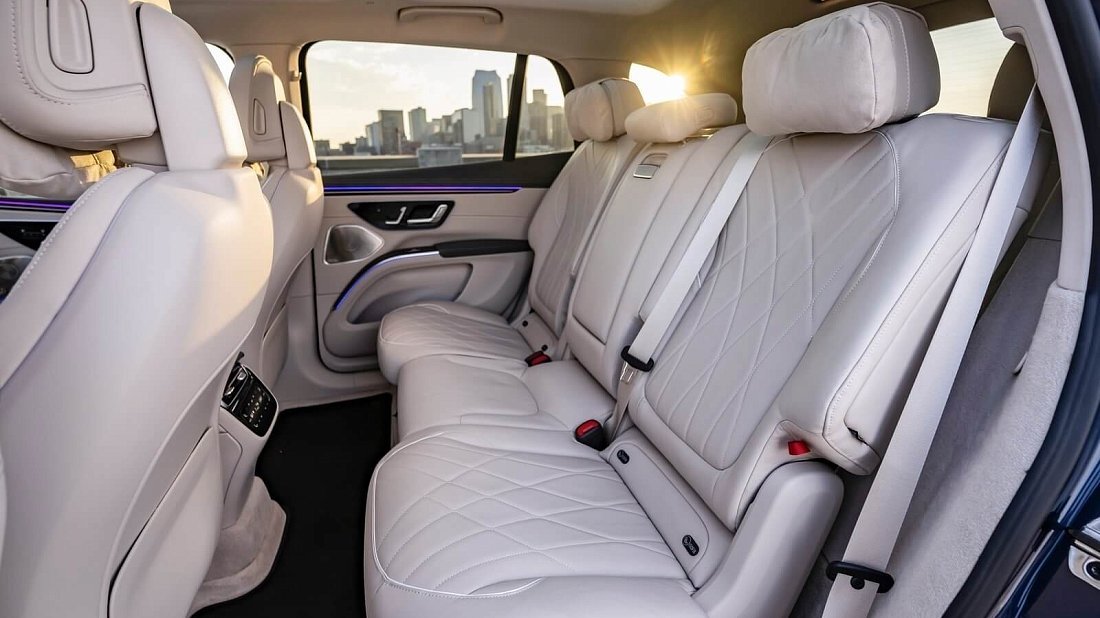

Number of Seats
Total passenger capacity of the car (including driver)
5, 7
Curb Weight
Car's weight without passengers or cargo
6228 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
22.8 ft3 74.2 ft3 No Data
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
3500 lb
Last Updated:
June 14, 2024
Download Specs PDF

How Far Can You Go in Mercedes EQS SUV 580 4MATIC (2022-2023)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.
  • Light green area: Round-trip
  • Dark green area: One-way

Charging Mercedes EQS SUV 580 4MATIC (2022-2023)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
40 h 09 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
30 h 07 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
15 h 03 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
10 h 02 min

NEMA 14-50

Output:
9.6 kW
240 V, 40 A, 1-phase
20-80%:
07 h 32 min

NEMA 14-50 (Hardwired)

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
07 h 32 min
Charging power is limited by the car’s on-board charger (9.6 kW)

NEMA 6-50

Output:
9.6 kW
240 V, 40 A, 1-phase
20-80%:
07 h 32 min

NEMA 6-50 (Hardwired)

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
07 h 32 min
Charging power is limited by the car’s on-board charger (9.6 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
01 h 32 min

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 49 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 33 min

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 26 min

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 25 min
The car’s DC charging capability is limited to 207 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 25 min
The car’s DC charging capability is limited to 207 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
01 h 01 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 33 min
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 25 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability at 400V stations is limited to 207 kW
Last Updated:
June 14, 2024
Open Charging Calculator

About Mercedes EQS SUV 580 4MATIC (2022-2023)

Detailed Descriptions

The Mercedes EQS SUV 580 4MATIC (2022-2023) is an all-electric all-wheel drive SUV. It came out in 2022. Mercedes stopped making the 580 4MATIC in 2023 and replaced it with the Mercedes EQS SUV 580 4MATIC (2023-…). You can still find Mercedes EQS SUV 580 4MATIC (2022-2023) on the used car market, with prices starting around $90,499.

The Mercedes EQS SUV 580 4MATIC (2022-2023) has a 120 kWh battery pack, allowing it to travel up to 299 mi on a single charge. The car has an average efficiency of 36.3 kWh per 100 miles (or 2.8 miles per kWh) — ranked №153 out of 695 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Mercedes EQS SUV 580 4MATIC (2022-2023) can accelerate from 0 to 60 mph in 4.4 seconds (ranked №164 out of 693 electric vehicles) and reach a top speed of 130 mph.

The car’s powertrain delivers up to 400 kW (536 hp) of power and 633 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for Mercedes EQS SUV 580 4MATIC (2022-2023) falls between 269–329 miles, ranking it №150 out of 693 electric vehicles. Several conditions can influence this range:

  • Speed: The battery drains faster at higher speeds.
  • Temperature: Extreme temperatures can impact range.
  • Terrain: Range is reduced on hilly or mountainous terrain.
  • Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
  • Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The Mercedes EQS SUV 580 4MATIC (2022-2023) in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 9.6 kW, resulting in approximately 24 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 207 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Mercedes EQS SUV 580 4MATIC (2022-2023):

  • Length: 201.8 in
  • Width: 84.9 in (including side mirrors) or 77.1 in (excluding side mirrors)
  • Height: 67.6 in
  • Wheelbase: 126.4 in (distance between the center of the front and rear wheels)
  • Curb weight: 6228 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

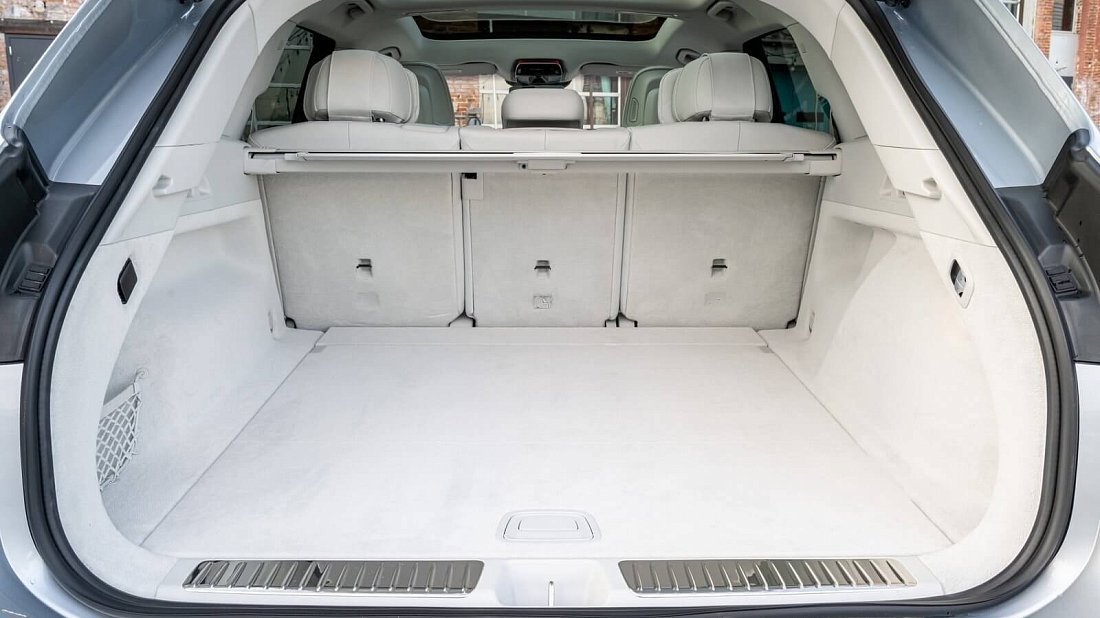

Behind the rear seats of the Mercedes EQS SUV 580 4MATIC (2022-2023), you'll find 22.8 cubic feet of storage space (ranked №158 out of 693 electric vehicles).

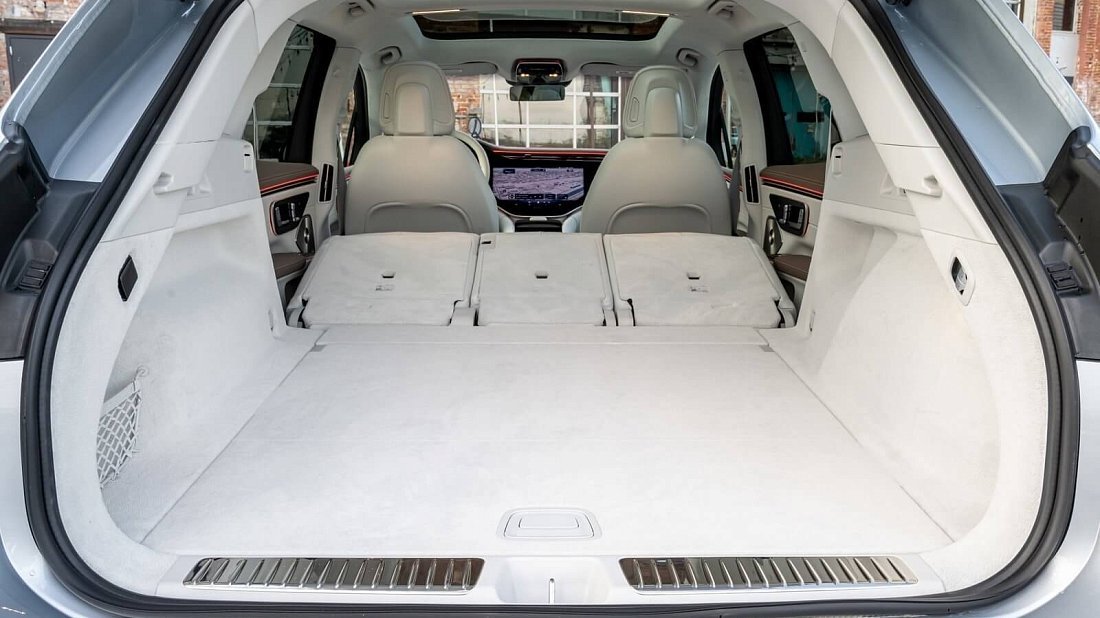

Folding down the rear seats expands the total cargo capacity to 74.2 cubic feet (ranked №92 out of 693 electric vehicles).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The Mercedes EQS SUV 580 4MATIC (2022-2023) is officially rated to tow 3500 lbs. This applies to trailers equipped with brakes.
