Renault Kangoo Z.E. Z.E.

Years of Production
When the car first came out and when they stopped making it
2017-2022
This car is not available in the US, but you can still compare it with other cars

Renault Kangoo Z.E. (2017-2022)

Technical Specifications of Renault Kangoo Z.E. (2017-2022)

General Info

Years of Production
When the car first came out and when they stopped making it
2017-2022
Country of Manufacture
Country where final assembly of the car took place
France
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
No Data

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
NEDC
GCC
No Data No Data 168 mi 126 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
33 kWh 31 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
24.6 kWh/100 mi (4.1 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
7.4 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V
Charge Port
The port type impacts charging speed and station compatibility

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
FWD: PMSM
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
45 kW (60 hp) 166 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
21.6 s
Top Speed
The fastest the car can go (maximum speed)
81 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
183.7 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
84.2 in 72 in
Height
Car's body height (from ground to highest point)
70.9 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
121.3 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
No Data
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
45.9 ft3 120.1 ft3 No Data
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 10, 2024
Download Specs PDF

How Far Can You Go in Renault Kangoo Z.E. (2017-2022)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.
  • Light green area: Round-trip
  • Dark green area: One-way

Charging Renault Kangoo Z.E. (2017-2022)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
11 h 29 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
08 h 37 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
04 h 18 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
02 h 52 min

NEMA 14-50

Output:
9.6 kW
240 V, 40 A, 1-phase
20-80%:
02 h 48 min
Charging power is limited by the car’s on-board charger (7.4 kW)

NEMA 14-50 (Hardwired)

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
02 h 48 min
Charging power is limited by the car’s on-board charger (7.4 kW)

NEMA 6-50

Output:
9.6 kW
240 V, 40 A, 1-phase
20-80%:
02 h 48 min
Charging power is limited by the car’s on-board charger (7.4 kW)

NEMA 6-50 (Hardwired)

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
02 h 48 min
Charging power is limited by the car’s on-board charger (7.4 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW

CHAdeMO DC 50 kW

Output:
50 kW
20-80%:
00 h 00 min
The car’s DC charging capability is limited to kW
Last Updated:
March 10, 2024
Open Charging Calculator

About Renault Kangoo Z.E. (2017-2022)

Detailed Descriptions

The Renault Kangoo Z.E. (2017-2022) is an all-electric front-wheel drive coupe. It came out in 2017. Renault stopped making the Z.E. in 2022. The car is not available on the US market.

The Renault Kangoo Z.E. (2017-2022) has a 33 kWh battery pack, allowing it to travel up to 126 mi on a single charge. The car has an average efficiency of 24.6 kWh per 100 miles (or 4.1 miles per kWh) — ranked №611 out of 695 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Renault Kangoo Z.E. (2017-2022) is equipped with a powertrain that delivers up to 45 kW (60 hp) of power and 166 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 21.6 seconds (ranked №688 out of 693 electric vehicles) and a top speed of 81 mph.

How far can it go on single charge? What is the real-world range?

Real-world range of the Renault Kangoo Z.E. (2017-2022) is 113–139 miles (ranked №610 out of 693 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The car doesn't support DC charging

To estimate charging time, rate, and cost, you can use Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Renault Kangoo Z.E. (2017-2022):

  • Length: 183.7 in
  • Width: 84.2 in (including side mirrors) or 72 in (excluding side mirrors)
  • Height: 70.9 in
  • Wheelbase: 121.3 in (distance between the center of the front and rear wheels)
  • Curb weight: N/A lbs (weight of the empty car, no people or cargo)

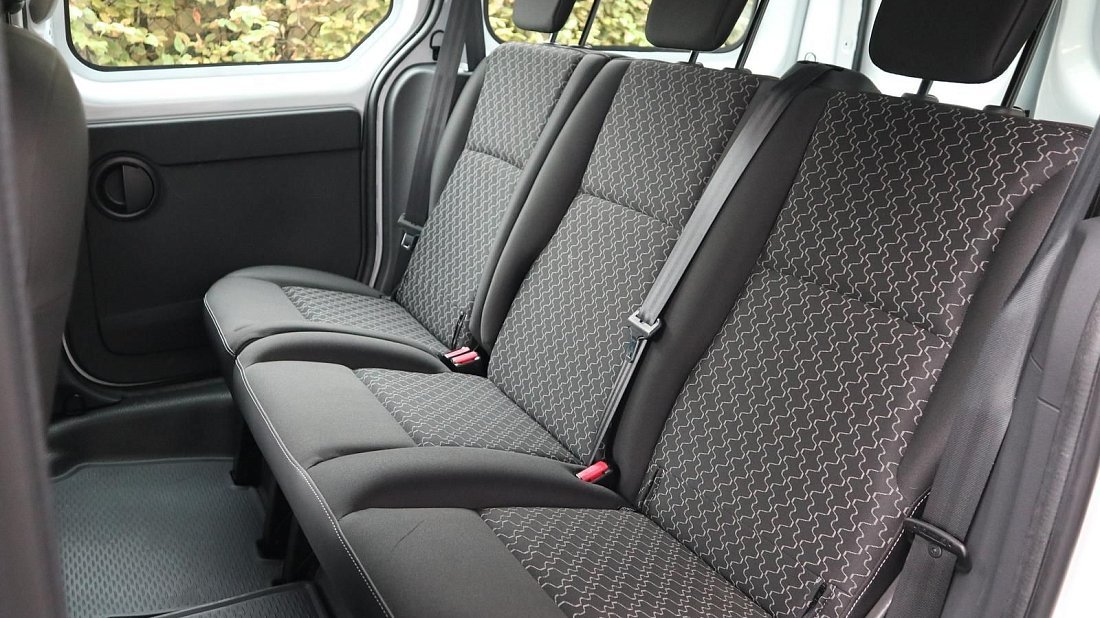

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Renault Kangoo Z.E. (2017-2022) cargo space:

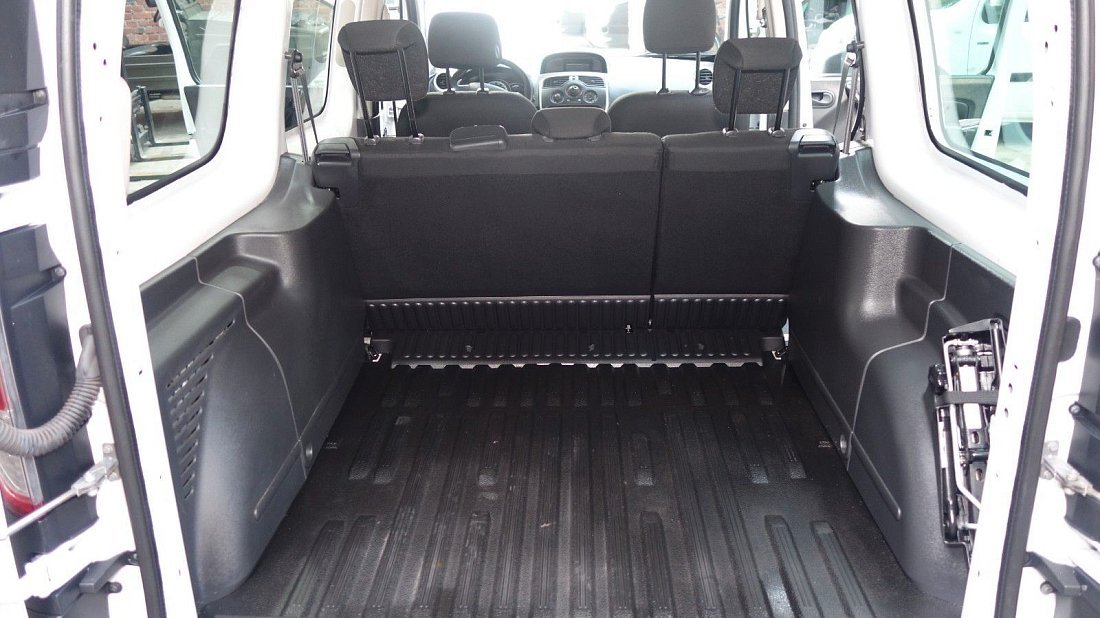

  • Trunk capacity: With the rear seats up, you get 45.9 cubic feet of cargo space in the back (ranked №29 out of 693 electric vehicles).

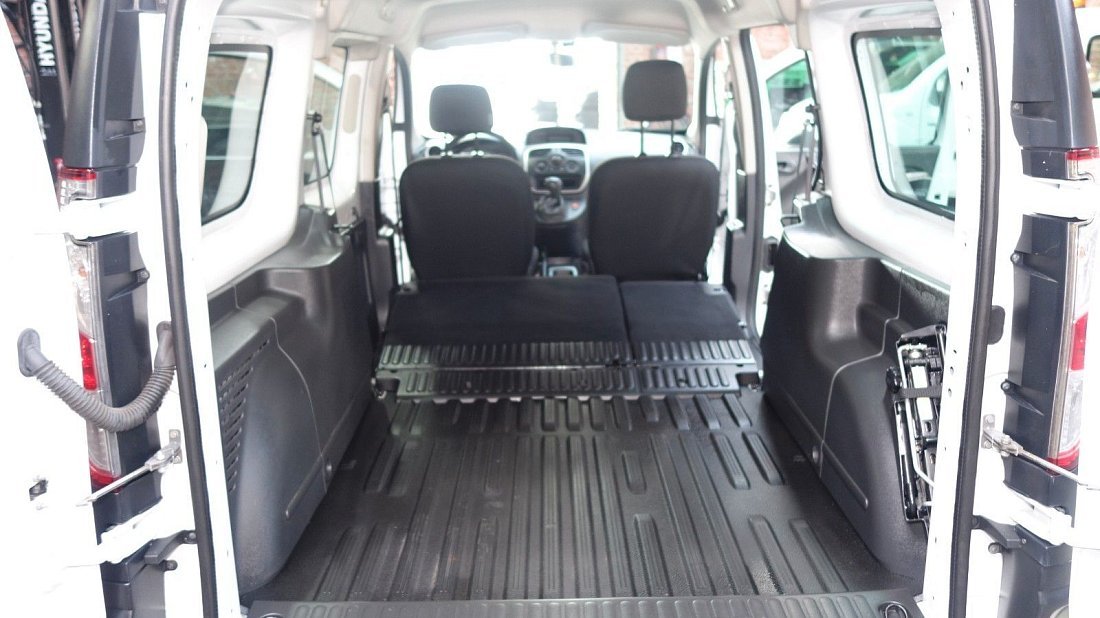

  • Max cargo capacity: Fold down the rear seats, and you open up 120.1 cubic feet of total cargo space (ranked №27 out of 693 electric vehicles).

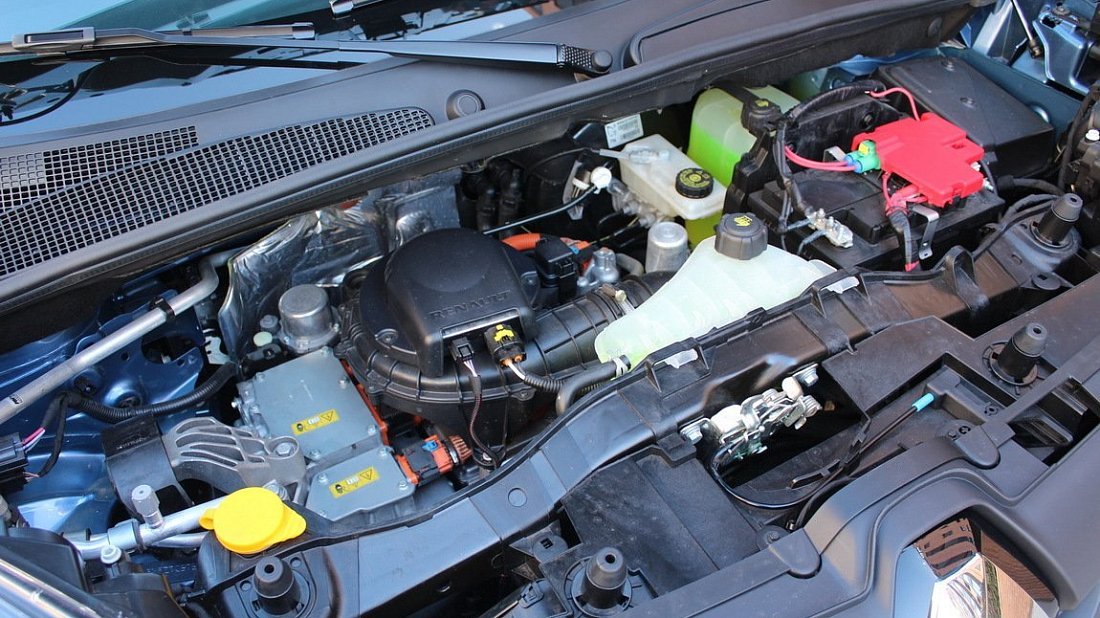

  • Frunk capacity: The car doesn’t have a “frunk” (front trunk).
Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
