Technical Specifications of Renault Zoe Z.E. 40 R90 (2016-2019)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2016-2019

Country of Manufacture Country where final assembly of the car took place

France

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Discontinued

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): Hatchback

Range and Efficiency

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

NEDC

GCC

197 mi 192 out of 234 No Data 250 mi 30 out of 61 178 mi 177 out of 242

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

44.1 kWh 113 out of 150 41 kWh 138 out of 177

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 23 kWh/100 mi (4.3 mi/kWh) 18 out of 205

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

22 kW 2 out of 23 No Data

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 400 V

Charge Port The port type impacts charging speed and station compatibility

Type 2 (Mennekes)

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): FWD: PMSM

Motor Total power and torque of the car's electric motor(s): Power

Torque

68 kW (91 hp) 175 out of 186 162 lb-ft 160 out of 172

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 12.7 s 104 out of 116

Top Speed The fastest the car can go (maximum speed): 84 mph 58 out of 65

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 160.8 in 167 out of 198

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

76.6 in 82 out of 100 68.1 in 80 out of 92

Height Car's body height (from ground to highest point): 61.5 in 84 out of 147

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 101.9 in 101 out of 124

Cargo and Towing

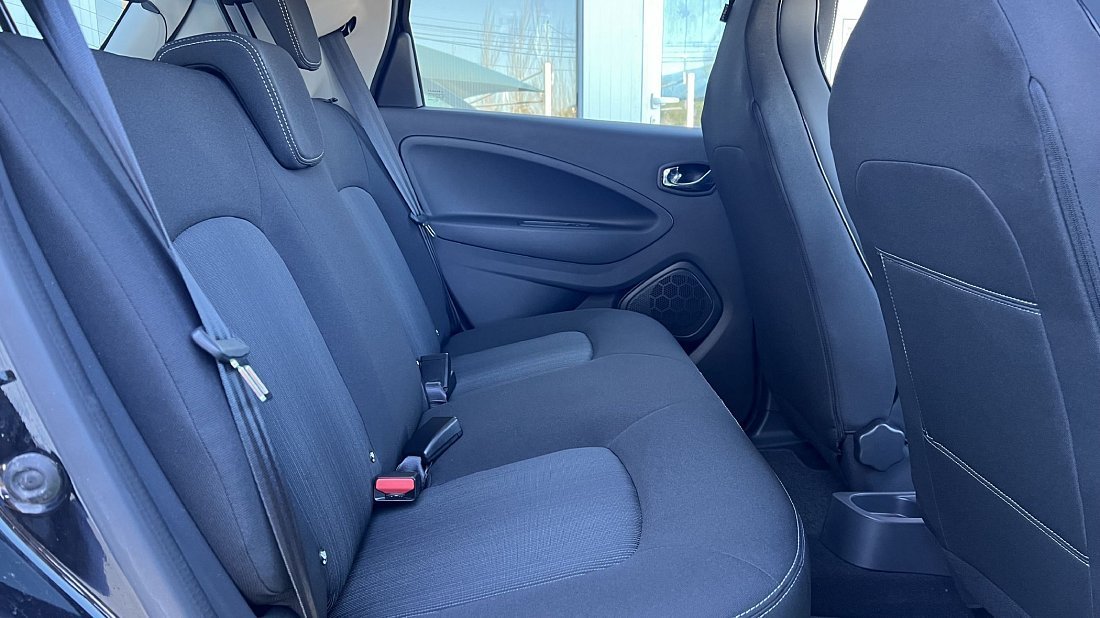

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 3263 lb 397 out of 438

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

11.9 ft3 121 out of 151 43.3 ft3 115 out of 161 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

September 11, 2024

Download Specs PDF

How Far Can You Go in Renault Zoe Z.E. 40 R90 (2016-2019)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging Renault Zoe Z.E. 40 R90 (2016-2019)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

Last Updated:

September 11, 2024

Open Charging Calculator

About Renault Zoe Z.E. 40 R90 (2016-2019)

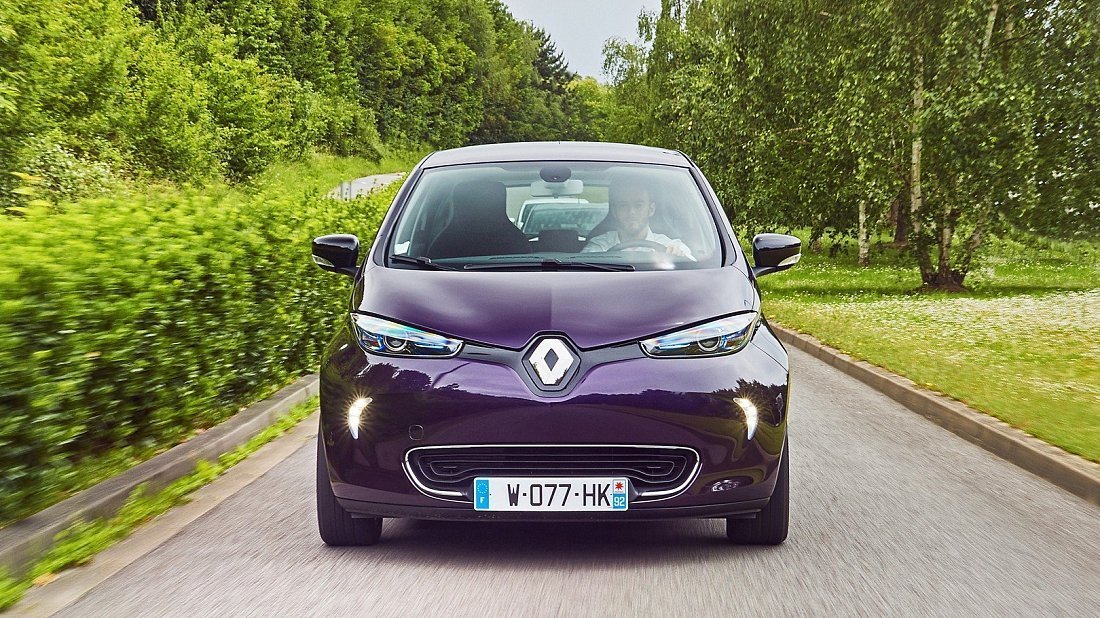

The Renault Zoe Z.E. 40 R90 (2016-2019) is an all-electric front-wheel drive hatchback. It came out in 2016 replacing the older Renault Zoe Z.E. R240 (2015-2016). Renault stopped making the Z.E. 40 R90 in 2019 and replaced it with the Renault Zoe Z.E. 40 R110 (2018-2022). The car is not available on the US market.

The Renault Zoe Z.E. 40 R90 (2016-2019) has a 44.1 kWh battery pack, allowing it to travel up to 178 mi on a single charge — ranked №600 out of 764 electric vehicles.

How powerful is it? How fast does it accelerate?

The Renault Zoe Z.E. 40 R90 (2016-2019) achieves a 0 to 60 mph acceleration in 12.7 seconds (placing it at №104 out of 116 ranked positions, among 764 electric vehicles, with some cars sharing positions) and attains a maximum speed of 84 mph.

Its powertrain provides a power output of up to 68 kW (91 hp) and a torque of 162 lb-ft.

How far can it go on single charge? What is the real-world range?

Renault Zoe Z.E. 40 R90 (2016-2019) achieves a real-world range of 178 miles, placing it at №177 among 242 ranked positions. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

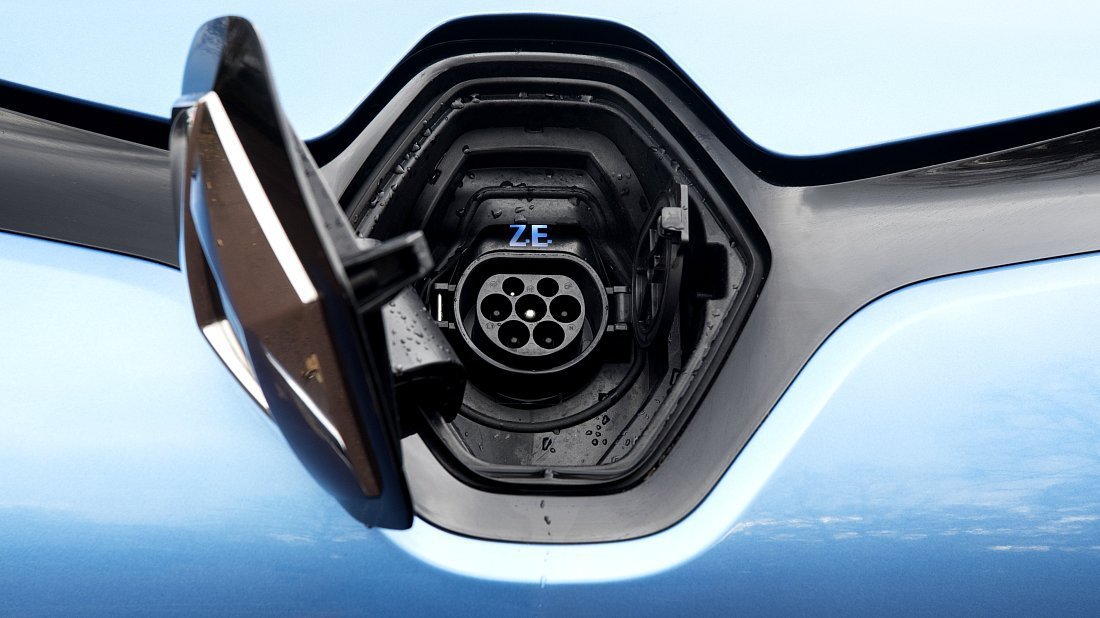

The Renault Zoe Z.E. 40 R90 (2016-2019) in the USA comes with a Type 2 (Mennekes) charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 22 kW, resulting in approximately 86 miles of range added per hour of charging.

The car doesn't support DC charging

Use EV Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Renault Zoe Z.E. 40 R90 (2016-2019) are as follows:

Length: 160.8 in
Width: 76.6 in (including side mirrors) or 68.1 in (excluding side mirrors)
Height: 61.5 in
Wheelbase: 101.9 in (distance between the center of the front and rear wheels)
Curb weight: 3263 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

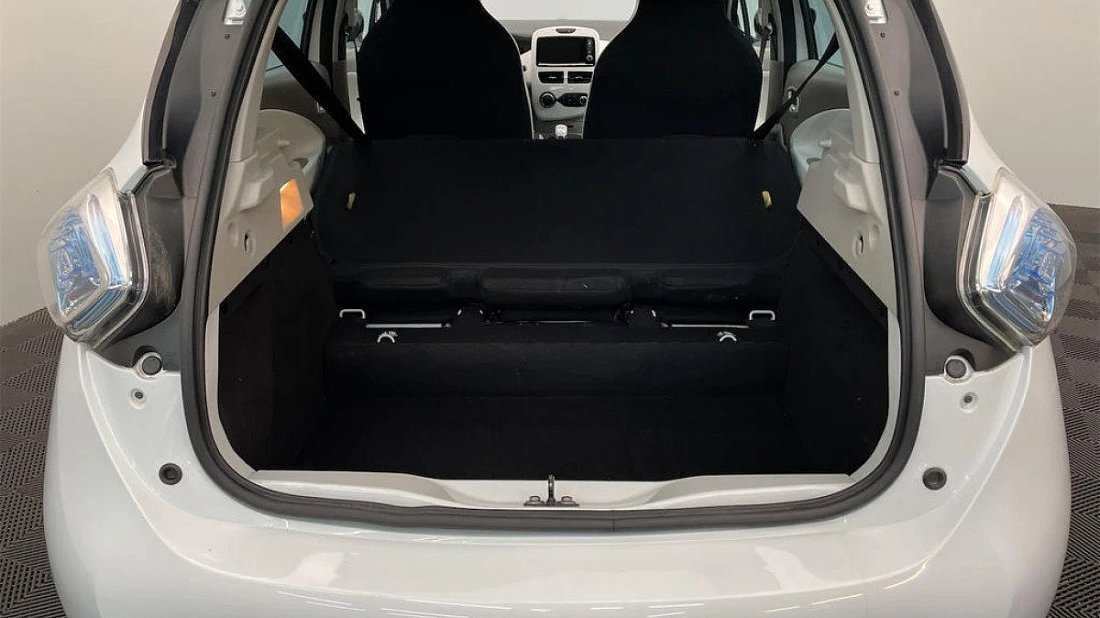

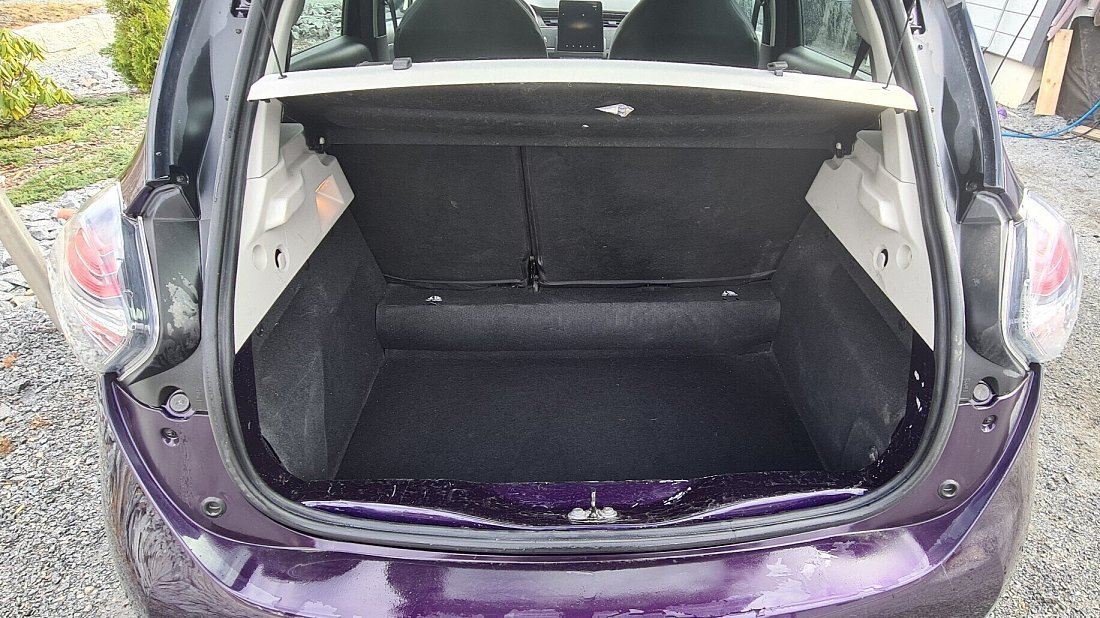

The rear cargo area of the Renault Zoe Z.E. 40 R90 (2016-2019) provides 11.9 cubic feet of space when the rear seats are upright (№121 out of 151 ranked positions, among 764 electric vehicles, with some cars sharing positions).

Folding these seats down unlocks a maximum cargo capacity of 43.3 cubic feet (№115 out of 161 ranked positions, among 764 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
