2013-2015 Tesla Model S 60 - Compare Electric Car USA Specs

Q: How much cargo space does it offer? Does it have a front trunk?

Here s a breakdown of the Tesla Model S 60 (2013-2015) cargo space: Trunk capacity: With the rear seats up, you get 26.3 cubic feet of cargo space in the back (№36 out of 158 ranked positions, among 858 electric vehicles, with some cars sharing positions). Max cargo capacity: Fold down the rear seats, and you open up 58.1 cubic feet of total cargo space (№64 out of 182 ranked positions, among 858 electric vehicles, with some cars sharing positions). Frunk capacity: The front trunk is called a frunk , and it offers an additional 2.1 cubic feet for storing small items.

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2013-2015 (Discontinued)

Available in the USA: Yes

Country of Manufacture Country where final assembly of the car took place

Netherlands
USA

Body Style Vehicle category based on its shape and layout: Liftback

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

NEDC

GCC

No Data 208 mi 133 out of 164 233 mi 26 out of 55 186 mi 178 out of 254

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

61 kWh 98 out of 165 58.5 kWh 116 out of 187

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

31.5 kWh/100 mi 104 out of 211 3.18 mi/kWh 139 out of 238

Charging

Max AC Charging: 10 kW 12 out of 24

Max DC Charging: 120 kW 54 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

Tesla (NACS)

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): RWD 1 motor: IM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

225 kW (302 hp) 114 out of 192 317 lb-ft 125 out of 187

0-60 mph Acceleration time from a standstill: 5.9 s 43 out of 118

Top Speed The fastest the car can go (max speed): 120 mph 36 out of 71

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 195.7 in 47 out of 224

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

86.2 in 26 out of 105 77.3 in 24 out of 98

Height Car's body height (from ground to highest point): 56.9 in 130 out of 155

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 116.5 in 44 out of 137

Cargo and Towing

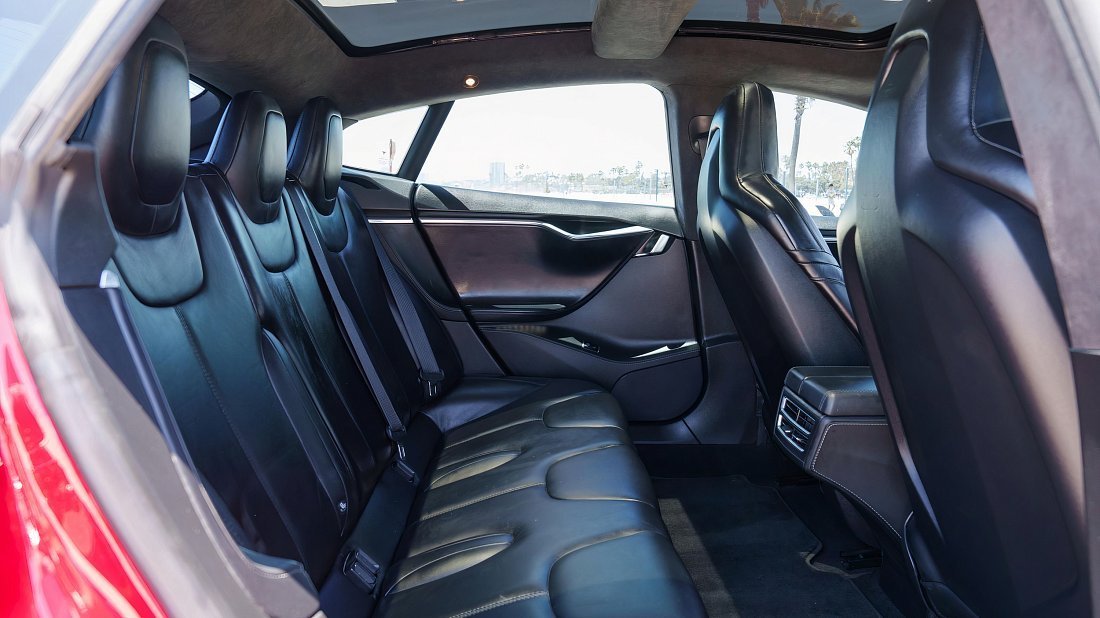

Number of Seats Total passenger capacity of the car (including driver): 5, 7

Curb Weight Car's weight without passengers or cargo: 4407 lb 303 out of 517

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

26.3 ft³ 36 out of 158 58.1 ft³ 64 out of 182 2.1 ft³ 26 out of 41

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

March 22, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger (10 kW) Charging power is limited by the car’s DC charging capability (120 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 120 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Tesla Model S 60 (2013-2015) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Tesla Model S 60 (2013-2015) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

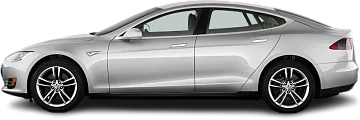

The Tesla Model S 60 (2013-2015) is an all-electric rear-wheel drive liftback. It came out in 2013. Tesla stopped making the 60 in 2015 and replaced it with the Tesla Model S 70 (2015-2016). You can still find Tesla Model S 60 (2013-2015) on the used car market, with prices starting around $13,990.

The Tesla Model S 60 (2013-2015) has a 61 kWh battery pack, allowing it to travel up to 186 mi on a single charge — ranked №652 out of 858 electric vehicles.

How powerful is it? How fast does it accelerate?

The Tesla Model S 60 (2013-2015) can accelerate from 0 to 60 mph in 5.9 seconds (№43 out of 118 ranked positions, among 858 electric vehicles, with some cars sharing positions) and reach a top speed of 120 mph.

The car’s powertrain delivers up to 225 kW (302 hp) of power and 317 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Real-world range of the Tesla Model S 60 (2013-2015) is 186 miles (№178 out of 254 ranked positions, among 858 electric vehicles, with some cars sharing positions) — depending on several factors, including:

Speed: Higher speeds deplete the battery faster.
Temperature: Extreme cold and hot weather impacts range.
Terrain: Hilly or mountainous terrain reduces range.
Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

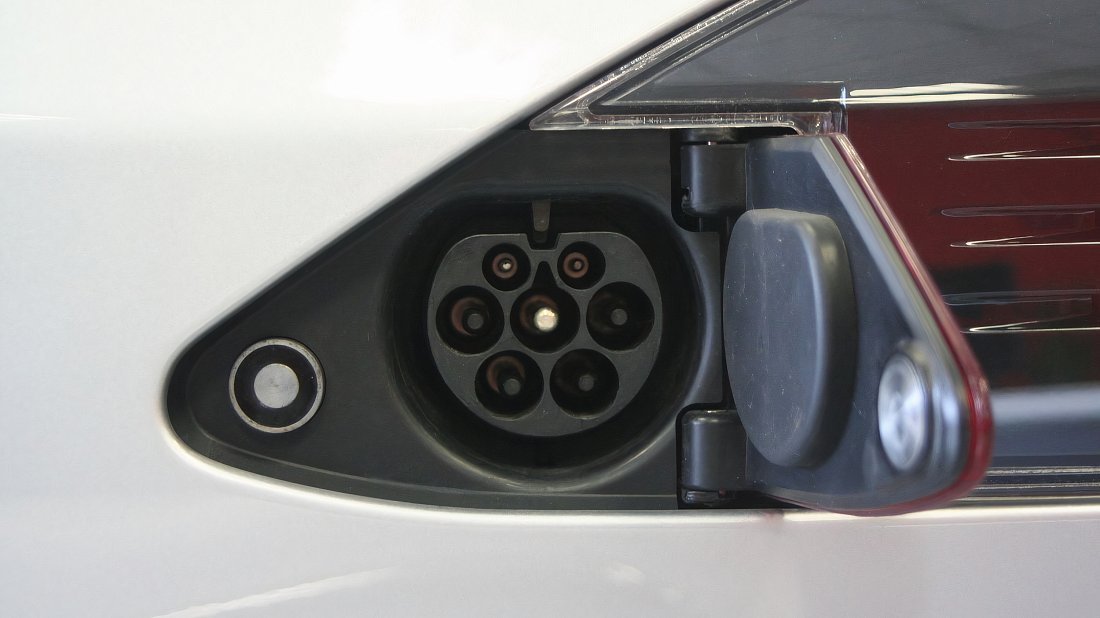

In the USA Tesla Model S 60 (2013-2015) has a Tesla (NACS) charge port.

You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 10 kW, which translates to approximately 29 miles of range added per hour of charging.
For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 120 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Tesla Model S 60 (2013-2015):

Length: 195.7 in
Width: 86.2 in (including side mirrors) or #WIDTH_WO_MIRRORS_VALUE# in (excluding side mirrors)
Height: 56.9 in
Wheelbase: 116.5 in (distance between the center of the front and rear wheels)
Curb weight: 4407 lbs (weight of the empty car, no people or cargo)

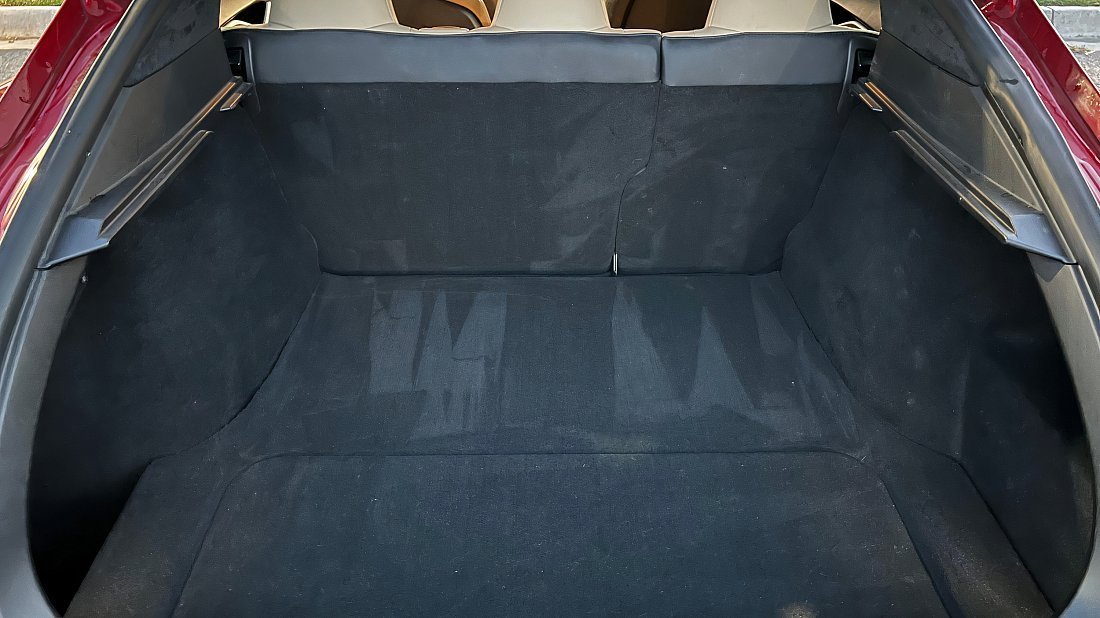

How much cargo space does it offer? Does it have a front trunk?

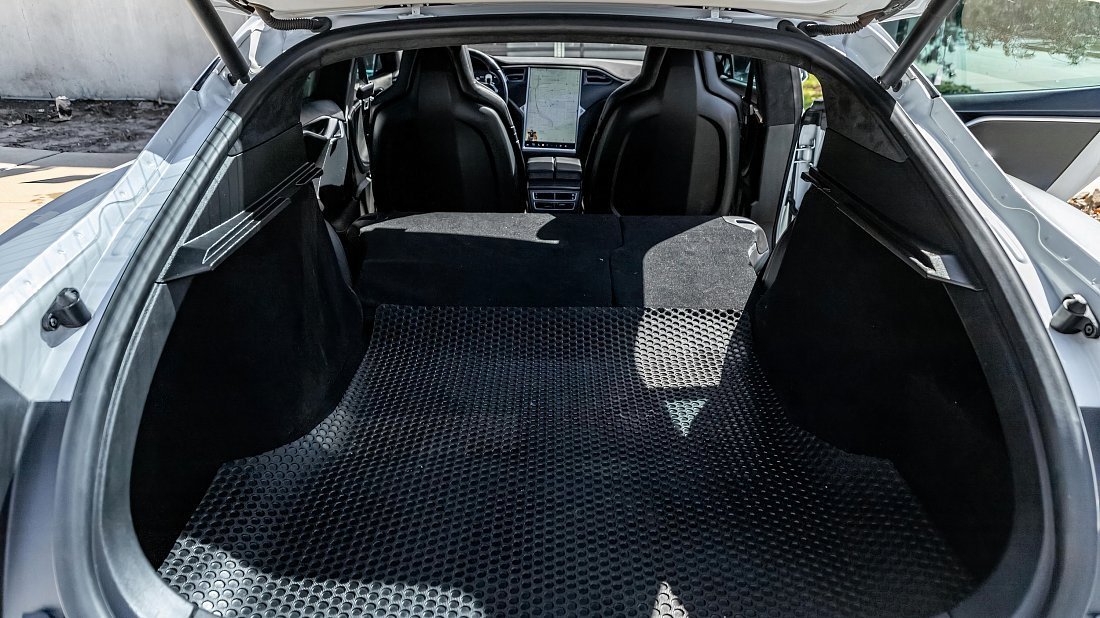

Here's a breakdown of the Tesla Model S 60 (2013-2015) cargo space:

Trunk capacity: With the rear seats up, you get 26.3 cubic feet of cargo space in the back (№36 out of 158 ranked positions, among 858 electric vehicles, with some cars sharing positions).
Max cargo capacity: Fold down the rear seats, and you open up 58.1 cubic feet of total cargo space (№64 out of 182 ranked positions, among 858 electric vehicles, with some cars sharing positions).

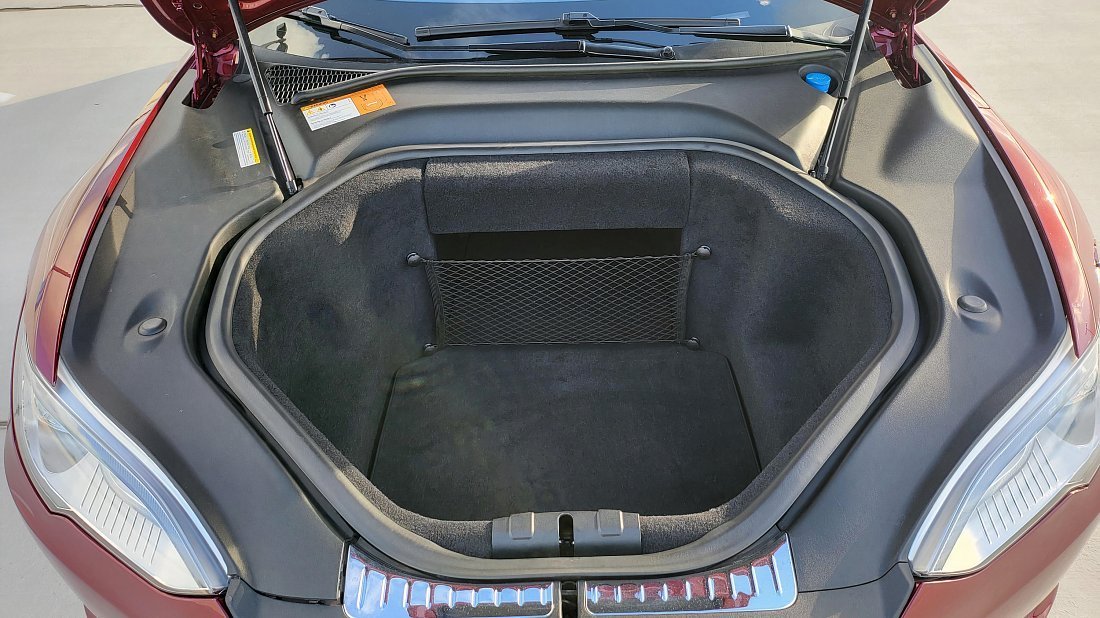

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 2.1 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
