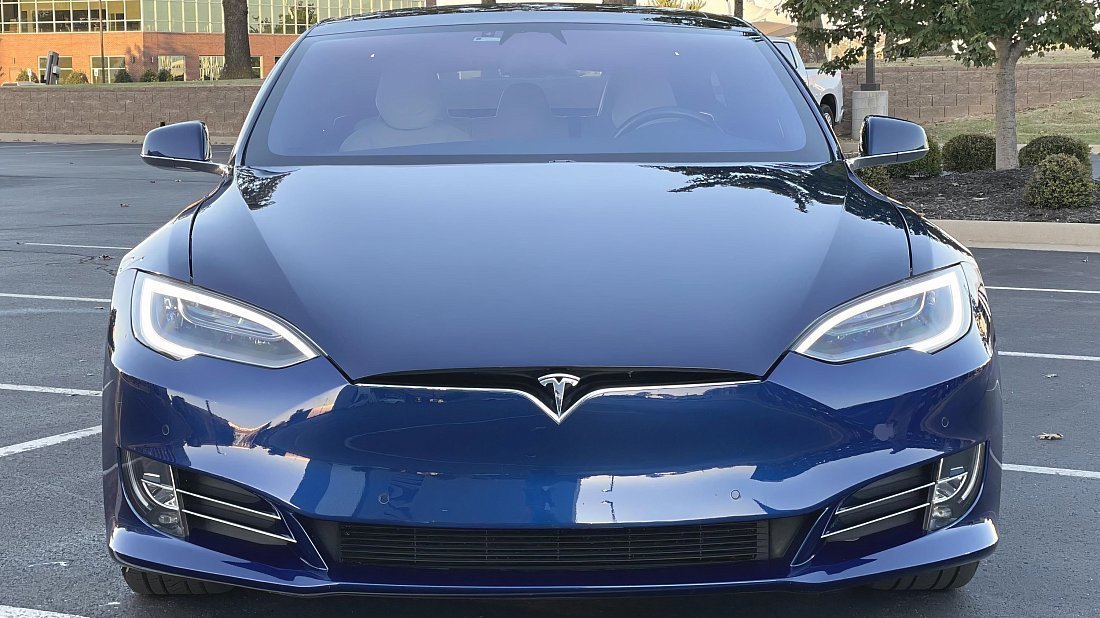

Technical Specifications of Tesla Model S P90D (2016-2017)

General Info

Years of Production
When the car first came out and when they stopped making it
2016-2017
Country of Manufacture
Country where final assembly of the car took place
Netherlands USA
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Liftback Tesla Model S P90D (2016-2017)

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
NEDC
GCC
No Data 270 mi 316 mi 254 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
90 kWh 85.5 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
33.7 kWh/100 mi (3 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11.5 kW 120 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V
Charge Port
The port type impacts charging speed and station compatibility
  • Tesla (NACS)

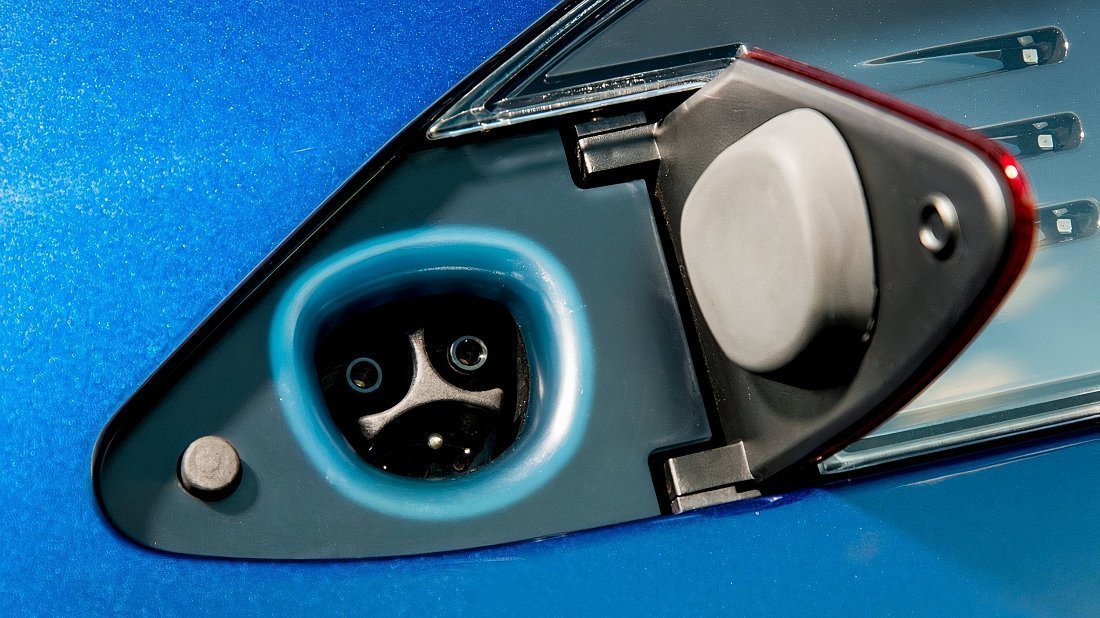

Tesla (NACS) charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), IM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
515 kW (691 hp) 686 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3 s
Top Speed
The fastest the car can go (maximum speed)
155 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
195.7 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
86.2 in 77.3 in
Height
Car's body height (from ground to highest point)
56.9 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
116.5 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5, 7
Curb Weight
Car's weight without passengers or cargo
4841 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
26.3 ft3 58.1 ft3 2.1 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 28, 2024
Download Specs PDF

How Far Can You Go in Tesla Model S P90D (2016-2017)

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Tesla Model S P90D (2016-2017)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
March 28, 2024
Open Charging Calculator

About Tesla Model S P90D (2016-2017)

Detailed Descriptions

The Tesla Model S P90D (2016-2017) is an all-electric all-wheel drive liftback. It came out in 2016 replacing the older Tesla Model S P90D (2015-2016). Tesla stopped making the P90D in 2017 and replaced it with the Tesla Model S P100D (2016-2019). You can still find Tesla Model S P90D (2016-2017) on the used car market, with prices starting around $24,995.

The Tesla Model S P90D (2016-2017) has a 90 kWh battery pack, allowing it to travel up to 254 mi on a single charge. The car has an average efficiency of 33.7 kWh per 100 miles (or 3 miles per kWh) — ranked №308 out of 693 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Tesla Model S P90D (2016-2017) is equipped with a powertrain that delivers up to 515 kW (691 hp) of power and 686 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 3 seconds (ranked №36 out of 693 electric vehicles) and a top speed of 155 mph.

How far can it go on single charge? What is the real-world range?

Tesla Model S P90D (2016-2017) achieves a How far can it go on single charge? What is the real-world range? of 229–279 miles, placing it at №308 among 693 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

The Tesla Model S P90D (2016-2017) in the USA comes with a Tesla (NACS) charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11.5 kW, resulting in approximately 31 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 120 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Tesla Model S P90D (2016-2017) are as follows:

  • Length: 195.7 in
  • Width: 86.2 in (including side mirrors) or 77.3 in (excluding side mirrors)
  • Height: 56.9 in
  • Wheelbase: 116.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 4841 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

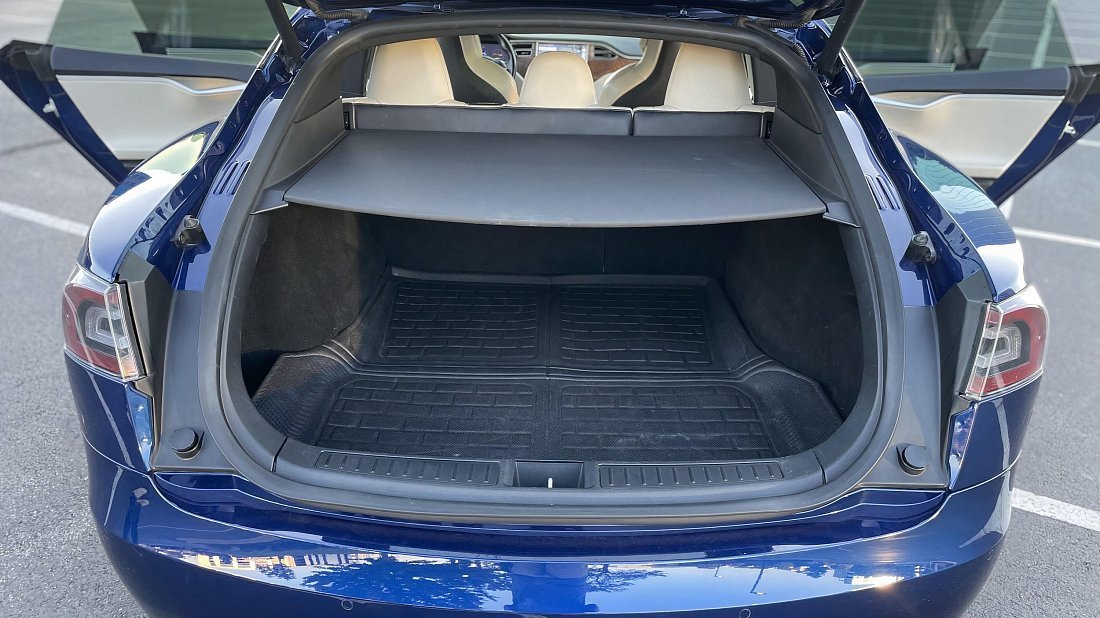

Behind the rear seats of the Tesla Model S P90D (2016-2017), you'll find 26.3 cubic feet of storage space (ranked №116 out of 693 electric vehicles).

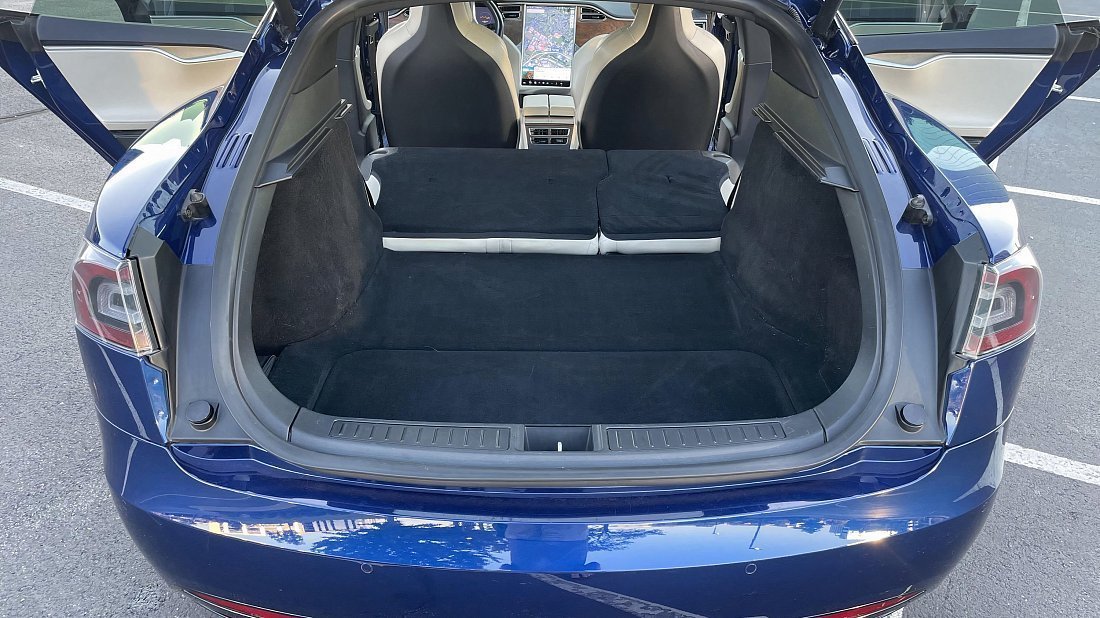

Folding down the rear seats expands the total cargo capacity to 58.1 cubic feet (ranked №216 out of 693 electric vehicles).

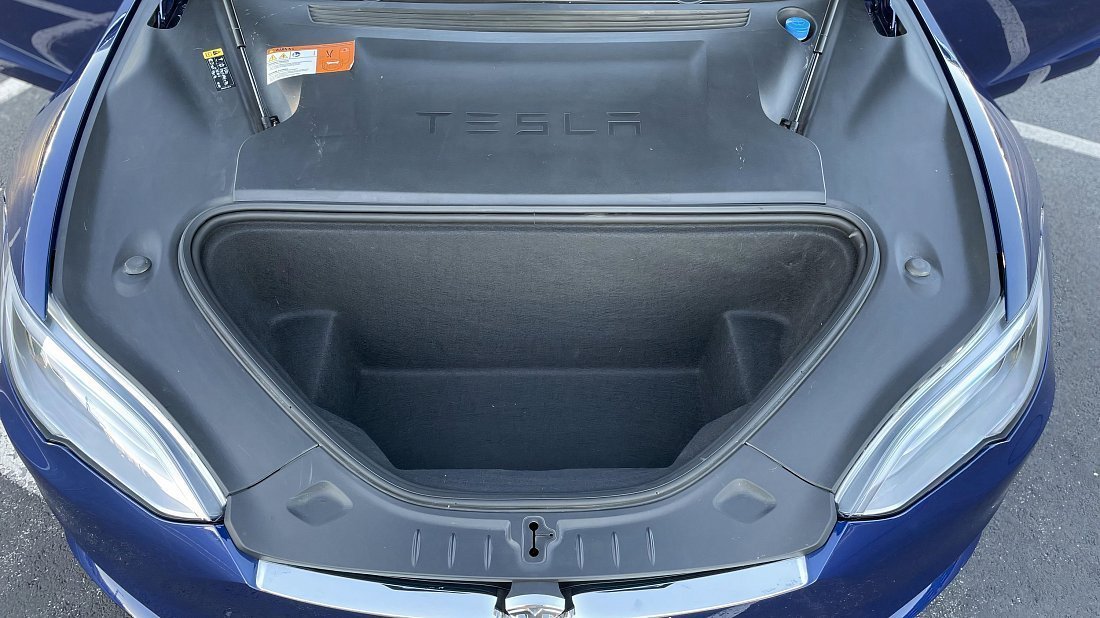

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 2.1 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
