Tesla Model X 90D

Years of Production
When the car first came out and when they stopped making it
2016 - 2017
Price USA (used)
Estimated pre-owned price
$32,998
In 2017 this car was replaced by: Tesla Model X 100D

Trims

Currently Produced

Tesla Model X 90D

Technical Specifications of Tesla Model X 90D

General Info

Years of Production
When the car first came out and when they stopped making it
2016 - 2017
Country of Manufacture
Country where final assembly of the car took place.
Netherlands USA
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Tesla Model X 90D

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
257 mi
Range NEDC
Range according to NEDC ratings. NEDC is an old standard, replaced by WLTP after September 2018.
304 mi
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
35.3 kWh 353 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
90 kWh 85.5 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11.5 kW 120 kW

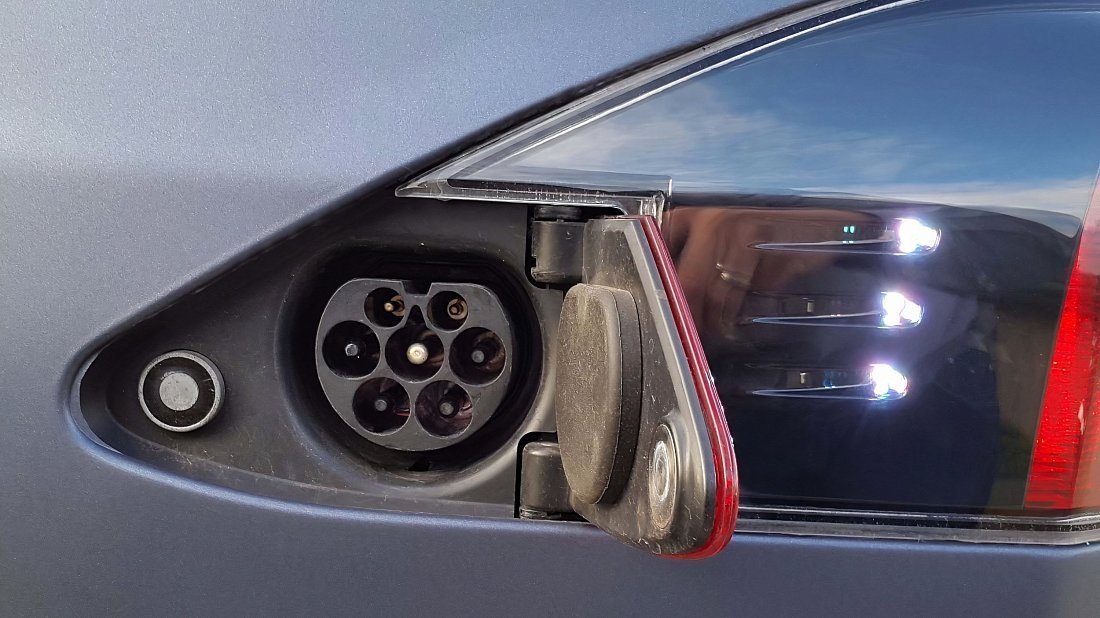

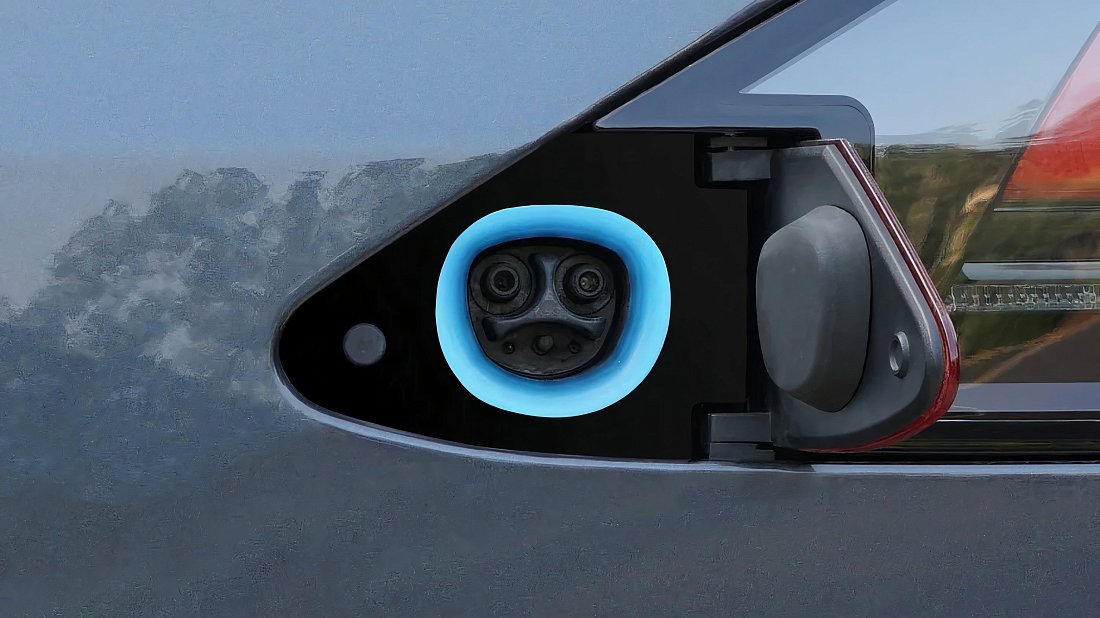

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
Tesla
Tesla charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PM (front), IM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
311 kW (417 hp) 487 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
4.8 s
Top Speed
The fastest the car can go (maximum speed)
155 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
198.9 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
89.4 in 78.7 in
Height
Car's body height (from ground to highest point)
66.3 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
116.7 in

Cargo and Towing

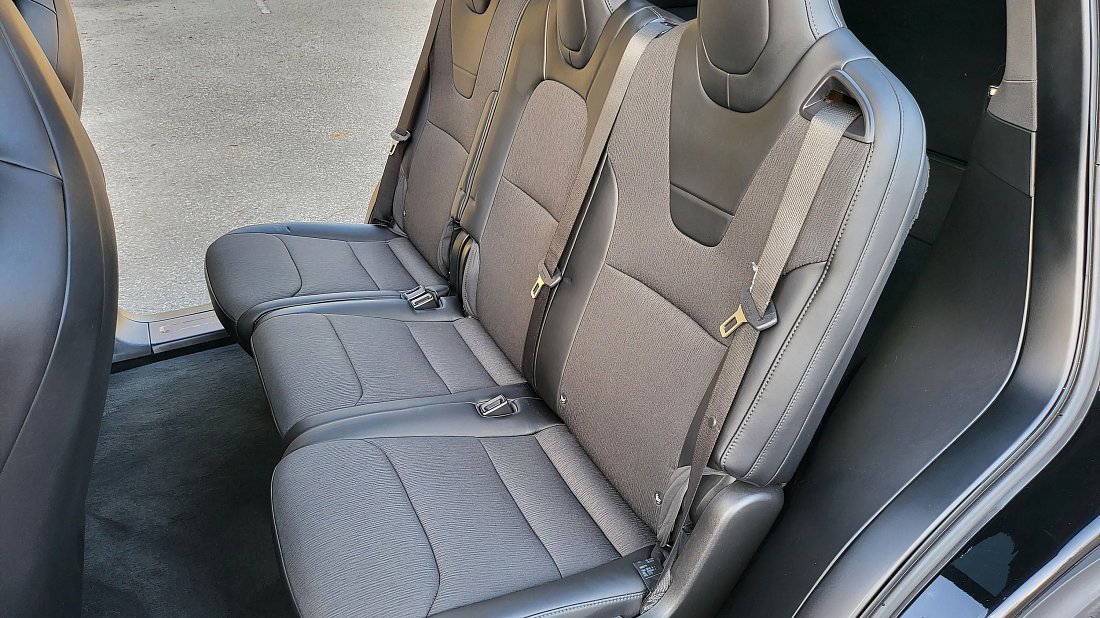

Number of Seats
Total passenger capacity of the car (including driver)
5, 6, 7
Curb Weight
Car's weight without passengers or cargo
5267 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
12.6 ft3 85.8 ft3 6.6 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
5000 lb
Last Updated:
March 27, 2024
Download Specs PDF

How Far Can You Go in Tesla Model X 90D

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Tesla Model X 90D

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
March 27, 2024
Open Charging Calculator

About Tesla Model X 90D

The Tesla Model X 90D is an all-electric all-wheel drive SUV. It came out in 2016. Tesla stopped making the 90D in 2017 and replaced it with the Tesla Model X 100D. You can still find Tesla Model X 90D on the used car market, with prices starting around $32,998.

The Tesla Model X 90D has a 90 kWh battery pack, allowing it to travel up to 242 mi on a single charge. The car has an average efficiency of 35.3 kWh per 100 miles (or 353 Wh/mile) — ranked №331 out of 662 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Tesla Model X 90D can accelerate from 0 to 60 mph in 4.8 seconds (ranked №201 out of 662 electric vehicles) and reach a top speed of 155 mph.

The car’s powertrain delivers up to 311 kW (417 hp) of power and 487 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

The estimated How far can it go on single charge? What is the real-world range? for Tesla Model X 90D falls between 218–266 miles, ranking it №331 out of 662 electric vehicles. Several conditions can influence this range:

  • Speed: The battery drains faster at higher speeds.
  • Temperature: Extreme temperatures can impact range.
  • Terrain: Range is reduced on hilly or mountainous terrain.
  • Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
  • Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The Tesla Model X 90D in the USA comes with a Tesla charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11.5 kW, resulting in approximately 29 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 120 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

Tesla Model X 90D comes in the following dimensions:

  • Length: 198.9 in
  • Width: 89.4 in (including side mirrors) or 78.7 in (excluding side mirrors)
  • Height: 66.3 in
  • Wheelbase: 116.7 in (distance between the center of the front and rear wheels)
  • Curb weight: 5267 lbs (weight of the empty car, no people or cargo)

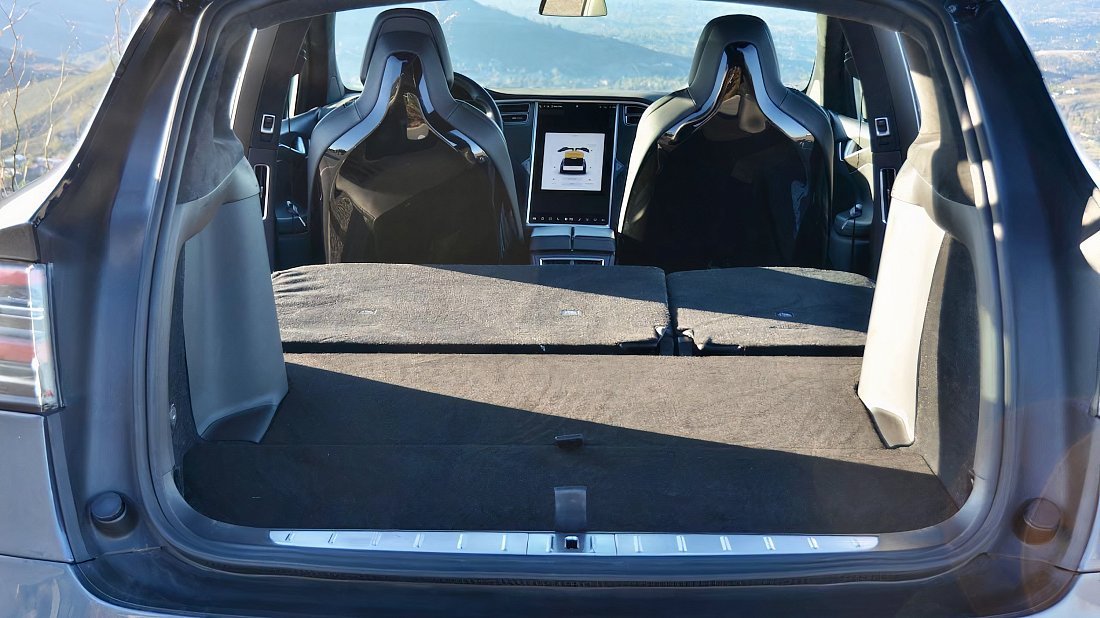

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Tesla Model X 90D cargo space:

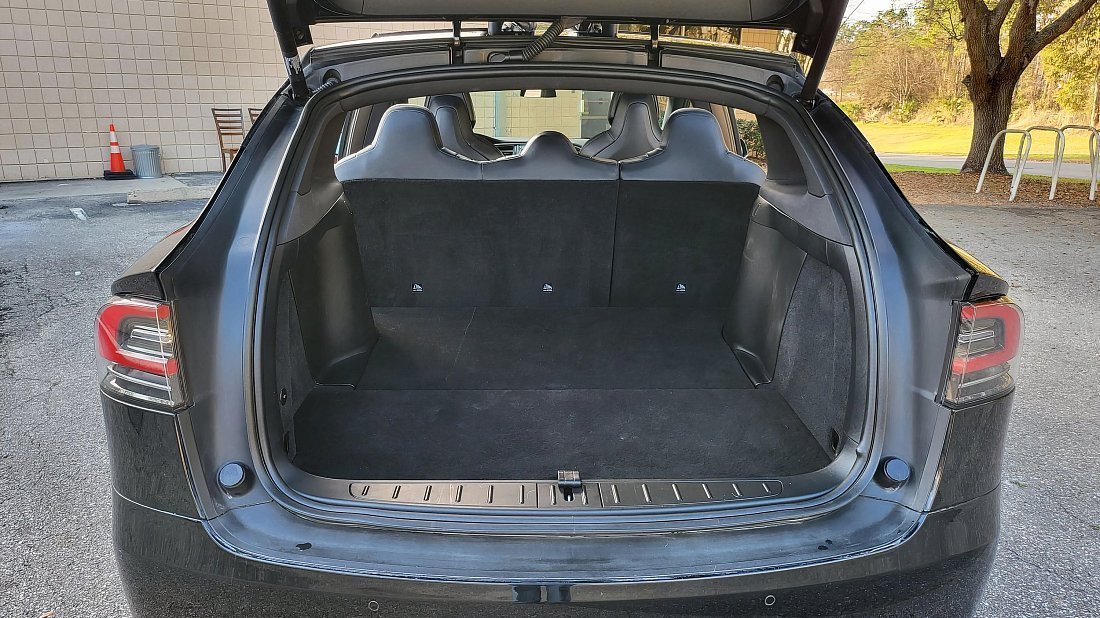

  • Trunk capacity: With the rear seats up, you get 12.6 cubic feet of cargo space in the back (ranked №487 out of 662 electric vehicles).
  • Max cargo capacity: Fold down the rear seats, and you open up 85.8 cubic feet of total cargo space (ranked №56 out of 662 electric vehicles).

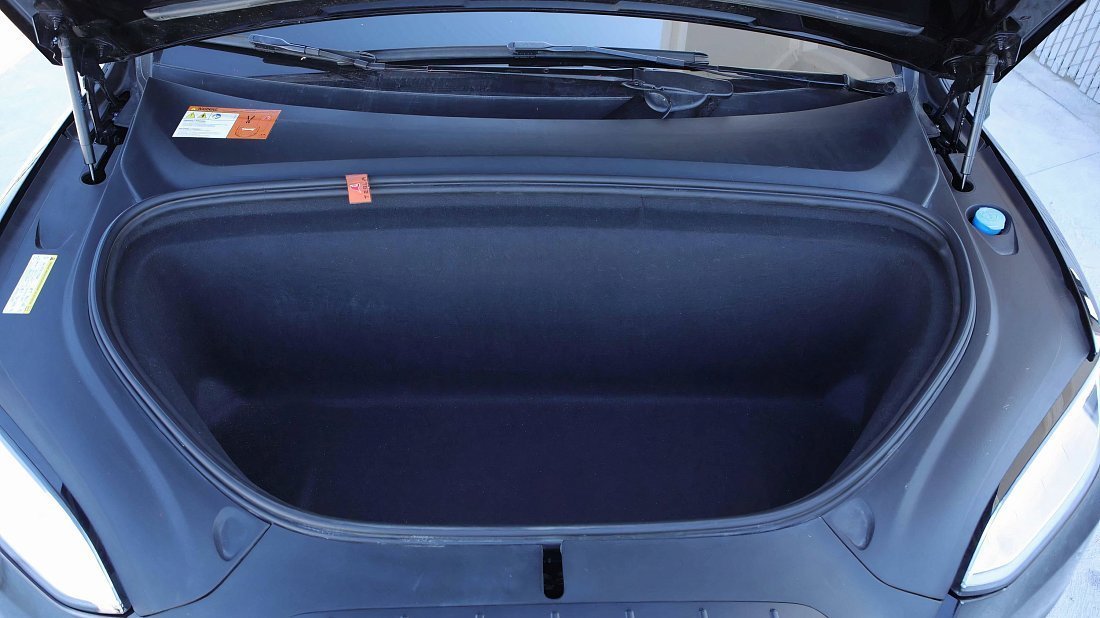

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 6.6 cubic feet for storing small items.
Is it suitable for towing? What is the maximum towing capacity?

The Tesla Model X 90D is officially rated to tow 5000 lbs. This applies to trailers equipped with brakes.
