Volvo C40 Recharge (EC40) Twin Pure Electric 2021-2022 - Compare Electric Car USA Specs

Q: How much cargo space does it offer? Does it have a front trunk?

Here s a breakdown of the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) cargo space: Trunk capacity: With the rear seats up, you get 15 cubic feet of cargo space in the back (№101 out of 154 ranked positions, among 837 electric vehicles, with some cars sharing positions). Max cargo capacity: Fold down the rear seats, and you open up 49 cubic feet of total cargo space (№103 out of 178 ranked positions, among 837 electric vehicles, with some cars sharing positions). Frunk capacity: The front trunk is called a frunk , and it offers an additional 0.7 cubic feet for storing small items.

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2021-2022 (Discontinued)

Available in the USA: Yes

Country of Manufacture Country where final assembly of the car took place

Belgium

Body Style Vehicle category based on its shape and layout: SUV

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

249-279 mi 134 out of 242 226 mi 120 out of 164 225 mi 143 out of 253

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

78 kWh 63 out of 162 75 kWh 76 out of 183

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

33.3 kWh/100 mi 122 out of 210 3 mi/kWh 157 out of 237

Charging

Max AC Charging: 11 kW 10 out of 24

Max DC Charging: 150 kW 40 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

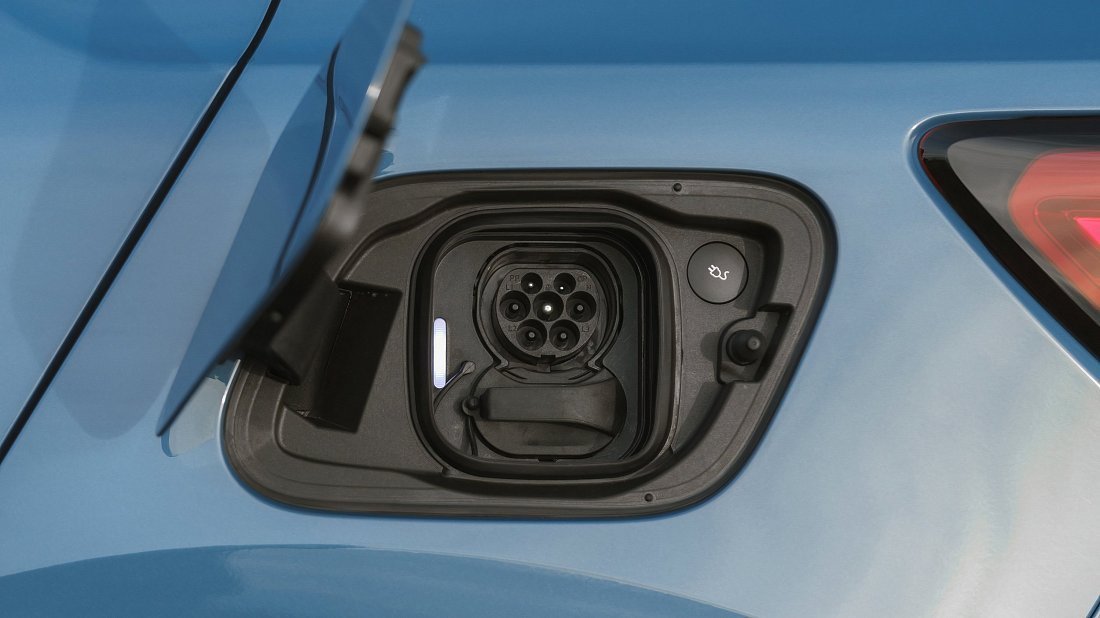

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): AWD 2 motors: PMSM (front), PMSM (rear)

Motor Peak power and torque of the car's electric motor(s): Power

Torque

300 kW (402 hp) 88 out of 189 487 lb-ft 87 out of 186

0-60 mph Acceleration time from a standstill: 4.5 s 28 out of 118

Top Speed The fastest the car can go (max speed): 112 mph 40 out of 68

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 174.8 in 140 out of 220

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

80.1 in 69 out of 105 73.7 in 50 out of 97

Height Car's body height (from ground to highest point): 62.8 in 76 out of 153

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 106.4 in 91 out of 136

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 4700 lb 239 out of 508

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

15 ft³ 101 out of 154 49 ft³ 103 out of 178 0.7 ft³ 39 out of 41

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 2000 lb 41 out of 51

Last Updated:

July 18, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger (11 kW) Charging power is limited by the car’s DC charging capability (150 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 150 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

The Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) is an all-electric all-wheel drive SUV. It came out in 2021. Volvo stopped making the Twin Pure Electric in 2022 and replaced it with the Volvo C40 Recharge (EC40) Twin Motor (2022-...). You can still find Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) on the used car market, with prices starting around $28,888.

The Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) has a 78 kWh battery pack, allowing it to travel up to 225 mi on a single charge — ranked №501 out of 837 electric vehicles.

How powerful is it? How fast does it accelerate?

The Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) can accelerate from 0 to 60 mph in 4.5 seconds (№28 out of 118 ranked positions, among 837 electric vehicles, with some cars sharing positions) and reach a top speed of 112 mph.

The car’s powertrain delivers up to 300 kW (402 hp) of power and 487 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Real-world range of the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) is 225 miles (№143 out of 253 ranked positions, among 837 electric vehicles, with some cars sharing positions) — depending on several factors, including:

Speed: Higher speeds deplete the battery faster.
Temperature: Extreme cold and hot weather impacts range.
Terrain: Hilly or mountainous terrain reduces range.
Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

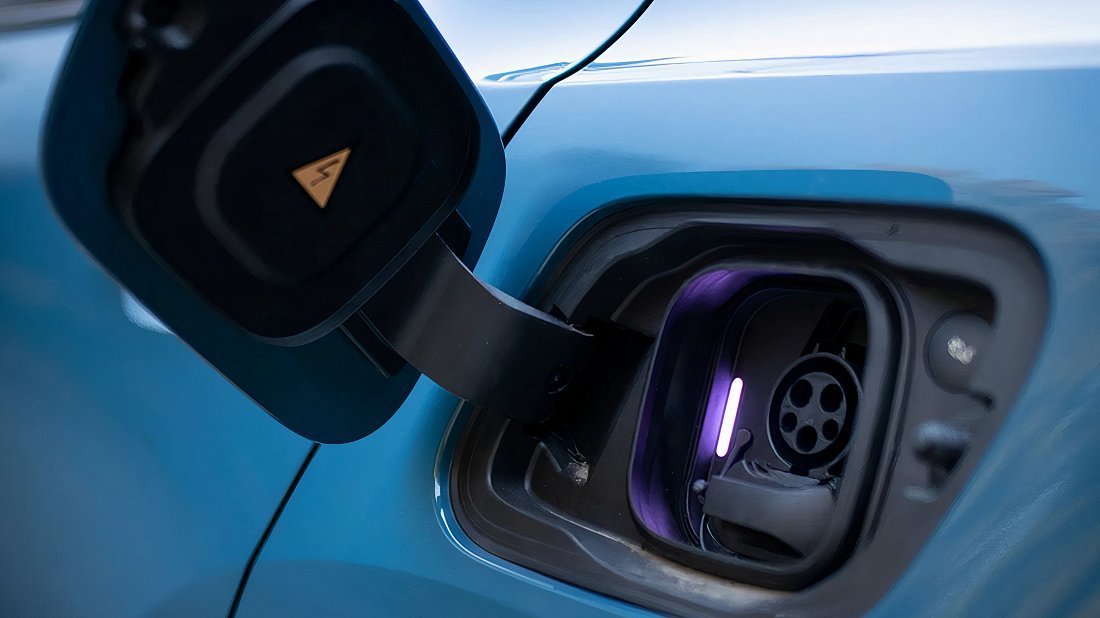

In the USA Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) has a CCS Type 1 charge port.

You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 30 miles of range added per hour of charging.
For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 150 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022):

Length: 174.8 in
Width: 80.1 in (including side mirrors) or 73.7 in (excluding side mirrors)
Height: 62.8 in
Wheelbase: 106.4 in (distance between the center of the front and rear wheels)
Curb weight: 4700 lbs (weight of the empty car, no people or cargo)

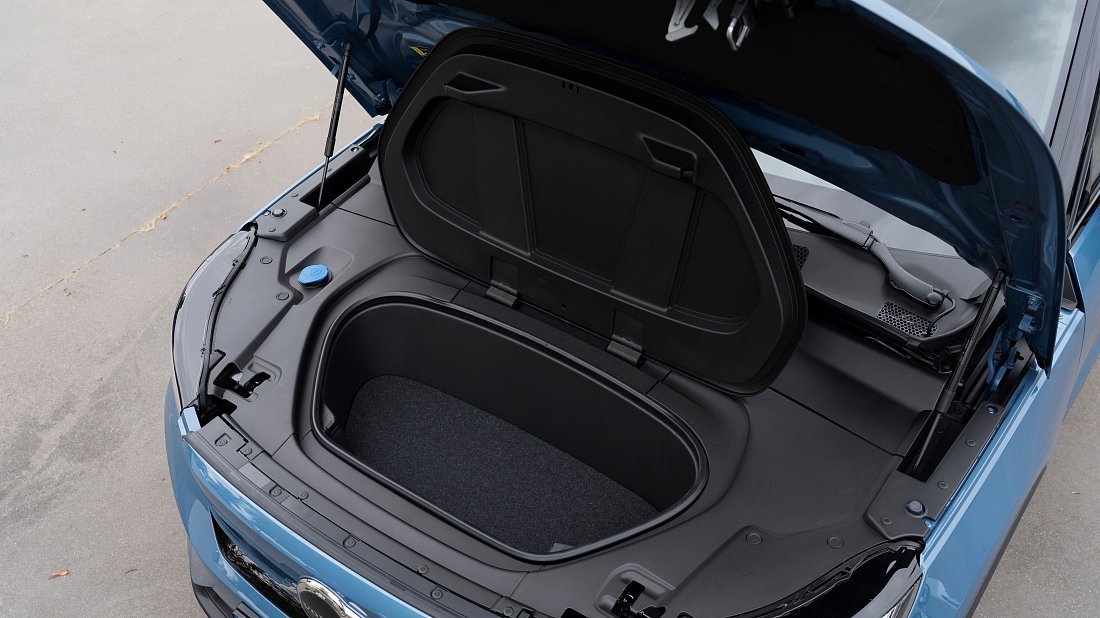

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) cargo space:

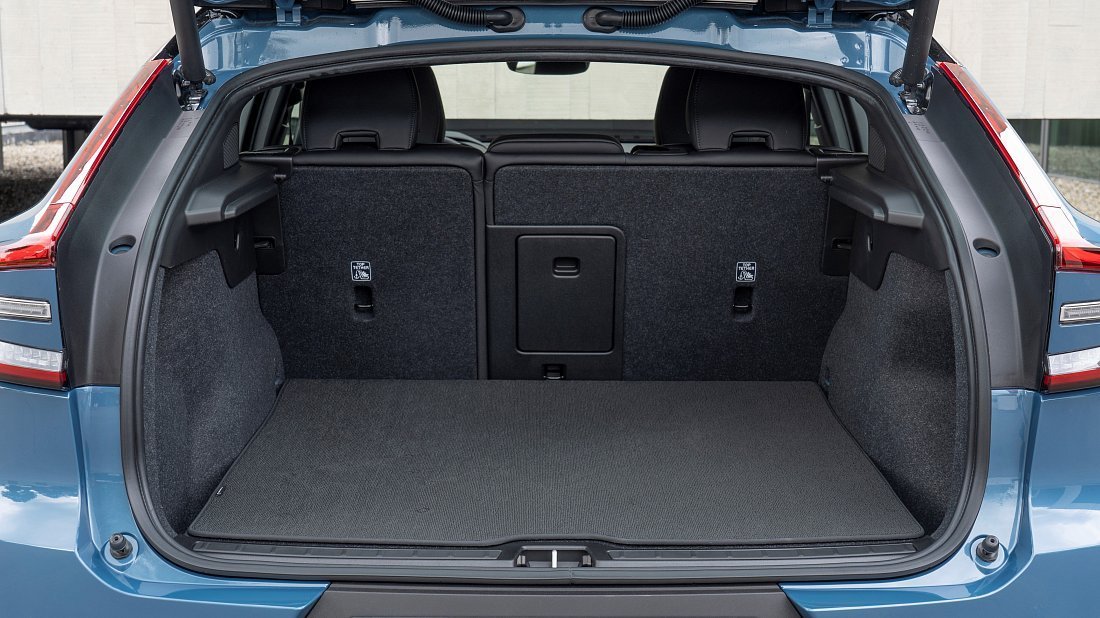

Trunk capacity: With the rear seats up, you get 15 cubic feet of cargo space in the back (№101 out of 154 ranked positions, among 837 electric vehicles, with some cars sharing positions).

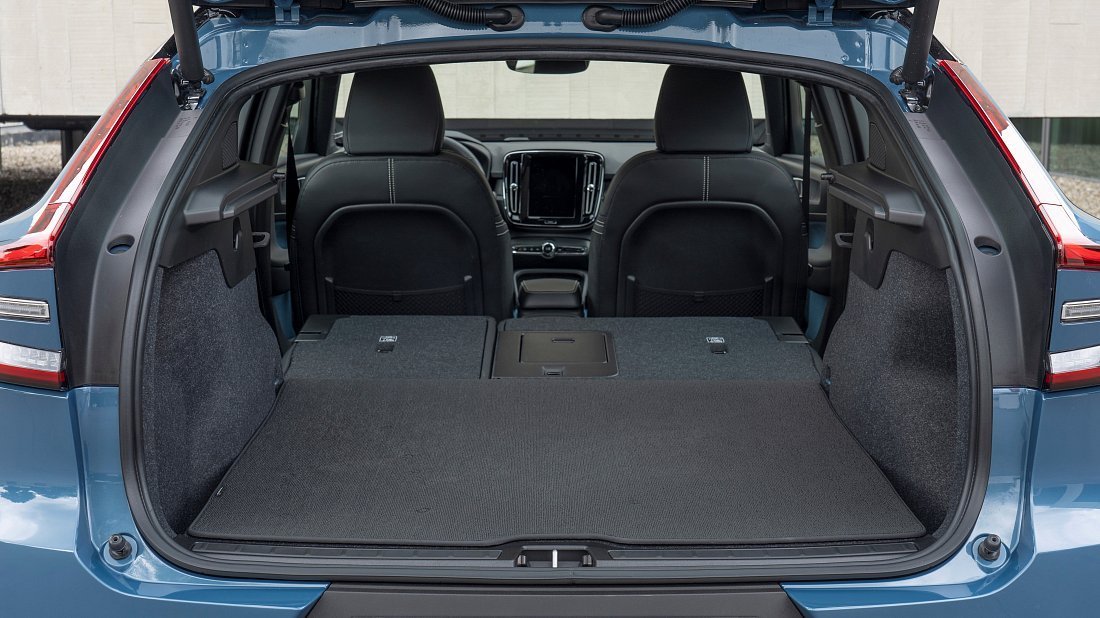

Max cargo capacity: Fold down the rear seats, and you open up 49 cubic feet of total cargo space (№103 out of 178 ranked positions, among 837 electric vehicles, with some cars sharing positions).
Frunk capacity: The front trunk is called a "frunk", and it offers an additional 0.7 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Volvo C40 Recharge (EC40) Twin Pure Electric (2021-2022) has a towing capacity (braked) of up to 2000 lbs (maximum weight the car can tow safely with a trailer that has its own brakes).
