Ford Mustang Mach-E ER RWD

Years of Production When the car first came out and when they stopped making it: 2022 - 2023

Compare

GT Performance Edition

Discontinued

SR RWD SR AWD ER RWD ER AWD GT

Explore by Section

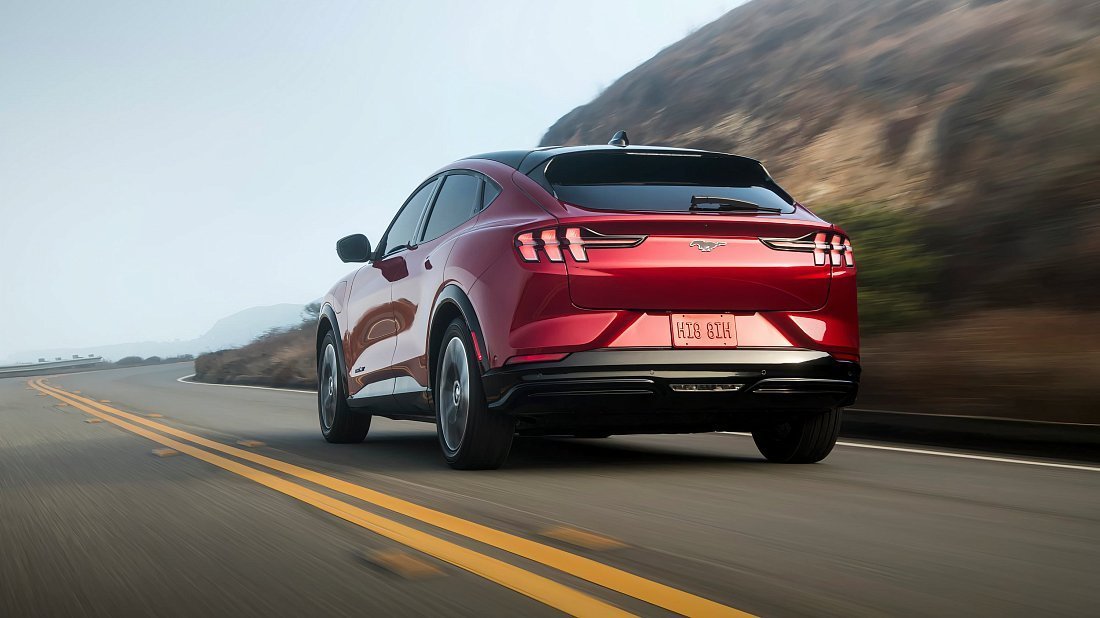

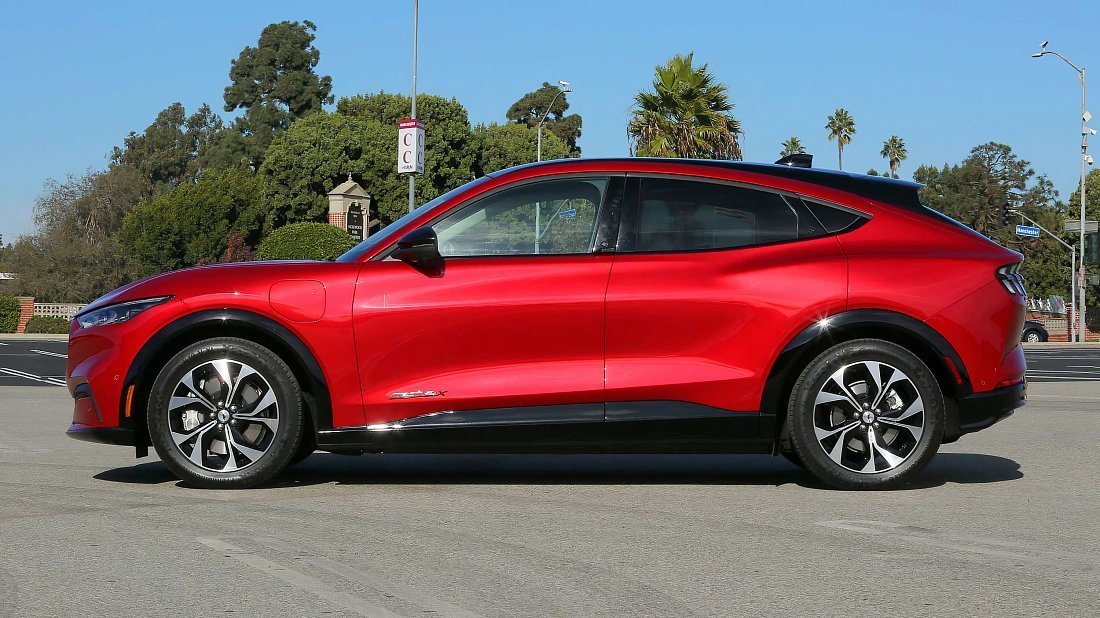

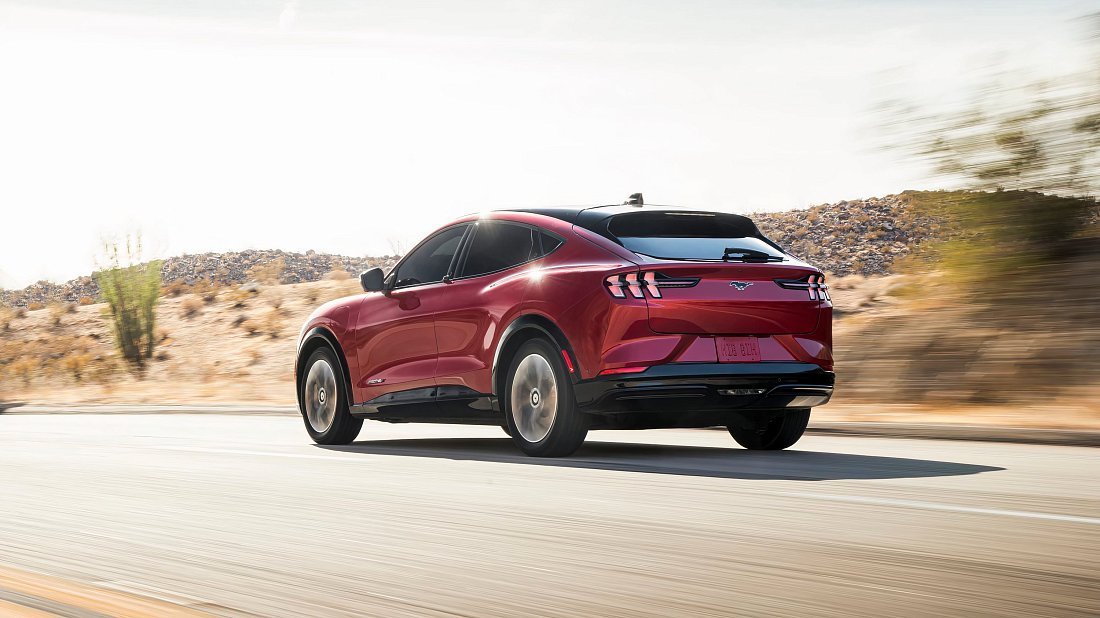

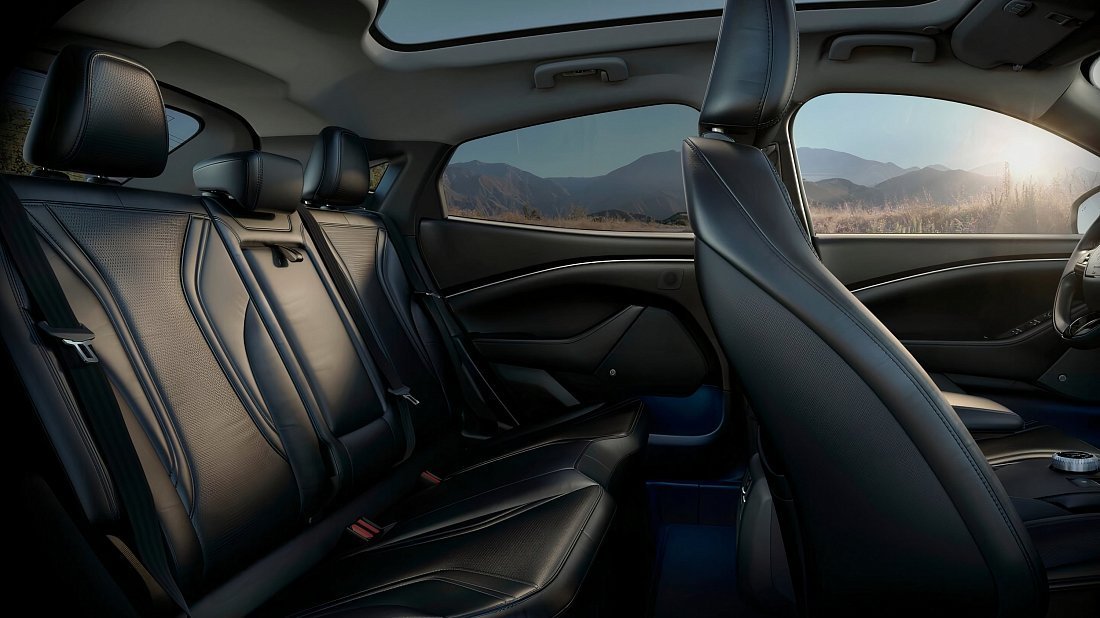

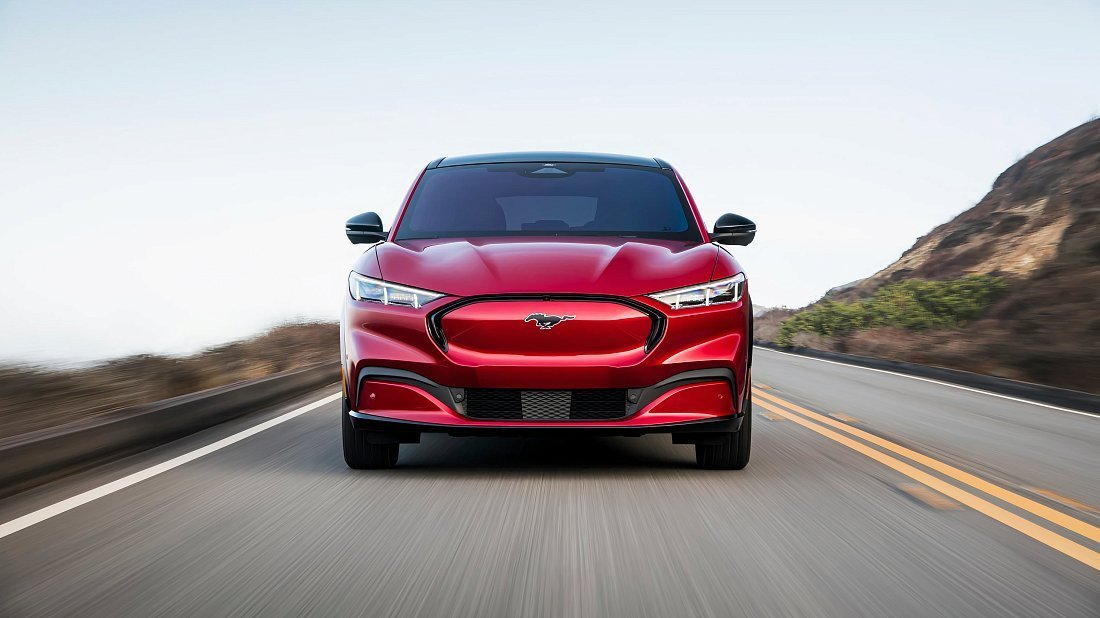

Photo of Ford Mustang Mach-E ER RWD (1 slide)

Technical Specifications of Ford Mustang Mach-E ER RWD

General Info

Years of Production When the car first came out and when they stopped making it: 2022 - 2023

Country of Manufacture Country where final assembly of the car took place.: USA

Current Status Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made): Discontinued

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): SUV

Range and Efficiency

Range EPA Estimated range on a full battery according to official EPA ratings (USA): No Data

Range WLTP Range according to WLTP ratings. TEL: car in its lightest configuration. TEH: car in its heaviest configuration.: TEL

TEH

600 km No Data

Efficiency Energy consumption per distance driven. Lower figures indicate better efficiency.: kWh/100 km

Wh/km

17.8 kWh 178 Wh

Battery and Charging

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

98.7 kWh 91 kWh

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11 kW 107 kW

Charge Port The car's charge port type. It affects charging speed and station compatibility.: CCS Type 2

Performance

Drive Type Which wheels are powered (all, rear, or front) by the electric motor(s): RWD

Engine Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.: Power

Torque

290 hp (216 kW) 430 Nm

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 7 s

Top Speed The fastest the car can go (maximum speed): 180 km/h

0.00 s

000 km/h

Dimensions

Length Car's body length (front to back bumper): 4713 mm

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

2097 mm 1881 mm

Height Car's body height (from ground to highest point): 1624 mm

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 2984 mm

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 2160 kg

Cargo Volume Trunk: cargo capacity (rear seats up). Max: cargo capacity (rear seats folded). Frunk: cargo capacity in the front hood.: Trunk

Max

Frunk

322 l 1420 l 100 l

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 1500 kg

Last Updated:

March 10, 2024

Download Specs PDF

Charging Ford Mustang Mach-E ER RWD

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

EURO 1-phase 10A

Socket specs Socket specs: 230 V, 10 A, 1-phase

Socket output Socket output: 2.3 kW

Charging 20-80% Charging 20-80%: 26 h 23 min (~14 km/h)

EURO 1-phase 16A

Socket specs Socket specs: 230 V, 16 A, 1-phase

Socket output Socket output: 3.7 kW

Charging 20-80% Charging 20-80%: 16 h 24 min (~22 km/h)

EURO 1-phase 32A

Socket specs Socket specs: 230 V, 32 A, 1-phase

Socket output Socket output: 7.4 kW

Charging 20-80% Charging 20-80%: 08 h 12 min (~44 km/h)

EURO 3-phase 16A

Socket specs Socket specs: 400 V, 16 A, 3-phase

Socket output Socket output: 11.1 kW

Charging 20-80% Charging 20-80%: 05 h 31 min (~65 km/h)

Charging power is limited by the car’s on-board charger (11 kW)

EURO 3-phase 32A

Socket specs Socket specs: 400 V, 16 A, 3-phase

Socket output Socket output: 11.1 kW

Charging 20-80% Charging 20-80%: 05 h 31 min (~65 km/h)

Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output Socket output: 50 kW

Charging 20-80% Charging 20-80%: 01 h 17 min (~280 km/h)

CCS DC 100 kW

Socket output Socket output: 100 kW

Charging 20-80% Charging 20-80%: 00 h 41 min (~527 km/h)

CCS DC 150 kW

Socket output Socket output: 150 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Charging power is limited by the car’s DC charging capability (107 kW)

CCS DC 200 kW

Socket output Socket output: 200 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Charging power is limited by the car’s DC charging capability (107 kW)

CCS DC 250 kW

Socket output Socket output: 250 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Charging power is limited by the car’s DC charging capability (107 kW)

CCS DC 350 kW

Socket output Socket output: 350 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Charging power is limited by the car’s DC charging capability (107 kW)

Supercharger V2 Split 75 kW

Socket output Socket output: 75 kW

Charging 20-80% Charging 20-80%: 00 h 51 min (~420 km/h)

Not all Tesla Superchargers are open to non-Tesla vehicles

Supercharger V2 150 kW

Socket output Socket output: 150 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Not all Tesla Superchargers are open to non-Tesla vehicles Charging power is limited by the car’s DC charging capability (107 kW)

Supercharger V3 250 kW

Socket output Socket output: 250 kW

Charging 20-80% Charging 20-80%: 00 h 38 min (~564 km/h)

Not all Tesla Superchargers are open to non-Tesla vehicles Charging power is limited by the car’s DC charging capability (107 kW)

Last Updated:

March 10, 2024

Open Charging Calculator

About Ford Mustang Mach-E ER RWD

The Ford Mustang Mach-E ER RWD is an all-electric rear-wheel drive SUV. It came out in 2022. Ford stopped making the ER RWD in 2023.

The Ford Mustang Mach-E ER RWD has a 98.7 kWh battery pack, allowing it to travel up to 510 km on a single charge. The car has an average efficiency of 17.8 kWh per 100 km (or 178 Wh/km) — ranked №57 out of 586 electric vehicles.

Frequently Asked Questions

How fast is Ford Mustang Mach-E ER RWD

The Ford Mustang Mach-E ER RWD achieves a 0 to 100 km/h acceleration in 7 seconds (placing it at №308 among 586 electric vehicles) and attains a maximum speed of 180 km/h.

Its powertrain provides a power output of up to 216 kW (290 hp) and a torque of 430 Nm.

Real-world range of Ford Mustang Mach-E ER RWD

The real-world range of the Ford Mustang Mach-E ER RWD is 459–561 km (ranked №57 out of 586 electric vehicles) — depending on several factors, including:

Speed: Higher speeds deplete the battery faster.
Temperature: Extreme cold and hot weather impacts range.
Terrain: Hilly or mountainous terrain reduces range.
Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

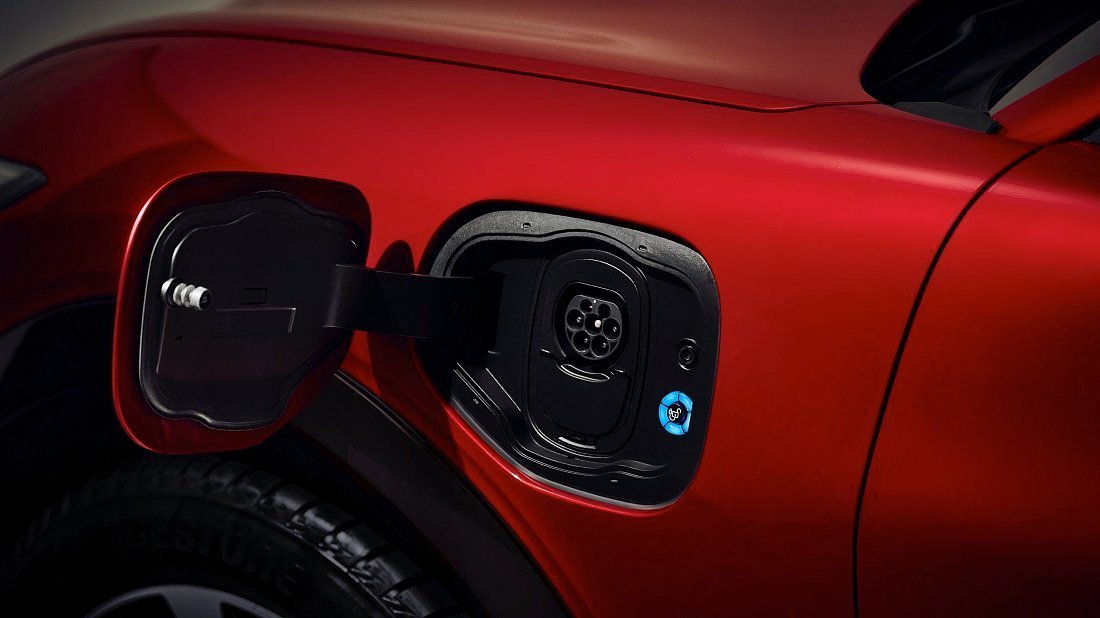

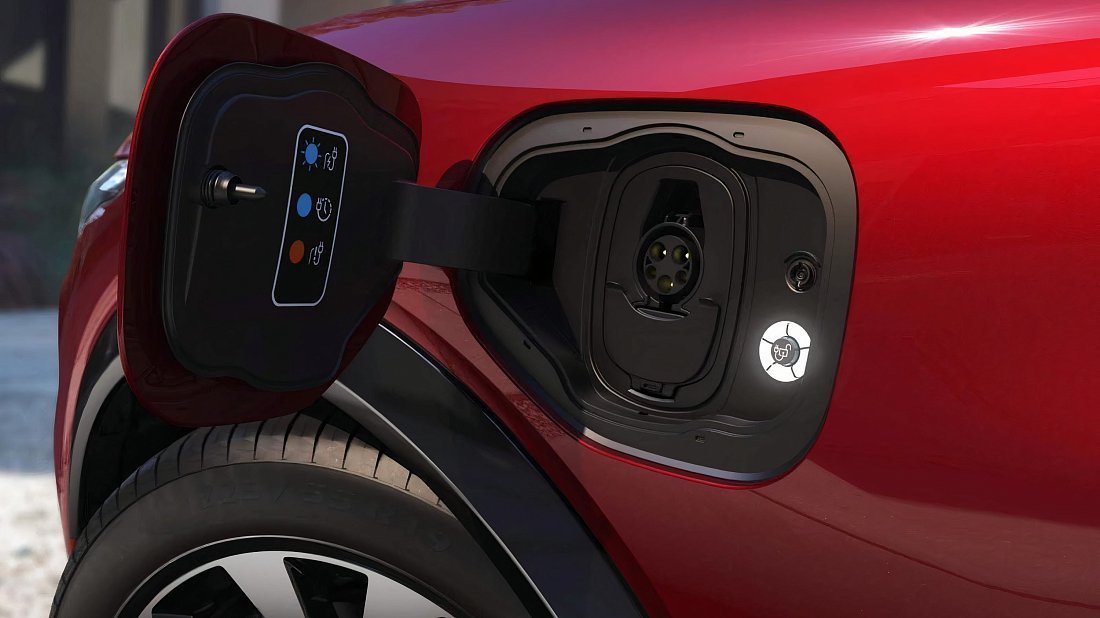

Ford Mustang Mach-E ER RWD charge port type?

The Ford Mustang Mach-E ER RWD in Europe comes with a CCS Type 2 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 55 km of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 107 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use our Charging calculator to estimate charging time, rate, and cost.

Ford Mustang Mach-E ER RWD dimensions and weight?

Ford Mustang Mach-E ER RWD comes in the following dimensions:

Length: 4713 mm
Width: 2097 mm (including side mirrors) or 1881 mm (excluding side mirrors)
Height: 1624 mm
Wheelbase: 2984 mm (distance between the center of the front and rear wheels)
Curb weight: 2160 kg (weight of the empty car, no people or cargo)

Ford Mustang Mach-E ER RWD cargo capacity?

Here's a breakdown of the Ford Mustang Mach-E ER RWD cargo space:

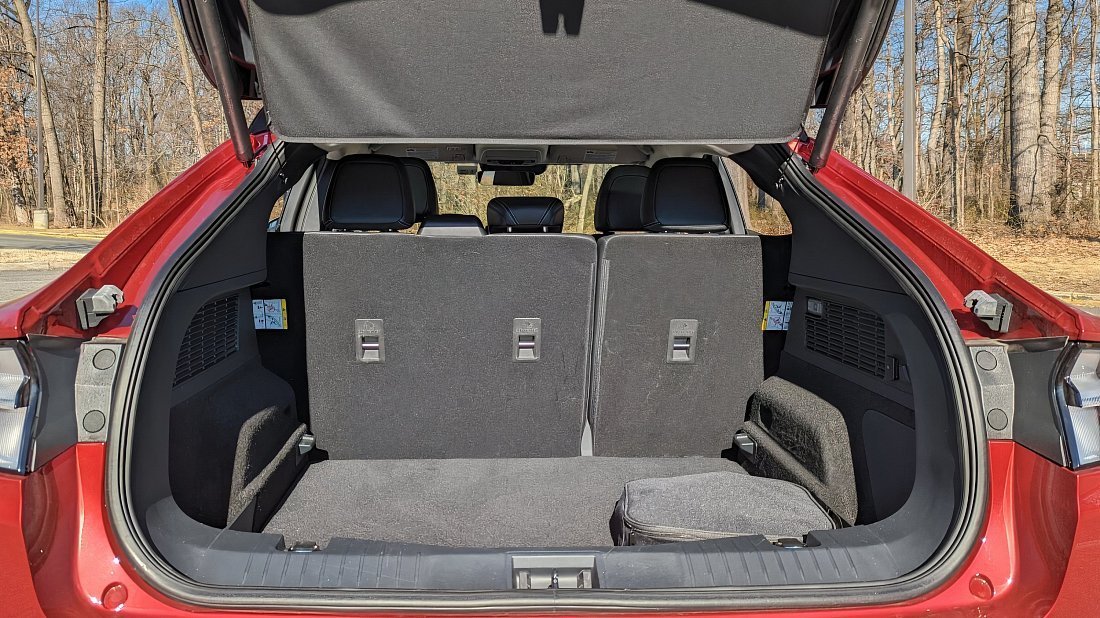

Trunk capacity: With the rear seats up, you get 322 litres of cargo space in the back (ranked №471 out of 586 electric vehicles).

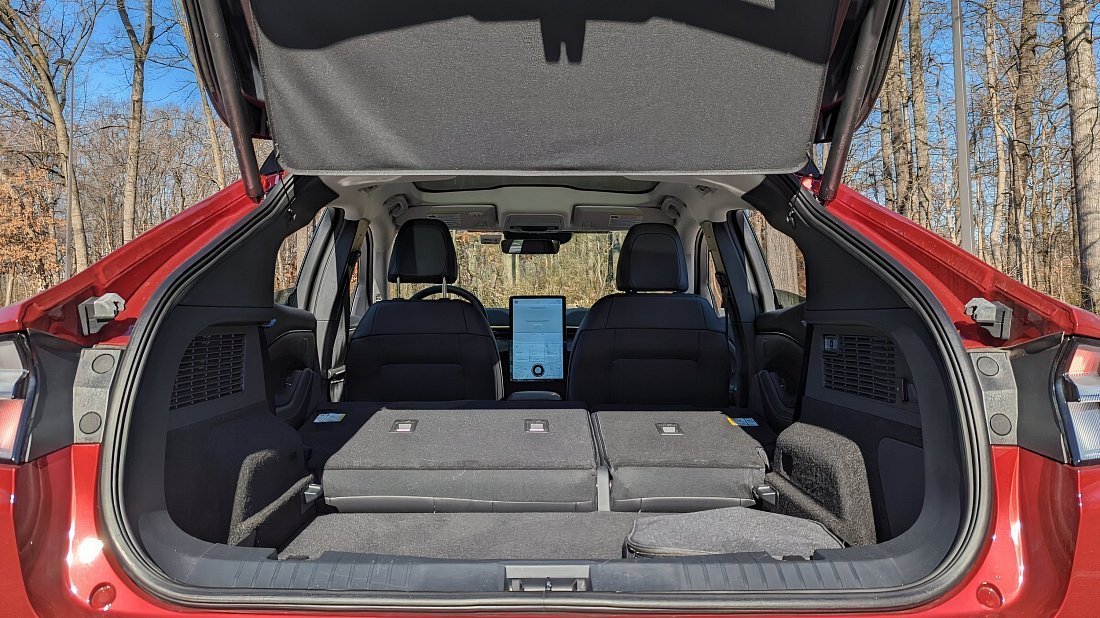

Max cargo capacity: Fold down the rear seats, and you open up 1420 litres of total cargo space (ranked №254 out of 586 electric vehicles).

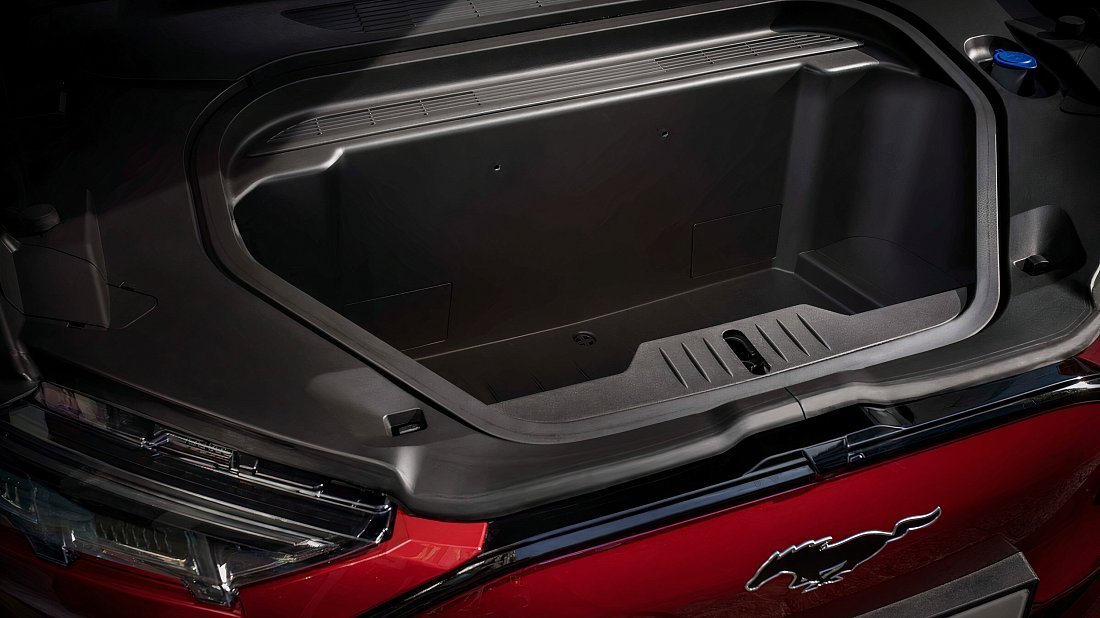

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 100 litres for storing small items.

Ford Mustang Mach-E ER RWD towing capacity?

The Ford Mustang Mach-E ER RWD can safely tow up to 1500 kg, provided that the trailer has its own braking system.
