Tesla Model S Dual Motor

Years of Production
When the car first came out and when they stopped making it
2021 -

Trims

Currently Produced
Plaid Dual Motor
Discontinued
P85 85 60 (2013) P85D P90D (2015) 90D (2015) 70D (2015) 70 (2015) 85D 60D 60 (2016) 70D (2016) 70 (2016) P100D 75D 75 P90D (2016) 90D (2016) 100D Standard Range Long Range Performance (2019) Performance (2020) Long Range Plus

Tesla Model S Dual Motor

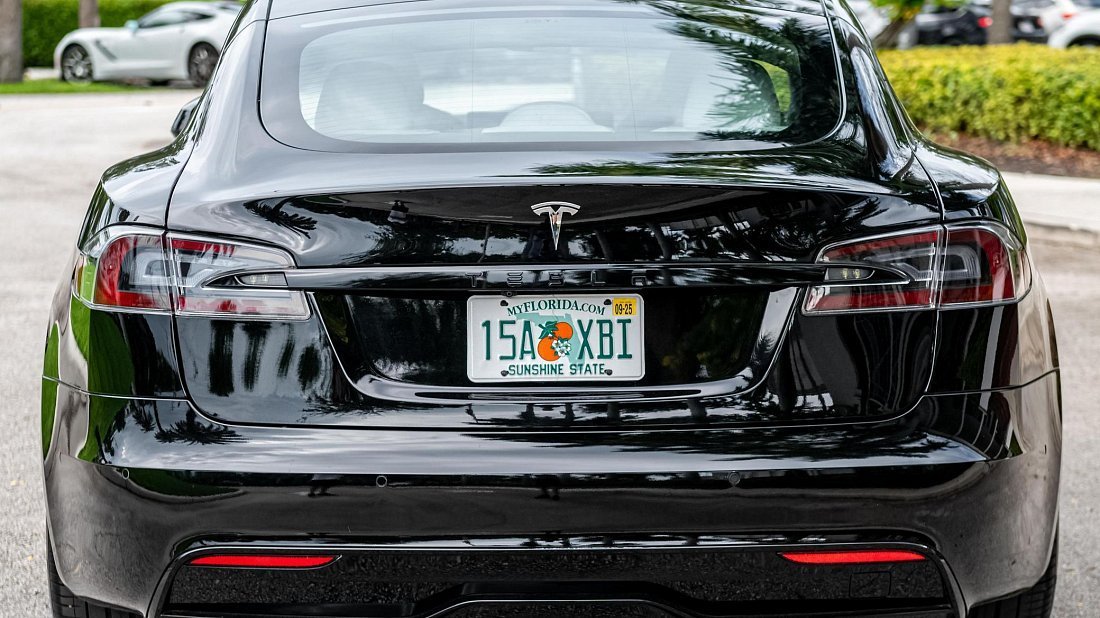

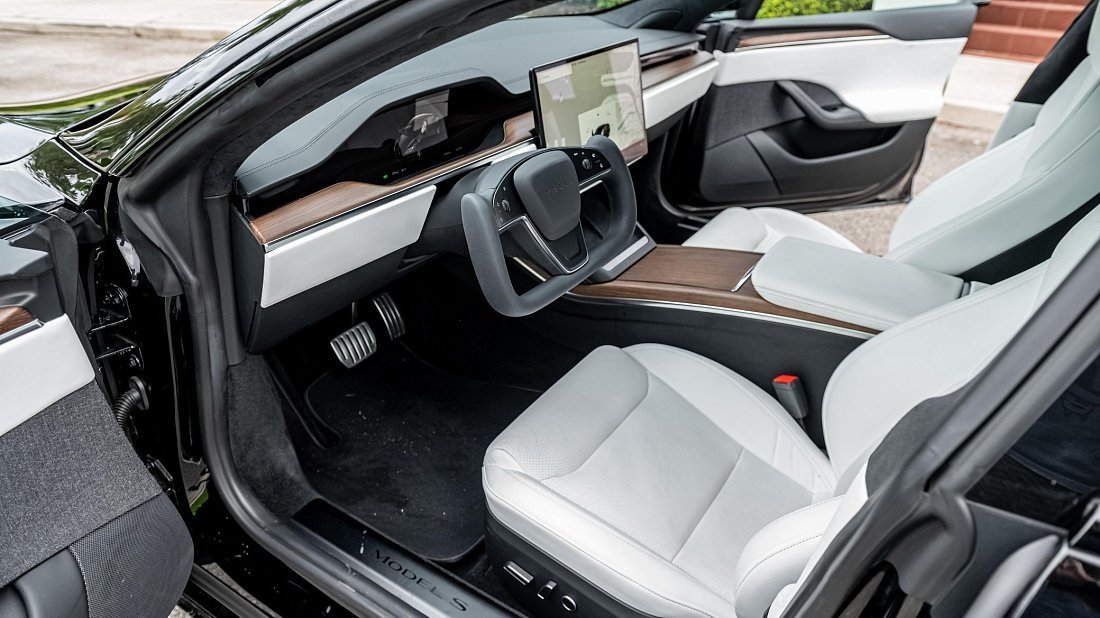

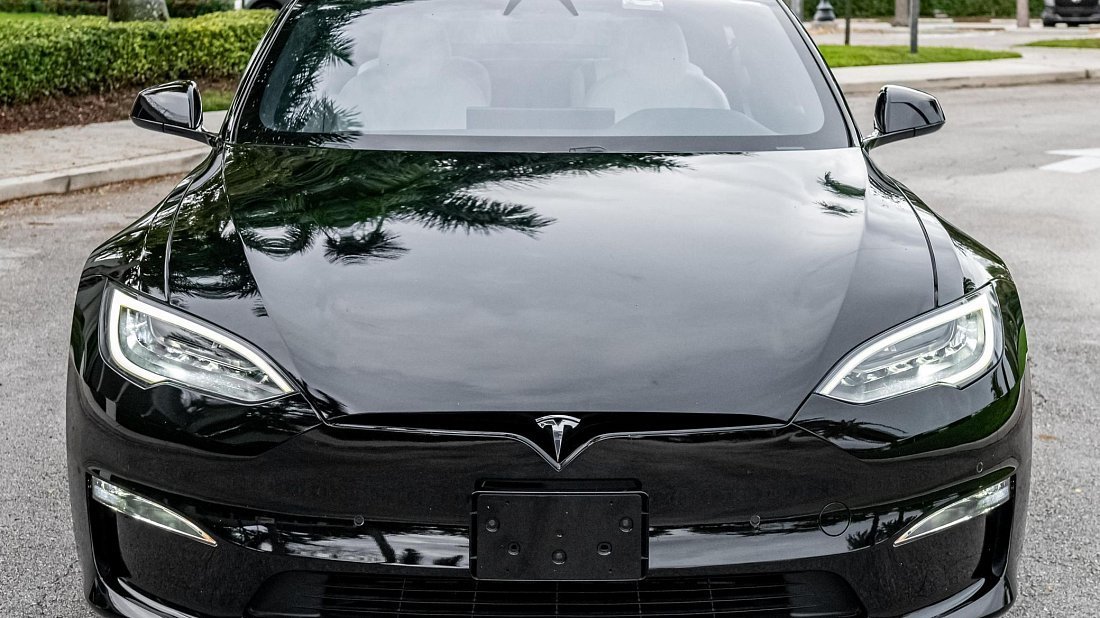

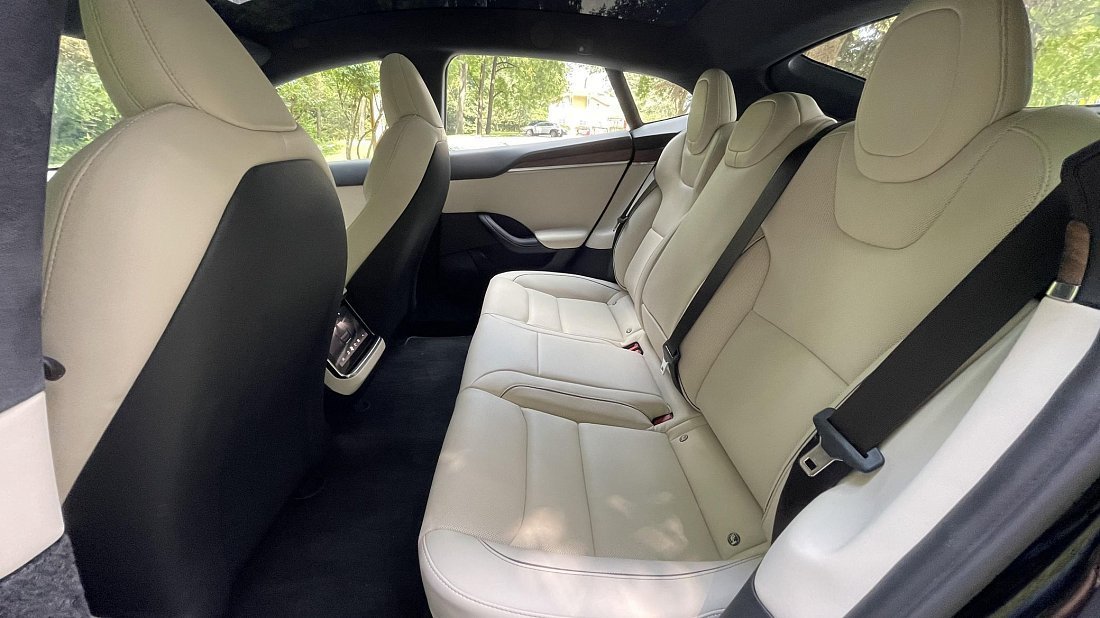

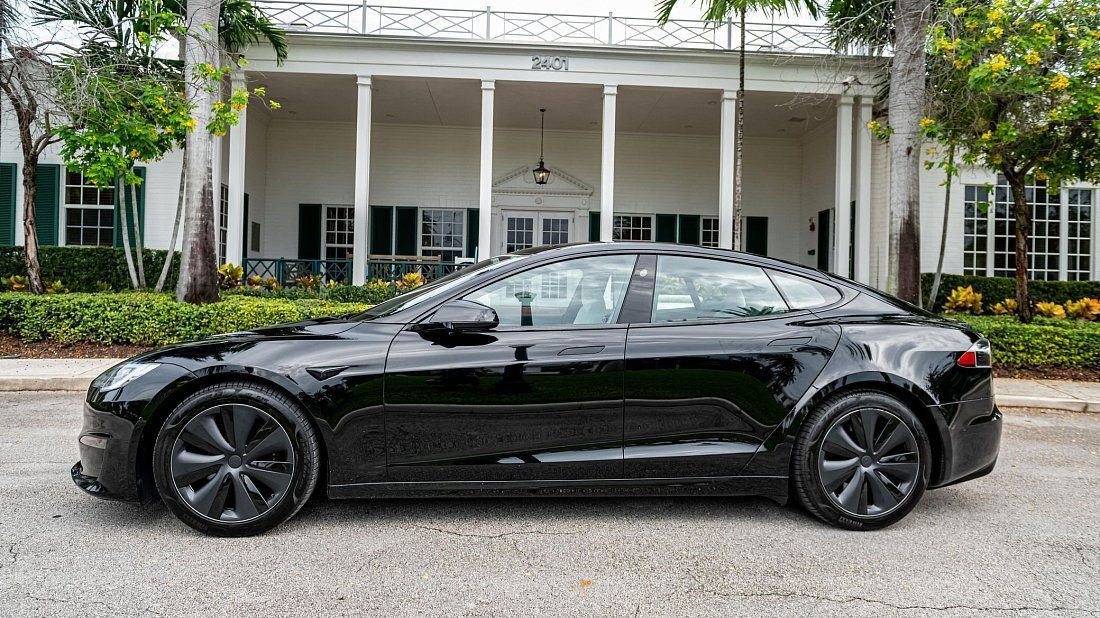

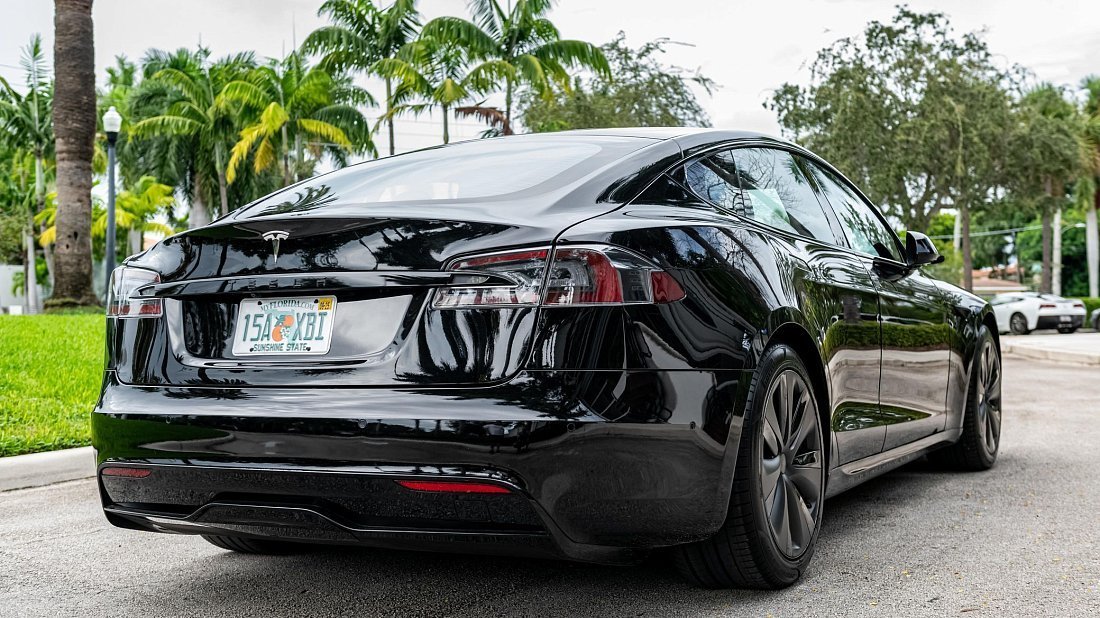

Photo of Tesla Model S Dual Motor (1 slide)

Technical Specifications of Tesla Model S Dual Motor

General Info

Years of Production
When the car first came out and when they stopped making it
2021 -
Country of Manufacture
Country where final assembly of the car took place.
USA
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Liftback Tesla Model S Dual Motor

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
652 km
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
649 km 634 km
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 km
Wh/km
16.1 kWh 161 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
100 kWh 95 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 250 kW
Charge Port
The car's charge port type. It affects charging speed and station compatibility.

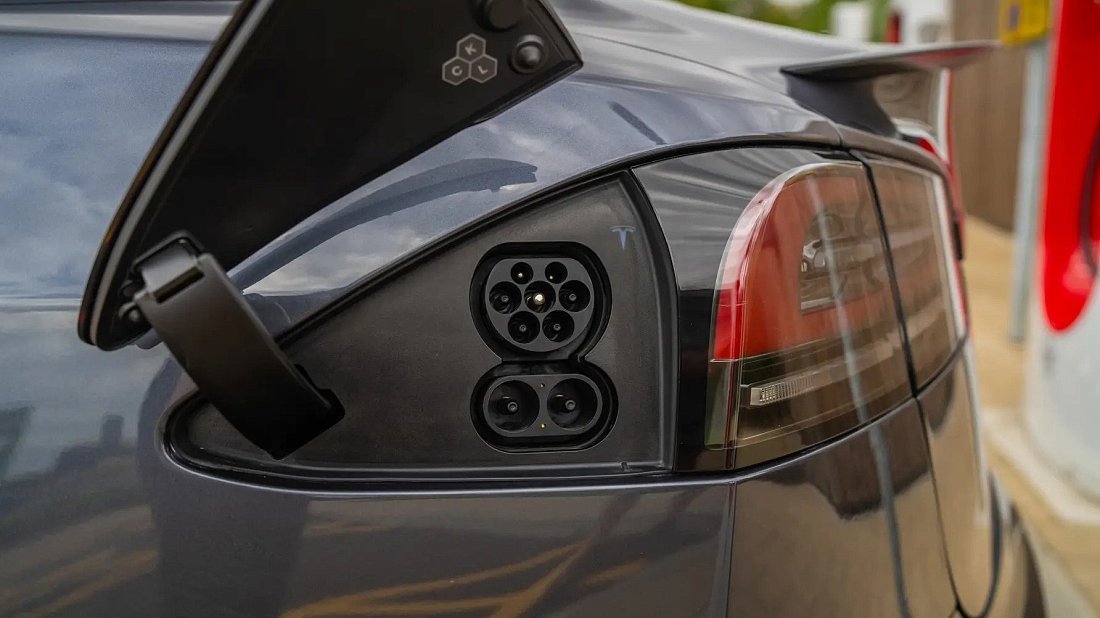

CCS Type 2 (Tesla)

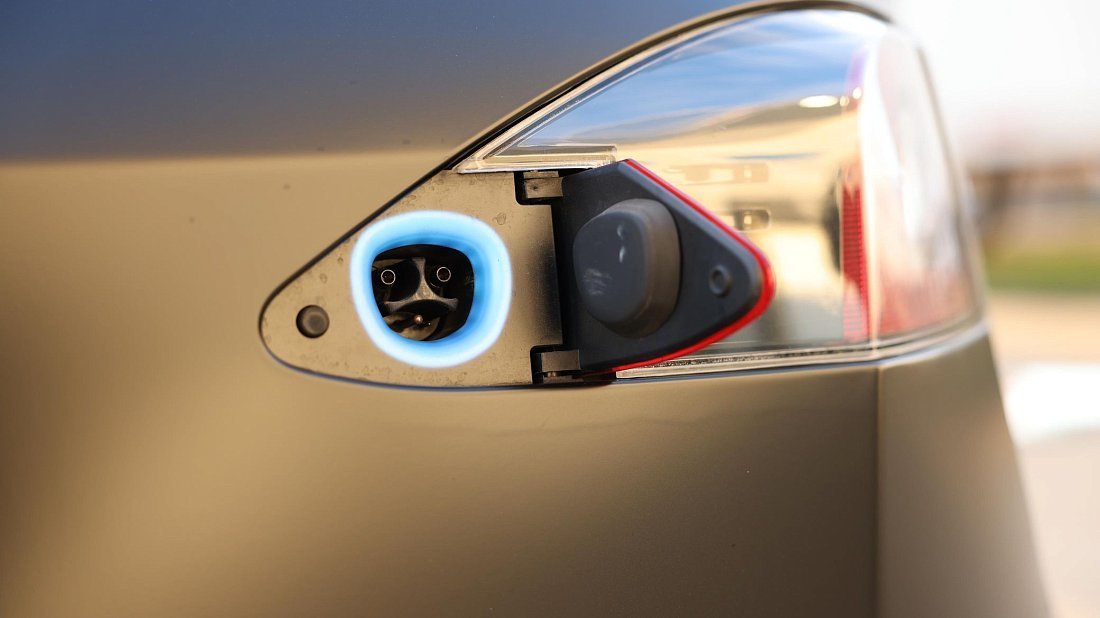

CCS Type 2 (Tesla) charge port

Performance

Drive Type
Which wheels are powered (all, rear, or front) by the electric motor(s)
AWD
Engine
Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.
Power
Torque
676 hp (504 kW) No Data
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3.2 s
Top Speed
The fastest the car can go (maximum speed)
250 km/h
0.00 s
000 km/h

Dimensions

Length
Car's body length (front to back bumper)
5021 mm
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
2189 mm 1987 mm
Height
Car's body height (from ground to highest point)
1431 mm
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
2960 mm

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
2068 kg
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
709 l 1739 l 89 l
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
1600 kg
Last Updated:
March 27, 2024
Download Specs PDF

How Far Can You Go in Tesla Model S Dual Motor

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Tesla Model S Dual Motor

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

EURO 1-phase 10A

Socket specs
Socket specs
230 V, 10 A, 1-phase
Socket output
Socket output
2.3 kW
Charging 20-80%
Charging 20-80%
27 h 32 min (~14 km/h)

EURO 1-phase 16A

Socket specs
Socket specs
230 V, 16 A, 1-phase
Socket output
Socket output
3.7 kW
Charging 20-80%
Charging 20-80%
17 h 07 min (~23 km/h)

EURO 1-phase 32A

Socket specs
Socket specs
230 V, 32 A, 1-phase
Socket output
Socket output
7.4 kW
Charging 20-80%
Charging 20-80%
08 h 34 min (~45 km/h)

EURO 3-phase 16A

Socket specs
Socket specs
400 V, 16 A, 3-phase
Socket output
Socket output
11.1 kW
Charging 20-80%
Charging 20-80%
05 h 45 min (~68 km/h)
Charging power is limited by the car’s on-board charger (11 kW)

EURO 3-phase 32A

Socket specs
Socket specs
400 V, 16 A, 3-phase
Socket output
Socket output
11.1 kW
Charging 20-80%
Charging 20-80%
05 h 45 min (~68 km/h)
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
01 h 20 min (~290 km/h)

CCS DC 100 kW

Socket output
Socket output
100 kW
Charging 20-80%
Charging 20-80%
00 h 43 min (~547 km/h)

CCS DC 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 29 min (~820 km/h)

CCS DC 200 kW

Socket output
Socket output
200 kW
Charging 20-80%
Charging 20-80%
00 h 23 min (~1025 km/h)

CCS DC 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 18 min (~1281 km/h)

CCS DC 350 kW

Socket output
Socket output
350 kW
Charging 20-80%
Charging 20-80%
00 h 18 min (~1281 km/h)
Charging power is limited by the car’s DC charging capability (250 kW)

Supercharger V2 Split 75 kW

Socket output
Socket output
75 kW
Charging 20-80%
Charging 20-80%
00 h 54 min (~436 km/h)

Supercharger V2 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 29 min (~820 km/h)

Supercharger V3 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 18 min (~1281 km/h)
Last Updated:
March 27, 2024
Open Charging Calculator

About Tesla Model S Dual Motor

The Tesla Model S Dual Motor is an all-electric all-wheel drive liftback. It came out in 2021 replacing the older Tesla Model S Long Range Plus. Brand new, the car starts around €94,990.

The Tesla Model S Dual Motor has a 100 kWh battery pack, allowing it to travel up to 591 km on a single charge. The car has an average efficiency of 16.1 kWh per 100 km (or 161 Wh/km) — ranked №19 out of 586 electric vehicles.

Frequently Asked Questions

How fast is Tesla Model S Dual Motor

The Tesla Model S Dual Motor achieves a 0 to 100 km/h acceleration in 3.2 seconds (placing it at №30 among 586 electric vehicles) and attains a maximum speed of 250 km/h.

Its powertrain provides a power output of up to 504 kW (676 hp) and a torque of N/A Nm.

Real-world range of Tesla Model S Dual Motor

The real-world range of the Tesla Model S Dual Motor is 532–650 km (ranked №19 out of 586 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

Tesla Model S Dual Motor charge port type?

In Europe Tesla Model S Dual Motor has a CCS Type 2 (Tesla) charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 62 km of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 250 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using our Charging calculator.

Tesla Model S Dual Motor dimensions and weight?

The size and weight specifications for Tesla Model S Dual Motor are as follows:

  • Length: 5021 mm
  • Width: 2189 mm (including side mirrors) or 1987 mm (excluding side mirrors)
  • Height: 1431 mm
  • Wheelbase: 2960 mm (distance between the center of the front and rear wheels)
  • Curb weight: 2068 kg (weight of the empty car, no people or cargo)

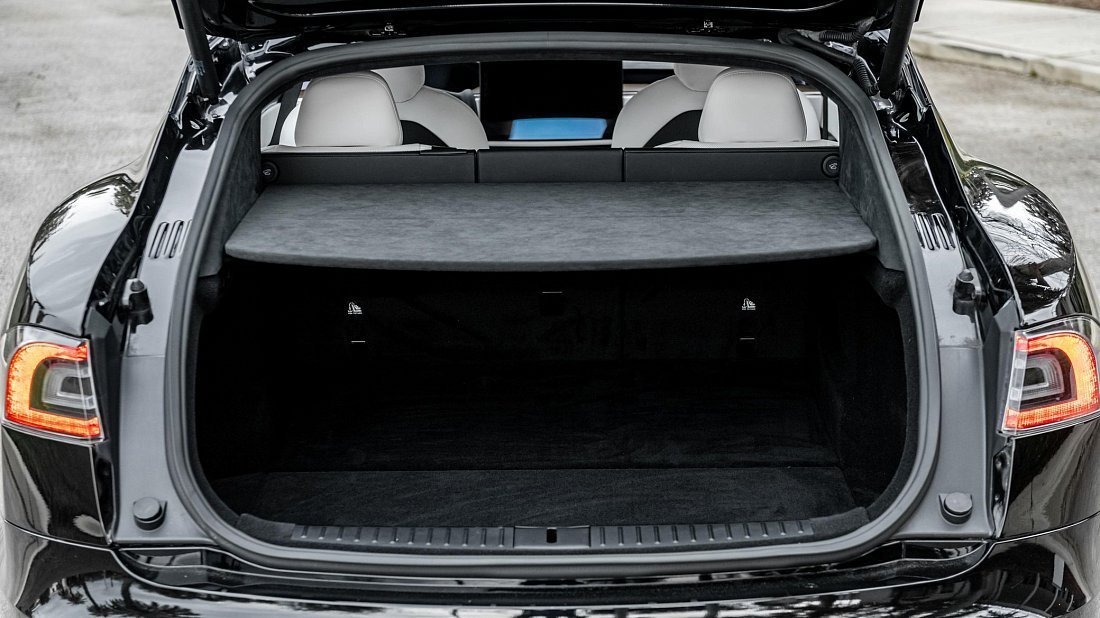

Tesla Model S Dual Motor cargo capacity?

Here's a breakdown of the Tesla Model S Dual Motor cargo space:

  • Trunk capacity: With the rear seats up, you get 709 litres of cargo space in the back (ranked №91 out of 586 electric vehicles).

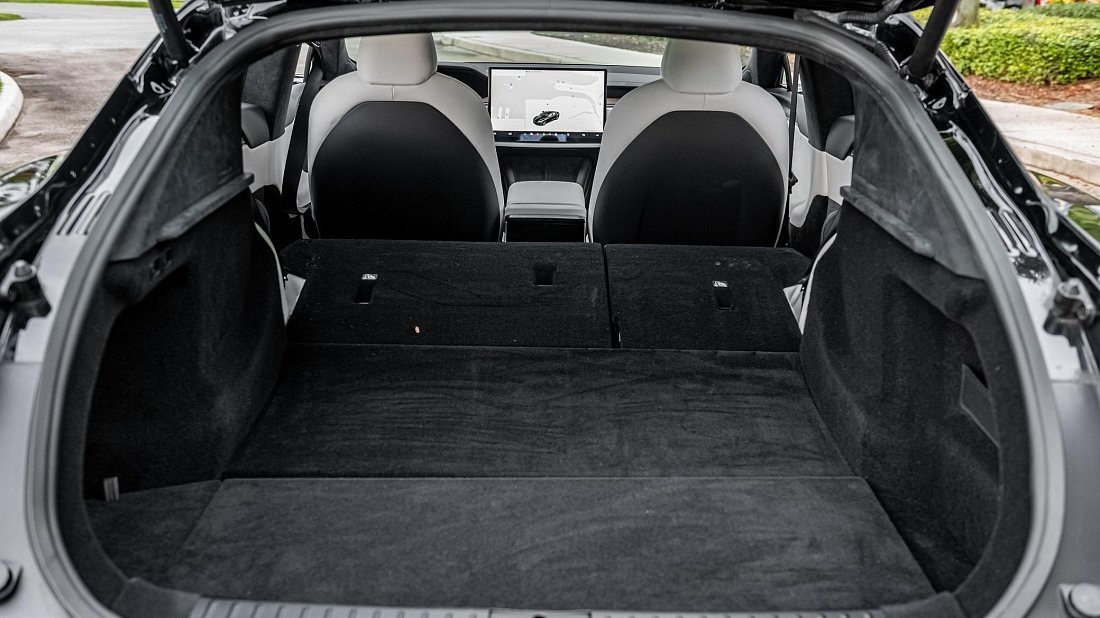

  • Max cargo capacity: Fold down the rear seats, and you open up 1739 litres of total cargo space (ranked №100 out of 586 electric vehicles).

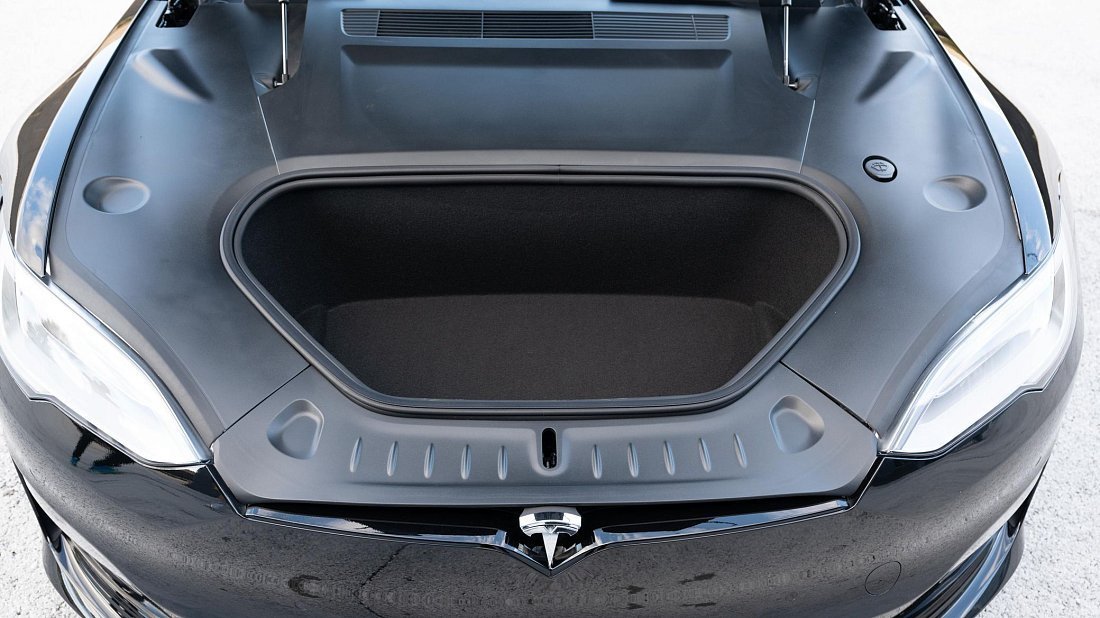

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 89 litres for storing small items.
Tesla Model S Dual Motor towing capacity?
The Tesla Model S Dual Motor is officially rated to tow 1600 kg. This applies to trailers equipped with brakes.
