Volvo EX30 Single Motor Extended Range 2023-2025 - Compare Electric Car Specs

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2023-… (Produced)

Market Availability: EU, USA

Country of Manufacture Country where final assembly of the car took place

China

Body Style Vehicle category based on its shape and layout: SUV

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

480 km 162 out of 331 420 km 91 out of 168 404 km 162 out of 346

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

69 kWh 85 out of 167 64 kWh 104 out of 190

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

15.8 kWh/100 km 30 out of 152 6.31 km/kWh 88 out of 331

Charging

Max AC Charging: 11 kW 11 out of 25

Max DC Charging: 175 kW 33 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 2

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): RWD 1 motor: PMSM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

200 kW (268 hp) 130 out of 196 343 Nm 153 out of 198

0-100 km/h Acceleration time from a standstill: 5.3 s 35 out of 122

Top Speed The fastest the car can go (max speed): 180 km/h 41 out of 70

0.00 s

000 km/h

Dimensions

Length Car's body length (front to back bumper): 4233 mm 208 out of 261

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

2032 mm 89 out of 130 1838 mm 91 out of 140

Height Car's body height (from ground to highest point): 1550 mm 143 out of 235

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 2650 mm 124 out of 170

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 1850 kg 314 out of 460

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

318 l 159 out of 198 843 l 184 out of 198 7 l 56 out of 56

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 1600 kg 25 out of 45

Last Updated:

July 24, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in Europe and therefore not compatible with EU charging stations. To see compatible DC chargers, switch your website version to USA

EURO 1-Ph 10 A

Output:: 2.3 kW

230 V, 10 A, 1-phase

EURO 1-Ph 16 A

Output:: 3.7 kW

230 V, 16 A, 1-phase

EURO 1-Ph 32 A

Output:: 7.4 kW

230 V, 32 A, 1-phase

EURO 3-Ph 16 A

Output:: 11.1 kW

400 V, 16 A, 3-phase

EURO 3-Ph 32 A

Output:: 22.2 kW

400 V, 32 A, 3-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger (11 kW) Charging power is limited by the car’s DC charging capability (175 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 175 kW

Time

h min

Avg. Rate

≈ km/h

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Volvo EX30 Single Motor Extended Range (2023-…) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Volvo EX30 Single Motor Extended Range (2023-…) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

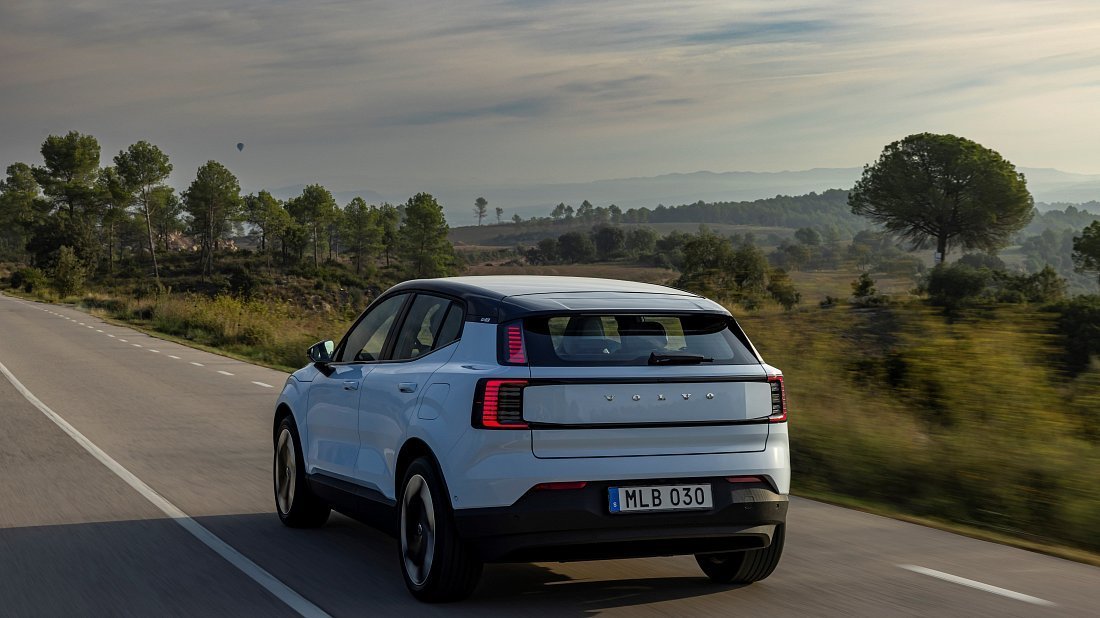

The Volvo EX30 Single Motor Extended Range (2023-…) is an all-electric rear-wheel drive SUV. It came out in 2023. Brand new, the car starts around €44,990.

The Volvo EX30 Single Motor Extended Range (2023-…) has a 69 kWh battery pack, allowing it to travel up to 404 km on a single charge. The car has an average efficiency of 15.8 kWh per 100 km (or 6.31 km per kWh) — ranked №388 out of 902 electric vehicles.

How powerful is it? How fast does it accelerate?

The Volvo EX30 Single Motor Extended Range (2023-…) achieves a 0 to 100 km/h acceleration in 5.3 seconds (placing it at №35 out of 122 ranked positions, among 902 electric vehicles, with some cars sharing positions) and attains a maximum speed of 180 km/h.

Its powertrain provides a power output of up to 200 kW (268 hp) and a torque of 343 Nm.

How far can it go on single charge? What is the real-world range?

Volvo EX30 Single Motor Extended Range (2023-…) achieves a real-world range of 404 km, placing it at №162 among 346 ranked positions. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

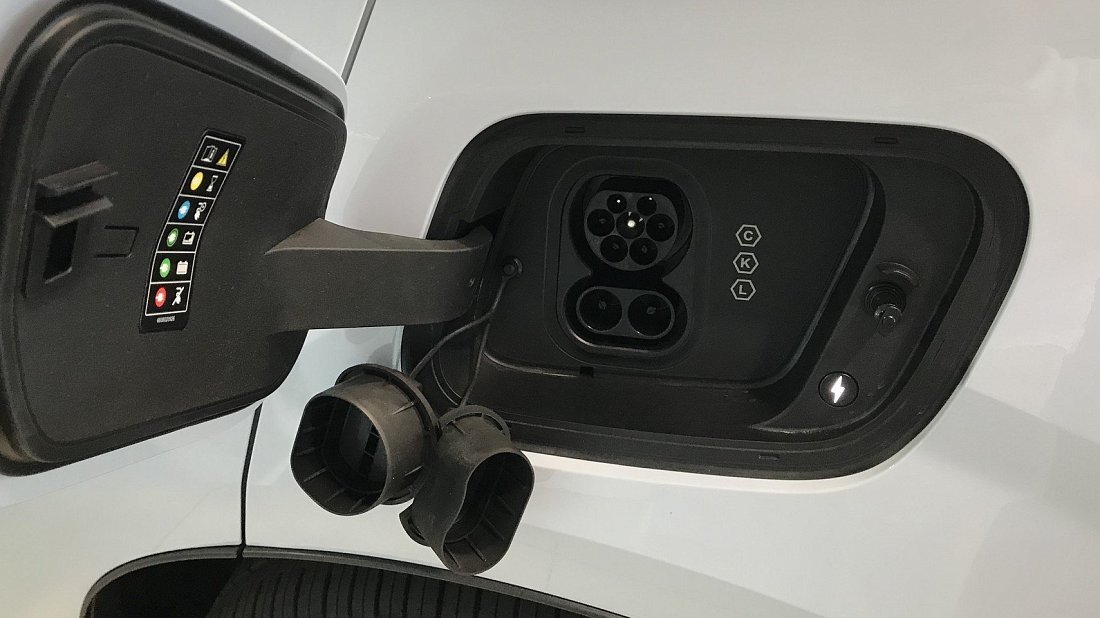

The Volvo EX30 Single Motor Extended Range (2023-…) in Europe comes with a CCS Type 2 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 62 km of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 175 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use our EV Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Volvo EX30 Single Motor Extended Range (2023-…) are as follows:

Length: 4233 mm
Width: 2032 mm (including side mirrors) or #WIDTH_WO_MIRRORS_VALUE# mm (excluding side mirrors)
Height: 1550 mm
Wheelbase: 2650 mm (distance between the center of the front and rear wheels)
Curb weight: 1850 kg (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

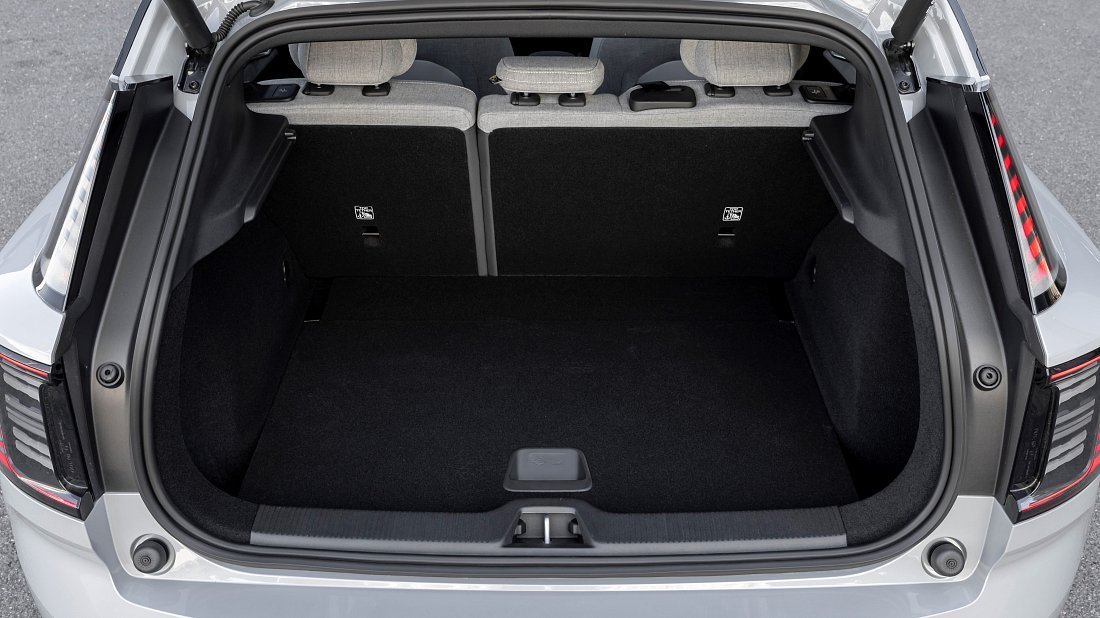

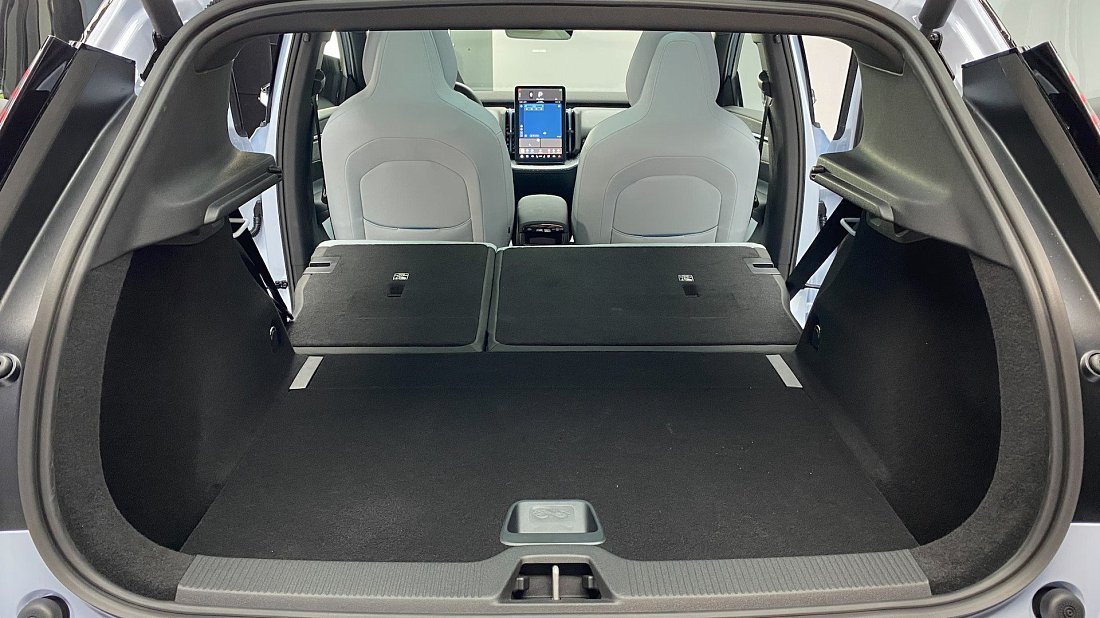

The rear cargo area of the Volvo EX30 Single Motor Extended Range (2023-…) provides 318 litres of space when the rear seats are upright (№159 out of 198 ranked positions, among 902 electric vehicles, with some cars sharing positions).

Folding these seats down unlocks a maximum cargo capacity of 843 litres (№184 out of 198 ranked positions, among 902 electric vehicles, with some cars sharing positions).

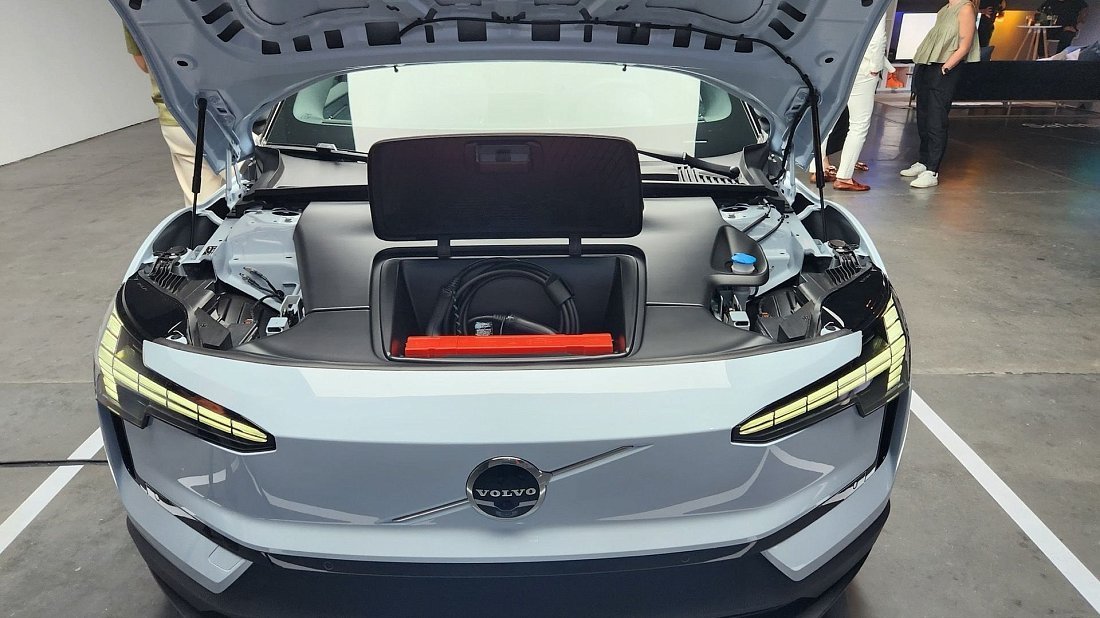

In addition, the car has a frunk, a front compartment with 7 litres dedicated to smaller items.

Is it suitable for towing? What is the maximum towing capacity?

The Volvo EX30 Single Motor Extended Range (2023-…) is officially rated to tow 1600 kg. This applies to trailers equipped with brakes.
