NEMA 5-15
Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
10 h 04 min
Technical Specifications of BMW i3s BEV 94 Ah (2017-2018)
General Info
- Years of Production When the car first came out and when they stopped making it
- 2017-2018
- Country of Manufacture Country where final assembly of the car took place
-
![Germany]( "Germany")
- Current Status Announced (planned), Produced (on sale), Discontinued (no longer made)
- Discontinued
- Body Style Refers to the car's shape & design (sedan, SUV, hatchback)
- Hatchback

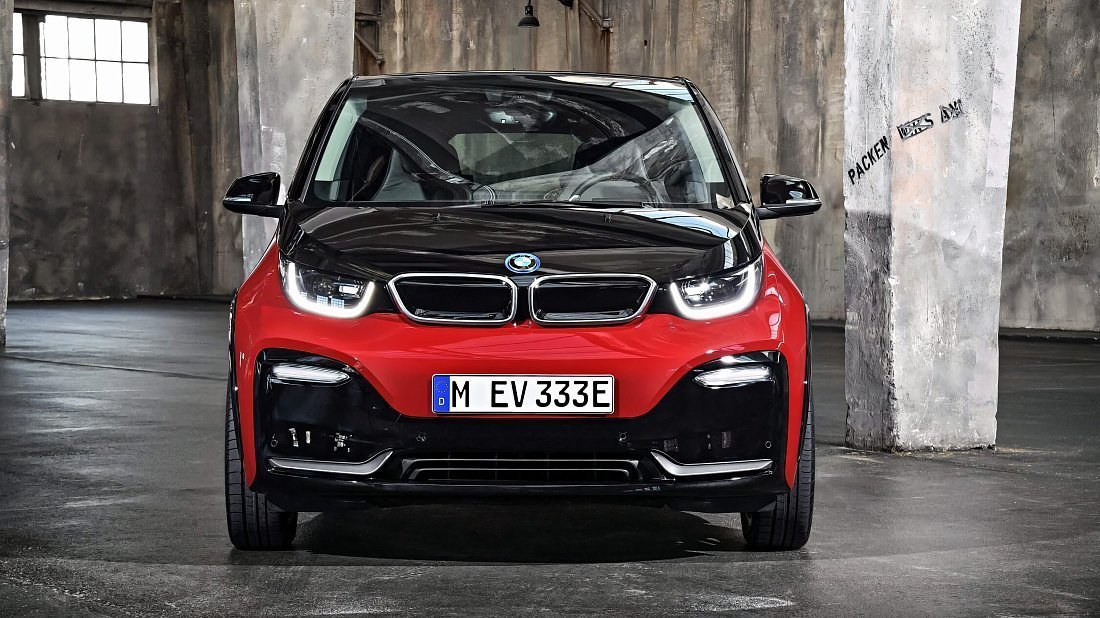

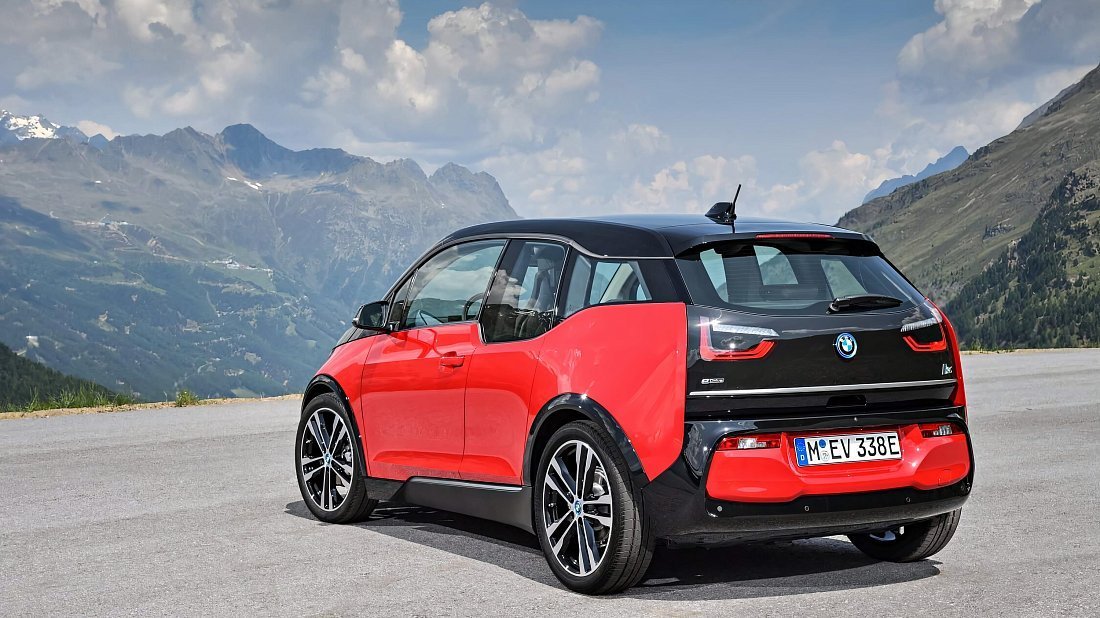

![BMW i3s BEV 94 Ah (2017-2018)]()
Range and Battery
- Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
- WLTPEPANEDCGCCNo Data 107 mi 174 mi 119 mi
- Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
- NominalUsable33.2 kWh 27.2 kWh
- Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
- 22.9 kWh/100 mi (4.4 mi/kWh)
Charging
- Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
- ACDC7.4 kW 49 kW
- Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
- 400 V

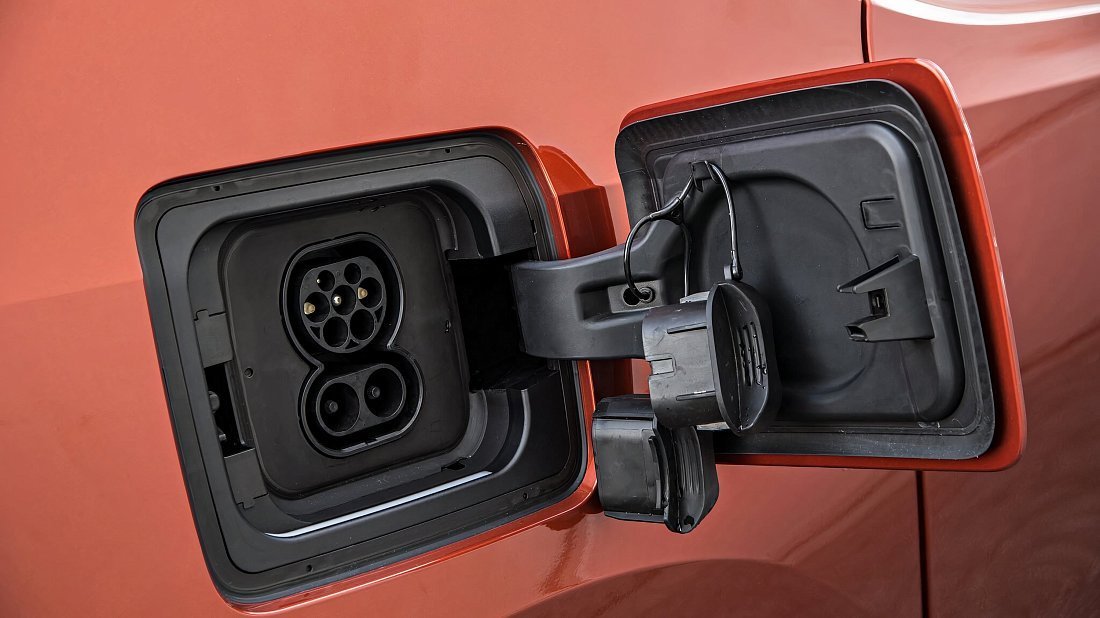

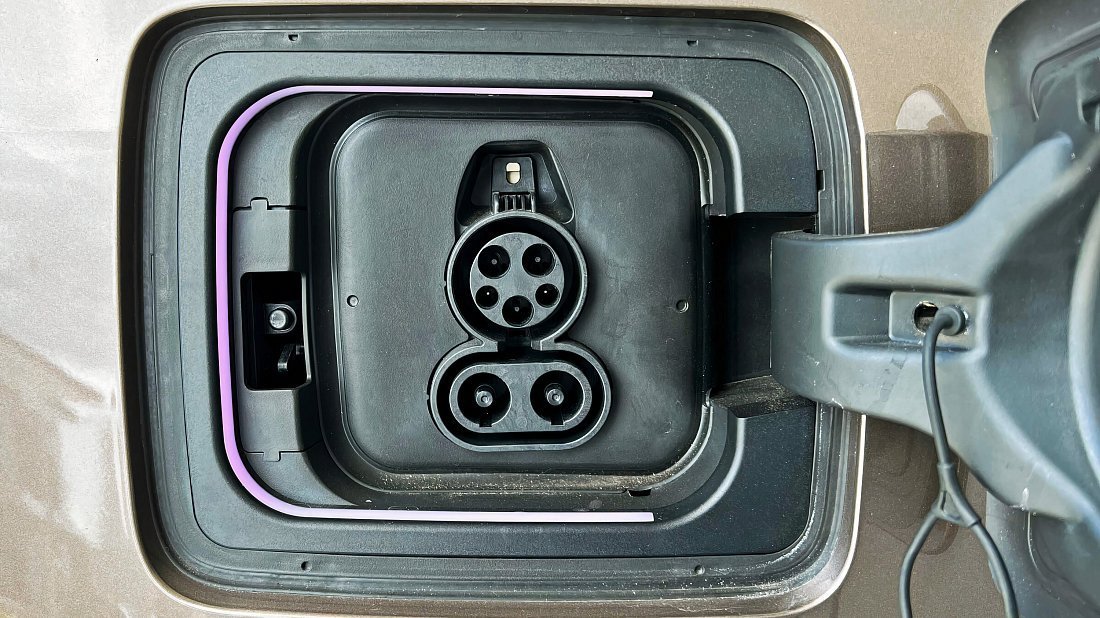

- Charge Port The port type impacts charging speed and station compatibility
-
- CCS Type 1
Performance
- Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
- RWD: PMSM
- Motor Total power and torque of the car's electric motor(s)
- PowerTorque135 kW (181 hp) 199 lb-ft
- 0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
- 6.6 s
- Top Speed The fastest the car can go (maximum speed)
- 99 mph
0.00 s
00 mph
Dimensions
- Length Car's body length (front to back bumper)
- 157.7 in
- Width Car's body width including or excluding side mirrors
- with Mirrorsw/o Mirrors80.3 in 70.5 in
- Height Car's body height (from ground to highest point)
- 62.6 in
- Wheelbase Distance between centers of front and rear wheels (affects ride and handling)
- 101.2 in
Cargo and Towing

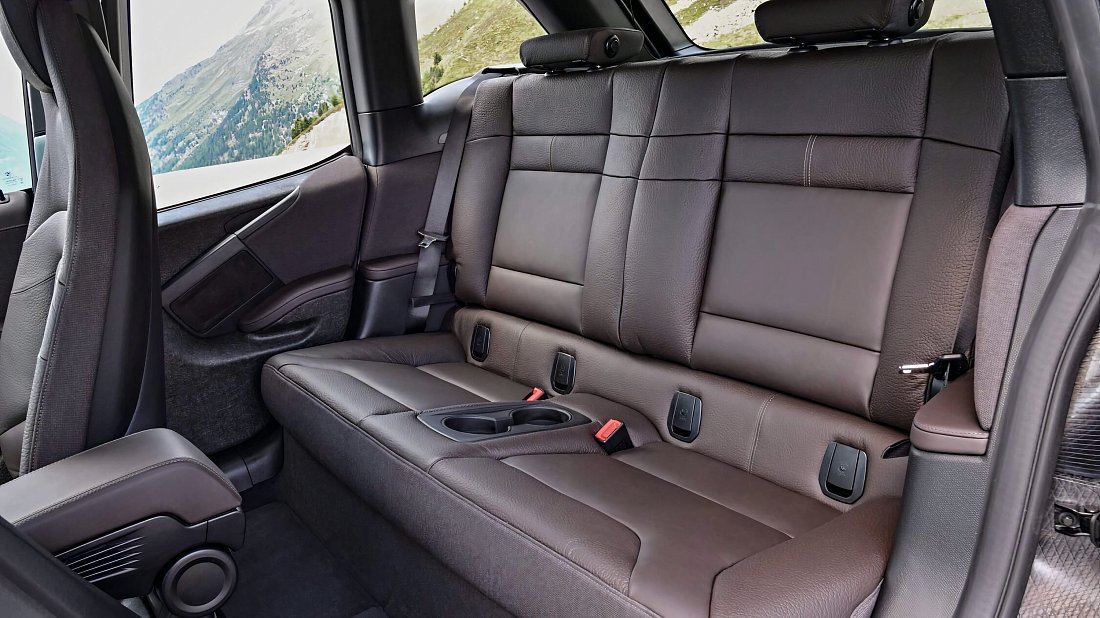

- Number of Seats Total passenger capacity of the car (including driver)
- 4
- Curb Weight Car's weight without passengers or cargo
- 3005 lb

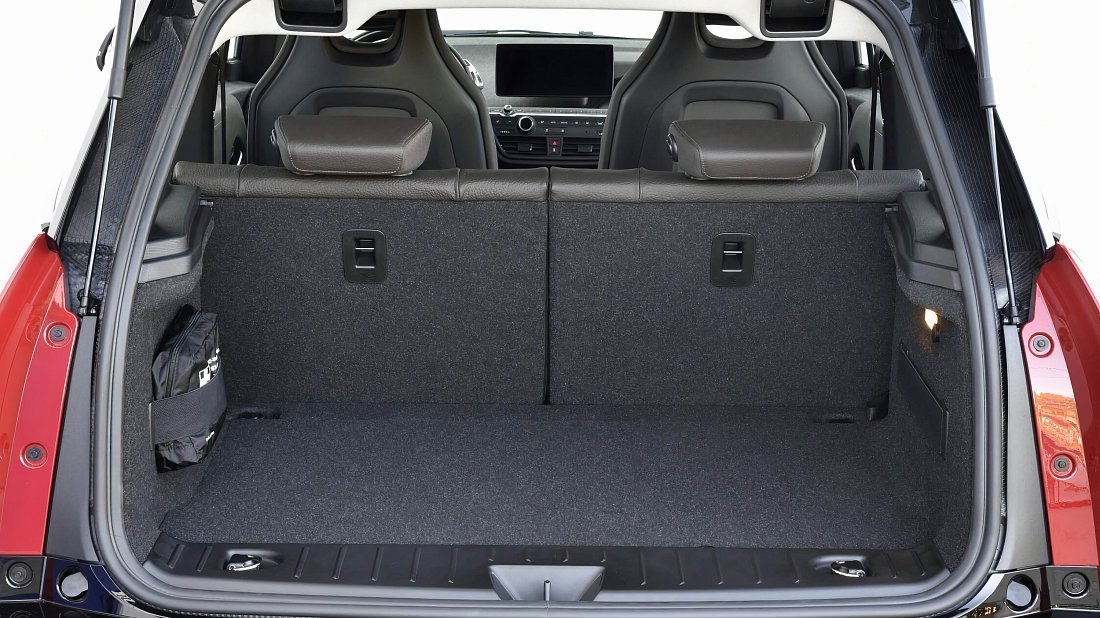

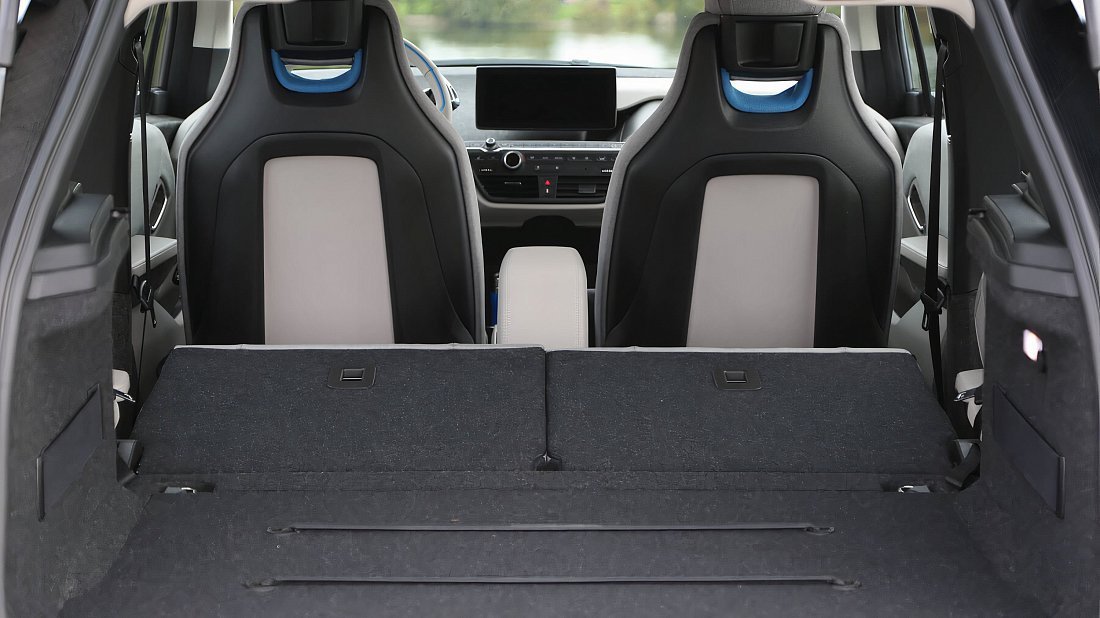

- Cargo Volume Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood) - TrunkMaxFrunk9.2 ft3 38.8 ft3 No Data
- Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes
- No Data
