Kia EV9 Long Range AWD

Years of Production
When the car first came out and when they stopped making it
2023 -
Price USA (new)
Manufacturer's suggested base price
$63,900
Price USA (used)
Estimated pre-owned price
$59,990

Trims

Kia EV9 Long Range AWD

Technical Specifications of Kia EV9 Long Range AWD

General Info

Years of Production
When the car first came out and when they stopped making it
2023 -
Country of Manufacture
Country where final assembly of the car took place
South Korea USA
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Kia EV9 Long Range AWD

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
314-318 mi 280 mi 278 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
99.8 kWh 96 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
34.5 kWh/100 mi (2.9 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 210 kW (97 kW at 400 V)
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
800 V

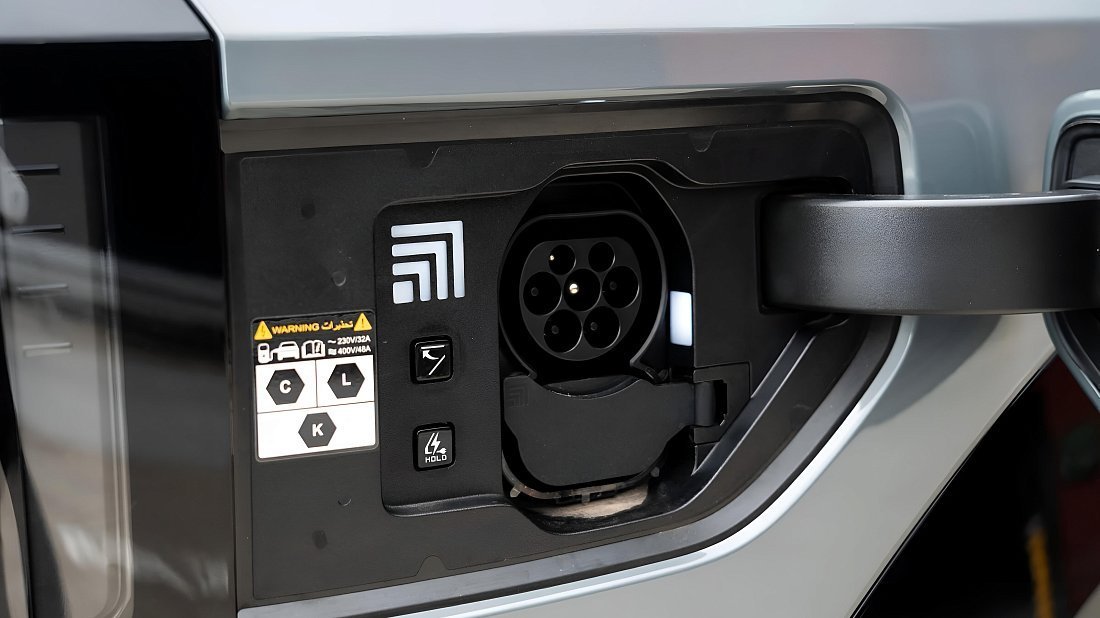

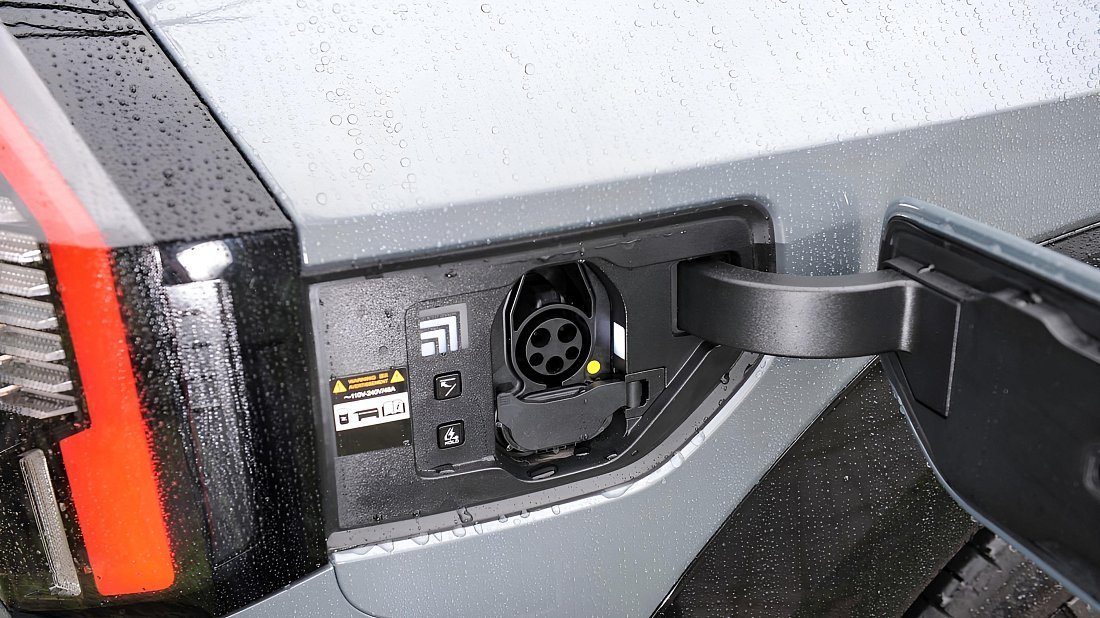

Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
283 kW (379 hp) 443 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.7 s
Top Speed
The fastest the car can go (maximum speed)
124 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
197.2 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
90.6 in 77.9 in
Height
Car's body height (from ground to highest point)
69.1 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
122 in

Cargo and Towing

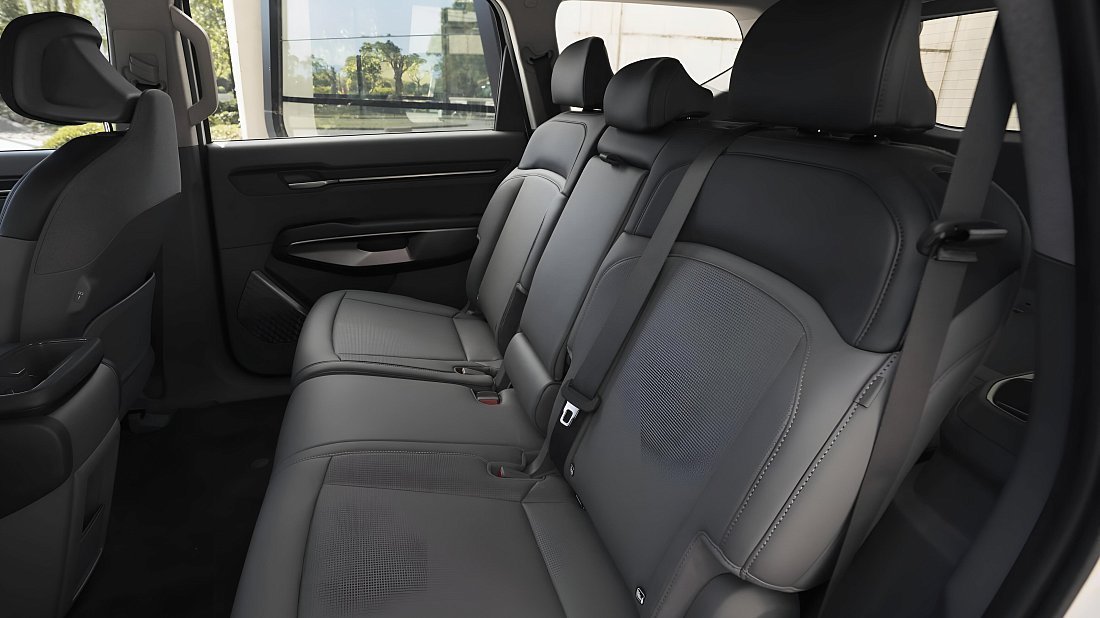

Number of Seats
Total passenger capacity of the car (including driver)
6, 7
Curb Weight
Car's weight without passengers or cargo
5688 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
20.2 ft3 84.5 ft3 1.8 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
3500 lb
Last Updated:
April 25, 2024
Download Specs PDF

How Far Can You Go in Kia EV9 Long Range AWD

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Kia EV9 Long Range AWD

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
April 25, 2024
Open Charging Calculator

About Kia EV9 Long Range AWD

The Kia EV9 Long Range AWD is an all-electric all-wheel drive SUV. It came out in 2023. Brand new, the car starts around $63,900.

The Kia EV9 Long Range AWD has a 99.8 kWh battery pack, allowing it to travel up to 278 mi on a single charge. The car has an average efficiency of 34.5 kWh per 100 miles (or 2.9 miles per kWh) — ranked №218 out of 680 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Kia EV9 Long Range AWD can accelerate from 0 to 60 mph in 5.7 seconds (ranked №286 out of 680 electric vehicles) and reach a top speed of 124 mph.

The car’s powertrain delivers up to 283 kW (379 hp) of power and 443 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

The estimated How far can it go on single charge? What is the real-world range? for Kia EV9 Long Range AWD falls between 250–306 miles, ranking it №218 out of 680 electric vehicles. Several conditions can influence this range:

  • Speed: The battery drains faster at higher speeds.
  • Temperature: Extreme temperatures can impact range.
  • Terrain: Range is reduced on hilly or mountainous terrain.
  • Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
  • Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The Kia EV9 Long Range AWD in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 29 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 210 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Kia EV9 Long Range AWD are as follows:

  • Length: 197.2 in
  • Width: 90.6 in (including side mirrors) or 77.9 in (excluding side mirrors)
  • Height: 69.1 in
  • Wheelbase: 122 in (distance between the center of the front and rear wheels)
  • Curb weight: 5688 lbs (weight of the empty car, no people or cargo)

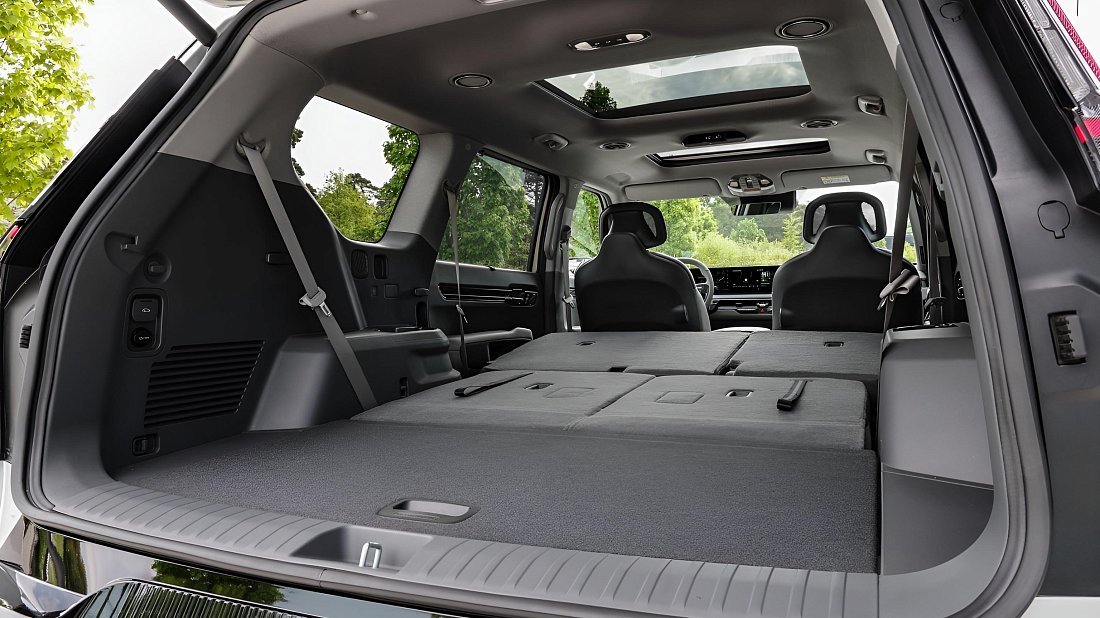

How much cargo space does it offer? Does it have a front trunk?

Behind the rear seats of the Kia EV9 Long Range AWD, you'll find 20.2 cubic feet of storage space (ranked №209 out of 680 electric vehicles).

Folding down the rear seats expands the total cargo capacity to 84.5 cubic feet (ranked №71 out of 680 electric vehicles).

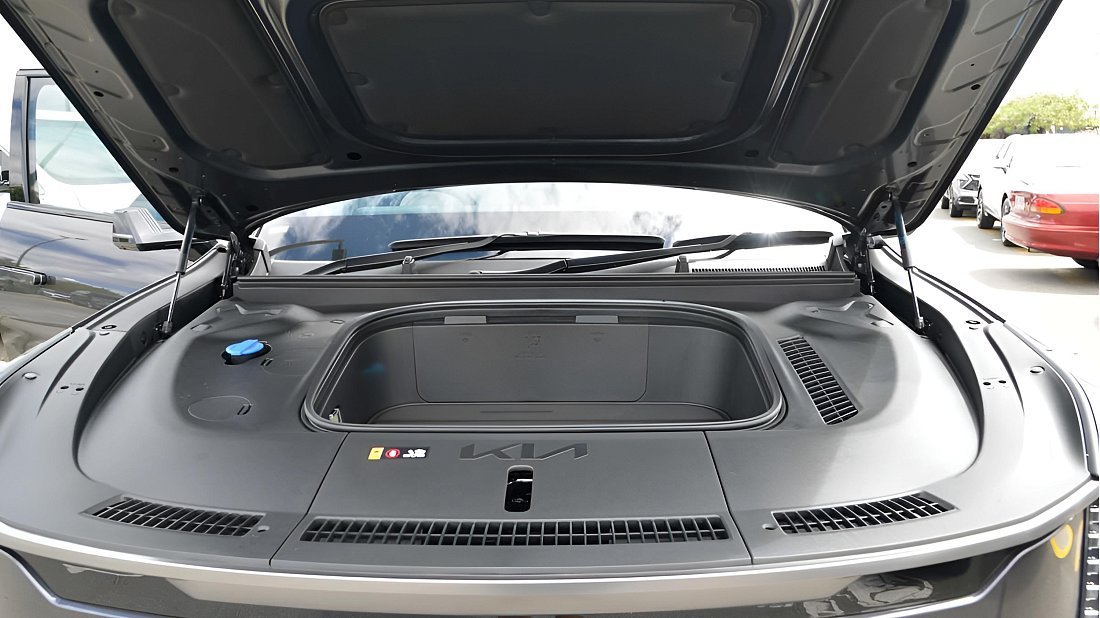

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 1.8 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Kia EV9 Long Range AWD is officially rated to tow 3500 lbs. This applies to trailers equipped with brakes.
