Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2022-2023 (Discontinued)

Available in the USA: No

Country of Manufacture Country where final assembly of the car took place

USA

Body Style Vehicle category based on its shape and layout: SUV

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

318-383 mi 40 out of 242 No Data 306 mi 63 out of 253

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

120 kWh 13 out of 162 108.4 kWh 18 out of 183

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

35.4 kWh/100 mi 139 out of 210 2.82 mi/kWh 174 out of 237

Charging

Max AC Charging: 9.6 kW 14 out of 24

Max DC Charging: 207 kW 23 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): AWD 2 motors: PMSM (front), PMSM (rear)

Motor Peak power and torque of the car's electric motor(s): Power

Torque

330 kW (443 hp) 81 out of 189 611 lb-ft 54 out of 186

0-60 mph Acceleration time from a standstill: 5 s 33 out of 118

Top Speed The fastest the car can go (max speed): 130 mph 29 out of 68

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 201.8 in 23 out of 220

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

84.9 in 33 out of 105 77.1 in 26 out of 97

Height Car's body height (from ground to highest point): 67.6 in 42 out of 153

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 126.4 in 14 out of 136

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5, 7

Curb Weight Car's weight without passengers or cargo: No Data

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

22.8 ft³ 45 out of 154 74.2 ft³ 32 out of 178 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

June 14, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger (9.6 kW) Charging power is limited by the car’s DC charging capability (207 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 207 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Mercedes EQS SUV 500 4MATIC (2022-2023) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Mercedes EQS SUV 500 4MATIC (2022-2023) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

The Mercedes EQS SUV 500 4MATIC (2022-2023) is an all-electric all-wheel drive SUV. It came out in 2022. Mercedes stopped making the 500 4MATIC in 2023 and replaced it with the Mercedes EQS SUV 500 4MATIC (2023-…). The car is not available on the US market.

The Mercedes EQS SUV 500 4MATIC (2022-2023) has a 120 kWh battery pack, allowing it to travel up to 306 mi on a single charge — ranked №120 out of 837 electric vehicles.

How powerful is it? How fast does it accelerate?

The Mercedes EQS SUV 500 4MATIC (2022-2023) is equipped with a powertrain that delivers up to 330 kW (443 hp) of power and 611 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 5 seconds (№33 out of 118 ranked positions, among 837 electric vehicles, with some cars sharing positions) and a top speed of 130 mph.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for Mercedes EQS SUV 500 4MATIC (2022-2023) is 306 miles, ranking it №63 out of 253 ranked positions. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

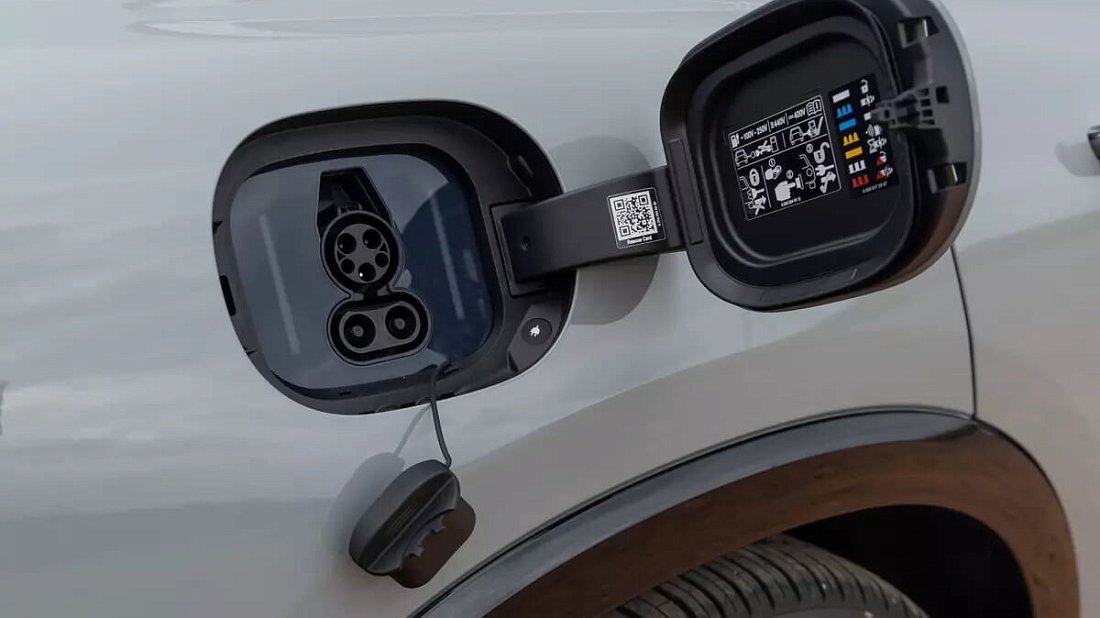

The Mercedes EQS SUV 500 4MATIC (2022-2023) in the USA is equipped with a CCS Type 1 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 9.6 kW, which translates to roughly 24 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Mercedes EQS SUV 500 4MATIC (2022-2023) supports a maximum DC charging rate of 207 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use EV Charging Calculator.

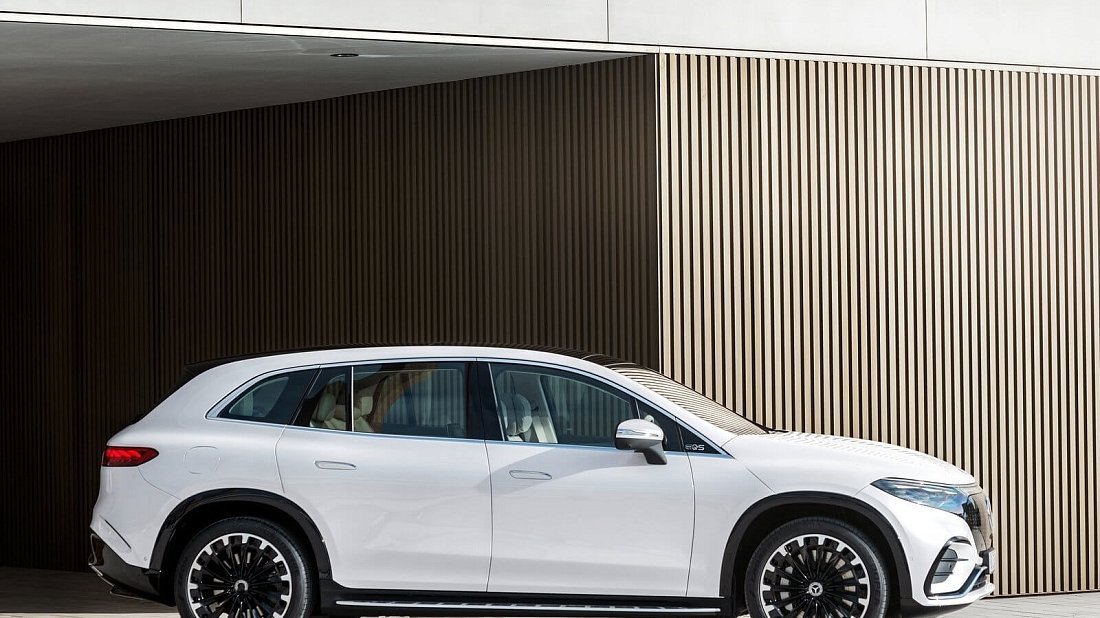

How big is it? What are the dimensions (length, width, height)?

Mercedes EQS SUV 500 4MATIC (2022-2023) comes in the following dimensions:

Length: 201.8 in
Width: 84.9 in (including side mirrors) or 77.1 in (excluding side mirrors)
Height: 67.6 in
Wheelbase: 126.4 in (distance between the center of the front and rear wheels)
Curb weight: lbs (weight of the empty car, no people or cargo)

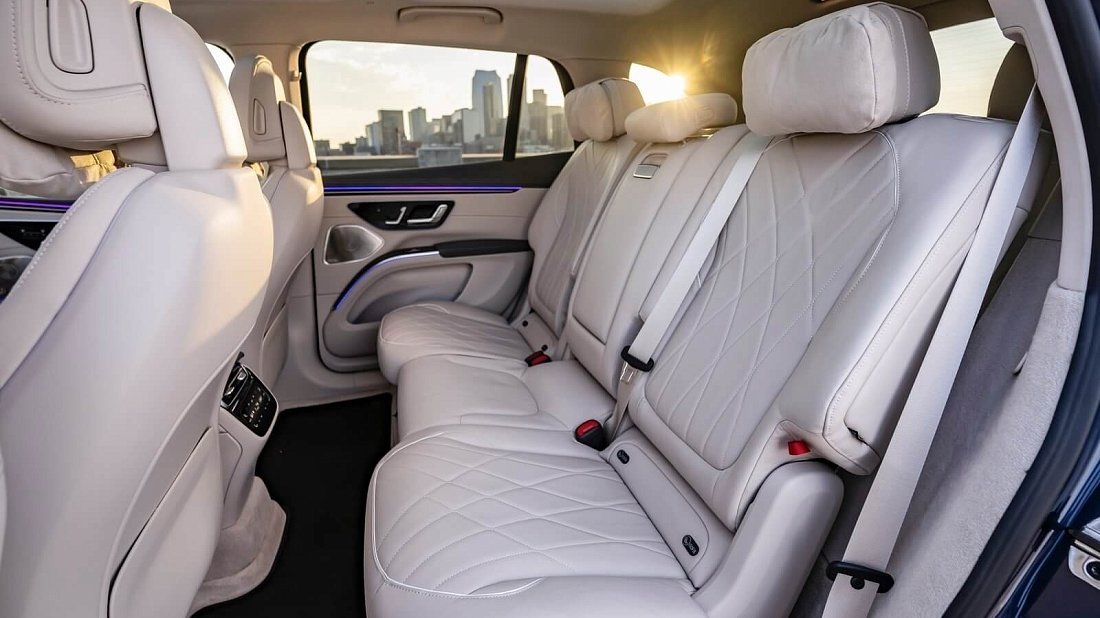

How much cargo space does it offer? Does it have a front trunk?

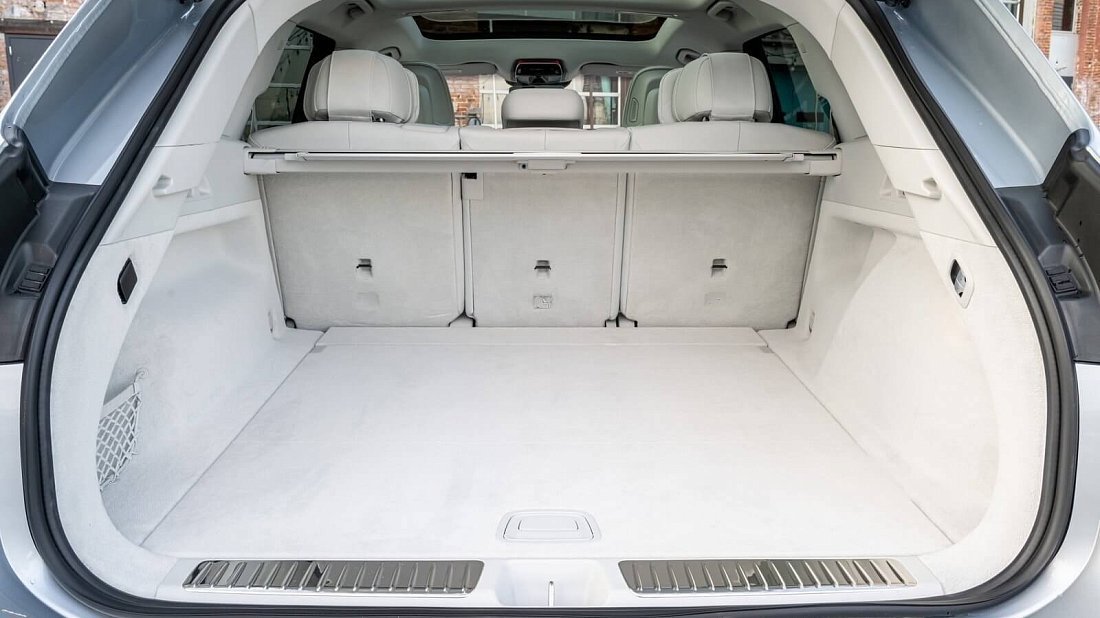

Behind the rear seats of the Mercedes EQS SUV 500 4MATIC (2022-2023), you'll find 22.8 cubic feet of storage space (№45 out of 154 ranked positions, among 837 electric vehicles, with some cars sharing positions).

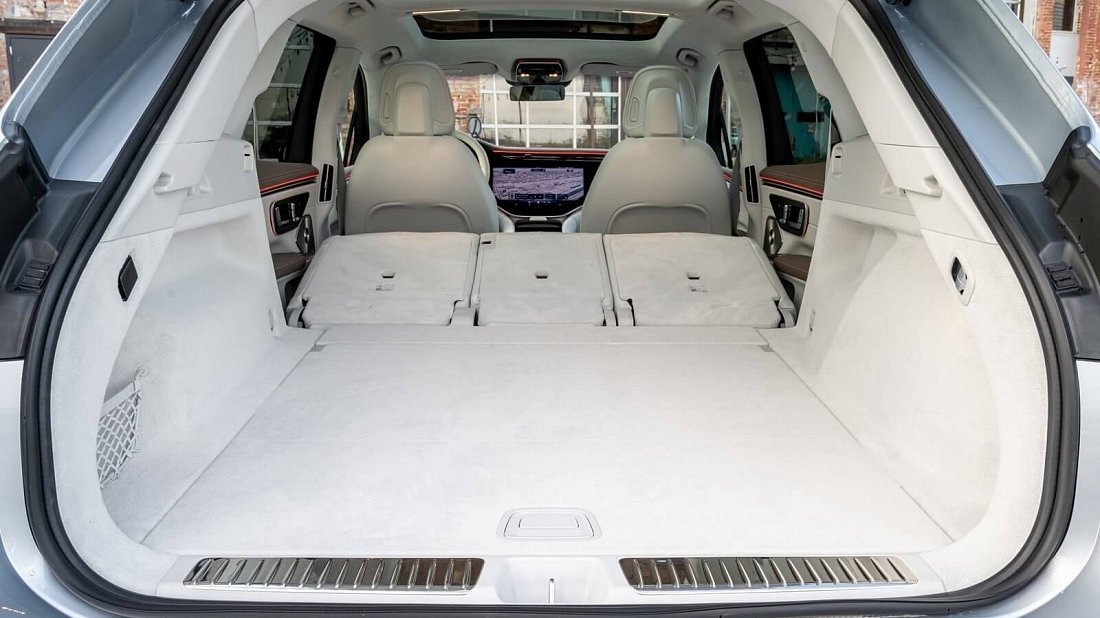

Folding down the rear seats expands the total cargo capacity to 74.2 cubic feet (№32 out of 178 ranked positions, among 837 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
