MG MG5 Electric Standard Range 2022 - Compare Electric Car USA Specs

Technical Specifications of MG MG5 Electric Standard Range (2022-…)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2022-… (Produced)

Available in the USA: No

Country of Manufacture Country where final assembly of the car took place

China

Body Style Vehicle category based on its shape and layout: Wagon

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

193-199 mi 197 out of 238 No Data 171 mi 187 out of 248

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

50.3 kWh 109 out of 155 46 kWh 133 out of 179

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

26.9 kWh/100 mi 57 out of 203 3.72 mi/kWh 83 out of 232

Charging

Max AC Charging: 11 kW 10 out of 24

Max DC Charging: 63 kW 74 out of 81

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 2

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): FWD: PMSM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

130 kW (174 hp) 146 out of 185 207 lb-ft 153 out of 181

0-60 mph Acceleration time from a standstill: 7.4 s 57 out of 116

Top Speed The fastest the car can go (max speed): 115 mph 37 out of 66

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 181.1 in 107 out of 207

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

81.1 in 61 out of 103 71.6 in 65 out of 96

Height Car's body height (from ground to highest point): 60.7 in 94 out of 151

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 104.7 in 96 out of 129

Cargo and Towing

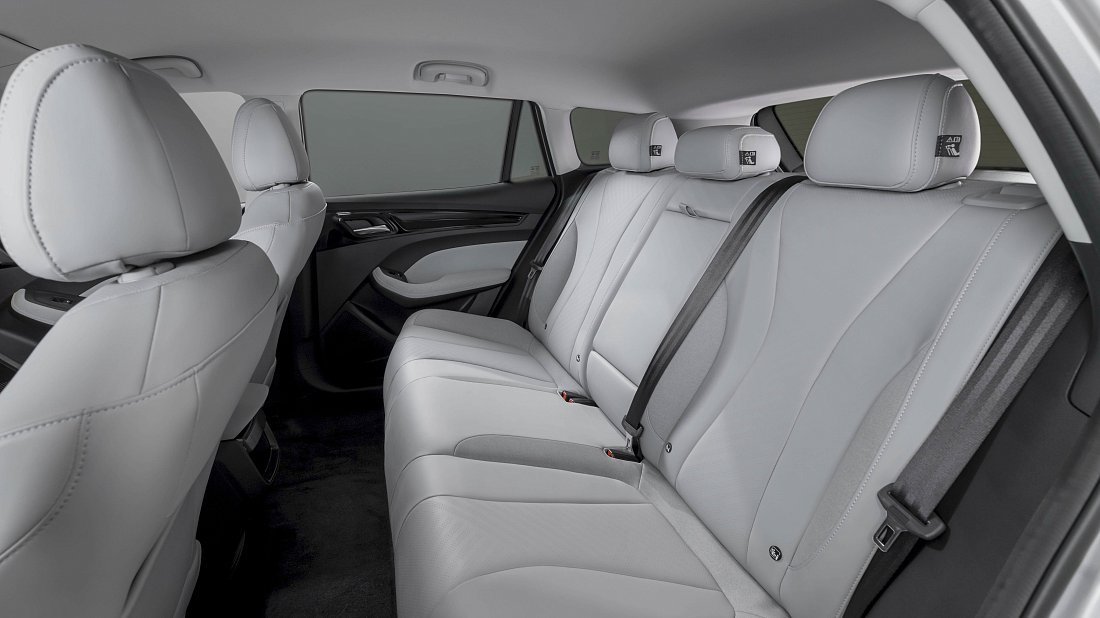

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 3609 lb 373 out of 468

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

16.9 ft3 85 out of 152 48.3 ft3 99 out of 169 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 1102 lb 46 out of 50

Last Updated:

September 06, 2024

Download Specs PDF

How Far Can You Go in MG MG5 Electric Standard Range (2022-…)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging MG MG5 Electric Standard Range (2022-…)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

Last Updated:

September 06, 2024

Open Charging Calculator

About MG MG5 Electric Standard Range (2022-…)

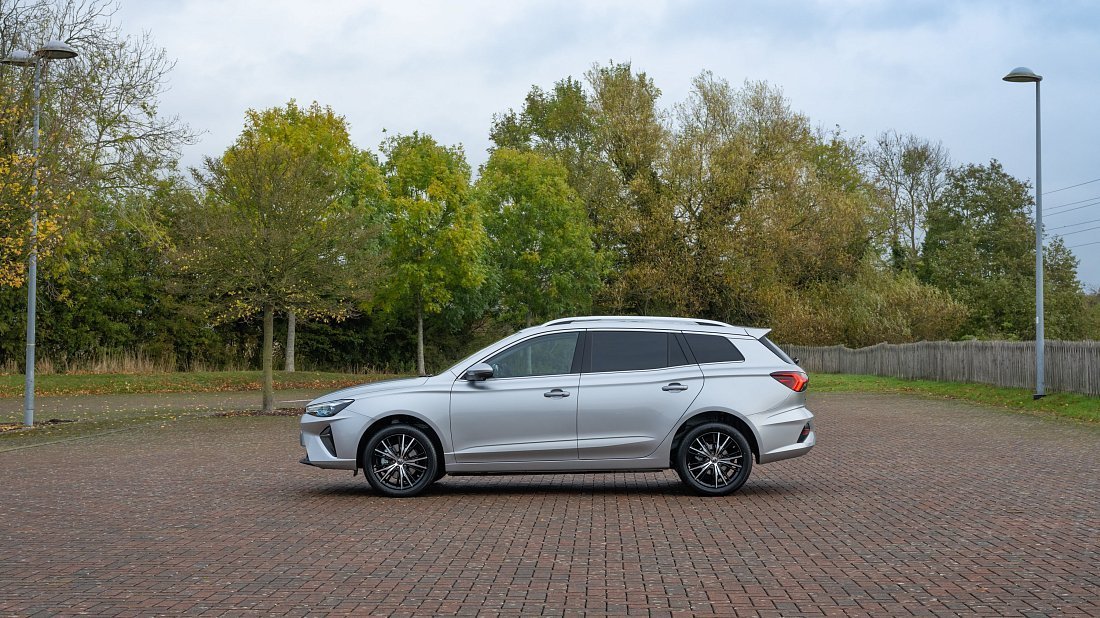

The MG MG5 Electric Standard Range (2022-…) is an all-electric front-wheel drive wagon. It came out in 2022 replacing the older MG MG5 Electric Standard Range (2020-2021). The car is not available on the US market.

The MG MG5 Electric Standard Range (2022-…) has a 50.3 kWh battery pack, allowing it to travel up to 171 mi on a single charge — ranked №661 out of 800 electric vehicles.

How powerful is it? How fast does it accelerate?

The MG MG5 Electric Standard Range (2022-…) is equipped with a powertrain that delivers up to 130 kW (174 hp) of power and 207 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 7.4 seconds (№57 out of 116 ranked positions, among 800 electric vehicles, with some cars sharing positions) and a top speed of 115 mph.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for MG MG5 Electric Standard Range (2022-…) is 171 miles, ranking it №187 out of 248 ranked positions. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

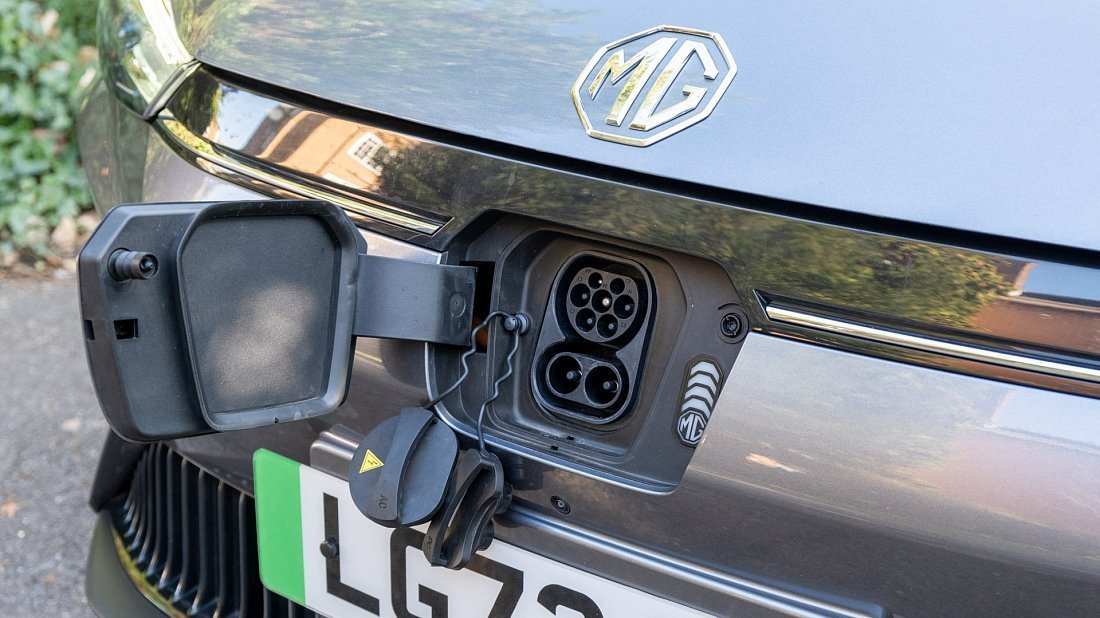

The MG MG5 Electric Standard Range (2022-…) in the USA is equipped with a CCS Type 2 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11 kW, which translates to roughly 37 miles of range added per hour.

For faster charging, use DC fast-charging stations. The MG MG5 Electric Standard Range (2022-…) supports a maximum DC charging rate of 63 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

MG MG5 Electric Standard Range (2022-…) comes in the following dimensions:

Length: 181.1 in
Width: 81.1 in (including side mirrors) or 71.6 in (excluding side mirrors)
Height: 60.7 in
Wheelbase: 104.7 in (distance between the center of the front and rear wheels)
Curb weight: 3609 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

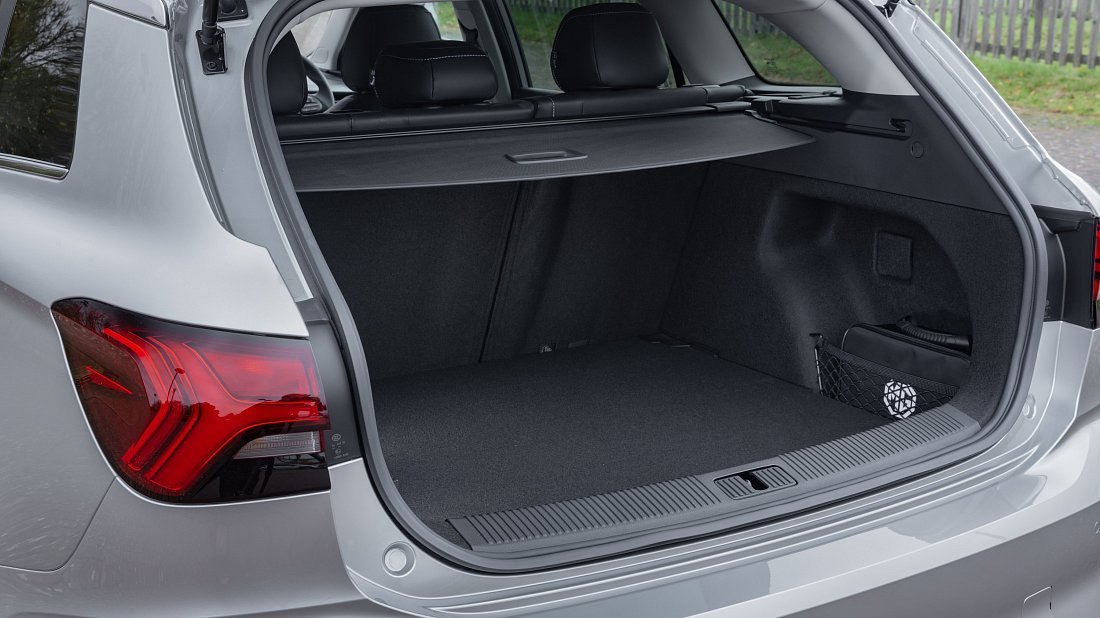

Behind the rear seats of the MG MG5 Electric Standard Range (2022-…), you'll find 16.9 cubic feet of storage space (№85 out of 152 ranked positions, among 800 electric vehicles, with some cars sharing positions).

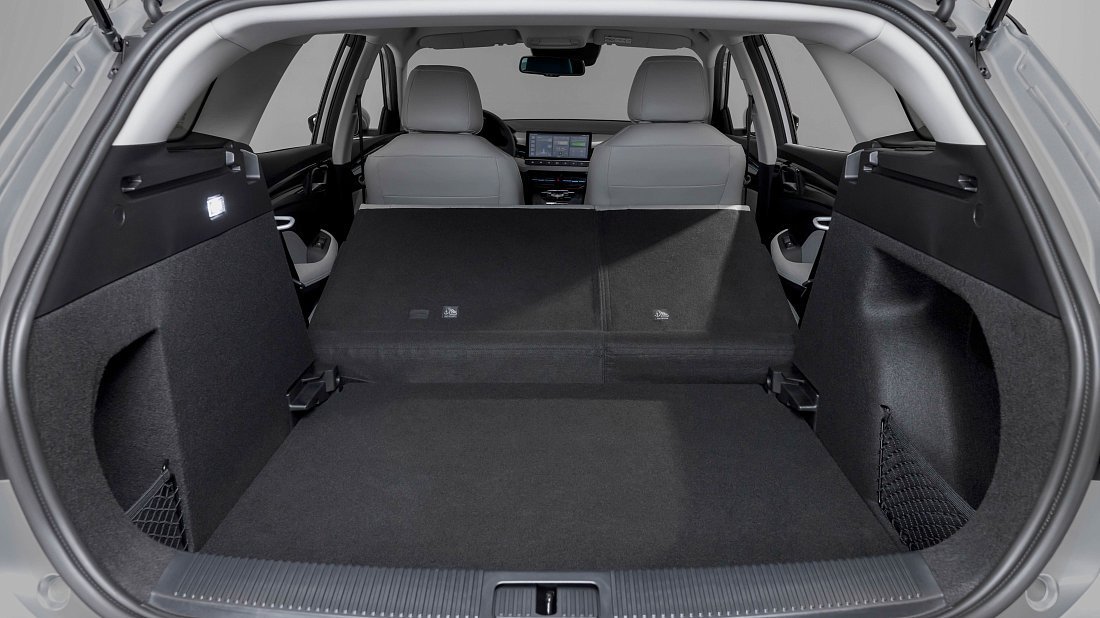

Folding down the rear seats expands the total cargo capacity to 48.3 cubic feet (№99 out of 169 ranked positions, among 800 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The MG MG5 Electric Standard Range (2022-…) can safely tow up to 1102 lbs, provided that the trailer has its own braking system.
