  5. Rivian R1S Performance Dual Motor AWD Max

Rivian R1S Performance DM Max

Years of Production
When the car first came out and when they stopped making it
2023 -
Price USA (new)
Manufacturer's suggested base price
$99,000

Trims

Currently Produced
QM Large DM Large Performance DM Large DM Max Performance DM Max DM Standard DM Standard+ Performance DM Standard+

Rivian R1S Performance Dual Motor AWD Max

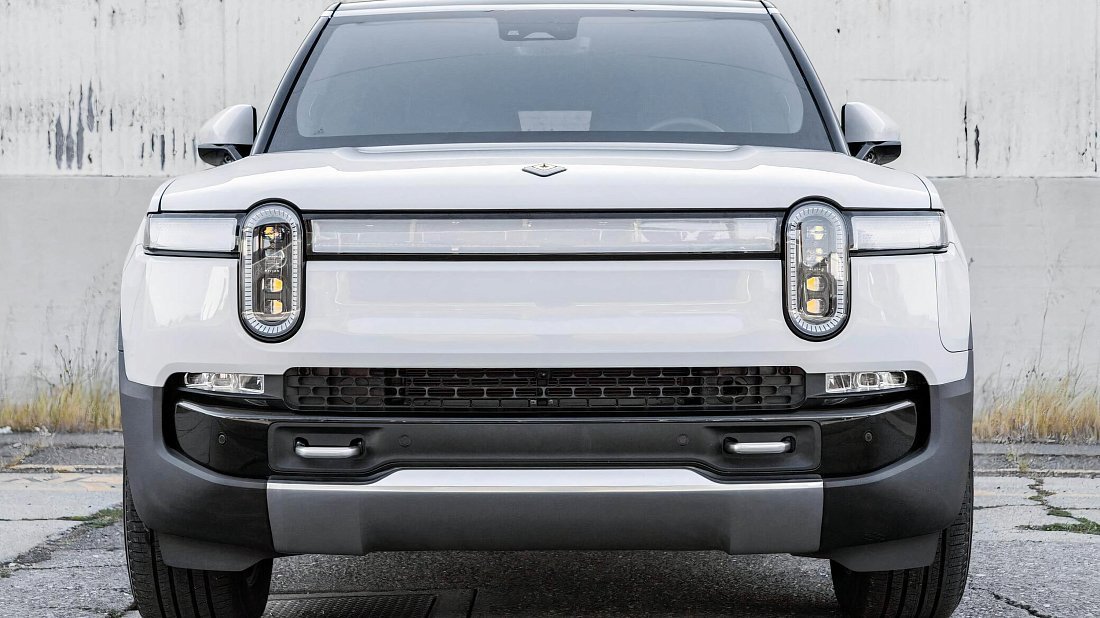

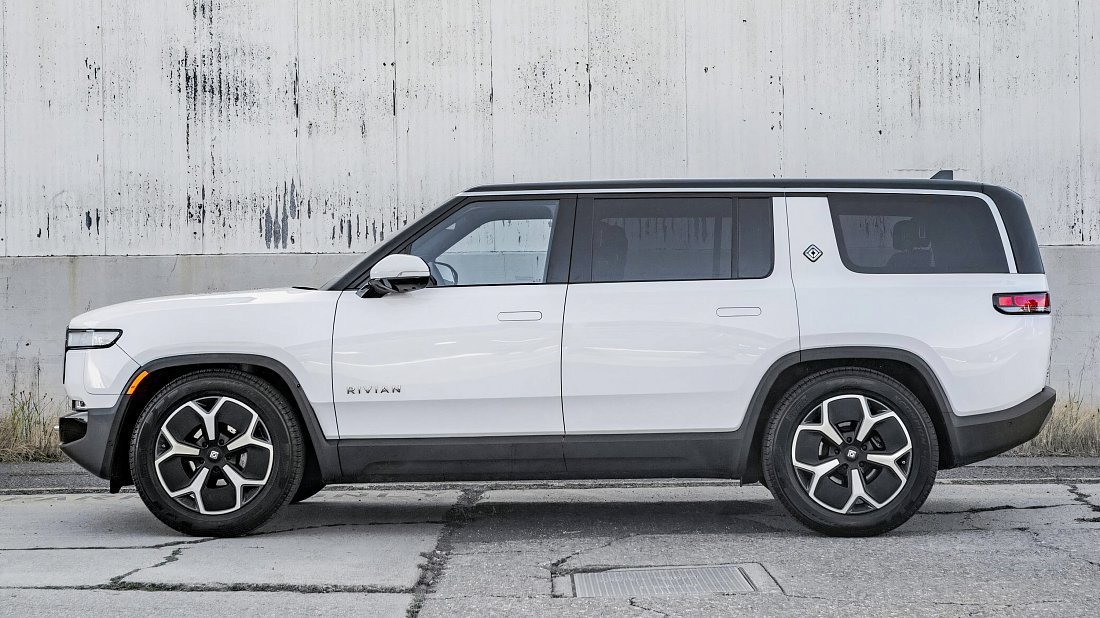

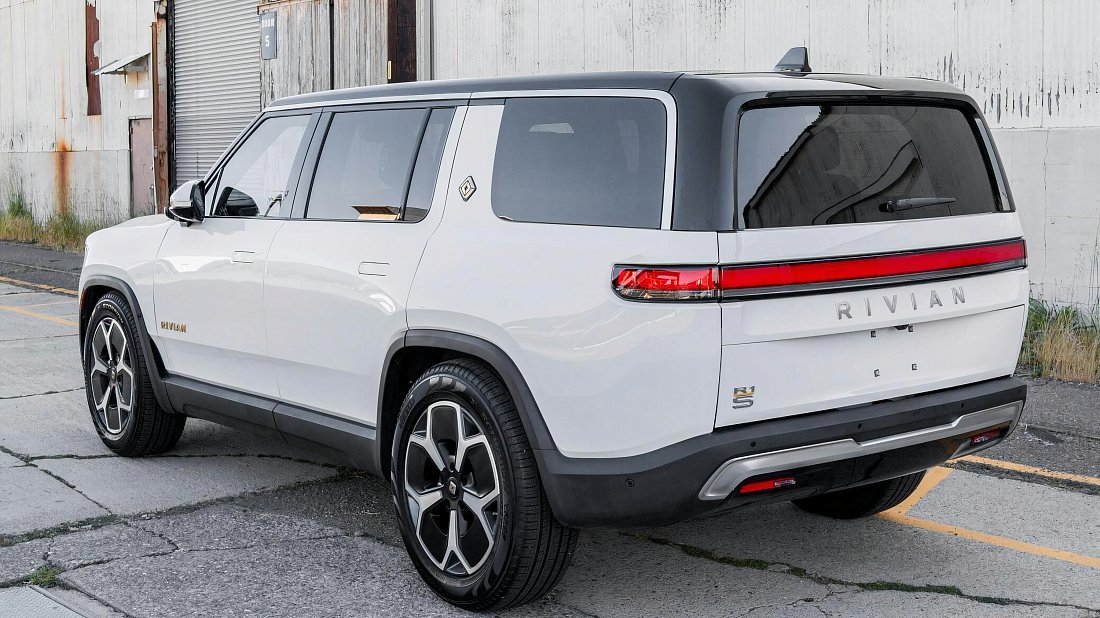

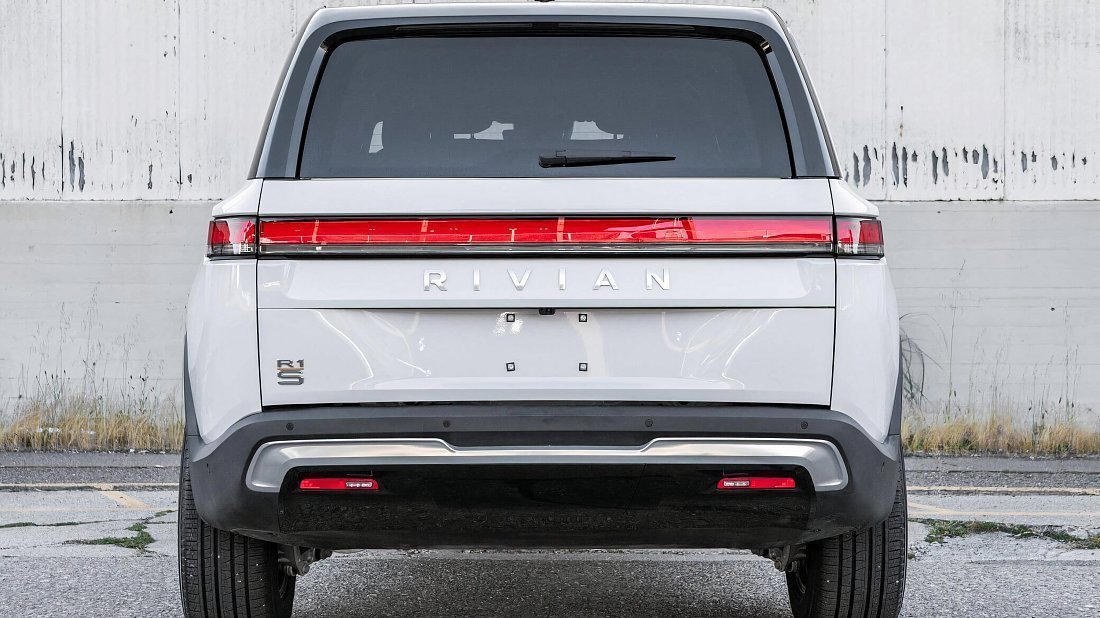

Photo of Rivian R1S Performance Dual Motor AWD Max (1 slide)

Technical Specifications of Rivian R1S Performance Dual Motor AWD Max

General Info

Years of Production
When the car first came out and when they stopped making it
2023 -
Country of Manufacture
Country where final assembly of the car took place.
USA
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Rivian R1S Performance Dual Motor AWD Max

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
400 mi
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
35.3 kWh 353 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
148.4 kWh 141 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11.5 kW 215 kW

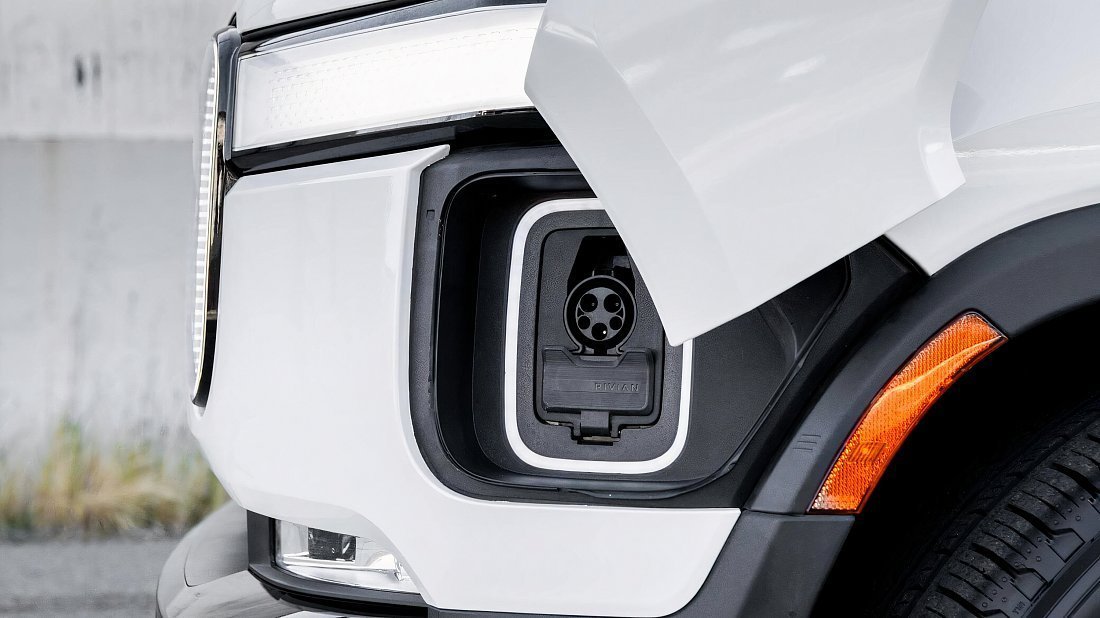

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PMSM
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
496 kW (665 hp) 829 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3.5 s
Top Speed
The fastest the car can go (maximum speed)
110 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
200.8 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
87.1 in 79.3 in
Height
Car's body height (from ground to highest point)
77.3 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
121.1 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5, 7
Curb Weight
Car's weight without passengers or cargo
6735 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
5.1 ft3 79.9 ft3 11.1 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
7700 lb
Last Updated:
May 31, 2024
Download Specs PDF

Charging Rivian R1S Performance Dual Motor AWD Max

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
52 h 13 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
39 h 10 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
19 h 35 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
13 h 03 min

NEMA 14-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
08 h 10 min
Charging power is limited by the car’s on-board charger (11.5 kW)

NEMA 6-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
08 h 10 min
Charging power is limited by the car’s on-board charger (11.5 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
01 h 59 min

CCS DC 100 kW

Output:
100 kW
20-80%:
01 h 03 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 42 min

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 34 min

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 31 min
The car’s DC charging capability is limited to 215 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 31 min
The car’s DC charging capability is limited to 215 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
01 h 20 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 42 min
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 31 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 215 kW
Last Updated:
May 31, 2024
Open Charging Calculator

About Rivian R1S Performance Dual Motor AWD Max

The Rivian R1S Performance Dual Motor AWD Max is an all-electric all-wheel drive SUV. It came out in 2023. Brand new, the car starts around $99,000.

The Rivian R1S Performance Dual Motor AWD Max has a 148.4 kWh battery pack, allowing it to travel up to 400 mi on a single charge. The car has an average efficiency of 35.3 kWh per 100 miles (or 353 Wh/mile) — ranked №10 out of 667 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Rivian R1S Performance Dual Motor AWD Max achieves a 0 to 60 mph acceleration in 3.5 seconds (placing it at №58 among 667 electric vehicles) and attains a maximum speed of 110 mph.

Its powertrain provides a power output of up to 496 kW (665 hp) and a torque of 829 lb-ft.

How far can it go on single charge? What is the real-world range?

Rivian R1S Performance Dual Motor AWD Max achieves a How far can it go on single charge? What is the real-world range? of 360–440 miles, placing it at №10 among 667 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

The Rivian R1S Performance Dual Motor AWD Max in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11.5 kW, resulting in approximately 29 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 215 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

Rivian R1S Performance Dual Motor AWD Max comes in the following dimensions:

  • Length: 200.8 in
  • Width: 87.1 in (including side mirrors) or 79.3 in (excluding side mirrors)
  • Height: 77.3 in
  • Wheelbase: 121.1 in (distance between the center of the front and rear wheels)
  • Curb weight: 6735 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

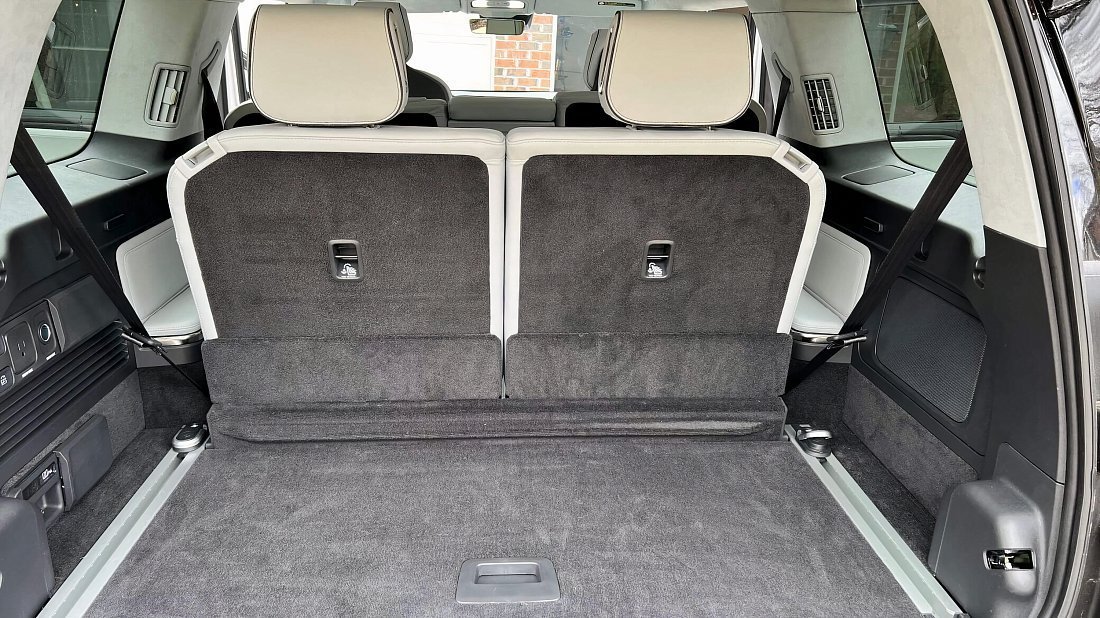

The rear cargo area of the Rivian R1S Performance Dual Motor AWD Max provides 5.1 cubic feet of space when the rear seats are upright (ranked №617 out of 667 electric vehicles).

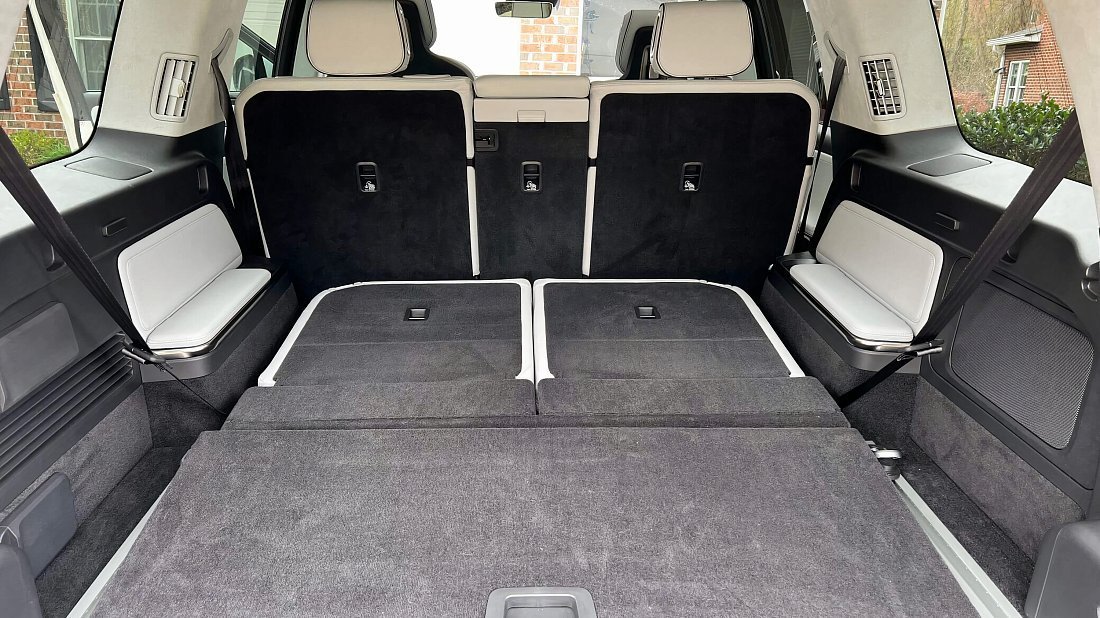

Folding these seats down unlocks a maximum cargo capacity of 79.9 cubic feet (ranked №617 out of 667 electric vehicles).

In addition, the car has a frunk, a front compartment with 11.1 cubic feet dedicated to smaller items.

Is it suitable for towing? What is the maximum towing capacity?

The Rivian R1S Performance Dual Motor AWD Max can safely tow up to 7700 lbs, provided that the trailer has its own braking system.
