Technical Specifications of Rivian R1T Performance Dual Motor AWD Max (2023-…)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2023-…

Country of Manufacture Country where final assembly of the car took place

USA

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Produced

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): Pickup

Range and Efficiency

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

No Data 410 mi 12 out of 155 390 mi 11 out of 242

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

148.4 kWh 5 out of 150 141 kWh 5 out of 177

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 36.2 kWh/100 mi (2.8 mi/kWh) 144 out of 205

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11.5 kW 8 out of 23 215 kW 18 out of 81

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): AWD: PMSM (front), PMSM (rear)

Motor Total power and torque of the car's electric motor(s): Power

Torque

496 kW (665 hp) 29 out of 186 829 lb-ft 20 out of 172

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 3.5 s 18 out of 116

Top Speed The fastest the car can go (maximum speed): 110 mph 41 out of 65

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 217.1 in 7 out of 198

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

87.1 in 16 out of 100 79.3 in 9 out of 92

Height Car's body height (from ground to highest point): 78.2 in 6 out of 147

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 135.8 in 8 out of 124

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: No Data

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

No Data No Data 11.1 ft3 4 out of 40

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 11000 lb 2 out of 46

Last Updated:

May 31, 2024

Download Specs PDF

How Far Can You Go in Rivian R1T Performance Dual Motor AWD Max (2023-…)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging Rivian R1T Performance Dual Motor AWD Max (2023-…)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

CCS DC 50 kW

CCS DC 100 kW

CCS DC 150 kW

CCS DC 200 kW

CCS DC 250 kW

The car’s DC charging capability is limited to 215 kW

CCS DC 350 kW

The car’s DC charging capability is limited to 215 kW

Supercharger V2 Split 75 kW

Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 215 kW

Last Updated:

May 31, 2024

Open Charging Calculator

About Rivian R1T Performance Dual Motor AWD Max (2023-…)

The Rivian R1T Performance Dual Motor AWD Max (2023-…) is an all-electric all-wheel drive pickup. It came out in 2023. Brand new, the car starts around $94,000.

The Rivian R1T Performance Dual Motor AWD Max (2023-…) has a 148.4 kWh battery pack, allowing it to travel up to 390 mi on a single charge — ranked №11 out of 764 electric vehicles.

How powerful is it? How fast does it accelerate?

The Rivian R1T Performance Dual Motor AWD Max (2023-…) is equipped with a powertrain that delivers up to 496 kW (665 hp) of power and 829 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 3.5 seconds (№18 out of 116 ranked positions, among 764 electric vehicles, with some cars sharing positions) and a top speed of 110 mph.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for Rivian R1T Performance Dual Motor AWD Max (2023-…) is 390 miles, ranking it №11 out of 242 ranked positions. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

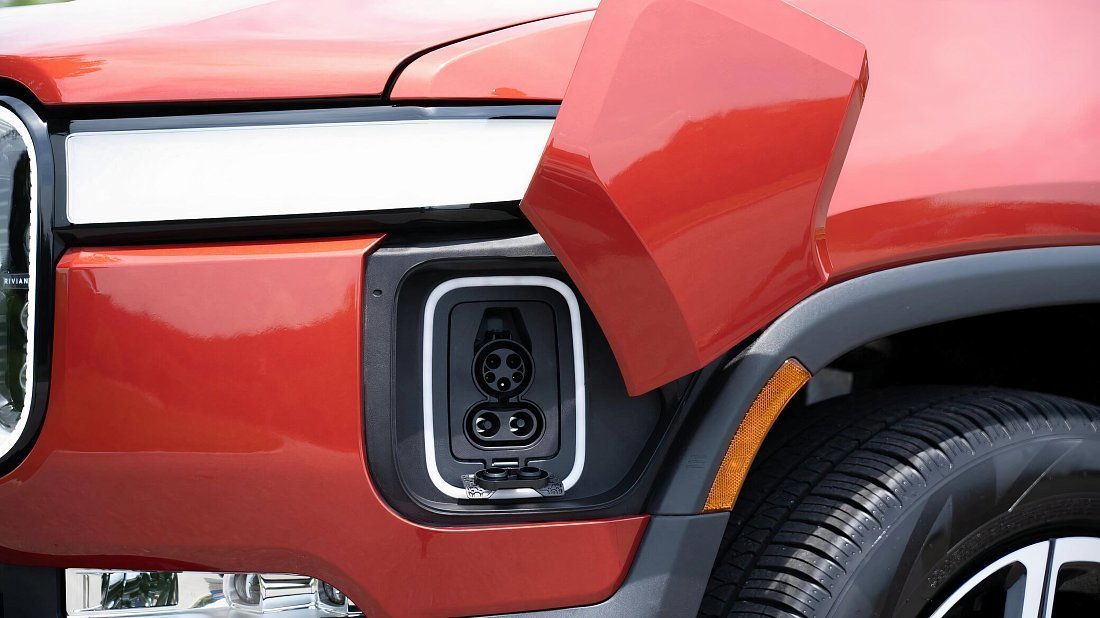

The Rivian R1T Performance Dual Motor AWD Max (2023-…) in the USA is equipped with a CCS Type 1 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11.5 kW, which translates to roughly 29 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Rivian R1T Performance Dual Motor AWD Max (2023-…) supports a maximum DC charging rate of 215 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Rivian R1T Performance Dual Motor AWD Max (2023-…) comes in the following dimensions:

Length: 217.1 in
Width: 87.1 in (including side mirrors) or 79.3 in (excluding side mirrors)
Height: 78.2 in
Wheelbase: 135.8 in (distance between the center of the front and rear wheels)
Curb weight: lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

Behind the rear seats of the Rivian R1T Performance Dual Motor AWD Max (2023-…), you'll find cubic feet of storage space (№ out of ranked positions, among 764 electric vehicles, with some cars sharing positions).

Folding down the rear seats expands the total cargo capacity to cubic feet (№ out of ranked positions, among 764 electric vehicles, with some cars sharing positions).

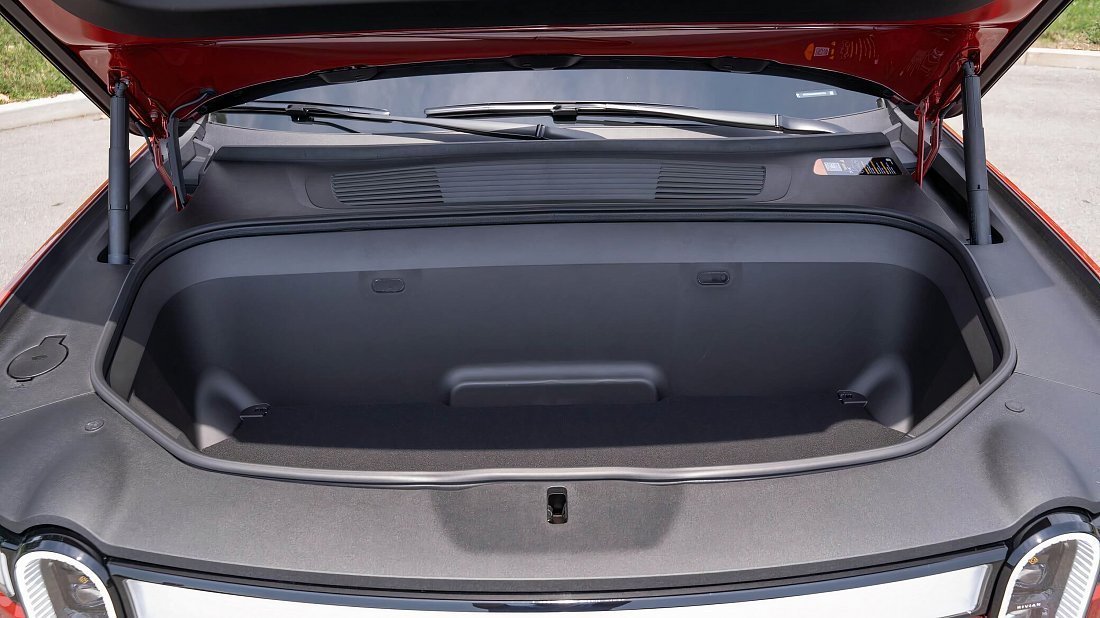

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 11.1 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Rivian R1T Performance Dual Motor AWD Max (2023-…) can safely tow up to 11000 lbs, provided that the trailer has its own braking system.
