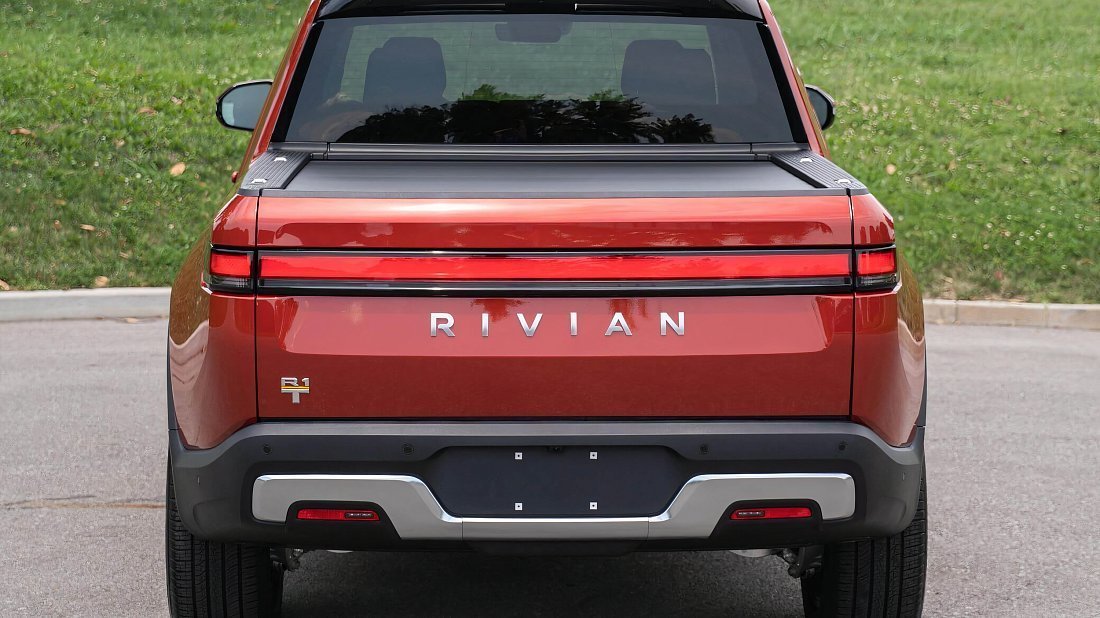

Rivian R1T DM Large

Years of Production
When the car first came out and when they stopped making it
2023 -
Price USA (new)
Manufacturer's suggested base price
$79,000

Trims

Rivian R1T Dual Motor AWD Large

Technical Specifications of Rivian R1T Dual Motor AWD Large

General Info

Years of Production
When the car first came out and when they stopped making it
2023 -
Country of Manufacture
Country where final assembly of the car took place
USA
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Pickup Rivian R1T Dual Motor AWD Large

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
No Data 352 mi 352 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
137.9 kWh 131 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
37.2 kWh/100 mi (2.7 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11.5 kW 215 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V
Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
397 kW (533 hp) 610 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
4.5 s
Top Speed
The fastest the car can go (maximum speed)
110 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
217.1 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
87.1 in 79.3 in
Height
Car's body height (from ground to highest point)
78.2 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
135.8 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
6585 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
No Data No Data 11.1 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
11000 lb
Last Updated:
May 31, 2024
Download Specs PDF

Charging Rivian R1T Dual Motor AWD Large

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
May 31, 2024
Open Charging Calculator

About Rivian R1T Dual Motor AWD Large

Detailed Descriptions

The Rivian R1T Dual Motor AWD Large is an all-electric all-wheel drive pickup. It came out in 2023. Brand new, the car starts around $79,000.

The Rivian R1T Dual Motor AWD Large has a 137.9 kWh battery pack, allowing it to travel up to 352 mi on a single charge. The car has an average efficiency of 37.2 kWh per 100 miles (or 2.7 miles per kWh) — ranked №39 out of 683 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Rivian R1T Dual Motor AWD Large achieves a 0 to 60 mph acceleration in 4.5 seconds (placing it at №169 among 683 electric vehicles) and attains a maximum speed of 110 mph.

Its powertrain provides a power output of up to 397 kW (533 hp) and a torque of 610 lb-ft.

How far can it go on single charge? What is the real-world range?

Rivian R1T Dual Motor AWD Large achieves a How far can it go on single charge? What is the real-world range? of 317–387 miles, placing it at №39 among 683 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

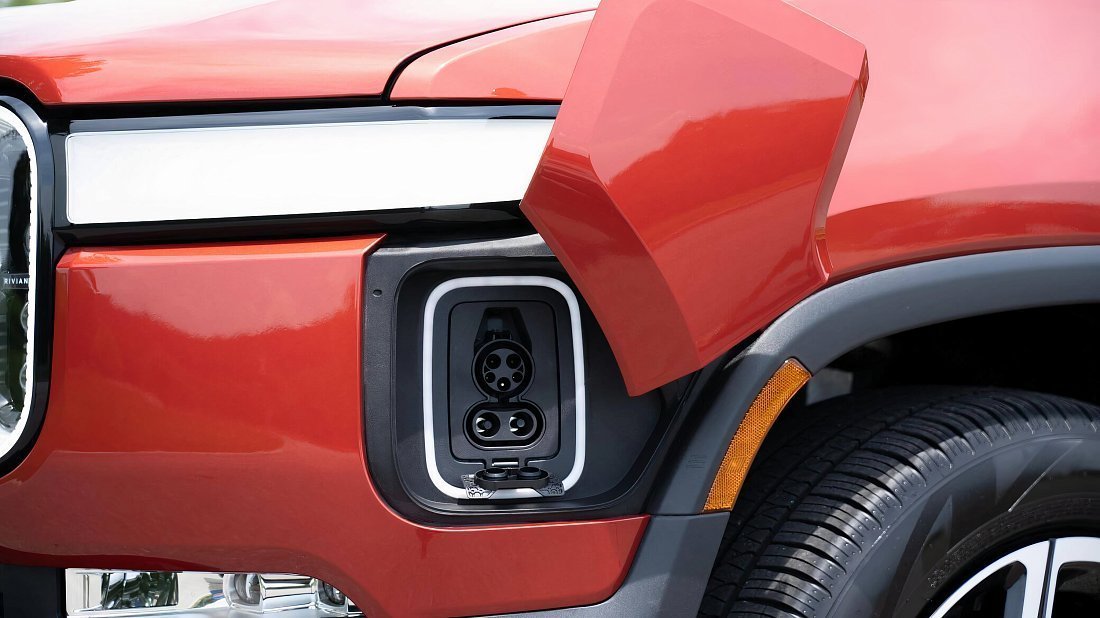

The Rivian R1T Dual Motor AWD Large in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11.5 kW, resulting in approximately 28 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 215 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Rivian R1T Dual Motor AWD Large:

  • Length: 217.1 in
  • Width: 87.1 in (including side mirrors) or 79.3 in (excluding side mirrors)
  • Height: 78.2 in
  • Wheelbase: 135.8 in (distance between the center of the front and rear wheels)
  • Curb weight: 6585 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

Behind the rear seats of the Rivian R1T Dual Motor AWD Large, you'll find N/A cubic feet of storage space (ranked №N/A out of 683 electric vehicles).

Folding down the rear seats expands the total cargo capacity to N/A cubic feet (ranked №N/A out of 683 electric vehicles).

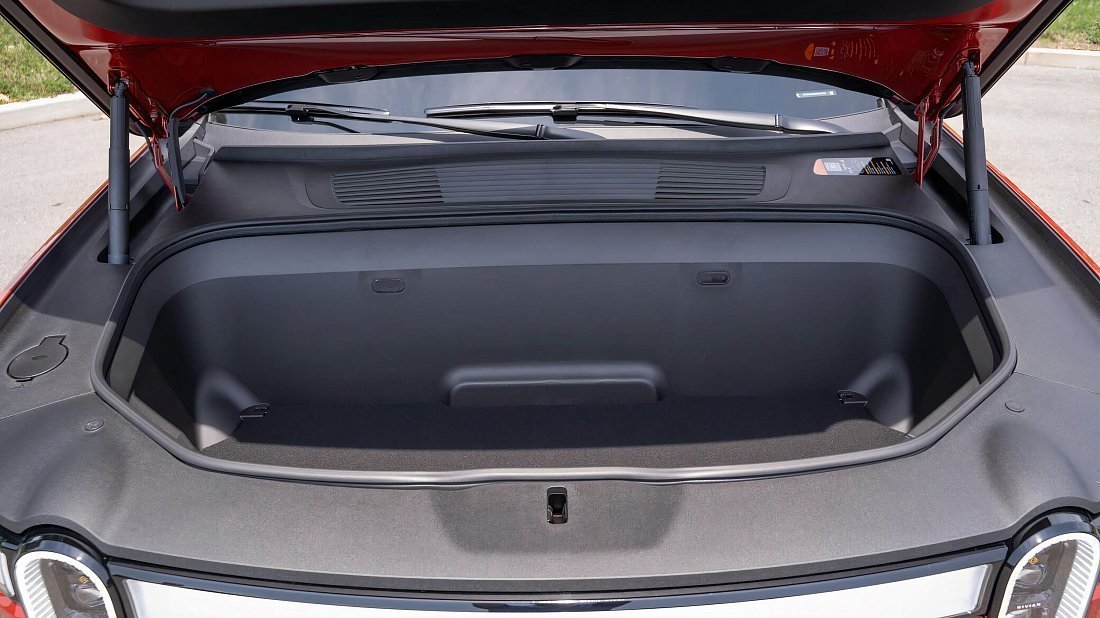

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 11.1 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Rivian R1T Dual Motor AWD Large is officially rated to tow 11000 lbs. This applies to trailers equipped with brakes.
