Tesla Model S 70D (2015)

Technical Specifications of Tesla Model S 70D (2015)

General Info

Years of Production
When the car first came out and when they stopped making it
2015 - 2016
Country of Manufacture
Country where final assembly of the car took place.
USA, Holland
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Liftback Tesla Model S 70D (2015)

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
240 mi
Range NEDC
Range according to NEDC ratings. NEDC is an old standard, replaced by WLTP after September 2018.
275 mi
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
29.8 kWh 298 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
70 kWh 66.5 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
10 kW 120 kW
Charge Port
The car's charge port type. It affects charging speed and station compatibility.
Tesla
Tesla charge port

Performance

Drive Type
Which wheels are powered (all, rear, or front) by the electric motor(s)
AWD
Engine
Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.
Power
Torque
329 hp (245 kW) 387 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.2 s
Top Speed
The fastest the car can go (maximum speed)
140 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
195.7 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
86.2 in 77.3 in
Height
Car's body height (from ground to highest point)
56.9 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
116.5 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4720 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
26.3 ft3 58.1 ft3 2.1 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 25, 2024
Download Specs PDF

How Far Can You Go in Tesla Model S 70D (2015)

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Tesla Model S 70D (2015)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Socket specs
Socket specs
120 V, 15 A, 1-phase
Socket output
Socket output
1.8 kW
Charging 20-80%
Charging 20-80%
24 h 38 min (~6 mph)

NEMA 5-20

Socket specs
Socket specs
120 V, 20 A, 1-phase
Socket output
Socket output
2.4 kW
Charging 20-80%
Charging 20-80%
18 h 28 min (~8 mph)

NEMA 6-20

Socket specs
Socket specs
240 V, 20 A, 1-phase
Socket output
Socket output
4.8 kW
Charging 20-80%
Charging 20-80%
09 h 14 min (~16 mph)

NEMA 14-30

Socket specs
Socket specs
240 V, 30 A, 1-phase
Socket output
Socket output
7.2 kW
Charging 20-80%
Charging 20-80%
06 h 09 min (~23 mph)

NEMA 14-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
04 h 26 min (~32 mph)
Charging power is limited by the car’s on-board charger (10 kW)

NEMA 6-50

Socket specs
Socket specs
240 V, 50 A, 1-phase
Socket output
Socket output
12 kW
Charging 20-80%
Charging 20-80%
04 h 26 min (~32 mph)
Charging power is limited by the car’s on-board charger (10 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
00 h 56 min (~153 mph)
Tesla cars need an adapter to charge at CCS DC stations

CCS DC 100 kW

Socket output
Socket output
100 kW
Charging 20-80%
Charging 20-80%
00 h 30 min (~289 mph)
Tesla cars need an adapter to charge at CCS DC stations

CCS DC 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 200 kW

Socket output
Socket output
200 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 350 kW

Socket output
Socket output
350 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

Supercharger V2 Split 75 kW

Socket output
Socket output
75 kW
Charging 20-80%
Charging 20-80%
00 h 38 min (~230 mph)

Supercharger V2 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Charging power is limited by the car’s DC charging capability (120 kW)

Supercharger V3 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 25 min (~346 mph)
Charging power is limited by the car’s DC charging capability (120 kW)
Last Updated:
March 25, 2024
Open Charging Calculator

About Tesla Model S 70D (2015)

The Tesla Model S 70D (2015) is an all-electric all-wheel drive liftback. It came out in 2015. Tesla stopped making the 70D (2015) in 2016 and replaced it with the Tesla Model S 70D (2016). You can still find Tesla Model S 70D (2015) on the used car market, with prices starting around $15,995.

The Tesla Model S 70D (2015) has a 70 kWh battery pack, allowing it to travel up to 223 mi on a single charge. The car has an average efficiency of 29.8 kWh per 100 miles (or 298 Wh/mile) — ranked №320 out of 575 electric vehicles.

Frequently Asked Questions

How fast is Tesla Model S 70D (2015)

The Tesla Model S 70D (2015) can accelerate from 0 to 60 mph in 5.2 seconds (ranked №180 out of 575 electric vehicles) and reach a top speed of 140 mph.

The car’s powertrain delivers up to 245 kW (329 hp) of power and 387 lb-ft of torque.

Real-world range of Tesla Model S 70D (2015)

Tesla Model S 70D (2015) achieves a real-world range of 201–245 miles, placing it at №320 among 575 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

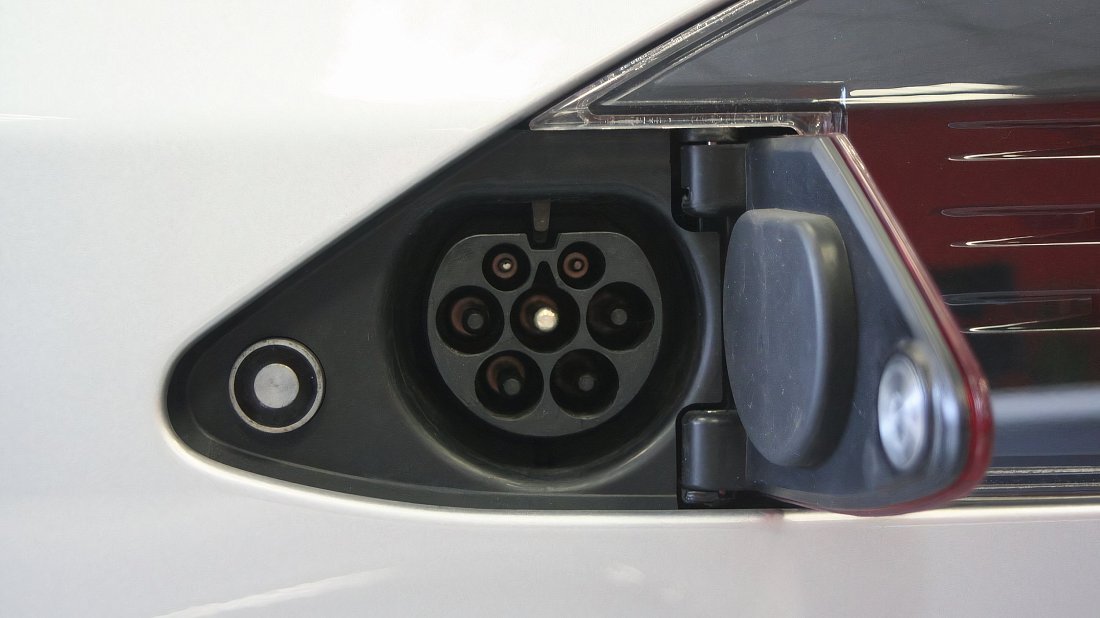

Tesla Model S 70D (2015) charge port type?

The Tesla Model S 70D (2015) in the USA comes with a Tesla charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 10 kW, resulting in approximately 30 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 120 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use our Charging calculator to estimate charging time, rate, and cost.

Tesla Model S 70D (2015) dimensions and weight?

Here are the dimensions and weight for the Tesla Model S 70D (2015):

  • Length: 195.7 in
  • Width: 86.2 in (including side mirrors) or 77.3 in (excluding side mirrors)
  • Height: 56.9 in
  • Wheelbase: 116.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 4720 lbs (weight of the empty car, no people or cargo)
Tesla Model S 70D (2015) cargo capacity?

Here's a breakdown of the Tesla Model S 70D (2015) cargo space:

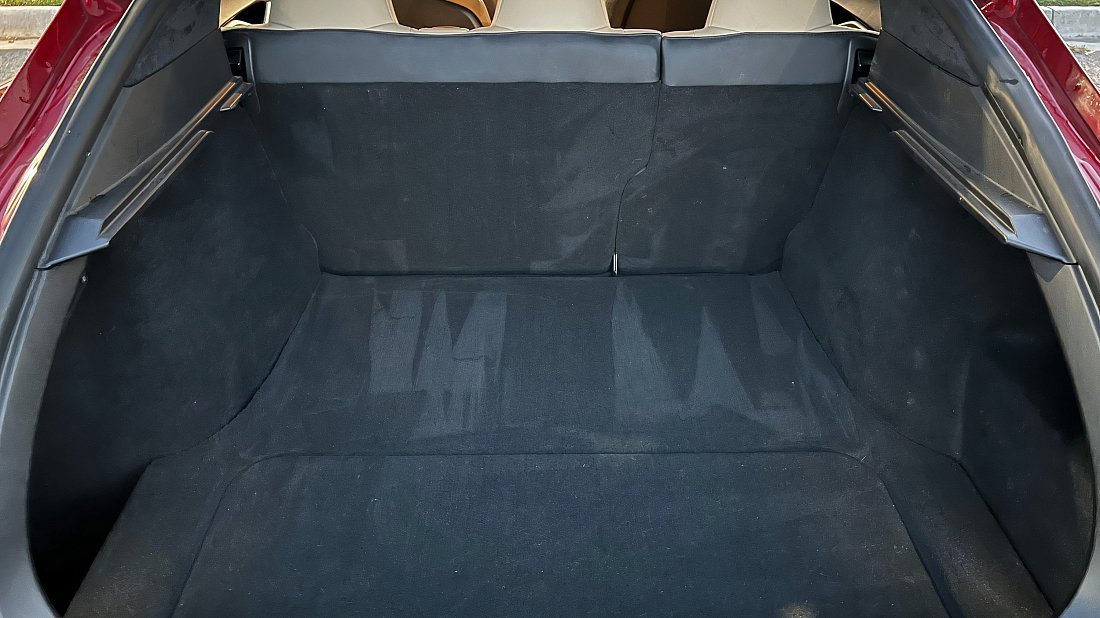

  • Trunk capacity: With the rear seats up, you get 26.3 cubic feet of cargo space in the back (ranked №81 out of 575 electric vehicles).

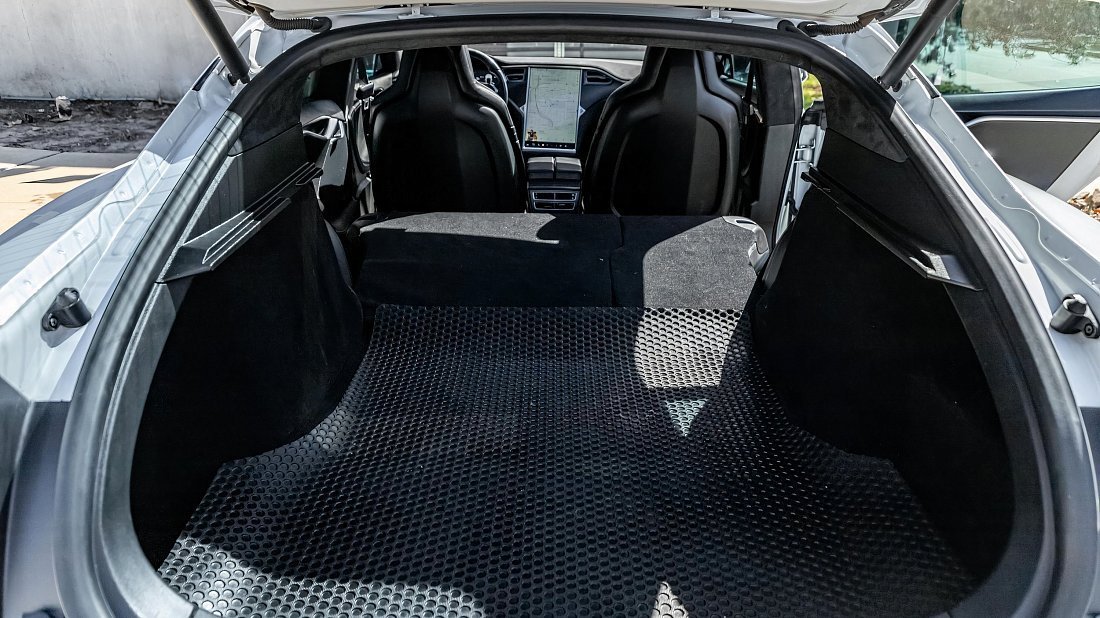

  • Max cargo capacity: Fold down the rear seats, and you open up 58.1 cubic feet of total cargo space (ranked №160 out of 575 electric vehicles).

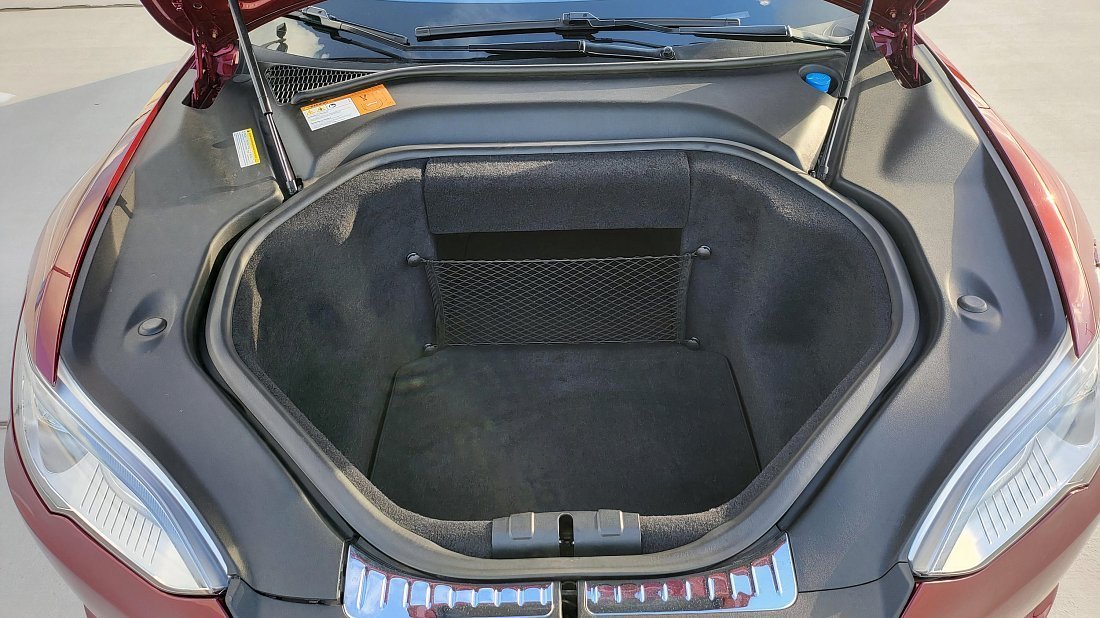

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 2.1 cubic feet for storing small items.
Tesla Model S 70D (2015) towing capacity?
The car isn’t officially rated for towing.
