Volvo C40 Recharge (EC40) Pure Electric

Years of Production When the car first came out and when they stopped making it: 2021-2022

This car is not available in the US, but you can still compare it with other cars

Compare

In 2022 this car was replaced by: Volvo C40 Recharge (EC40) Single Motor (2022-...)

Currently Produced

Single Motor Since 2022 Single Motor Extended Range Since 2022 Twin Motor Since 2022

Discontinued

Pure Electric 2021-2022 Twin Pure Electric 2021-2022

Explore by Section

Technical Specifications of Volvo C40 Recharge (EC40) Pure Electric (2021-2022)

General Info

Years of Production When the car first came out and when they stopped making it: 2021-2022

Country of Manufacture Country where final assembly of the car took place

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Discontinued

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): SUV

Range and Battery

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

258-272 mi No Data 232 mi

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

69 kWh 67 kWh

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 28.9 kWh/100 mi (3.5 mi/kWh)

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11 kW 150 kW

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 2

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): FWD: PMSM

Motor Total power and torque of the car's electric motor(s): Power

Torque

170 kW (228 hp) 243 lb-ft

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 7.1 s

Top Speed The fastest the car can go (maximum speed): 99 mph

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 174.8 in

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

80.1 in 73.7 in

Height Car's body height (from ground to highest point): 62.8 in

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 106.4 in

Cargo and Towing

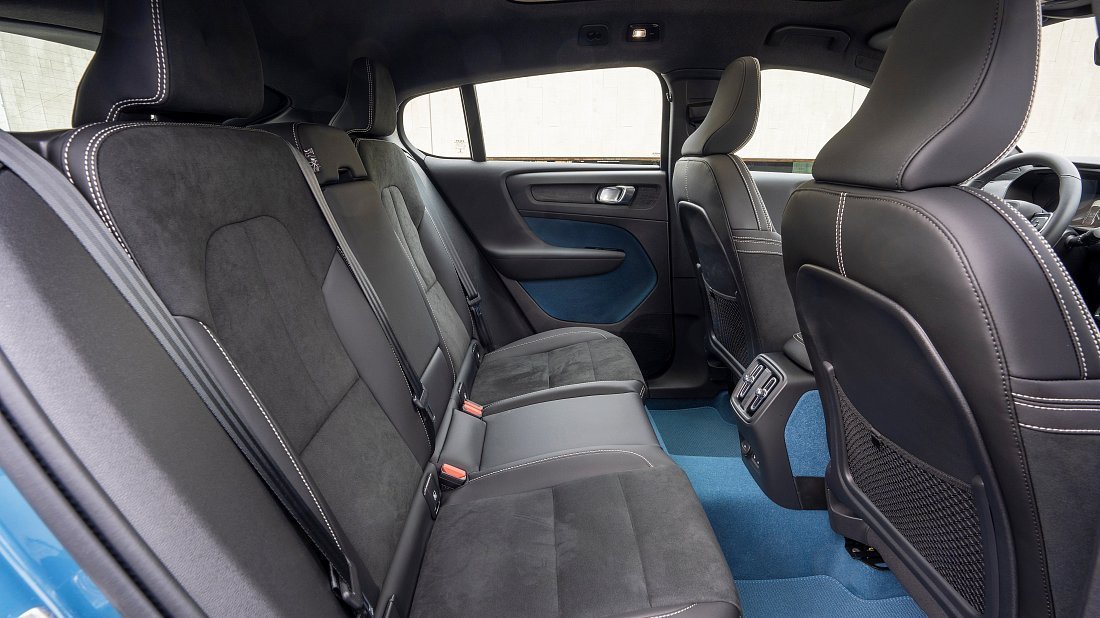

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 4343 lb

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

15 ft3 49 ft3 1.1 ft3

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 2000 lb

Last Updated:

July 17, 2024

Download Specs PDF

Charging Volvo C40 Recharge (EC40) Pure Electric (2021-2022)

Slow (AC)

Home and Office (AC) Charging

Last Updated:

July 17, 2024

Open Charging Calculator

About Volvo C40 Recharge (EC40) Pure Electric (2021-2022)

The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) is an all-electric front-wheel drive SUV. It came out in 2021. Volvo stopped making the Pure Electric in 2022 and replaced it with the Volvo C40 Recharge (EC40) Single Motor (2022-...). The car is not available on the US market.

The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) has a 69 kWh battery pack, allowing it to travel up to 232 mi on a single charge. The car has an average efficiency of 28.9 kWh per 100 miles (or 3.5 miles per kWh) — ranked №402 out of 695 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) achieves a 0 to 60 mph acceleration in 7.1 seconds (placing it at №431 among 693 electric vehicles) and attains a maximum speed of 99 mph.

Its powertrain provides a power output of up to 170 kW (228 hp) and a torque of 243 lb-ft.

How far can it go on single charge? What is the real-world range?

Volvo C40 Recharge (EC40) Pure Electric (2021-2022) achieves a real-world range of 209–255 miles, placing it at №399 among 693 electric vehicles. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

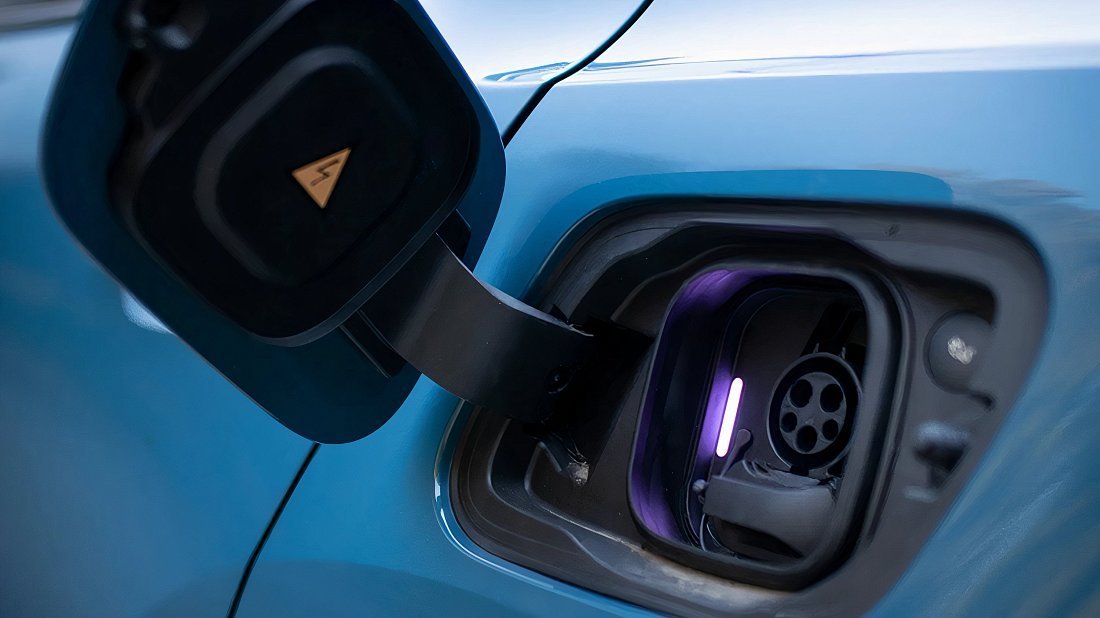

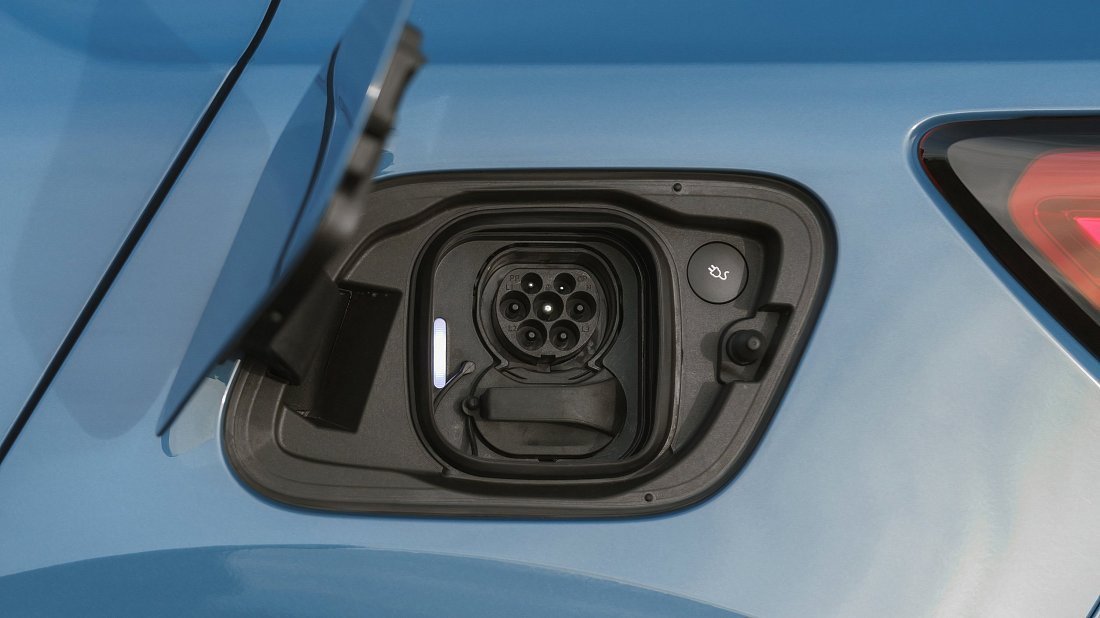

The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) in the USA is equipped with a CCS Type 2 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11 kW, which translates to roughly 34 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) supports a maximum DC charging rate of 150 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Volvo C40 Recharge (EC40) Pure Electric (2021-2022) comes in the following dimensions:

Length: 174.8 in
Width: 80.1 in (including side mirrors) or 73.7 in (excluding side mirrors)
Height: 62.8 in
Wheelbase: 106.4 in (distance between the center of the front and rear wheels)
Curb weight: 4343 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Volvo C40 Recharge (EC40) Pure Electric (2021-2022) cargo space:

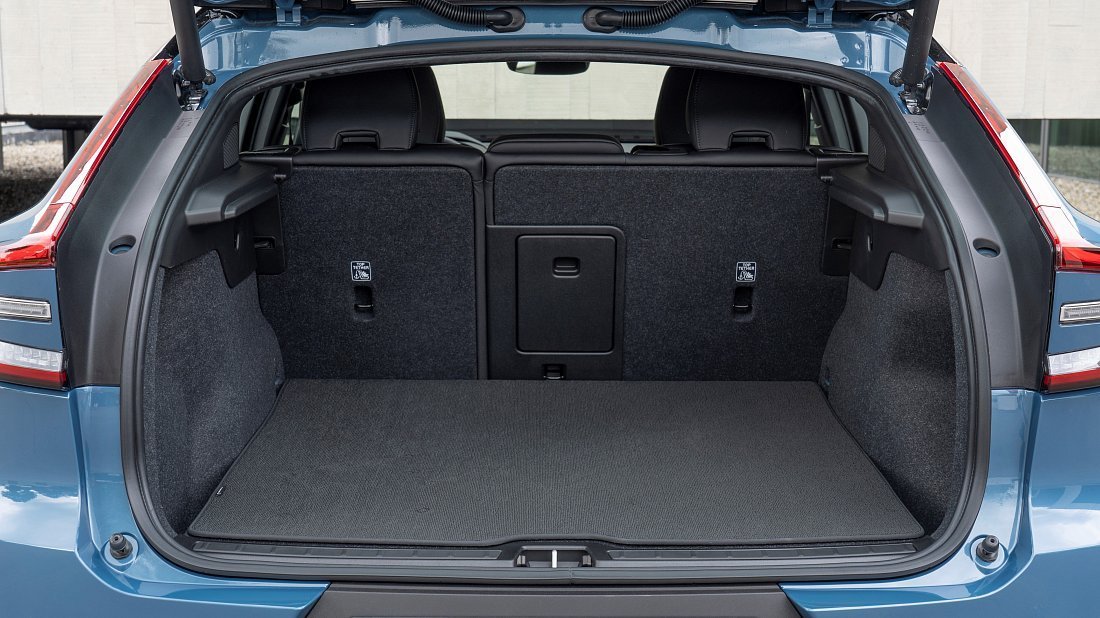

Trunk capacity: With the rear seats up, you get 15 cubic feet of cargo space in the back (ranked №423 out of 693 electric vehicles).

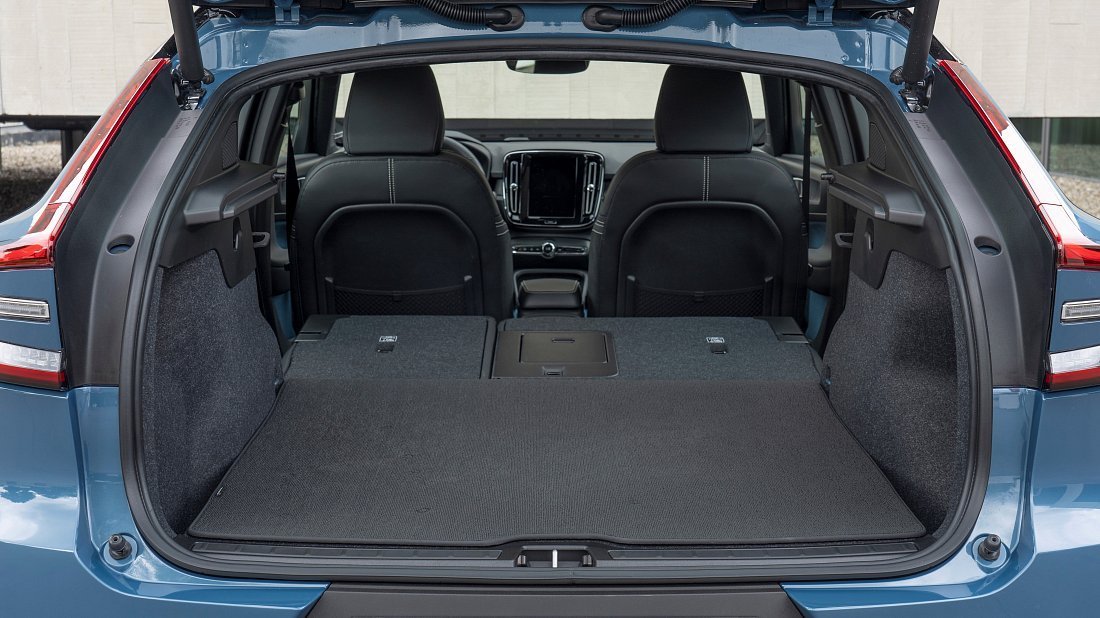

Max cargo capacity: Fold down the rear seats, and you open up 49 cubic feet of total cargo space (ranked №334 out of 693 electric vehicles).

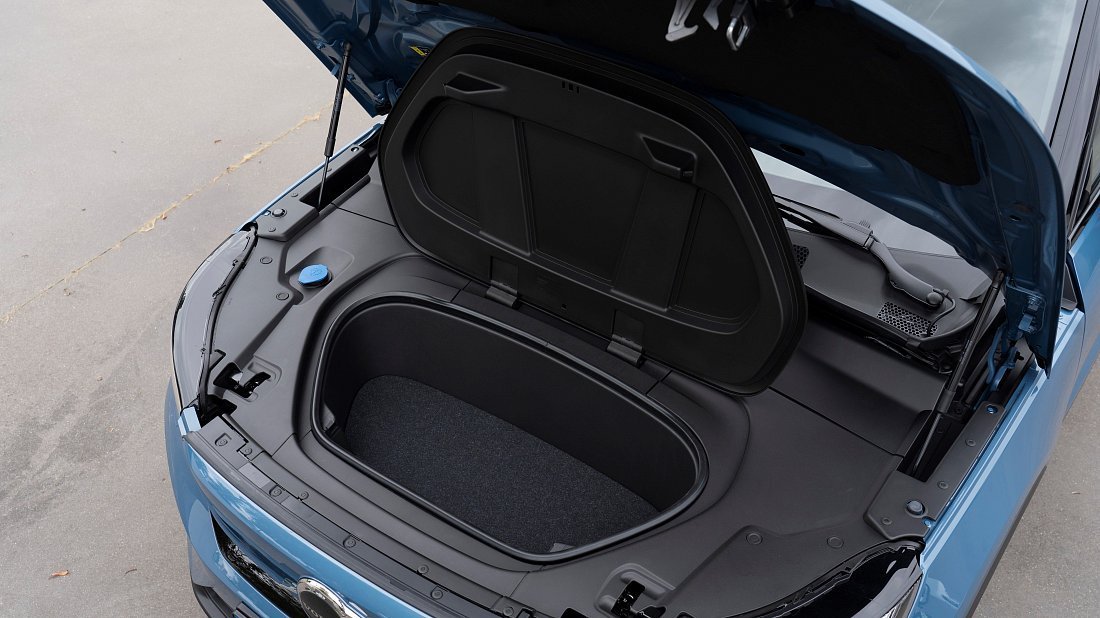

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 1.1 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Volvo C40 Recharge (EC40) Pure Electric (2021-2022) is officially rated to tow 2000 lbs. This applies to trailers equipped with brakes.
