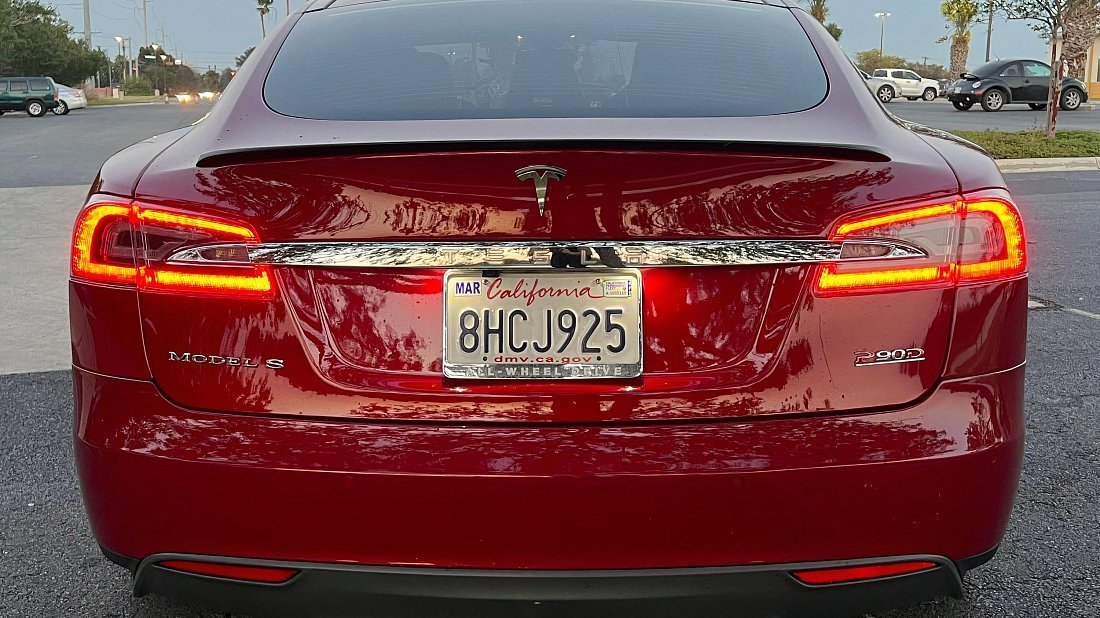

Tesla Model S P90D (2015)

Technical Specifications of Tesla Model S P90D (2015)

General Info

Years of Production
When the car first came out and when they stopped making it
2015 - 2016
Country of Manufacture
Country where final assembly of the car took place.
USA, Holland
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)

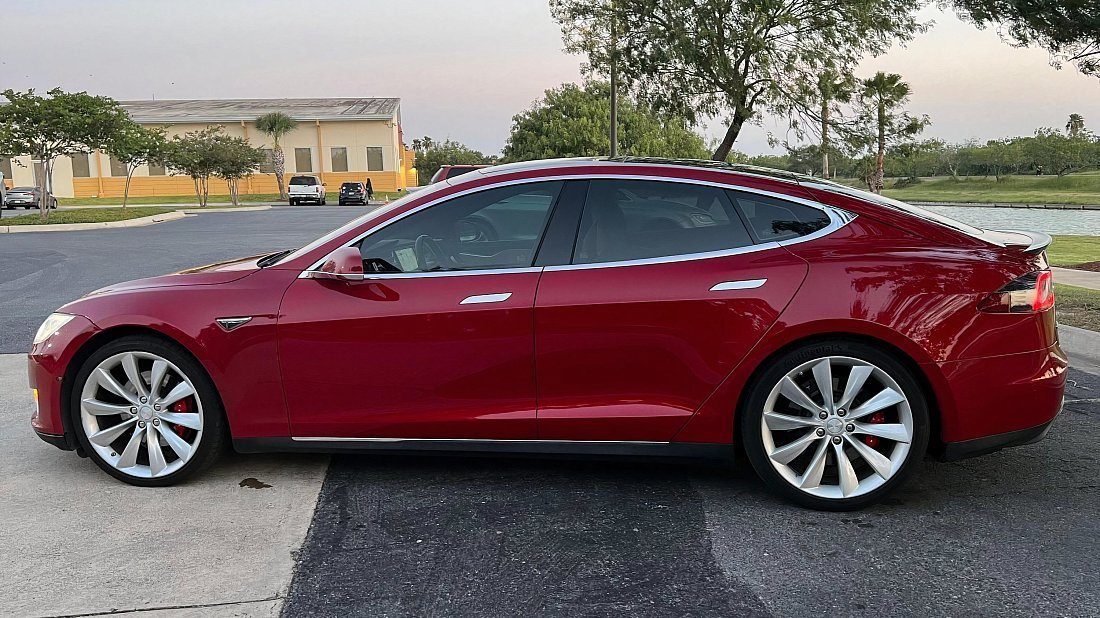

Liftback Tesla Model S P90D (2015)

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
407 km
Range NEDC
Range according to NEDC ratings. NEDC is an old standard, replaced by WLTP after September 2018.
505 km
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 km
Wh/km
21.8 kWh 218 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
90 kWh 85.5 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 120 kW

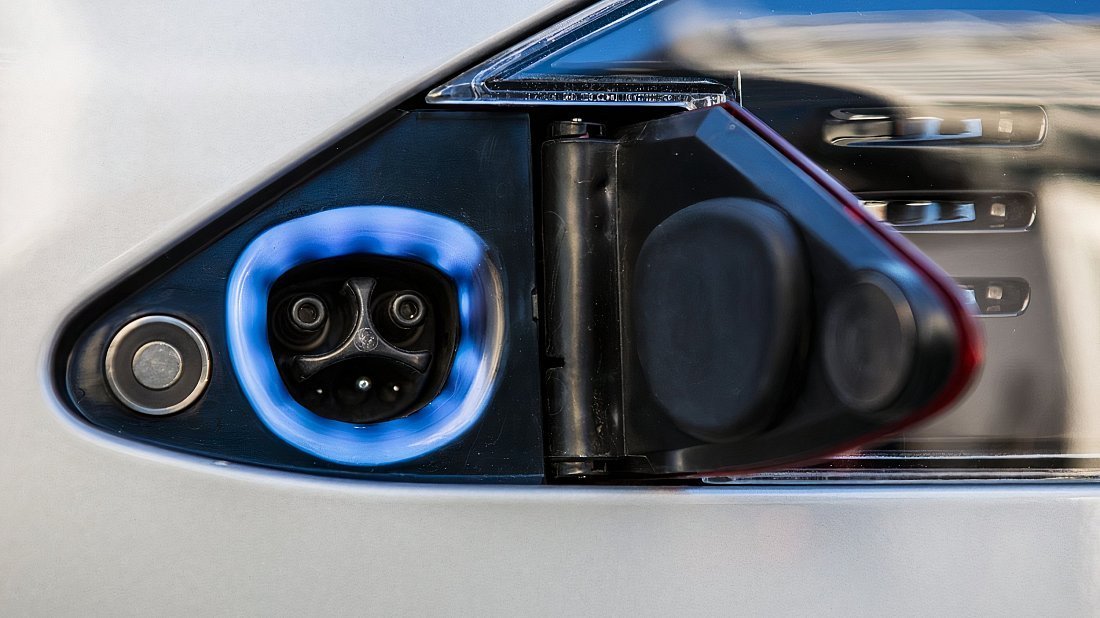

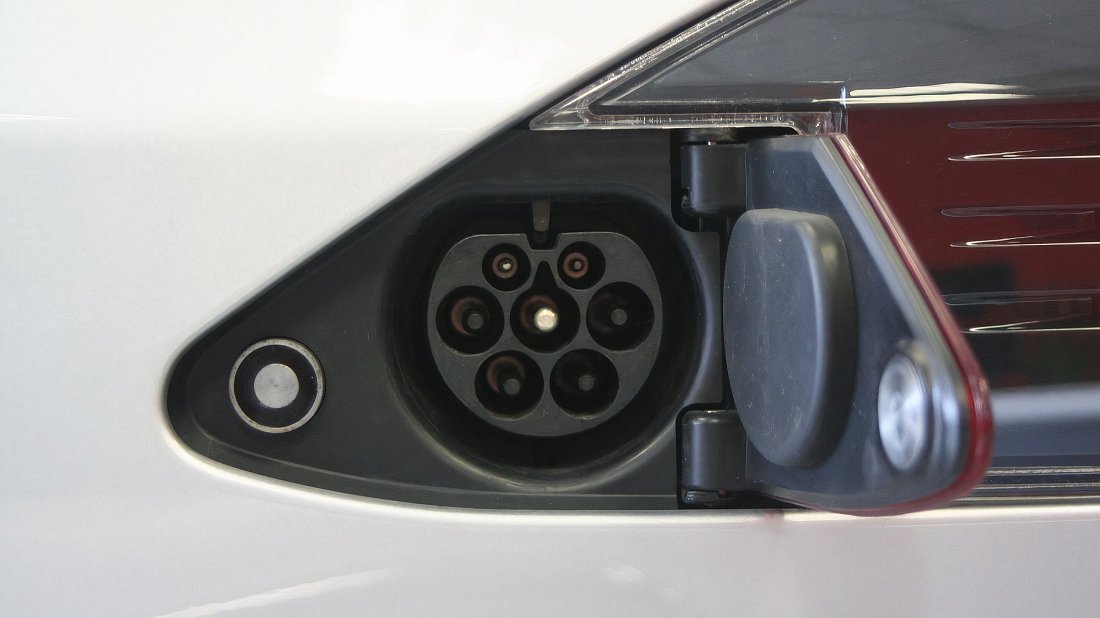

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
Tesla Type 2 (Mennekes)
Tesla Type 2 (Mennekes) charge port

Performance

Drive Type
Which wheels are powered (all, rear, or front) by the electric motor(s)
AWD
Engine
Torque: pulling force of the engine. Power: how quickly it can turn the wheels with that force.
Power
Torque
691 hp (515 kW) 930 Nm
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3.3 s
Top Speed
The fastest the car can go (maximum speed)
250 km/h
0.00 s
000 km/h

Dimensions

Length
Car's body length (front to back bumper)
4970 mm
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
2189 mm 1964 mm
Height
Car's body height (from ground to highest point)
1445 mm
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
2960 mm

Cargo and Towing

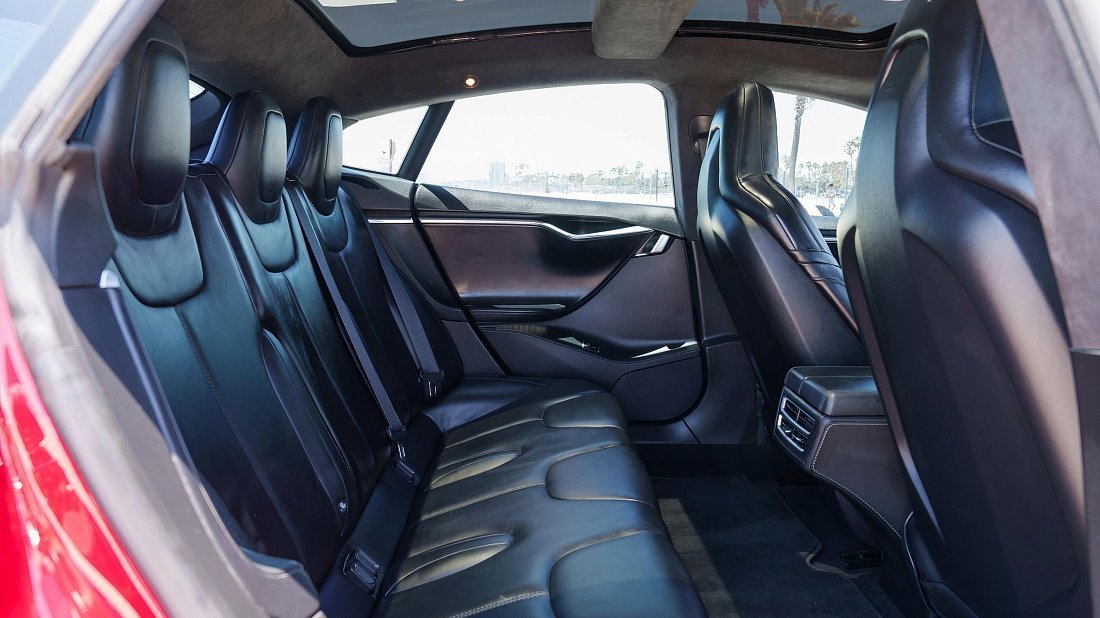

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
2251 kg

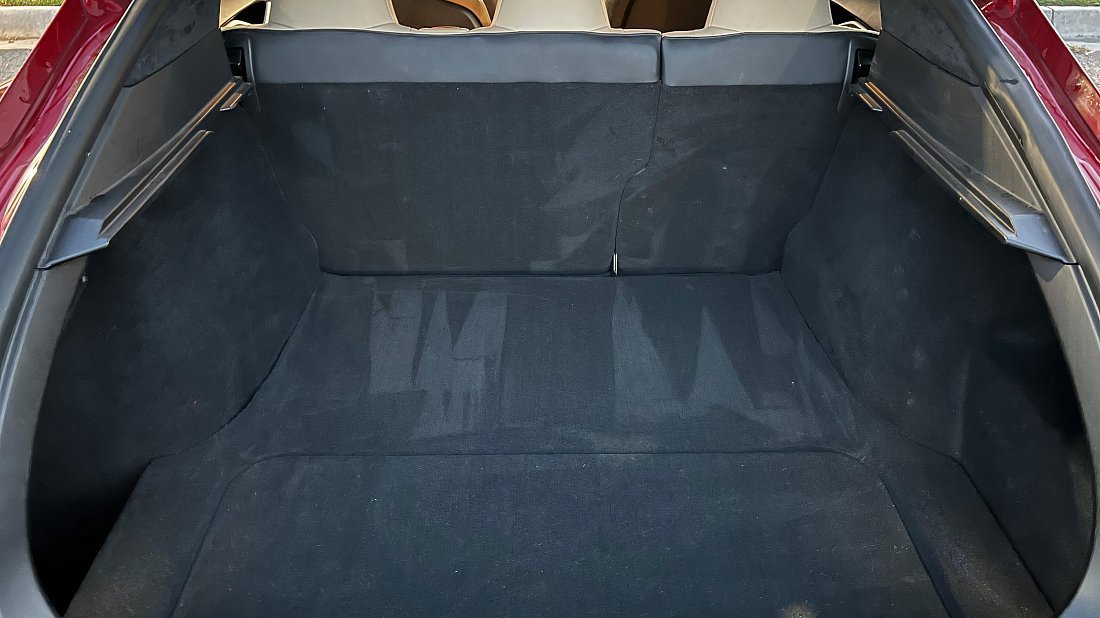

Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
745 l 1645 l 60 l
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 28, 2024
Download Specs PDF

How Far Can You Go in Tesla Model S P90D (2015)

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Tesla Model S P90D (2015)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

EURO 1-phase 10A

Socket specs
Socket specs
230 V, 10 A, 1-phase
Socket output
Socket output
2.3 kW
Charging 20-80%
Charging 20-80%
24 h 47 min (~12 km/h)

EURO 1-phase 16A

Socket specs
Socket specs
230 V, 16 A, 1-phase
Socket output
Socket output
3.7 kW
Charging 20-80%
Charging 20-80%
15 h 24 min (~20 km/h)

EURO 1-phase 32A

Socket specs
Socket specs
230 V, 32 A, 1-phase
Socket output
Socket output
7.4 kW
Charging 20-80%
Charging 20-80%
07 h 42 min (~39 km/h)

EURO 3-phase 16A

Socket specs
Socket specs
400 V, 16 A, 3-phase
Socket output
Socket output
11.1 kW
Charging 20-80%
Charging 20-80%
05 h 11 min (~58 km/h)
Charging power is limited by the car’s on-board charger (11 kW)

EURO 3-phase 32A

Socket specs
Socket specs
400 V, 16 A, 3-phase
Socket output
Socket output
11.1 kW
Charging 20-80%
Charging 20-80%
05 h 11 min (~58 km/h)
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
01 h 12 min (~251 km/h)
Tesla cars need an adapter to charge at CCS DC stations

CCS DC 100 kW

Socket output
Socket output
100 kW
Charging 20-80%
Charging 20-80%
00 h 38 min (~473 km/h)
Tesla cars need an adapter to charge at CCS DC stations

CCS DC 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 200 kW

Socket output
Socket output
200 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

CCS DC 350 kW

Socket output
Socket output
350 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Tesla cars need an adapter to charge at CCS DC stations Charging power is limited by the car’s DC charging capability (120 kW)

Supercharger V2 Split 75 kW

Socket output
Socket output
75 kW
Charging 20-80%
Charging 20-80%
00 h 48 min (~377 km/h)

Supercharger V2 150 kW

Socket output
Socket output
150 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Charging power is limited by the car’s DC charging capability (120 kW)

Supercharger V3 250 kW

Socket output
Socket output
250 kW
Charging 20-80%
Charging 20-80%
00 h 32 min (~567 km/h)
Charging power is limited by the car’s DC charging capability (120 kW)

CHAdeMO DC 50 kW

Socket output
Socket output
50 kW
Charging 20-80%
Charging 20-80%
01 h 12 min (~251 km/h)
Tesla cars need an adapter to charge at CHAdeMO stations
Last Updated:
March 28, 2024
Open Charging Calculator

About Tesla Model S P90D (2015)

The Tesla Model S P90D (2015) is an all-electric all-wheel drive liftback. It came out in 2015 replacing the older Tesla Model S P85D. Tesla stopped making the P90D (2015) in 2016 and replaced it with the Tesla Model S P90D (2016). You can still find Tesla Model S P90D (2015) on the used car market, with prices starting around €26,950.

The Tesla Model S P90D (2015) has a 90 kWh battery pack, allowing it to travel up to 393 km on a single charge. The car has an average efficiency of 21.8 kWh per 100 km (or 218 Wh/km) — ranked №258 out of 575 electric vehicles.

Frequently Asked Questions

How fast is Tesla Model S P90D (2015)

The Tesla Model S P90D (2015) is equipped with a powertrain that delivers up to 515 kW (691 hp) of power and 930 Nm of torque.

This enables a 0 to 100 km/h acceleration in 3.3 seconds (ranked №33 out of 575 electric vehicles) and a top speed of 250 km/h.

Real-world range of Tesla Model S P90D (2015)

The real-world range of the Tesla Model S P90D (2015) is 354–432 km (ranked №258 out of 575 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

Tesla Model S P90D (2015) charge port type?

In Europe Tesla Model S P90D (2015) has a Tesla Type 2 (Mennekes) charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 46 km of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 120 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using our Charging calculator.

Tesla Model S P90D (2015) dimensions and weight?

Tesla Model S P90D (2015) comes in the following dimensions:

  • Length: 4970 mm
  • Width: 2189 mm (including side mirrors) or 1964 mm (excluding side mirrors)
  • Height: 1445 mm
  • Wheelbase: 2960 mm (distance between the center of the front and rear wheels)
  • Curb weight: 2251 kg (weight of the empty car, no people or cargo)

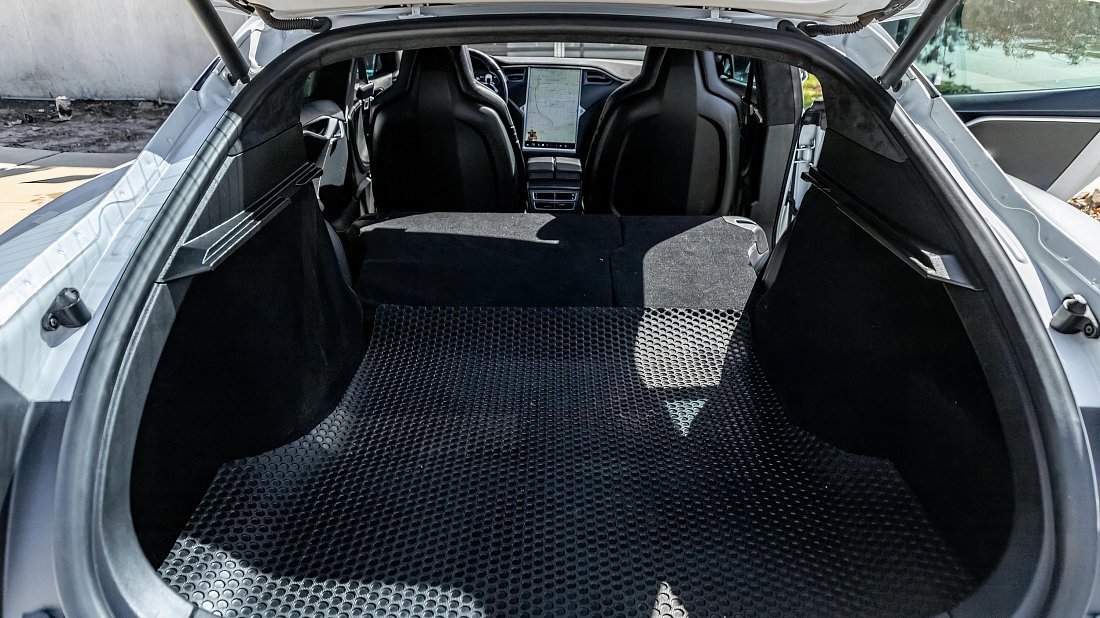

Tesla Model S P90D (2015) cargo capacity?

Here's a breakdown of the Tesla Model S P90D (2015) cargo space:

  • Trunk capacity: With the rear seats up, you get 745 litres of cargo space in the back (ranked №63 out of 575 electric vehicles).
  • Max cargo capacity: Fold down the rear seats, and you open up 1645 litres of total cargo space (ranked №142 out of 575 electric vehicles).

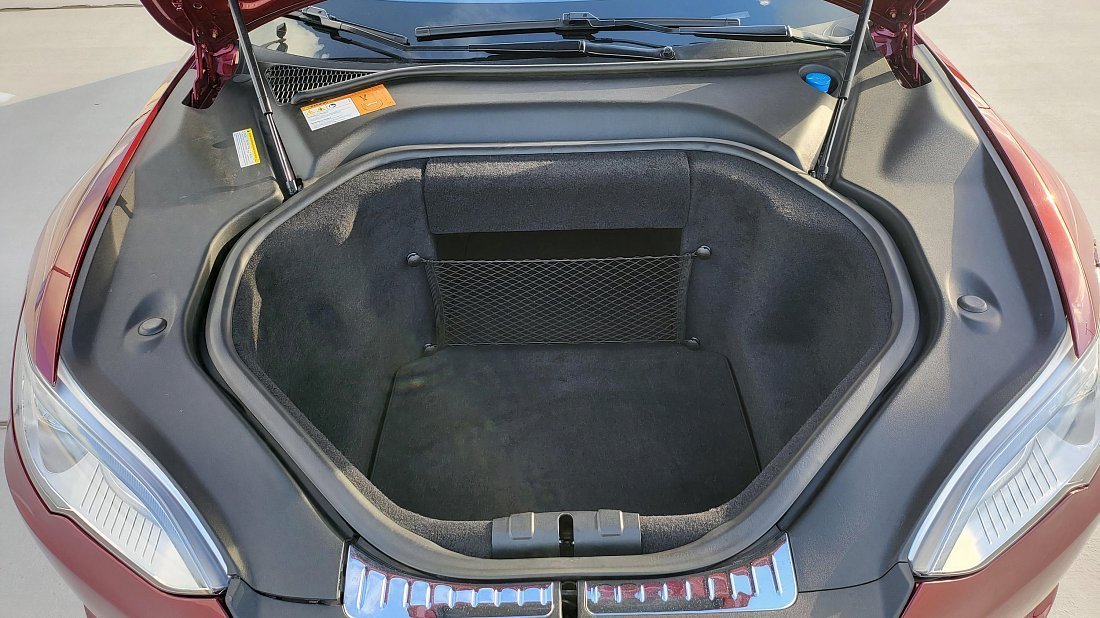

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 60 litres for storing small items.
Tesla Model S P90D (2015) towing capacity?
The car isn’t officially rated for towing.
