Technical Specifications of Fiat 500e Hatchback 24 kWh (2020-…)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2020-…

Country of Manufacture Country where final assembly of the car took place

Italy

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Produced

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): Hatchback

Range and Efficiency

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

118 mi 227 out of 233 No Data 101 mi 221 out of 242

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

23.8 kWh 139 out of 150 21.3 kWh 166 out of 177

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 21.1 kWh/100 mi (4.7 mi/kWh) 4 out of 204

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

9.6 kW 12 out of 23 50 kW 75 out of 81

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 2

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): FWD: PMSM

Motor Total power and torque of the car's electric motor(s): Power

Torque

70 kW (94 hp) 174 out of 186 162 lb-ft 160 out of 172

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 8.6 s 69 out of 116

Top Speed The fastest the car can go (maximum speed): 84 mph 58 out of 65

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 143 in 188 out of 198

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

74.8 in 84 out of 100 66.3 in 82 out of 92

Height Car's body height (from ground to highest point): 60.2 in 96 out of 147

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 91.4 in 120 out of 123

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 4

Curb Weight Car's weight without passengers or cargo: 2767 lb 420 out of 437

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

6.5 ft3 144 out of 151 19.4 ft3 158 out of 160 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

August 02, 2024

Download Specs PDF

How Far Can You Go in Fiat 500e Hatchback 24 kWh (2020-…)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging Fiat 500e Hatchback 24 kWh (2020-…)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

Last Updated:

August 02, 2024

Open Charging Calculator

About Fiat 500e Hatchback 24 kWh (2020-…)

The Fiat 500e Hatchback 24 kWh (2020-…) is an all-electric front-wheel drive hatchback. It came out in 2020 replacing the older Fiat 500e Hatchback 24 kWh (2013-2019). The car is not available on the US market.

The Fiat 500e Hatchback 24 kWh (2020-…) has a 23.8 kWh battery pack, allowing it to travel up to 101 mi on a single charge — ranked №726 out of 761 electric vehicles.

How powerful is it? How fast does it accelerate?

The Fiat 500e Hatchback 24 kWh (2020-…) can accelerate from 0 to 60 mph in 8.6 seconds (№69 out of 116 ranked positions, among 761 electric vehicles, with some cars sharing positions) and reach a top speed of 84 mph.

The car’s powertrain delivers up to 70 kW (94 hp) of power and 162 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Real-world range of the Fiat 500e Hatchback 24 kWh (2020-…) is 101 miles (№221 out of 242 ranked positions, among 761 electric vehicles, with some cars sharing positions) — depending on several factors, including:

Speed: Higher speeds deplete the battery faster.
Temperature: Extreme cold and hot weather impacts range.
Terrain: Hilly or mountainous terrain reduces range.
Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

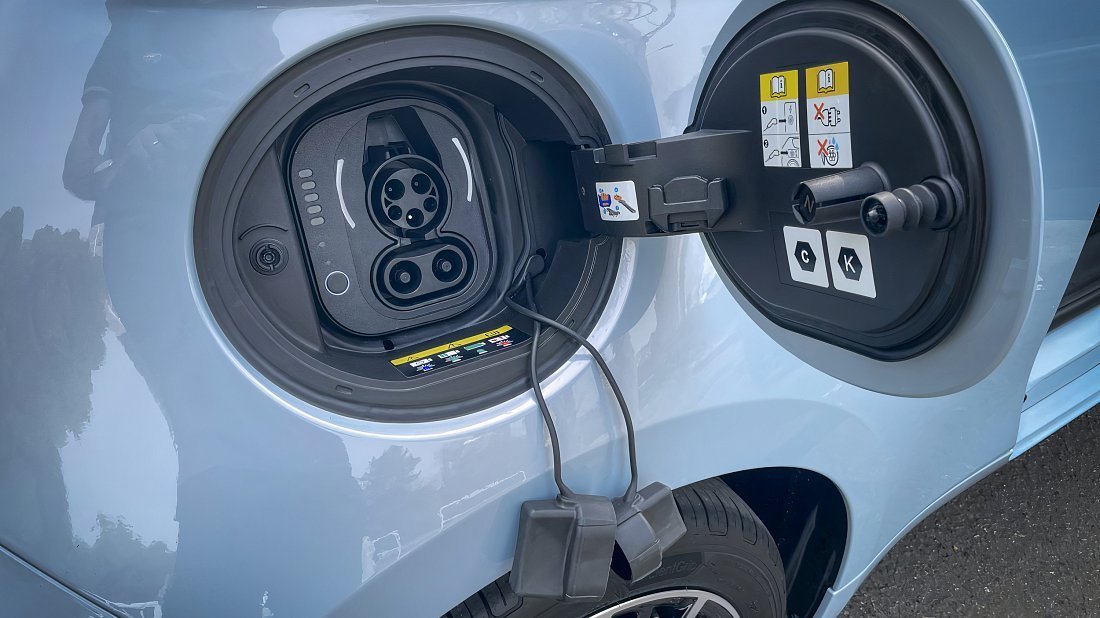

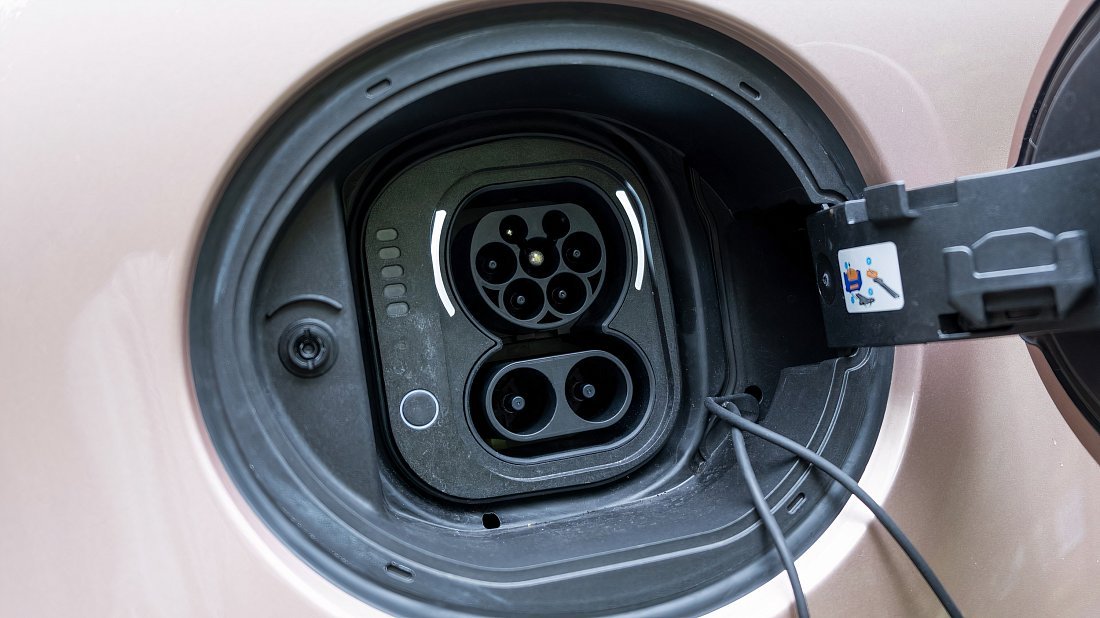

In the USA Fiat 500e Hatchback 24 kWh (2020-…) has a CCS Type 2 charge port.

You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 9.6 kW, which translates to approximately 41 miles of range added per hour of charging.
For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 50 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using EV Charging Calculator.

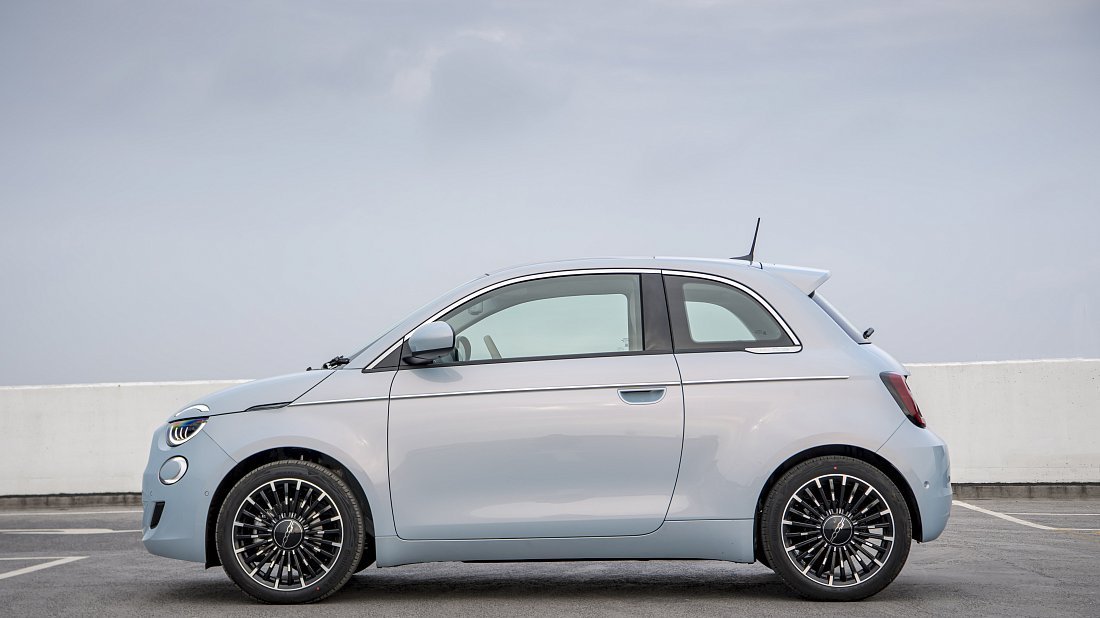

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Fiat 500e Hatchback 24 kWh (2020-…):

Length: 143 in
Width: 74.8 in (including side mirrors) or 66.3 in (excluding side mirrors)
Height: 60.2 in
Wheelbase: 91.4 in (distance between the center of the front and rear wheels)
Curb weight: 2767 lbs (weight of the empty car, no people or cargo)

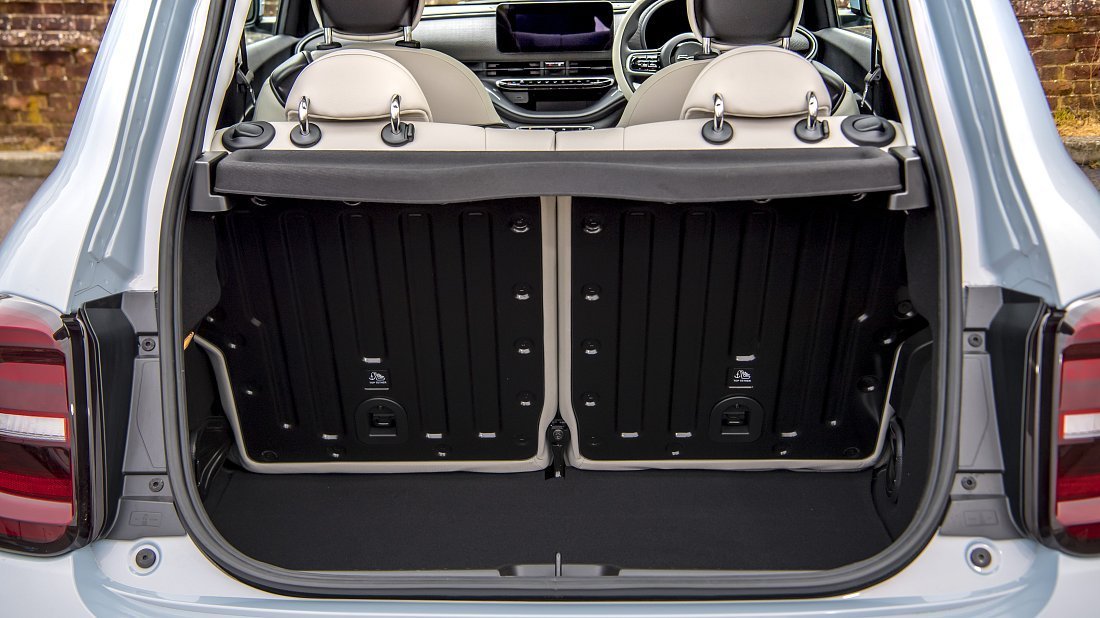

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Fiat 500e Hatchback 24 kWh (2020-…) cargo space:

Trunk capacity: With the rear seats up, you get 6.5 cubic feet of cargo space in the back (№144 out of 151 ranked positions, among 761 electric vehicles, with some cars sharing positions).
Max cargo capacity: Fold down the rear seats, and you open up 19.4 cubic feet of total cargo space (№158 out of 160 ranked positions, among 761 electric vehicles, with some cars sharing positions).
Frunk capacity: The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
