Technical Specifications of Ford Mustang Mach-E Standard Range AWD (2022)

General Info

Years of Production
When the car first came out and when they stopped making it
2022 - 2023
Country of Manufacture
Country where final assembly of the car took place
Mexico
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)

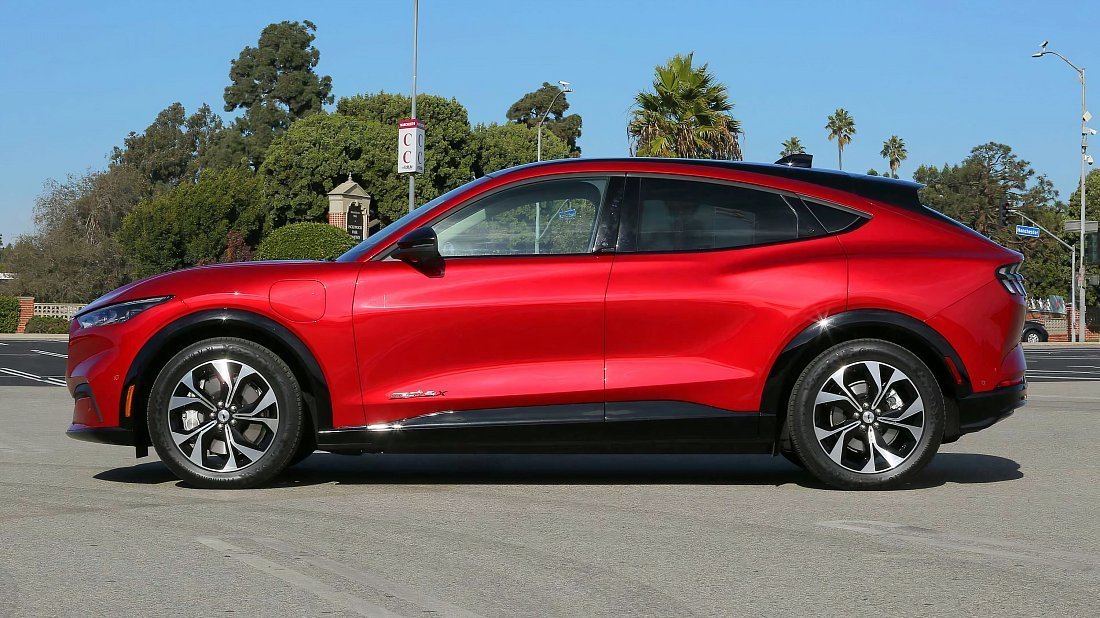

SUV Ford Mustang Mach-E Standard Range AWD (2022)

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
GCC
249 mi 224 mi 218 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
75.7 kWh 70 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
32.1 kWh/100 mi (3.1 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 115 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V
Charge Port
The port type impacts charging speed and station compatibility
  • CCS Type 1

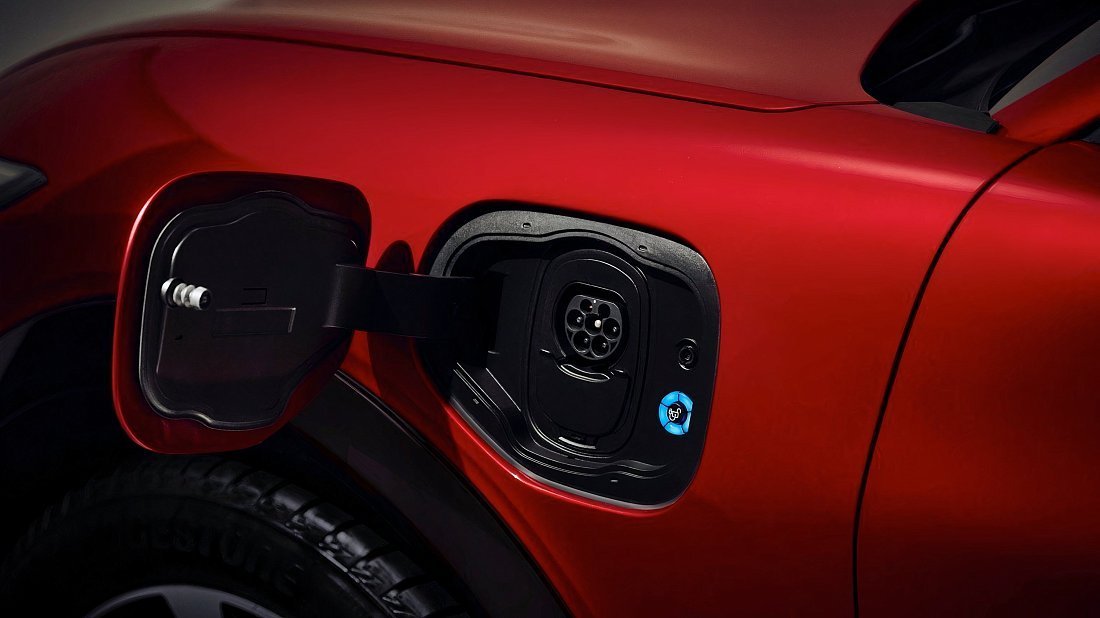

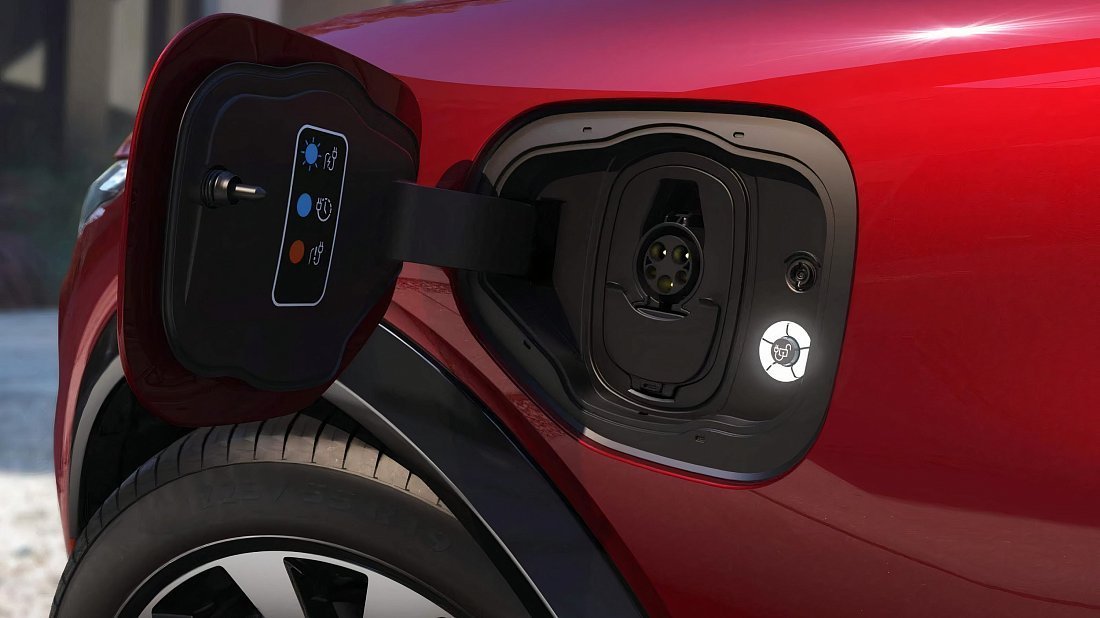

CCS Type 1 charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
198 kW (266 hp) 428 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.2 s
Top Speed
The fastest the car can go (maximum speed)
111 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
185.6 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
82.6 in 74.1 in
Height
Car's body height (from ground to highest point)
64 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
117.5 in

Cargo and Towing

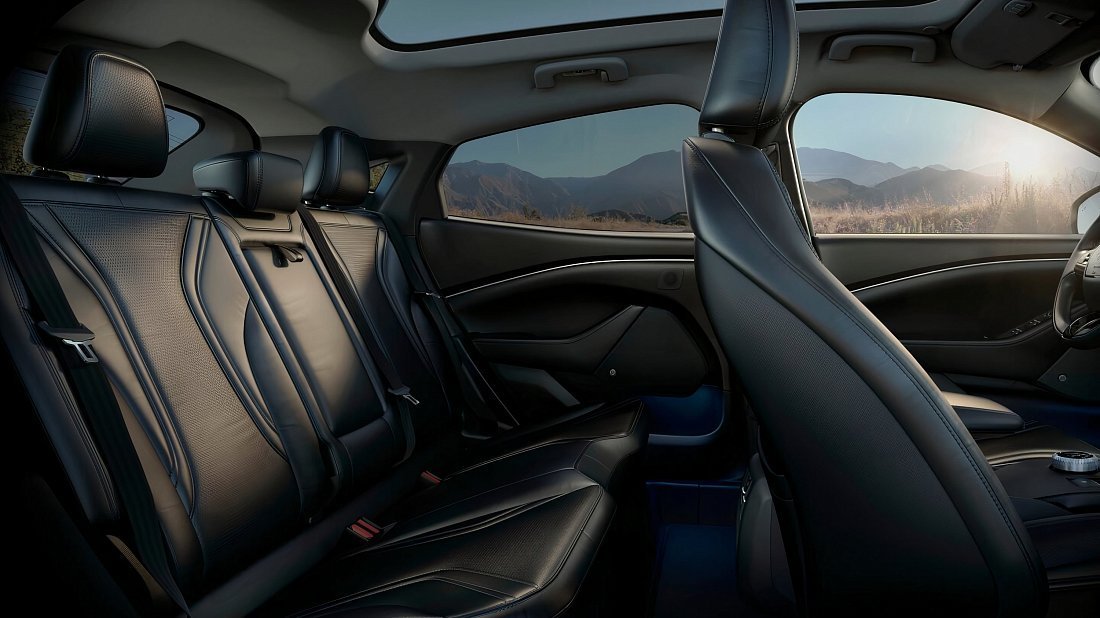

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4498 lb
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
29.7 ft3 59.7 ft3 4.7 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
May 23, 2024
Download Specs PDF

Charging Ford Mustang Mach-E Standard Range AWD (2022)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
May 23, 2024
Open Charging Calculator

About Ford Mustang Mach-E Standard Range AWD (2022)

Detailed Descriptions

The Ford Mustang Mach-E Standard Range AWD (2022) is an all-electric all-wheel drive SUV. It came out in 2022 replacing the older Ford Mustang Mach-E Standard Range AWD (2020). Ford stopped making the Standard Range AWD (2022) in 2023 and replaced it with the Ford Mustang Mach-E Standard Range AWD (2023). You can still find Ford Mustang Mach-E Standard Range AWD (2022) on the used car market, with prices starting around $25,988.

The Ford Mustang Mach-E Standard Range AWD (2022) has a 75.7 kWh battery pack, allowing it to travel up to 218 mi on a single charge. The car has an average efficiency of 32.1 kWh per 100 miles (or 3.1 miles per kWh) — ranked №444 out of 683 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford Mustang Mach-E Standard Range AWD (2022) can accelerate from 0 to 60 mph in 5.2 seconds (ranked №245 out of 683 electric vehicles) and reach a top speed of 111 mph.

The car’s powertrain delivers up to 198 kW (266 hp) of power and 428 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Real-world range of the Ford Mustang Mach-E Standard Range AWD (2022) is 196–240 miles (ranked №444 out of 683 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The Ford Mustang Mach-E Standard Range AWD (2022) in the USA is equipped with a CCS Type 1 charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11 kW, which translates to roughly 31 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Ford Mustang Mach-E Standard Range AWD (2022) supports a maximum DC charging rate of 115 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Here are the dimensions and weight for the Ford Mustang Mach-E Standard Range AWD (2022):

  • Length: 185.6 in
  • Width: 82.6 in (including side mirrors) or 74.1 in (excluding side mirrors)
  • Height: 64 in
  • Wheelbase: 117.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 4498 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

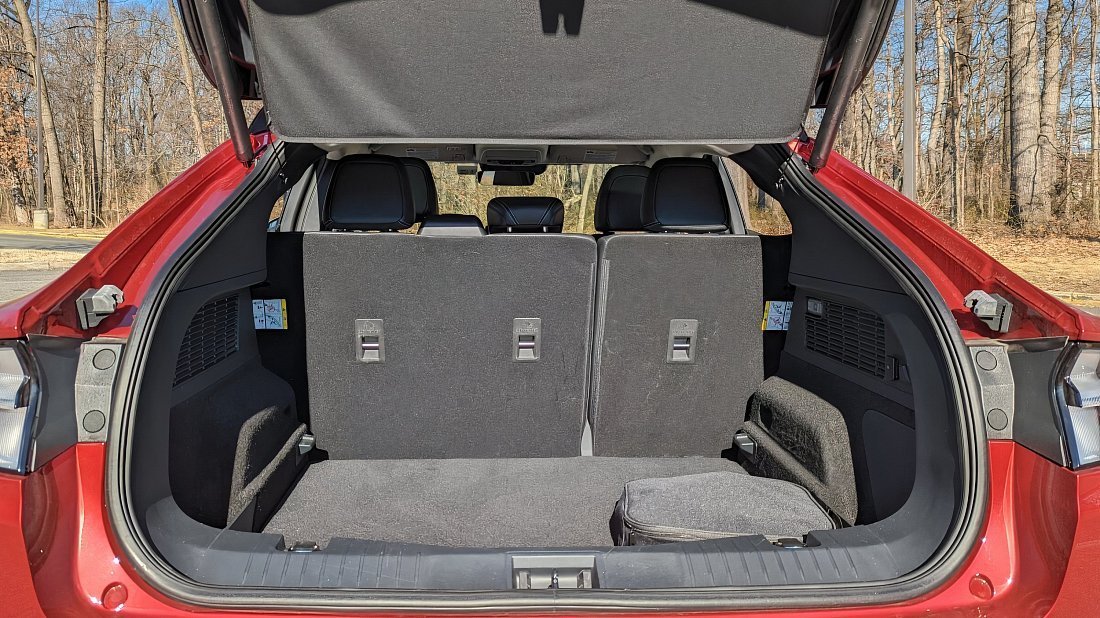

Behind the rear seats of the Ford Mustang Mach-E Standard Range AWD (2022), you'll find 29.7 cubic feet of storage space (ranked №82 out of 683 electric vehicles).

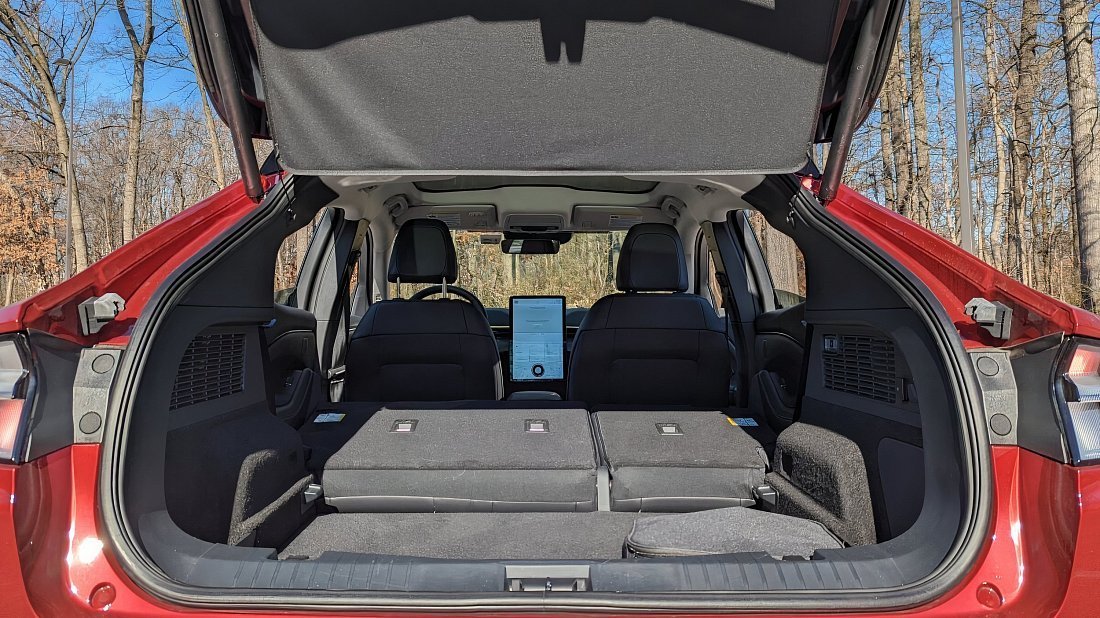

Folding down the rear seats expands the total cargo capacity to 59.7 cubic feet (ranked №177 out of 683 electric vehicles).

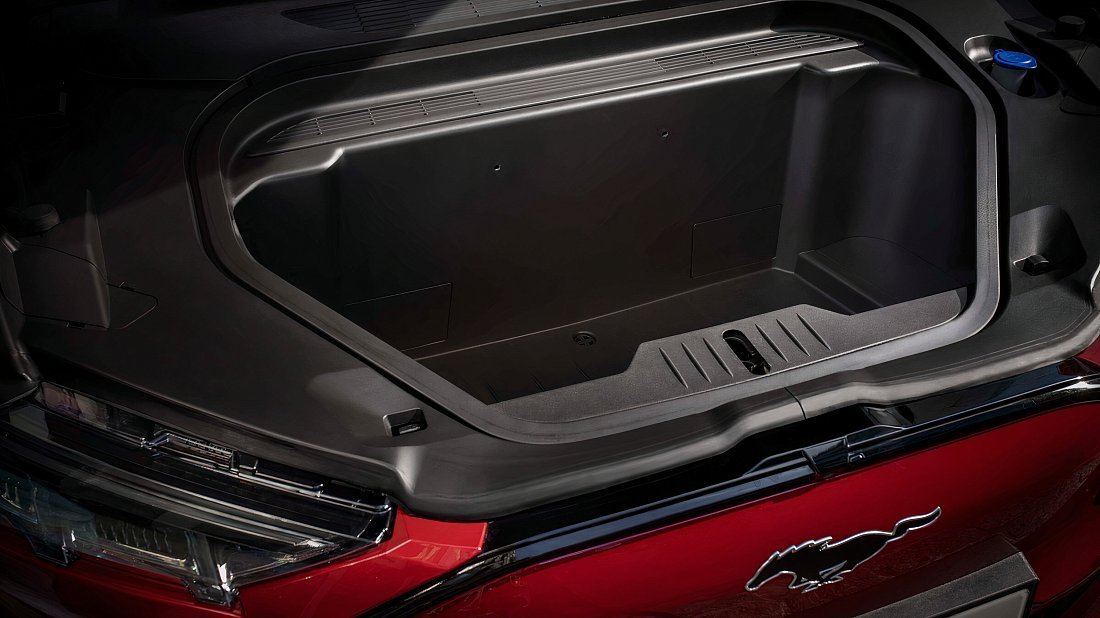

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 4.7 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
