Nissan Leaf 40 kWh

Years of Production
When the car first came out and when they stopped making it
2022 -
This car is not available in the US, but you can still compare it with other cars

Trims

Currently Produced

Nissan Leaf 40 kWh

Technical Specifications of Nissan Leaf 40 kWh

General Info

Years of Production
When the car first came out and when they stopped making it
2022 -
Country of Manufacture
Country where final assembly of the car took place
Japan
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Hatchback Nissan Leaf 40 kWh

Range and Battery

Range
Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare)
WLTP
EPA
NEDC
GCC
168-177 mi No Data 217 mi 155 mi
Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
40 kWh 39 kWh
Efficiency
Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.
25.2 kWh/100 mi (4 mi/kWh)

Charging

Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
3.6 kW 46 kW
Architecture
Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.
400 V

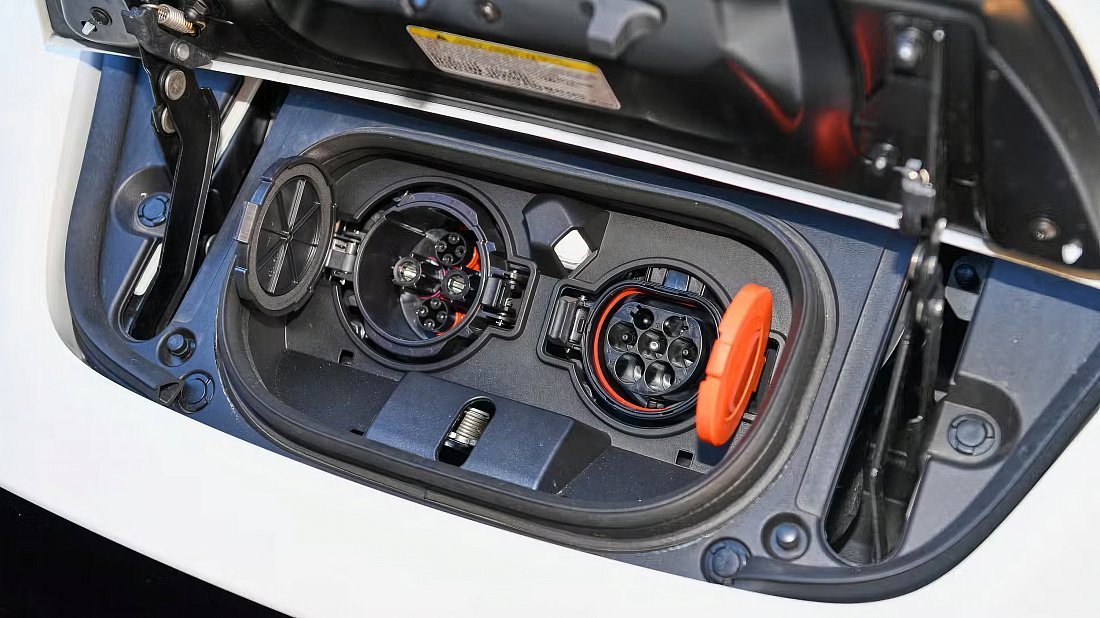

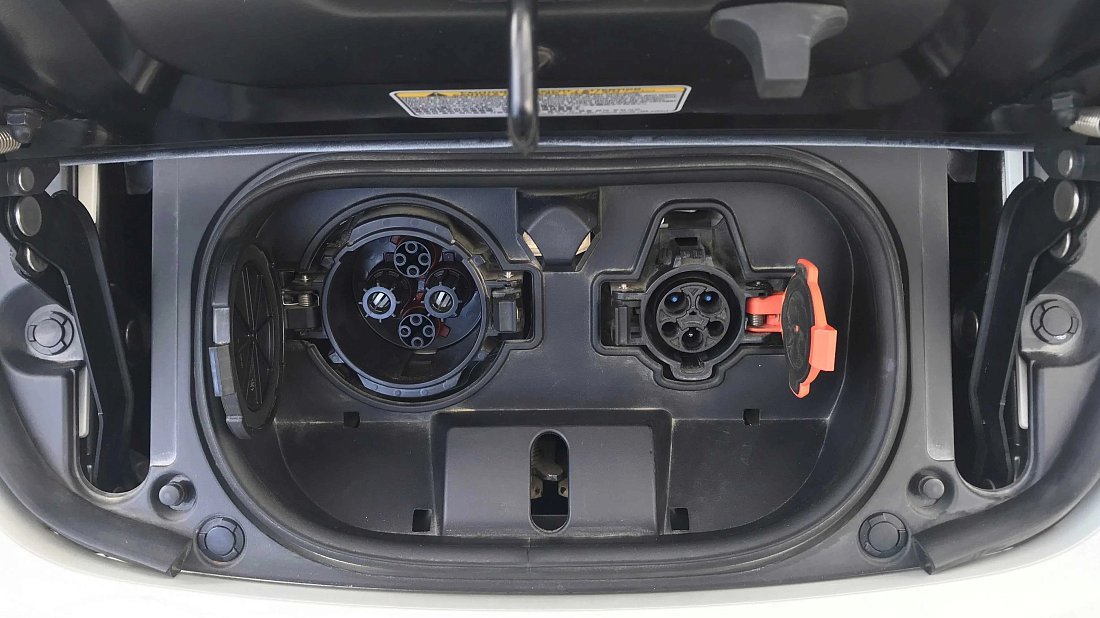

Charge Port
The port type impacts charging speed and station compatibility
  • CHAdeMO
  • Type 1 (J1772)
CHAdeMO charge port Type 1 (J1772) charge port

Performance

Drive Type
Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor)
FWD: PMSM
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
110 kW (148 hp) 236 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
7.7 s
Top Speed
The fastest the car can go (maximum speed)
89 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
176.8 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
79.9 in 70.4 in
Height
Car's body height (from ground to highest point)
60.2 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
106.3 in

Cargo and Towing

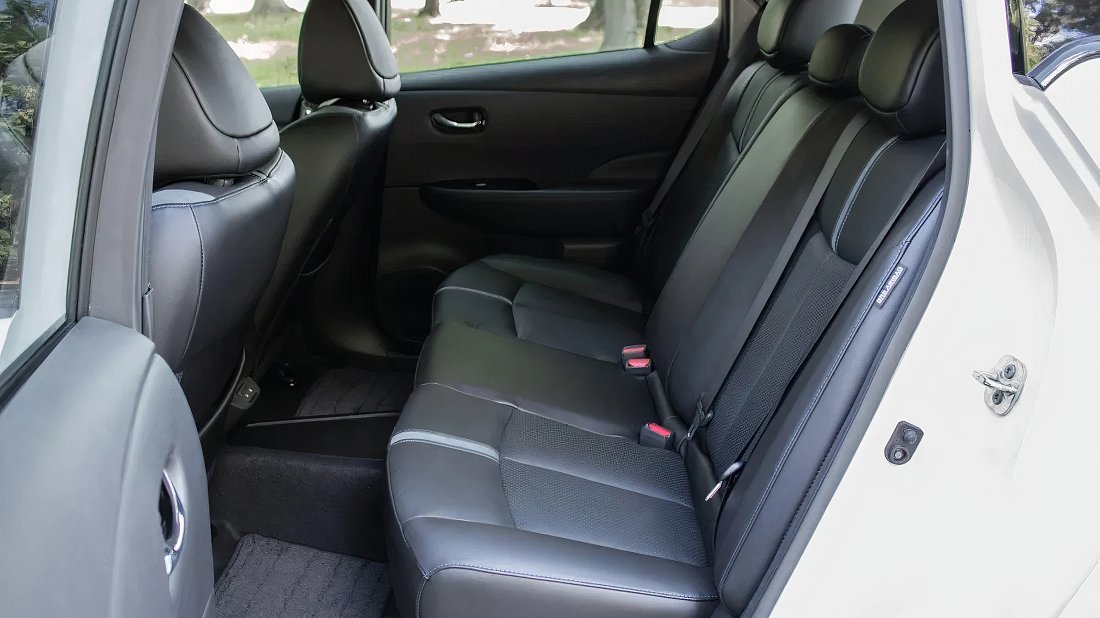

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
No Data
Cargo Volume
Cargo capacity: Trunk (rear seats up),
Max (rear seats folded),
Frunk (in the front hood)
Trunk
Max
Frunk
15.4 ft3 41.5 ft3 No Data
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
March 10, 2024
Download Specs PDF

How Far Can You Go in Nissan Leaf 40 kWh

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Nissan Leaf 40 kWh

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:
March 10, 2024
Open Charging Calculator

About Nissan Leaf 40 kWh

Detailed Descriptions

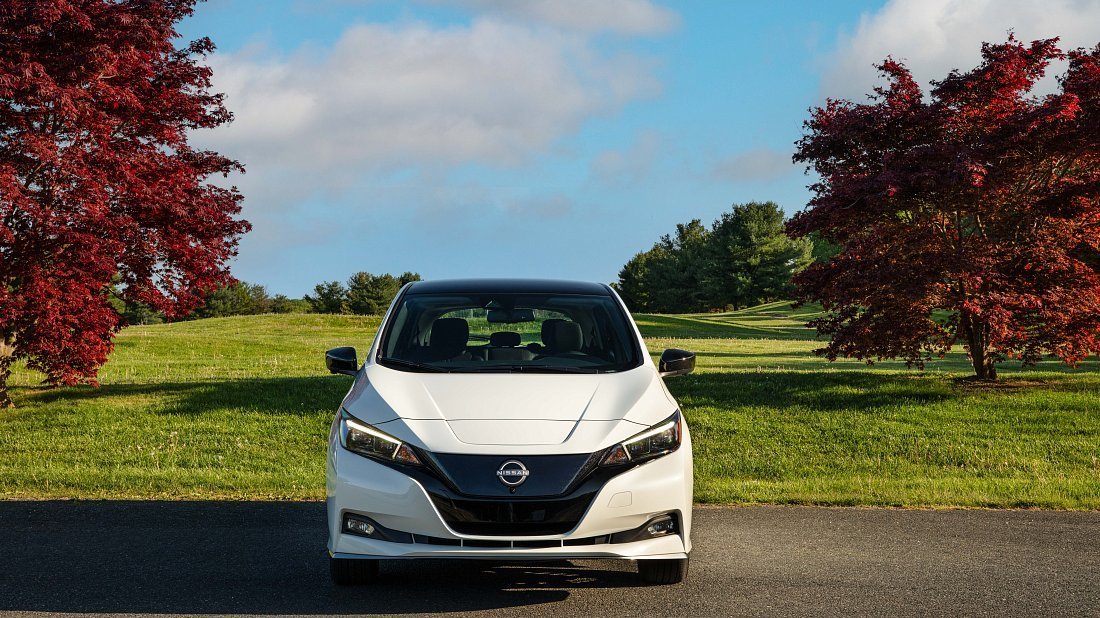

The Nissan Leaf 40 kWh is an all-electric front-wheel drive hatchback. It came out in 2022 replacing the older Nissan Leaf 30 kWh. The car is not available on the US market.

The Nissan Leaf 40 kWh has a 40 kWh battery pack, allowing it to travel up to 155 mi on a single charge. The car has an average efficiency of 25.2 kWh per 100 miles (or 4 miles per kWh) — ranked №575 out of 683 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Nissan Leaf 40 kWh is equipped with a powertrain that delivers up to 110 kW (148 hp) of power and 236 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 7.7 seconds (ranked №459 out of 683 electric vehicles) and a top speed of 89 mph.

How far can it go on single charge? What is the real-world range?

Nissan Leaf 40 kWh achieves a How far can it go on single charge? What is the real-world range? of 140–171 miles, placing it at №575 among 683 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

The Nissan Leaf 40 kWh in the USA comes with a CHAdeMO charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 3.6 kW, resulting in approximately 13 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 46 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Nissan Leaf 40 kWh are as follows:

  • Length: 176.8 in
  • Width: 79.9 in (including side mirrors) or 70.4 in (excluding side mirrors)
  • Height: 60.2 in
  • Wheelbase: 106.3 in (distance between the center of the front and rear wheels)
  • Curb weight: N/A lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

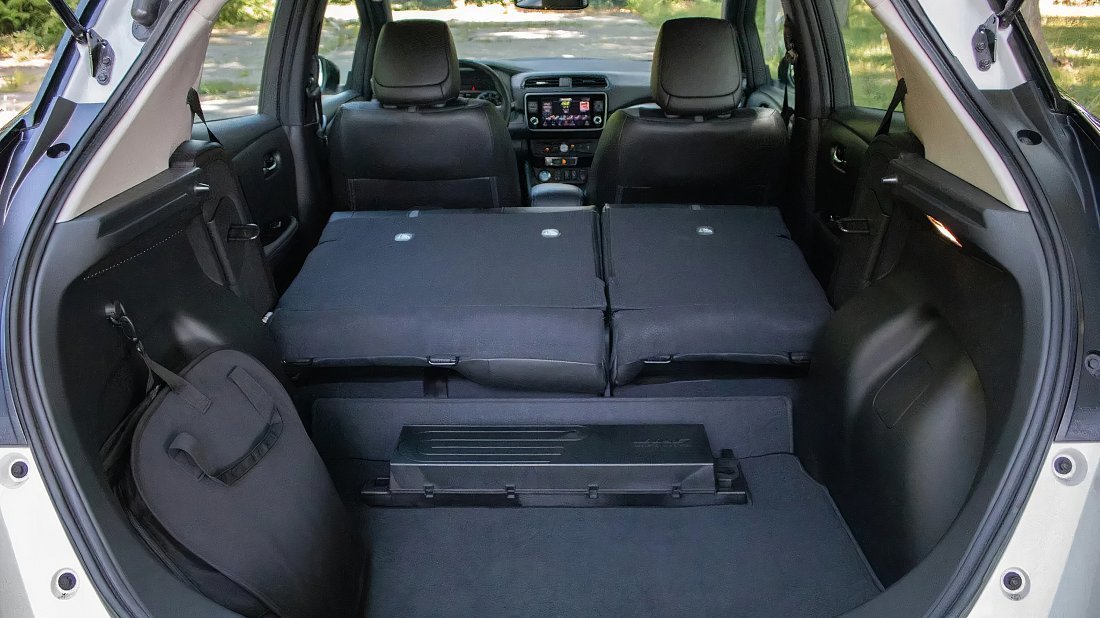

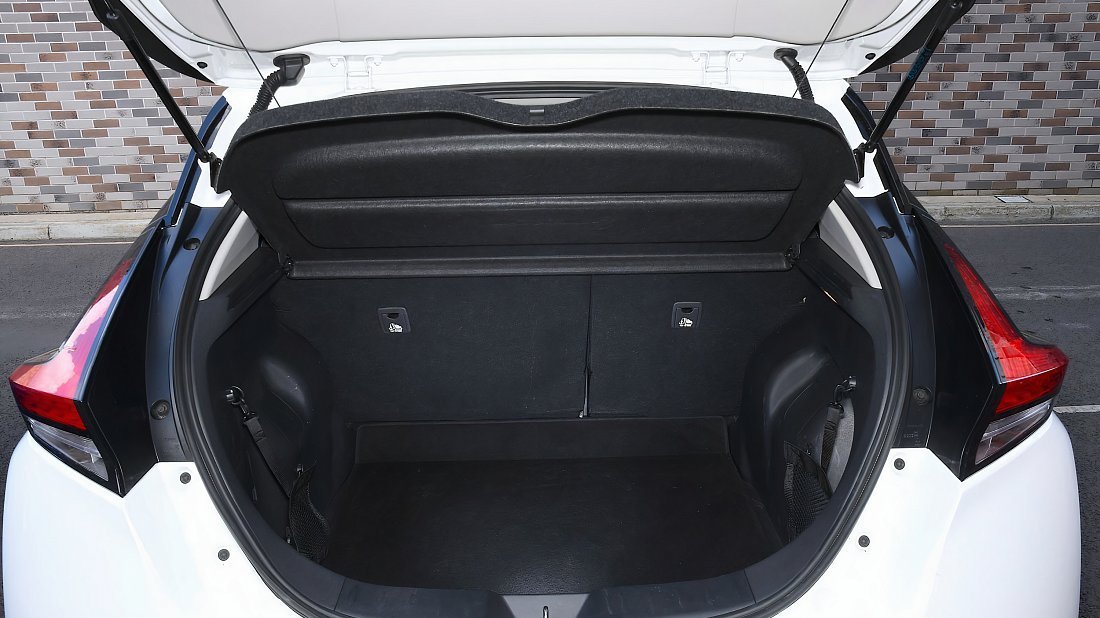

Behind the rear seats of the Nissan Leaf 40 kWh, you'll find 15.4 cubic feet of storage space (ranked №388 out of 683 electric vehicles).

Folding down the rear seats expands the total cargo capacity to 41.5 cubic feet (ranked №427 out of 683 electric vehicles).

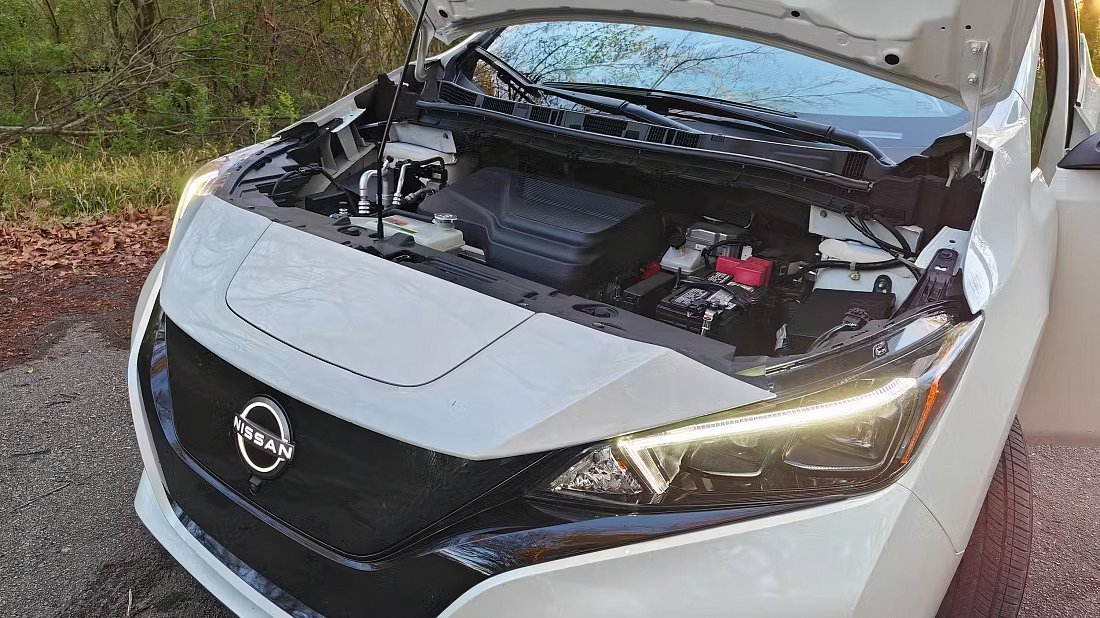

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
