BMW i3 BEV 60 Ah 2013-2017 - Compare Electric Car USA Specs

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2013-2017 (Discontinued)

Market Availability: EU, USA

Country of Manufacture Country where final assembly of the car took place

Germany

Body Style Vehicle category based on its shape and layout: Hatchback

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

NEDC

GCC

No Data 81 mi 164 out of 171 118 mi 44 out of 55 83 mi 243 out of 260

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

21.6 kWh 160 out of 169 18.8 kWh 187 out of 194

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

22.7 kWh/100 mi 18 out of 214 4.41 mi/kWh 22 out of 242

Charging

Max AC Charging: 7.4 kW 17 out of 24

Max DC Charging: 50 kW 78 out of 84

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

CCS Type 1

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): RWD 1 motor: PMSM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

125 kW (168 hp) 157 out of 198 184 lb-ft 171 out of 193

0-60 mph Acceleration time from a standstill: 7 s 54 out of 118

Top Speed The fastest the car can go (max speed): 93 mph 56 out of 72

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 157.4 in 208 out of 233

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

80.3 in 68 out of 106 69.9 in 79 out of 101

Height Car's body height (from ground to highest point): 62.1 in 85 out of 159

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 101.2 in 118 out of 141

Cargo and Towing

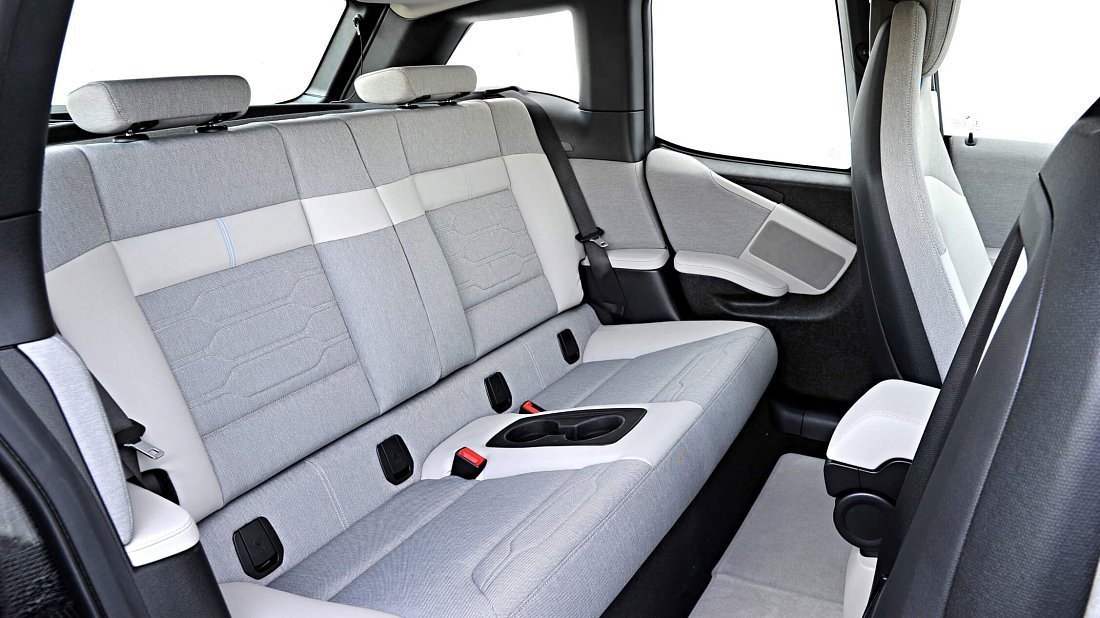

Number of Seats Total passenger capacity of the car (including driver): 4

Curb Weight Car's weight without passengers or cargo: 2866 lb 513 out of 537

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

9.2 ft³ 139 out of 158 38.8 ft³ 145 out of 186 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

July 04, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

CCS DC 50 kW

Output:: 50 kW

CCS DC 100 kW

Output:: 100 kW

CCS DC 150 kW

Output:: 150 kW

CCS DC 200 kW

Output:: 200 kW

CCS DC 250 kW

Output:: 250 kW

CCS DC 350 kW

Output:: 350 kW

Supercharger V2 Split 75 kW

Output:: 75 kW

Supercharger V2 150 kW

Output:: 150 kW

Supercharger V3 250 kW

Output:: 250 kW

Charging power is limited by the car’s on-board charger ( kW) Charging power is limited by the car’s DC charging capability (50 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 50 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the BMW i3 BEV 60 Ah (2013-2017) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the BMW i3 BEV 60 Ah (2013-2017) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

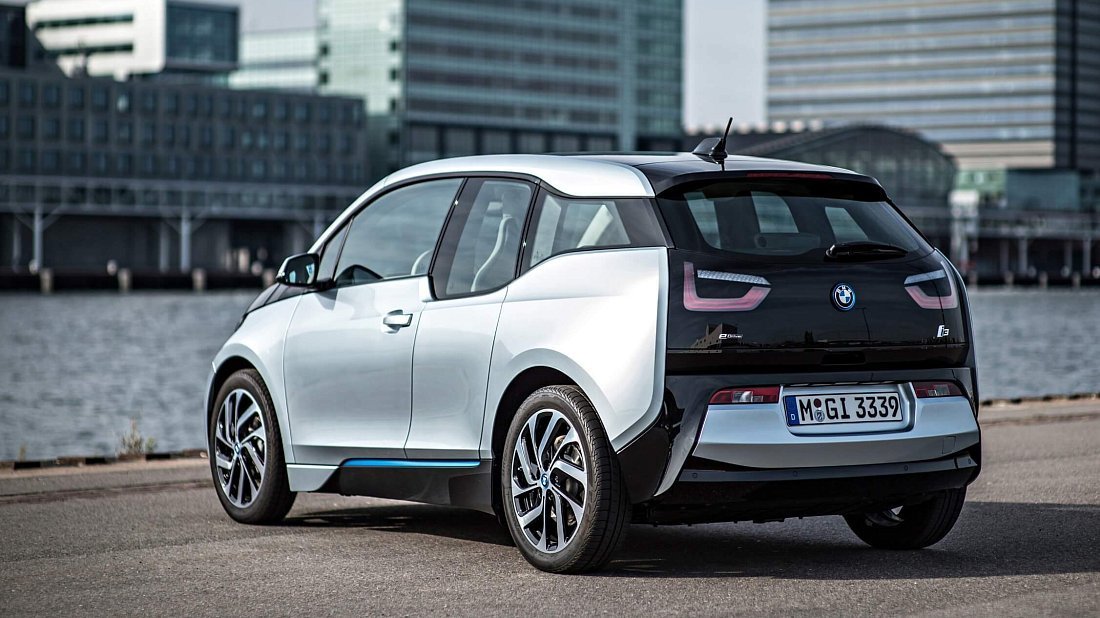

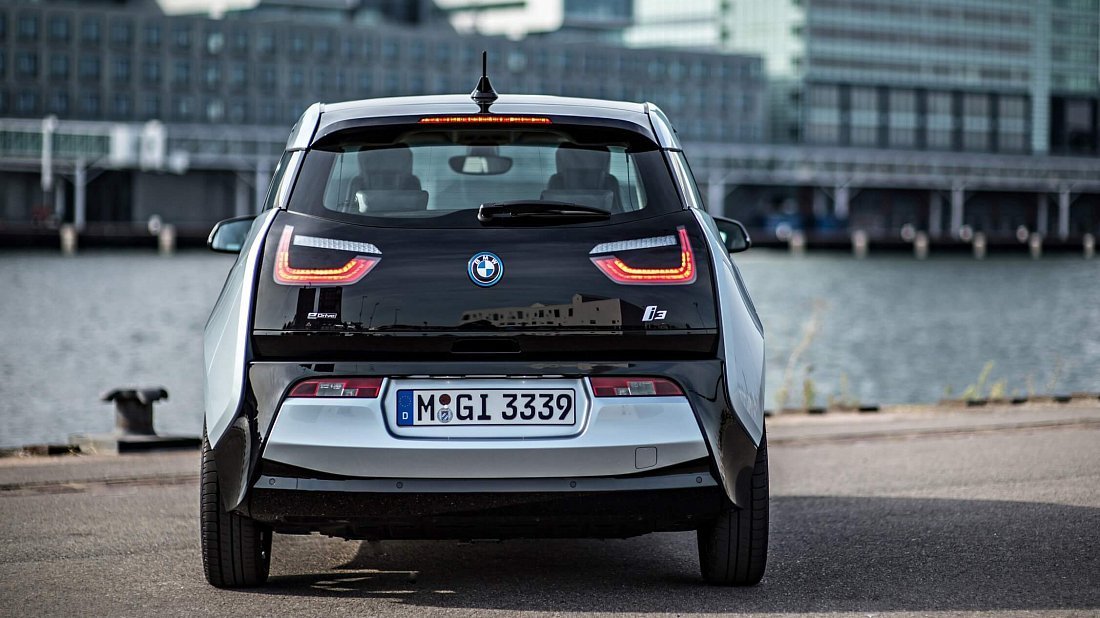

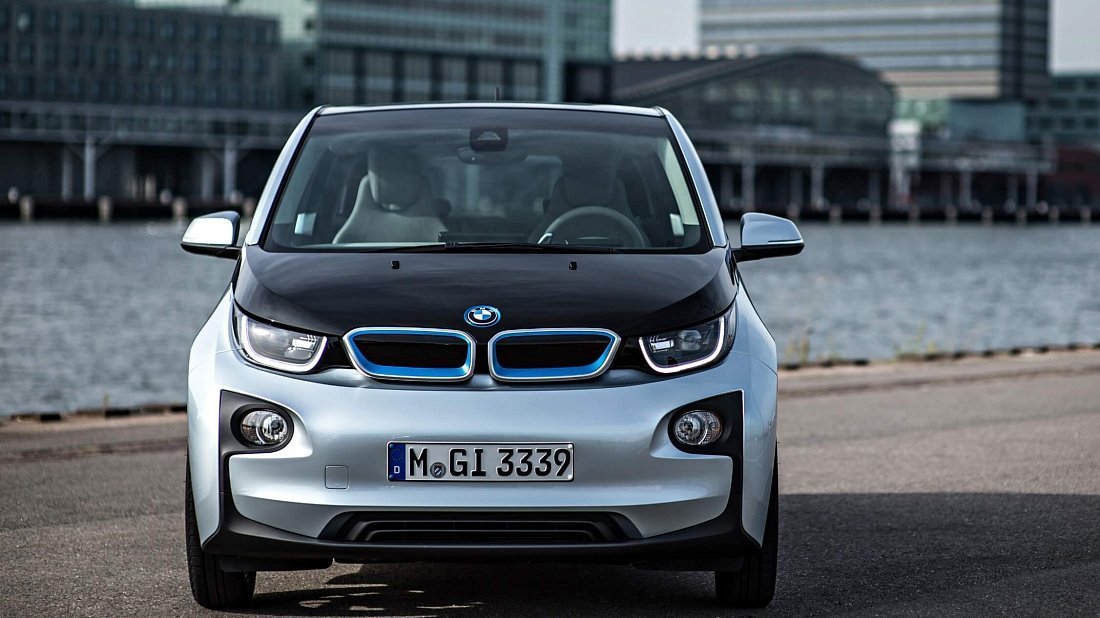

The BMW i3 BEV 60 Ah (2013-2017) is an all-electric rear-wheel drive hatchback. It came out in 2013. BMW stopped making the BEV 60 Ah in 2017 and replaced it with the BMW i3 BEV 94 Ah (2017-2018). You can still find BMW i3 BEV 60 Ah (2013-2017) on the used car market, with prices starting around $8,450. The car is not available on the US market.

The BMW i3 BEV 60 Ah (2013-2017) has a 21.6 kWh battery pack, allowing it to travel up to 83 mi on a single charge — ranked №886 out of 913 electric vehicles.

How powerful is it? How fast does it accelerate?

The BMW i3 BEV 60 Ah (2013-2017) achieves a 0 to 60 mph acceleration in 7 seconds (placing it at №54 out of 118 ranked positions, among 913 electric vehicles, with some cars sharing positions) and attains a maximum speed of 93 mph.

Its powertrain provides a power output of up to 125 kW (168 hp) and a torque of 184 lb-ft.

How far can it go on single charge? What is the real-world range?

BMW i3 BEV 60 Ah (2013-2017) achieves a real-world range of 83 miles, placing it at №243 among 260 ranked positions. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

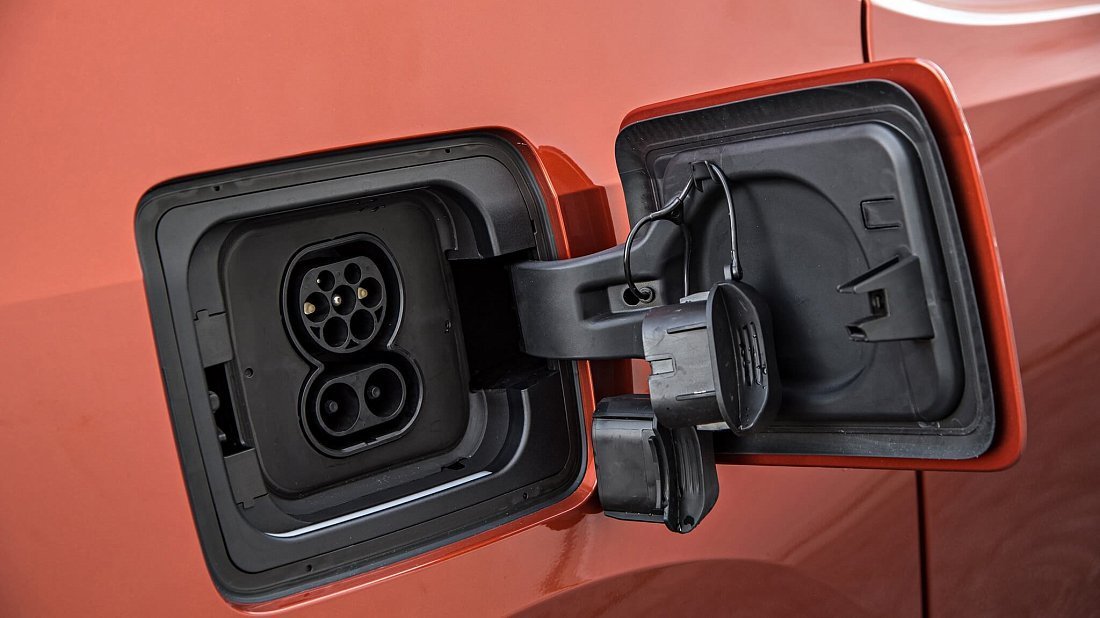

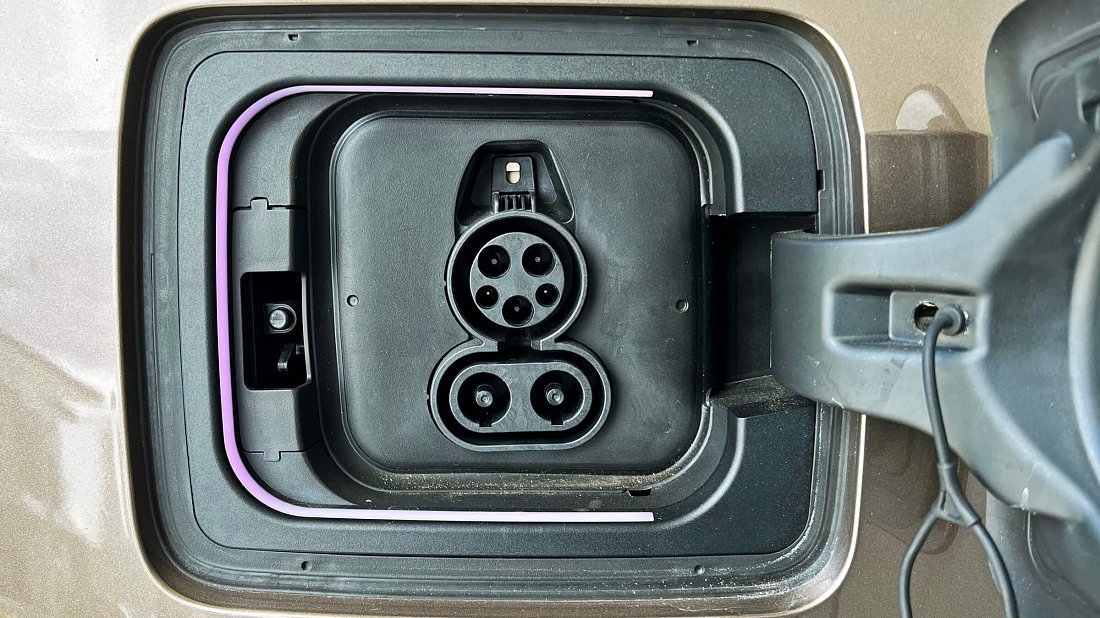

The BMW i3 BEV 60 Ah (2013-2017) in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 7.4 kW, resulting in approximately 29 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 50 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use EV Charging Calculator to estimate charging time, rate, and cost.

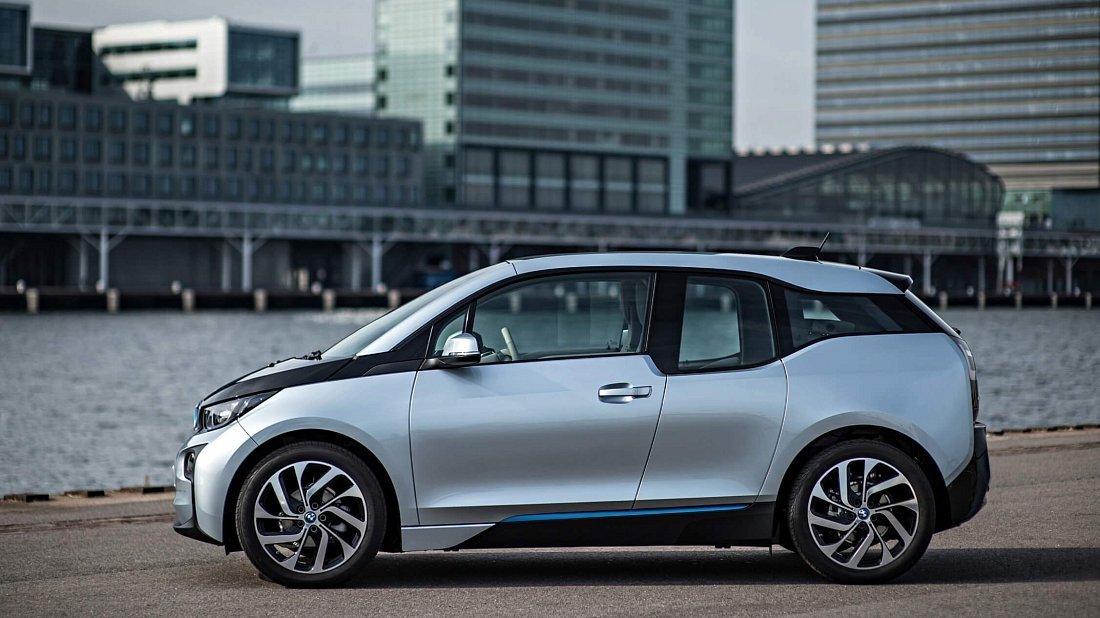

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for BMW i3 BEV 60 Ah (2013-2017) are as follows:

Length: 157.4 in
Width: 80.3 in (including side mirrors) or #WIDTH_WO_MIRRORS_VALUE# in (excluding side mirrors)
Height: 62.1 in
Wheelbase: 101.2 in (distance between the center of the front and rear wheels)
Curb weight: 2866 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

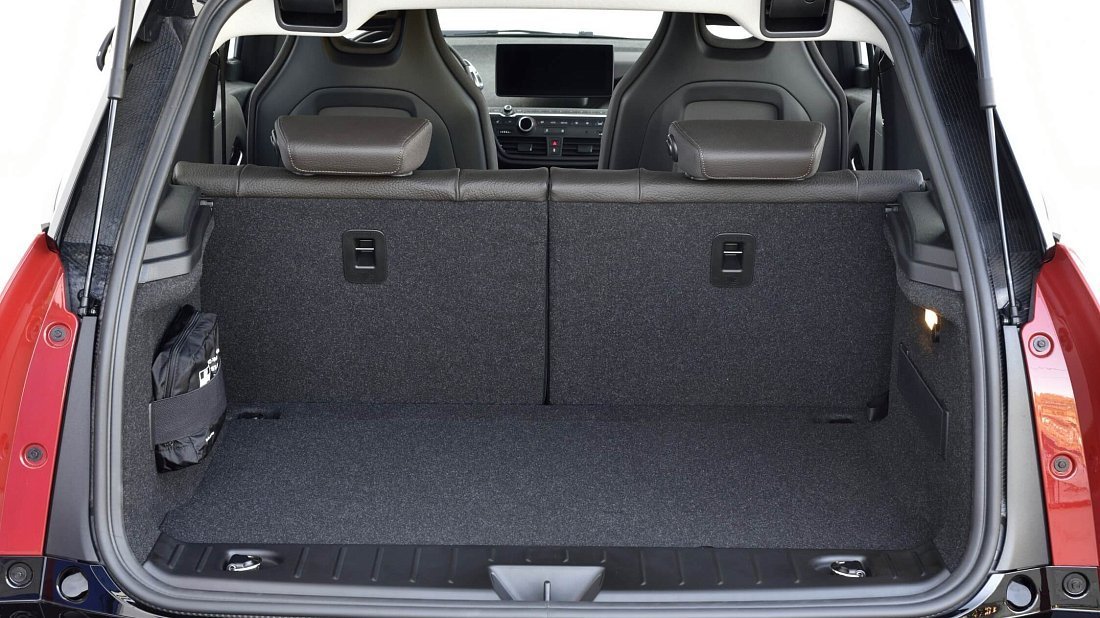

The rear cargo area of the BMW i3 BEV 60 Ah (2013-2017) provides 9.2 cubic feet of space when the rear seats are upright (№139 out of 158 ranked positions, among 913 electric vehicles, with some cars sharing positions).

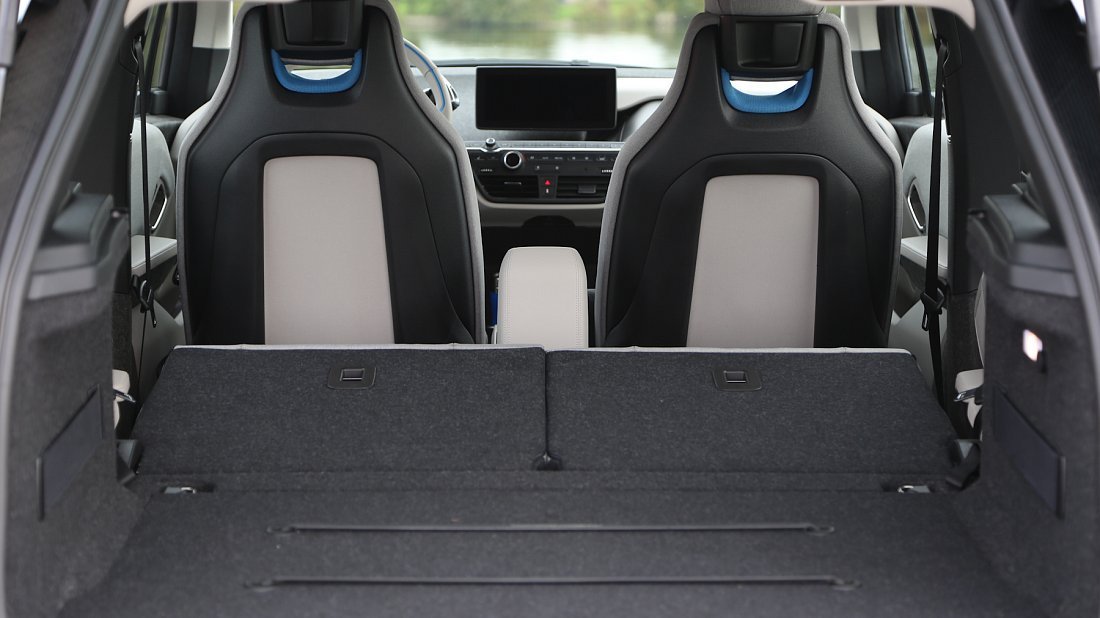

Folding these seats down unlocks a maximum cargo capacity of 38.8 cubic feet (№145 out of 186 ranked positions, among 913 electric vehicles, with some cars sharing positions).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
