Renault Zoe Z.E. 40 R110 2018-2022 - Compare Electric Car USA Specs

Specifications and Dimensions

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2018-2022 (Discontinued)

Market Availability: EU

Country of Manufacture Country where final assembly of the car took place

France

Body Style Vehicle category based on its shape and layout: Hatchback

Range and Efficiency

Range Range on a full charge: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

GCC

194 mi 215 out of 255 No Data 165 mi 198 out of 259

Battery Capacity Nominal (total energy storage), Usable (accessible portion): Nominal

Usable

44.1 kWh 126 out of 170 41 kWh 154 out of 197

Efficiency Higher efficiency means lower energy consumption: Energy/Range

Range/Energy

24.8 kWh/100 mi 40 out of 216 4.02 mi/kWh 60 out of 244

Charging

Max AC Charging: 22 kW 2 out of 24

Max DC Charging: No Data

Architecture Higher voltage allows to charge faster and use less wiring: 400 V

Charge Port The port type impacts charging speed and station compatibility

Type 2 (Mennekes)

Performance

Drive Type Motor types: PMSM (Permanent Magnet Synchronous), IM (AC Induction), EESM (Externally Excited Synchronous): FWD 1 motor: EESM

Motor Peak power and torque of the car's electric motor(s): Power

Torque

80 kW (107 hp) 182 out of 197 166 lb-ft 177 out of 194

0-60 mph Acceleration time from a standstill: 11 s 90 out of 118

Top Speed The fastest the car can go (max speed): 84 mph 63 out of 72

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 160.9 in 199 out of 234

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

76.6 in 91 out of 108 70.4 in 75 out of 101

Height Car's body height (from ground to highest point): 61.5 in 92 out of 160

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 101.9 in 115 out of 141

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5

Curb Weight Car's weight without passengers or cargo: 3311 lb 490 out of 542

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (front hood): Trunk

Max

Frunk

11.9 ft³ 126 out of 160 43.3 ft³ 132 out of 187 No Data

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: No Data

Last Updated:

September 11, 2024

Download Specs PDF

Range Map

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

This car does not support DC fast charging

This car is not is not sold in the USA and therefore not compatible with US charging stations. To see compatible DC chargers, switch your website version to Global

NEMA 5-15

Output:: 1.8 kW

120 V, 15 A, 1-phase

NEMA 5-20

Output:: 2.4 kW

120 V, 20 A, 1-phase

NEMA 6-20

Output:: 4.8 kW

240 V, 20 A, 1-phase

NEMA 14-30

Output:: 7.2 kW

240 V, 30 A, 1-phase

NEMA 14-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

NEMA 6-50

Output:: 9.6 kW

240 V, 40 A, 1-phase

Charging power is limited by the car’s on-board charger ( kW) Charging power is limited by the car’s DC charging capability (0 kW)

The car only accepts single-phase current (max 240 V)

1

The car’s DC charging capability at 400V stations is limited to 0 kW

Time

h min

Avg. Rate

≈ mph

Avg. Power

kW

Open Charging Calculator

AC Charging 20–80%

Using a outlet, charging the Renault Zoe Z.E. 40 R110 (2018-2022) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

DC Charging 20–80%

Using a station, charging the Renault Zoe Z.E. 40 R110 (2018-2022) from 20% to 80% takes around h min. Plug it in now, and it’ll be good to go by .

For deeper insights like added range, charging costs, and more, plus the ability to tweak settings manually, check out the Charging Calculator.

Overview

The Renault Zoe Z.E. 40 R110 (2018-2022) is an all-electric front-wheel drive hatchback. It came out in 2018 replacing the older Renault Zoe Z.E. 40 Q90 (2016-2019). Renault stopped making the Z.E. 40 R110 in 2022 and replaced it with the Renault Zoe Z.E. 50 R110 (2019-2023). The car is not available on the US market.

The Renault Zoe Z.E. 40 R110 (2018-2022) has a 44.1 kWh battery pack, allowing it to travel up to 165 mi on a single charge — ranked №778 out of 923 electric vehicles.

How powerful is it? How fast does it accelerate?

The Renault Zoe Z.E. 40 R110 (2018-2022) achieves a 0 to 60 mph acceleration in 11 seconds (placing it at №90 out of 118 ranked positions, among 923 electric vehicles, with some cars sharing positions) and attains a maximum speed of 84 mph.

Its powertrain provides a power output of up to 80 kW (107 hp) and a torque of 166 lb-ft.

How far can it go on single charge? What is the real-world range?

Renault Zoe Z.E. 40 R110 (2018-2022) achieves a real-world range of 165 miles, placing it at №198 among 259 ranked positions. However, this range is subject to several influences:

Speed: Traveling at higher speeds reduces battery life.
Temperature: Extreme cold or hot weather can affect range.
Terrain: Hilly or mountainous landscapes decrease range.
Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

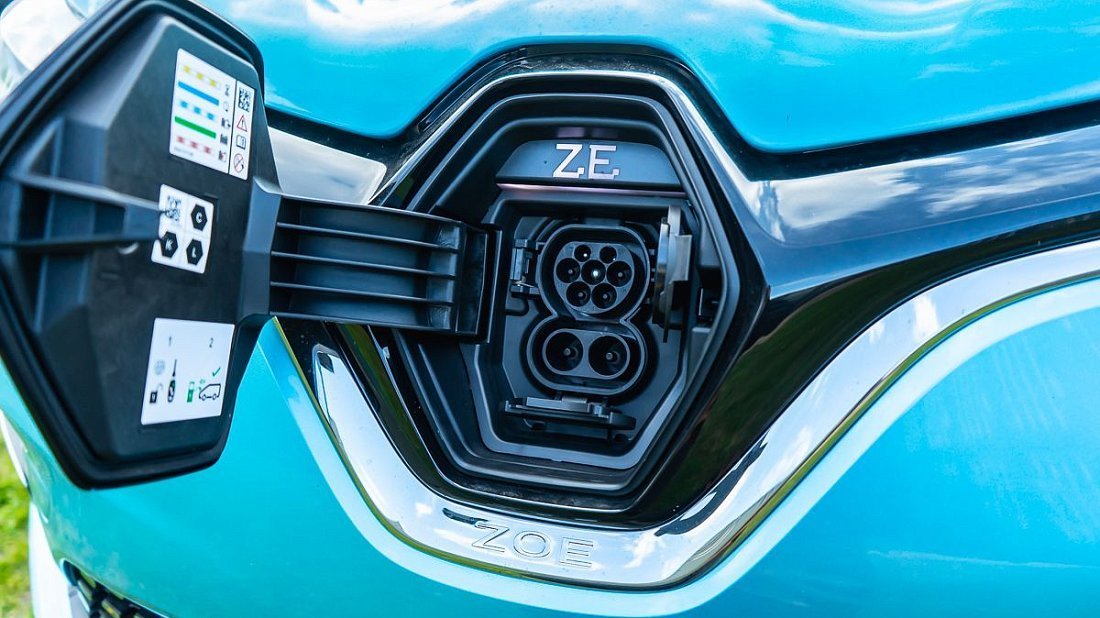

The Renault Zoe Z.E. 40 R110 (2018-2022) in the USA comes with a Type 2 (Mennekes) charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 22 kW, resulting in approximately 80 miles of range added per hour of charging.

The car doesn't support DC charging

Use EV Charging Calculator to estimate charging time, rate, and cost.

Prior to 2019, this trim did not support DC charging. The 2019 facelift added DC charging capability (optional 50 kW CCS Type 2 charge port).

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Renault Zoe Z.E. 40 R110 (2018-2022) are as follows:

Length: 160.9 in
Width: 76.6 in (including side mirrors) or #WIDTH_WO_MIRRORS_VALUE# in (excluding side mirrors)
Height: 61.5 in
Wheelbase: 101.9 in (distance between the center of the front and rear wheels)
Curb weight: 3311 lbs (weight of the empty car, no people or cargo)

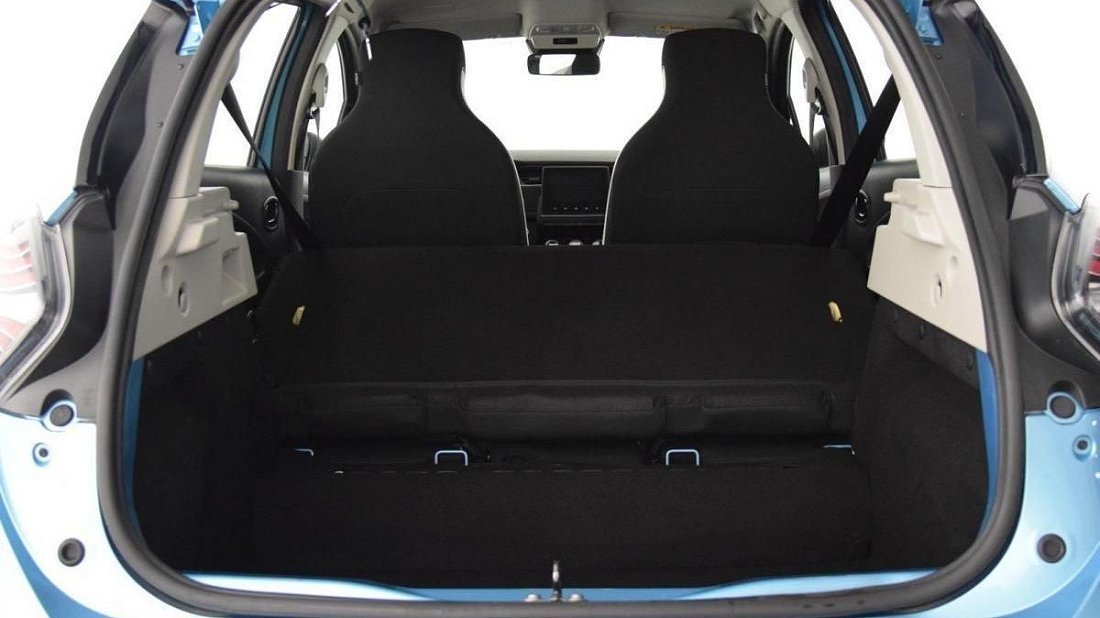

How much cargo space does it offer? Does it have a front trunk?

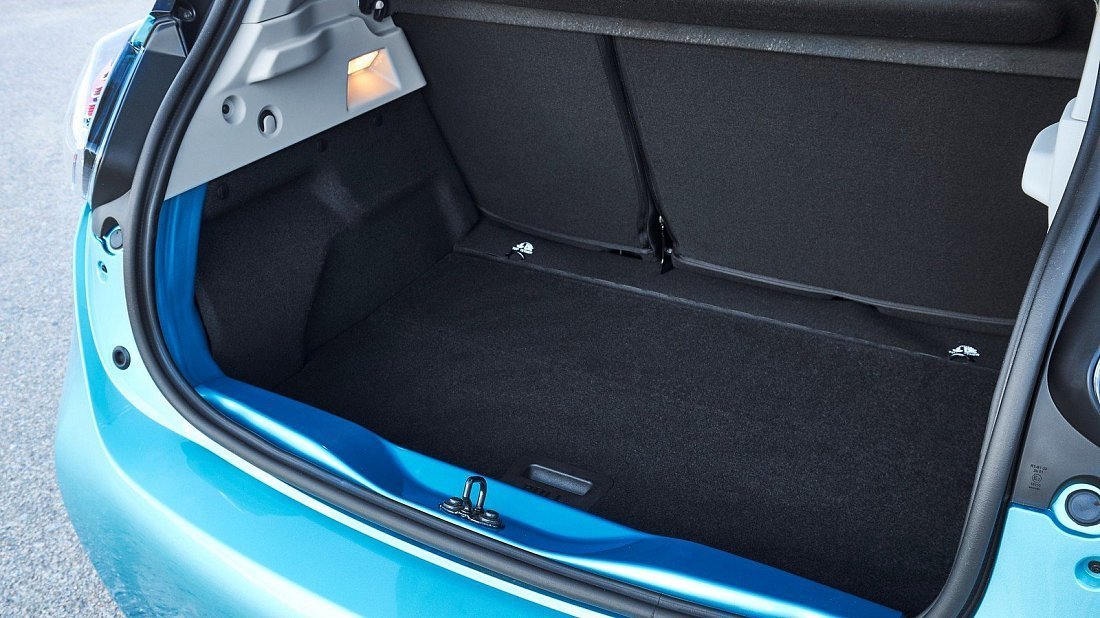

The rear cargo area of the Renault Zoe Z.E. 40 R110 (2018-2022) provides 11.9 cubic feet of space when the rear seats are upright (№126 out of 160 ranked positions, among 923 electric vehicles, with some cars sharing positions).

Folding these seats down unlocks a maximum cargo capacity of 43.3 cubic feet (№132 out of 187 ranked positions, among 923 electric vehicles, with some cars sharing positions).

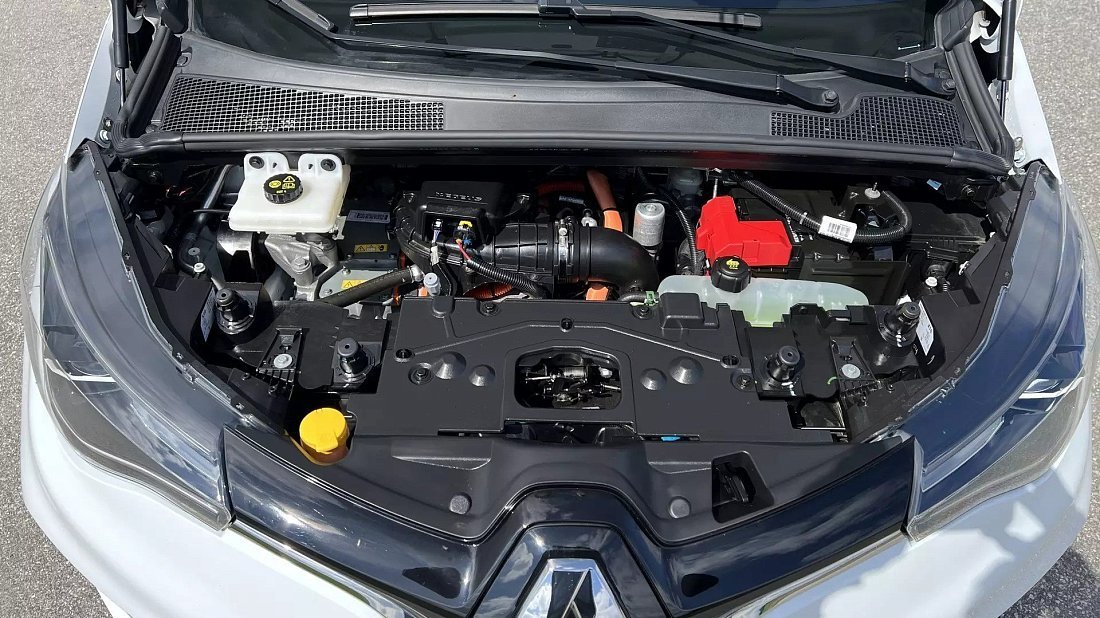

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
