Technical Specifications of Tesla Model X P90D (2016-…)

Green Cars Compare gathers data from government agencies, vehicle manufacturers, and real owners to provide accurate and accessible EV information.

General Info

Years of Production When the car first came out and when they stopped making it: 2016-2016

Country of Manufacture Country where final assembly of the car took place

Netherlands
USA

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Discontinued

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): SUV

Range and Efficiency

Range Estimated range on a full battery: EPA (USA), WLTP (EU), NEDC (EU old), GCC (Green Cars Compare): WLTP

EPA

NEDC

GCC

No Data 250 mi 92 out of 155 290 mi 21 out of 61 227 mi 135 out of 242

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

90 kWh 42 out of 150 85.5 kWh 49 out of 177

Efficiency Energy consumption per distance driven. The more efficient the car, the less energy it needs to go the same distance.: 37.7 kWh/100 mi (2.7 mi/kWh) 157 out of 205

Charging

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11.5 kW 8 out of 23 120 kW 51 out of 81

Architecture Most EVs use a 400V system, but newer models with higher voltage can charge faster and use less wiring.: 400 V

Charge Port The port type impacts charging speed and station compatibility

Tesla (NACS)

Performance

Drive Type Drivetrain configuration: PMSM (Permanent Magnet Synchronous Motor), IM (AC Induction Motor): AWD: PMSM (front), IM (rear)

Motor Total power and torque of the car's electric motor(s): Power

Torque

345 kW (463 hp) 73 out of 186 713 lb-ft 31 out of 172

0-60 mph Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 3.8 s 21 out of 116

Top Speed The fastest the car can go (maximum speed): 155 mph 16 out of 65

0.00 s

00 mph

Dimensions

Length Car's body length (front to back bumper): 198.9 in 30 out of 198

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

89.4 in 9 out of 100 78.7 in 13 out of 92

Height Car's body height (from ground to highest point): 66.3 in 44 out of 147

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 116.7 in 40 out of 124

Cargo and Towing

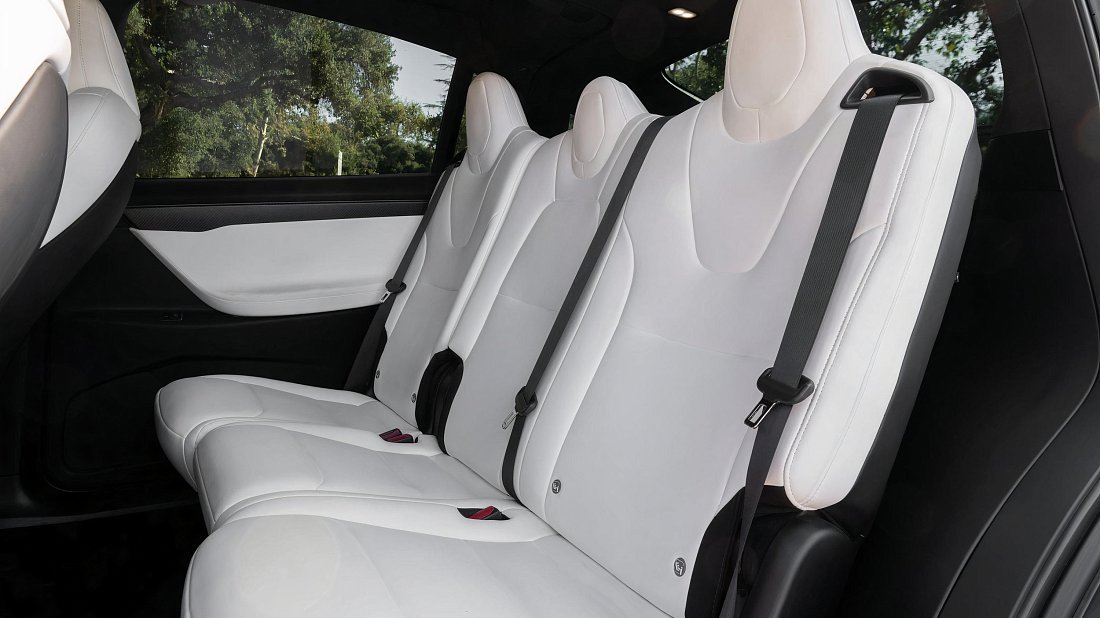

Number of Seats Total passenger capacity of the car (including driver): 5, 6, 7

Curb Weight Car's weight without passengers or cargo: 5381 lb 84 out of 438

Cargo Volume Cargo capacity: Trunk (rear seats up), Max (rear seats folded), Frunk (in the front hood): Trunk

Max

Frunk

12.6 ft3 116 out of 151 85.8 ft3 16 out of 161 6.6 ft3 9 out of 40

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 5000 lb 10 out of 46

Last Updated:

March 28, 2024

Download Specs PDF

How Far Can You Go in Tesla Model X P90D (2016-…)

This interactive map shows the potential driving range on a full battery.
For the most accurate range estimates tailored to your location, enable location access.

Light green area: Round-trip
Dark green area: One-way

Charging Tesla Model X P90D (2016-…)

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

CCS DC 50 kW

Tesla needs an adapter to charge at CCS DC stations

CCS DC 100 kW

Tesla needs an adapter to charge at CCS DC stations

CCS DC 150 kW

Tesla needs an adapter to charge at CCS DC stations The car’s DC charging capability is limited to 120 kW

CCS DC 200 kW

Tesla needs an adapter to charge at CCS DC stations The car’s DC charging capability is limited to 120 kW

CCS DC 250 kW

Tesla needs an adapter to charge at CCS DC stations The car’s DC charging capability is limited to 120 kW

CCS DC 350 kW

Tesla needs an adapter to charge at CCS DC stations The car’s DC charging capability is limited to 120 kW

Supercharger V2 Split 75 kW

Supercharger V2 150 kW

The car’s DC charging capability is limited to 120 kW

Supercharger V3 250 kW

The car’s DC charging capability is limited to 120 kW

Last Updated:

March 28, 2024

Open Charging Calculator

About Tesla Model X P90D (2016-…)

The Tesla Model X P90D (2016-…) is an all-electric all-wheel drive SUV. It came out in 2016. Tesla stopped making the P90D in 2016 and replaced it with the Tesla Model X P100D (2016-2019). You can still find Tesla Model X P90D (2016-…) on the used car market, with prices starting around $37,335.

The Tesla Model X P90D (2016-…) has a 90 kWh battery pack, allowing it to travel up to 227 mi on a single charge — ranked №449 out of 764 electric vehicles.

How powerful is it? How fast does it accelerate?

The Tesla Model X P90D (2016-…) is equipped with a powertrain that delivers up to 345 kW (463 hp) of power and 713 lb-ft of torque.

This enables a 0 to 60 mph acceleration in 3.8 seconds (№21 out of 116 ranked positions, among 764 electric vehicles, with some cars sharing positions) and a top speed of 155 mph.

How far can it go on single charge? What is the real-world range?

The estimated real-world range for Tesla Model X P90D (2016-…) is 227 miles, ranking it №135 out of 242 ranked positions. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

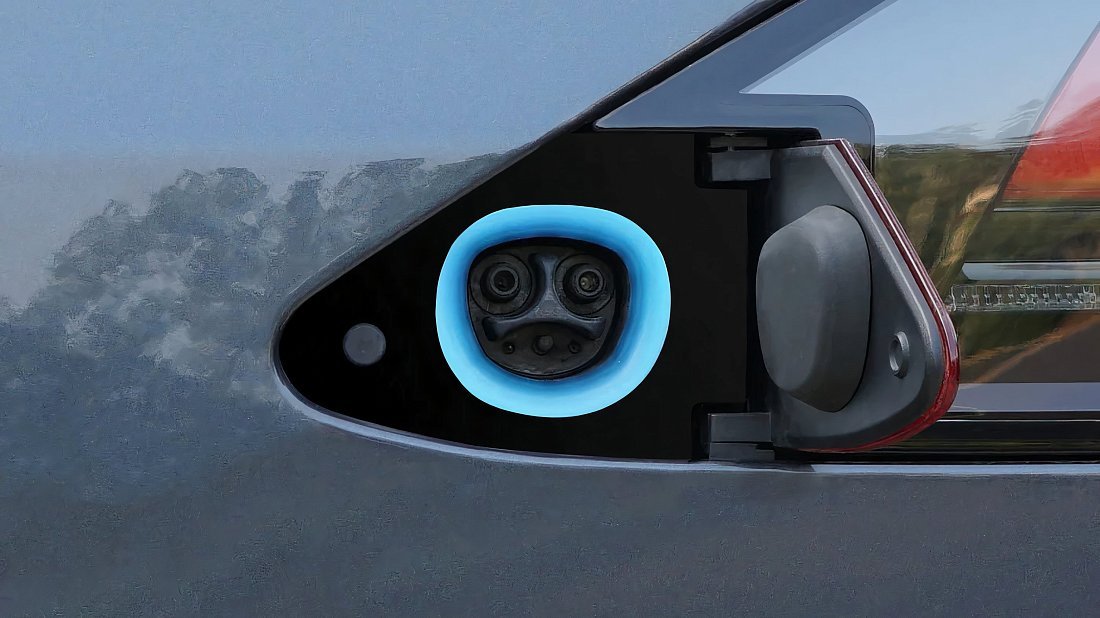

The Tesla Model X P90D (2016-…) in the USA is equipped with a Tesla (NACS) charging port. You can charge it conveniently at home using a standard outlet, or utilize any public AC charging station with the appropriate cable. However, the car's built-in charger (inverter) limits the maximum AC charging speed to 11.5 kW, which translates to roughly 27 miles of range added per hour.

For faster charging, use DC fast-charging stations. The Tesla Model X P90D (2016-…) supports a maximum DC charging rate of 120 kW, but it's important to note that battery temperature and current charge level can affect the actual charging speed you'll experience.

To estimate charging time, rate, and cost, you can use EV Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Tesla Model X P90D (2016-…) comes in the following dimensions:

Length: 198.9 in
Width: 89.4 in (including side mirrors) or 78.7 in (excluding side mirrors)
Height: 66.3 in
Wheelbase: 116.7 in (distance between the center of the front and rear wheels)
Curb weight: 5381 lbs (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

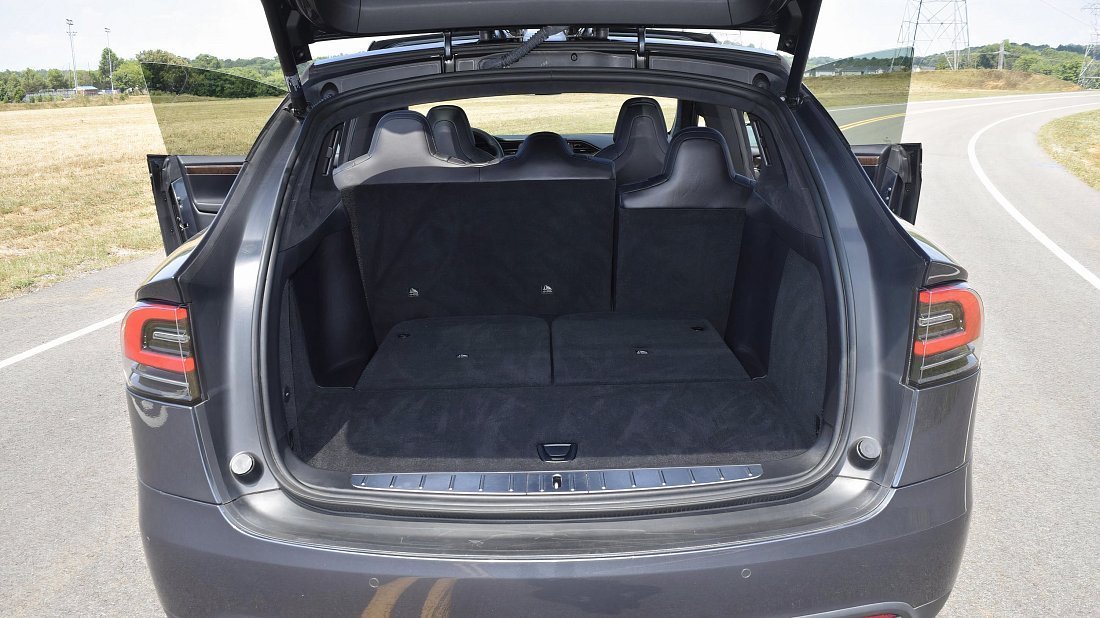

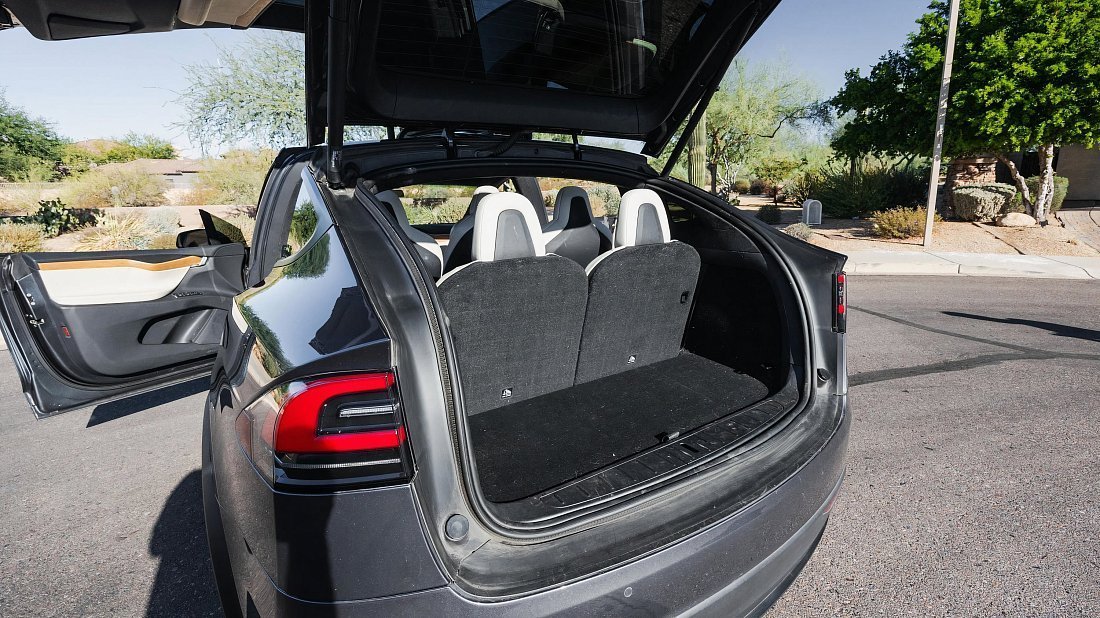

Behind the rear seats of the Tesla Model X P90D (2016-…), you'll find 12.6 cubic feet of storage space (№116 out of 151 ranked positions, among 764 electric vehicles, with some cars sharing positions).

Folding down the rear seats expands the total cargo capacity to 85.8 cubic feet (№16 out of 161 ranked positions, among 764 electric vehicles, with some cars sharing positions).

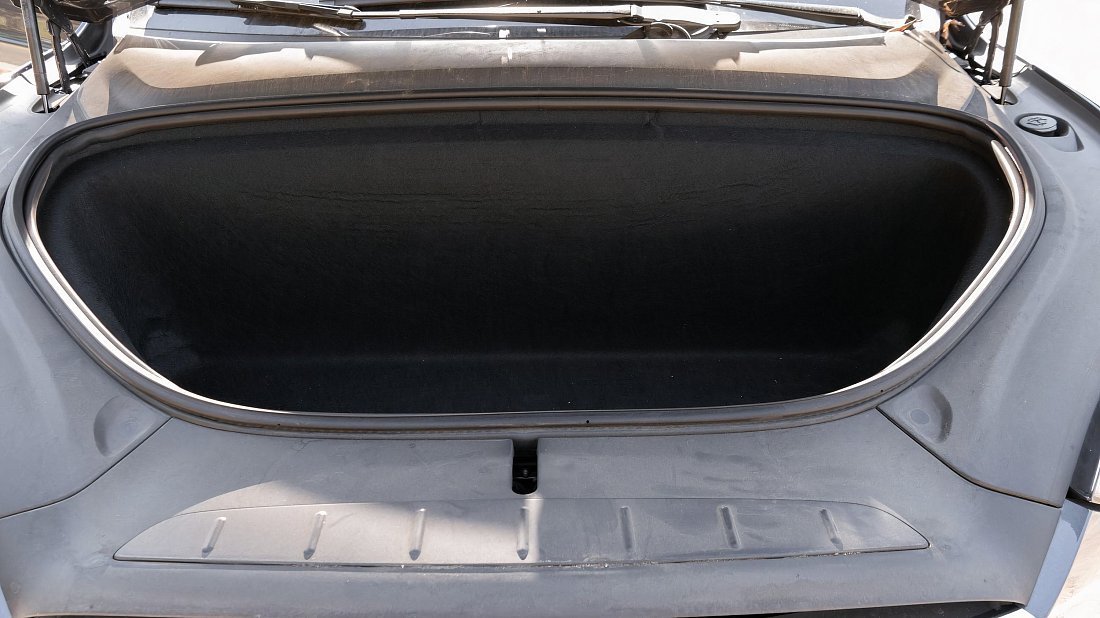

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 6.6 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The Tesla Model X P90D (2016-…) can safely tow up to 5000 lbs, provided that the trailer has its own braking system.
