  5. Mercedes EQS SUV 500 4MATIC (2023)

Mercedes EQS SUV 500 4MATIC (2023)

Years of Production
When the car first came out and when they stopped making it
2023 -
Price USA (new)
Manufacturer's suggested base price
€124,545
This car is not available in the US, but you can still compare it with other cars

Trims

Currently Produced
450+ (2023) 450 4MATIC (2023) 500 4MATIC (2023) 580 4MATIC (2023) Maybach 680
Discontinued
450+ (2022) 450 4MATIC (2022) 500 4MATIC (2022) 580 4MATIC (2022)

Mercedes EQS SUV 500 4MATIC (2023)

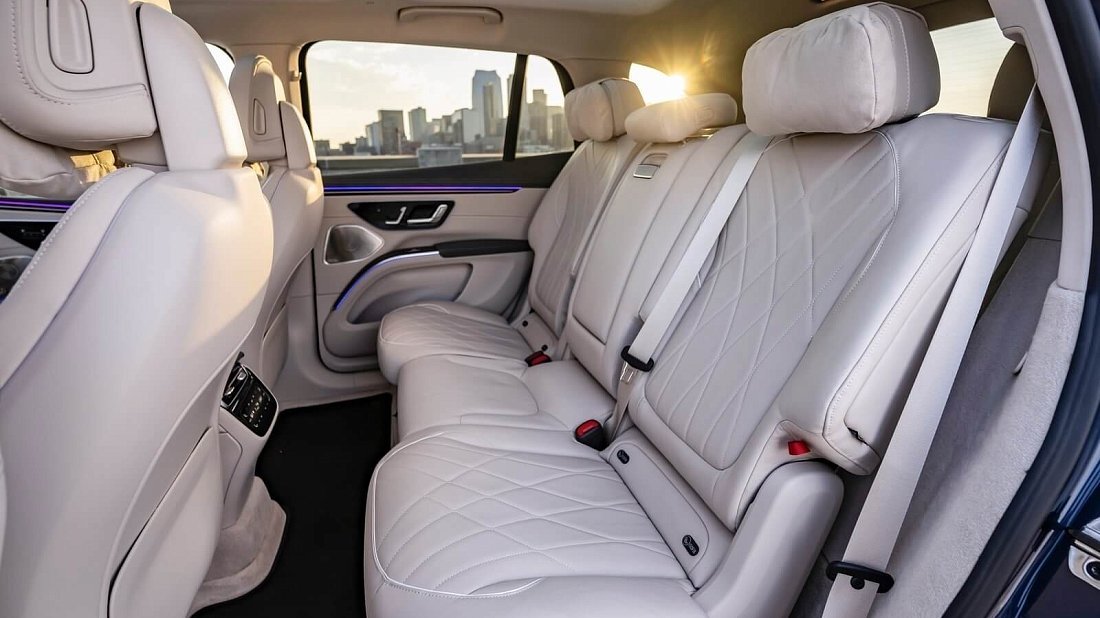

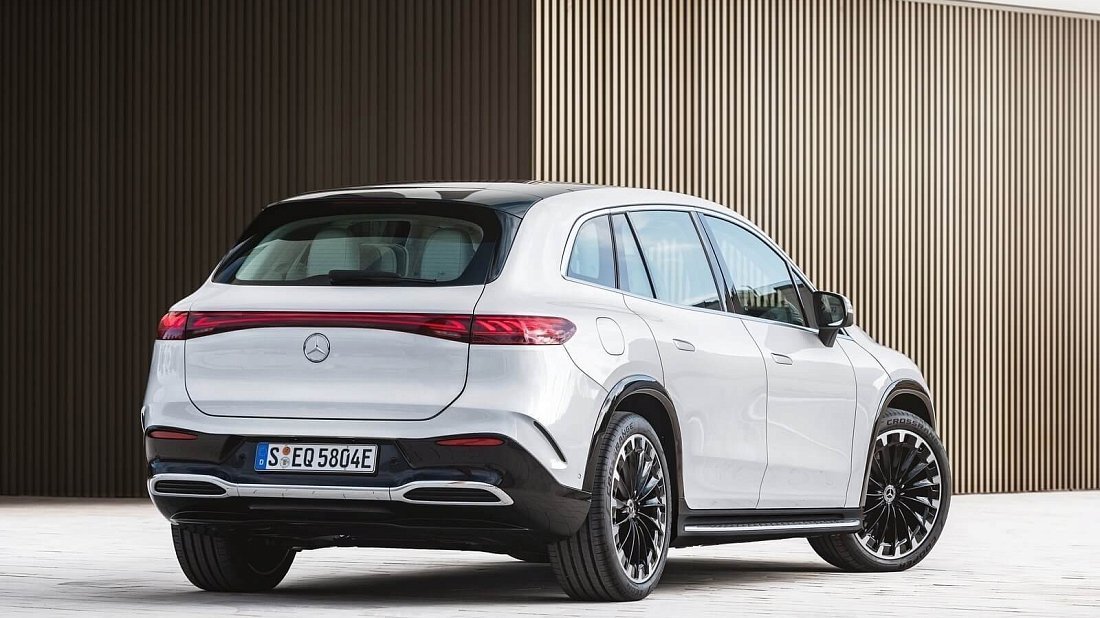

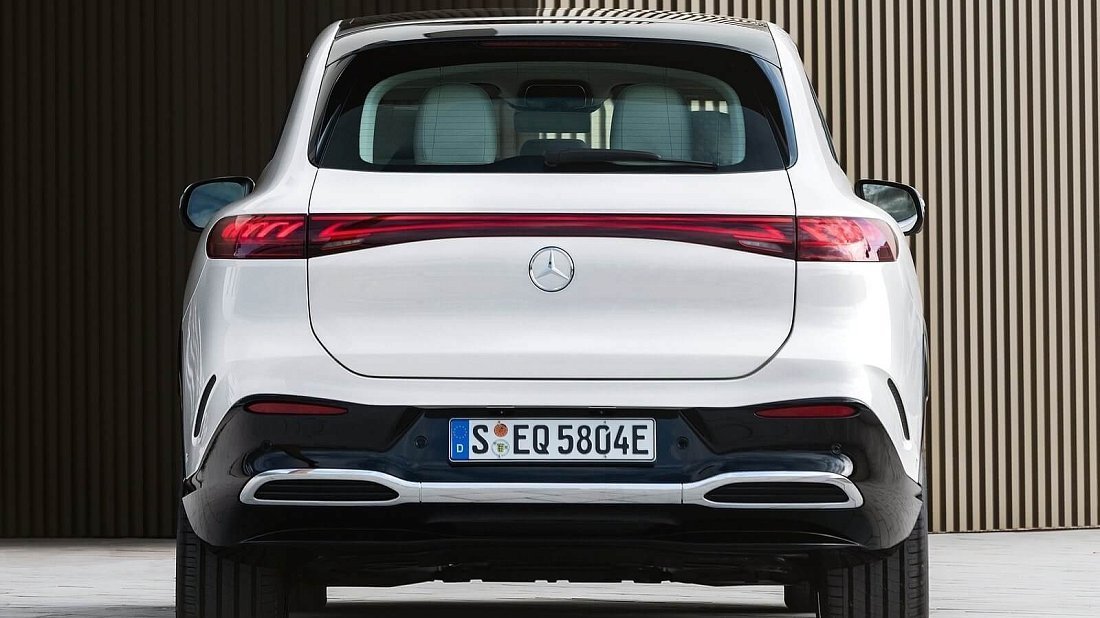

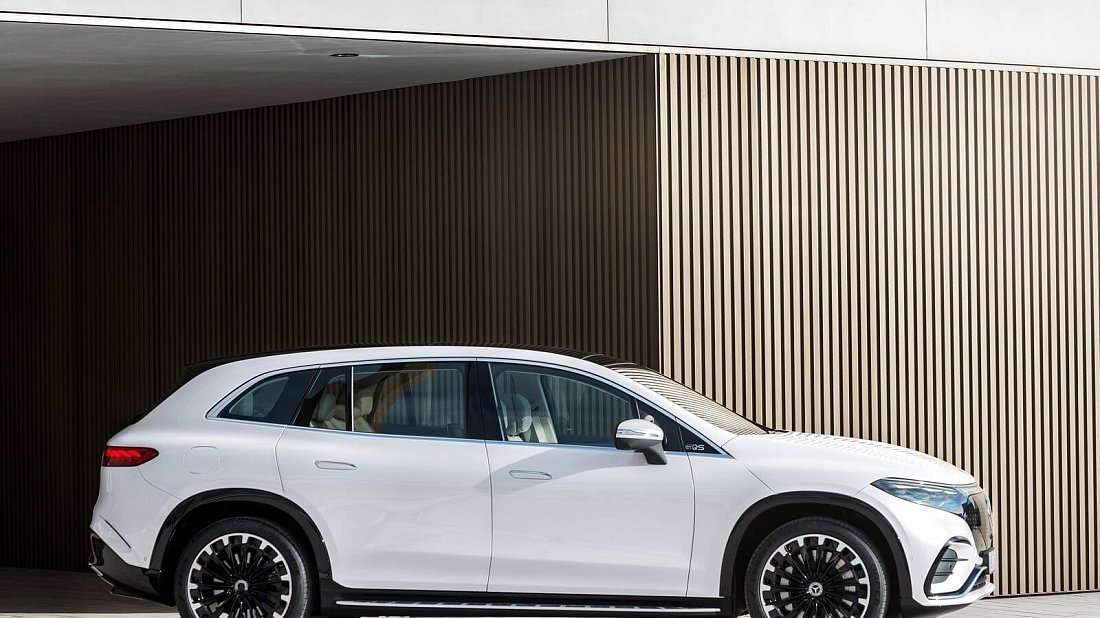

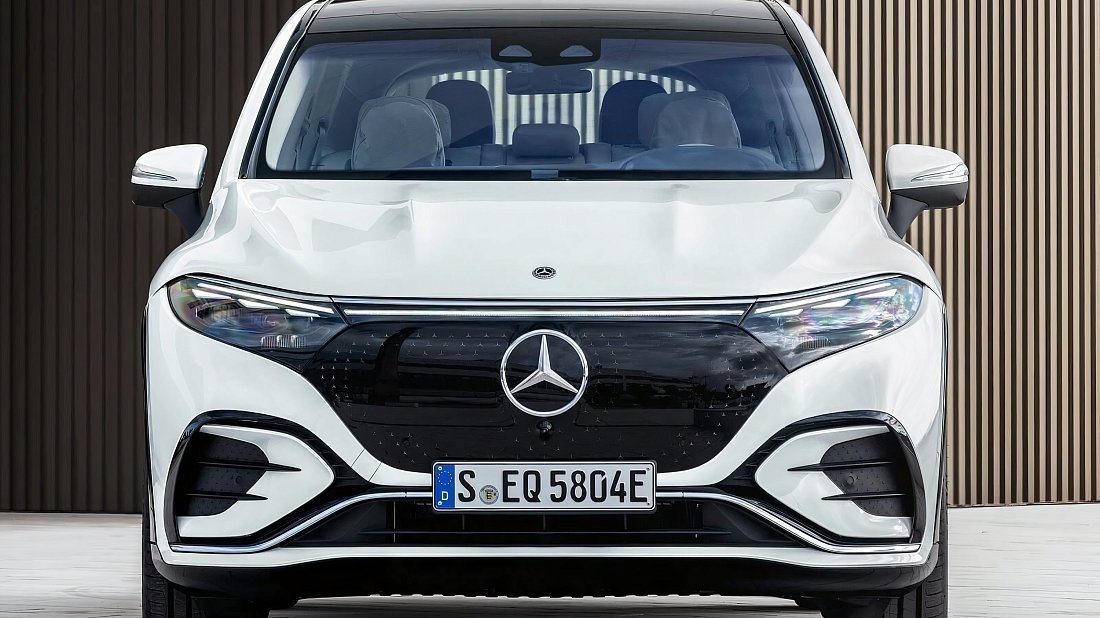

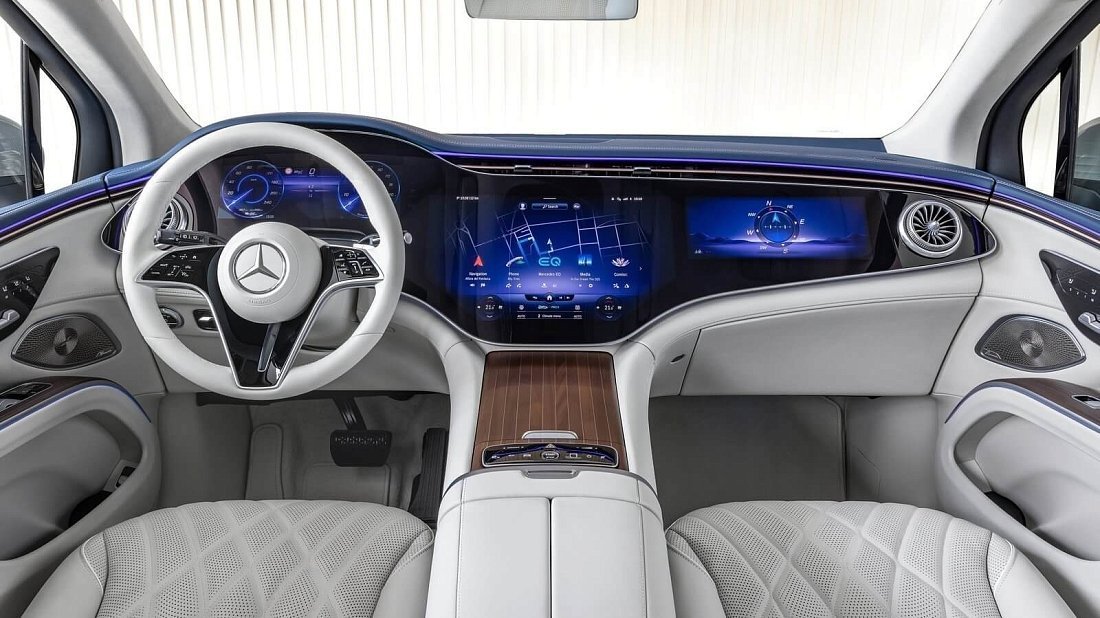

Photo of Mercedes EQS SUV 500 4MATIC (2023) (1 slide)

Technical Specifications of Mercedes EQS SUV 500 4MATIC (2023)

General Info

Years of Production
When the car first came out and when they stopped making it
2023 -
Country of Manufacture
Country where final assembly of the car took place
USA
Current Status
Announced (planned), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Mercedes EQS SUV 500 4MATIC (2023)

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
No Data
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
673 km 594 km
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 km
Wh/km
21.3 kWh 213 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
125 kWh 118 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 200 kW

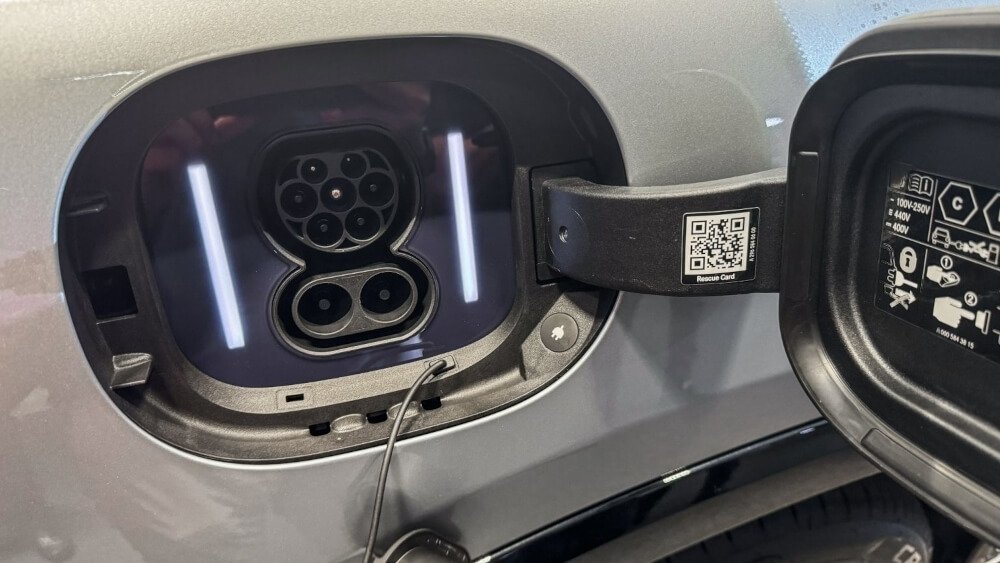

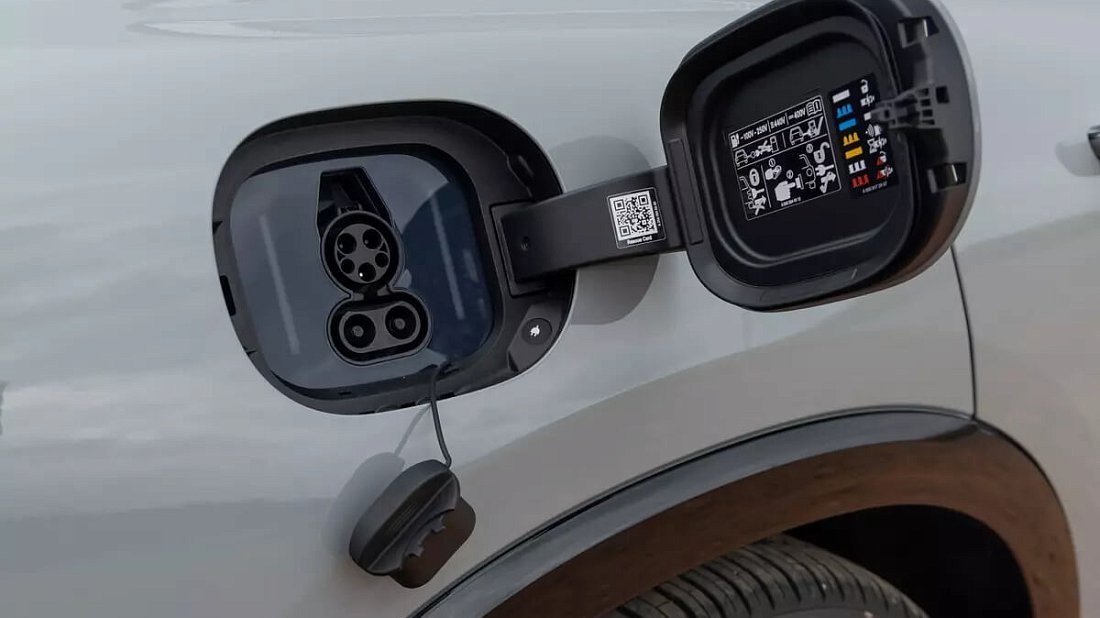

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 2
CCS Type 2 charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
330 kW (443 hp) 828 Nm
0-100 km/h
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.3 s
Top Speed
The fastest the car can go (maximum speed)
210 km/h
0.00 s
000 km/h

Dimensions

Length
Car's body length (front to back bumper)
5125 mm
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
2157 mm 1959 mm
Height
Car's body height (from ground to highest point)
1718 mm
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
3210 mm

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5, 7
Curb Weight
Car's weight without passengers or cargo
2840 kg
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
645 l 2100 l No Data
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
1800 kg
Last Updated:
June 14, 2024
Download Specs PDF

Charging Mercedes EQS SUV 500 4MATIC (2023)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

EURO 1-phase 10A

Output:
2.3 kW
230 V, 10 A, 1-phase
20-80%:
34 h 12 min

EURO 1-phase 16A

Output:
3.7 kW
230 V, 16 A, 1-phase
20-80%:
21 h 16 min

EURO 1-phase 32A

Output:
7.4 kW
230 V, 32 A, 1-phase
20-80%:
10 h 38 min

EURO 3-phase 16A

Output:
11.1 kW
400 V, 16 A, 3-phase
20-80%:
07 h 09 min
Charging power is limited by the car’s on-board charger (11 kW)

EURO 3-phase 32A

Output:
22.2 kW
400 V, 32 A, 3-phase
20-80%:
07 h 09 min
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
01 h 40 min

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 53 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 35 min

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 28 min

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 28 min
The car’s DC charging capability is limited to 200 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 28 min
The car’s DC charging capability is limited to 200 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
01 h 07 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 35 min
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 28 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 200 kW
Last Updated:
June 14, 2024
Open Charging Calculator

About Mercedes EQS SUV 500 4MATIC (2023)

The Mercedes EQS SUV 500 4MATIC (2023) is an all-electric all-wheel drive SUV. It came out in 2023 replacing the older Mercedes EQS SUV 500 4MATIC (2022). Brand new, the car starts around €124,545.

The Mercedes EQS SUV 500 4MATIC (2023) has a 125 kWh battery pack, allowing it to travel up to 553 km on a single charge. The car has an average efficiency of 21.3 kWh per 100 km (or 213 Wh/km) — ranked №49 out of 678 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Mercedes EQS SUV 500 4MATIC (2023) can accelerate from 0 to 100 km/h in 5.3 seconds (ranked №227 out of 678 electric vehicles) and reach a top speed of 210 km/h.

The car’s powertrain delivers up to 330 kW (443 hp) of power and 828 Nm of torque.

How far can it go on single charge? What is the real-world range?

Mercedes EQS SUV 500 4MATIC (2023) achieves a How far can it go on single charge? What is the real-world range? of 498–608 km, placing it at №49 among 678 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

In Europe Mercedes EQS SUV 500 4MATIC (2023) has a CCS Type 2 charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 46 km of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 200 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using our Charging calculator.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Mercedes EQS SUV 500 4MATIC (2023) are as follows:

  • Length: 5125 mm
  • Width: 2157 mm (including side mirrors) or 1959 mm (excluding side mirrors)
  • Height: 1718 mm
  • Wheelbase: 3210 mm (distance between the center of the front and rear wheels)
  • Curb weight: 2840 kg (weight of the empty car, no people or cargo)

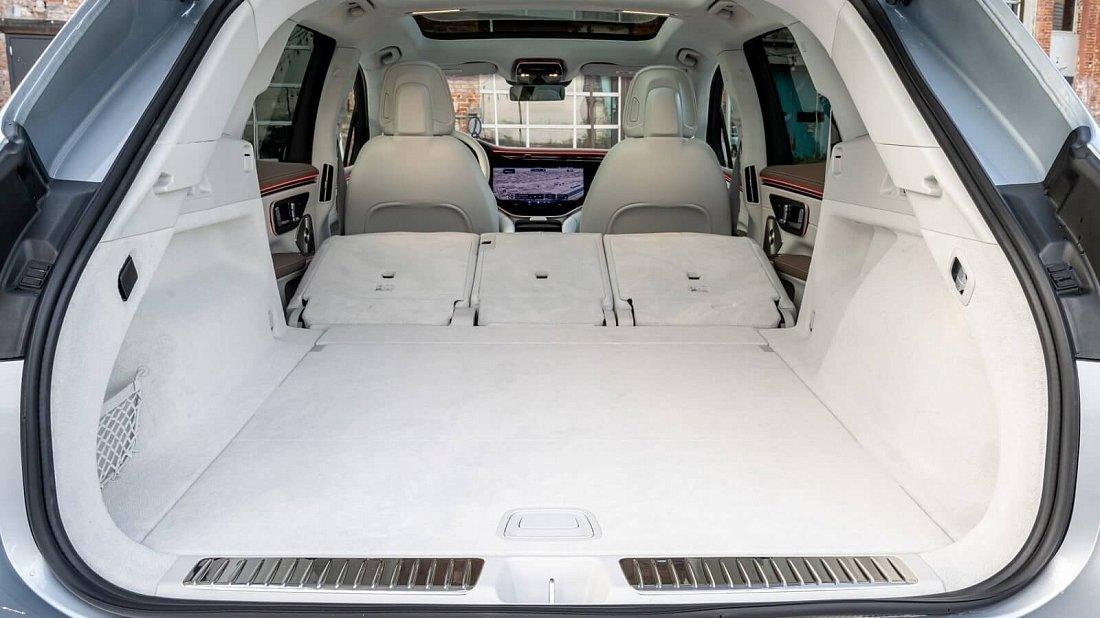

How much cargo space does it offer? Does it have a front trunk?

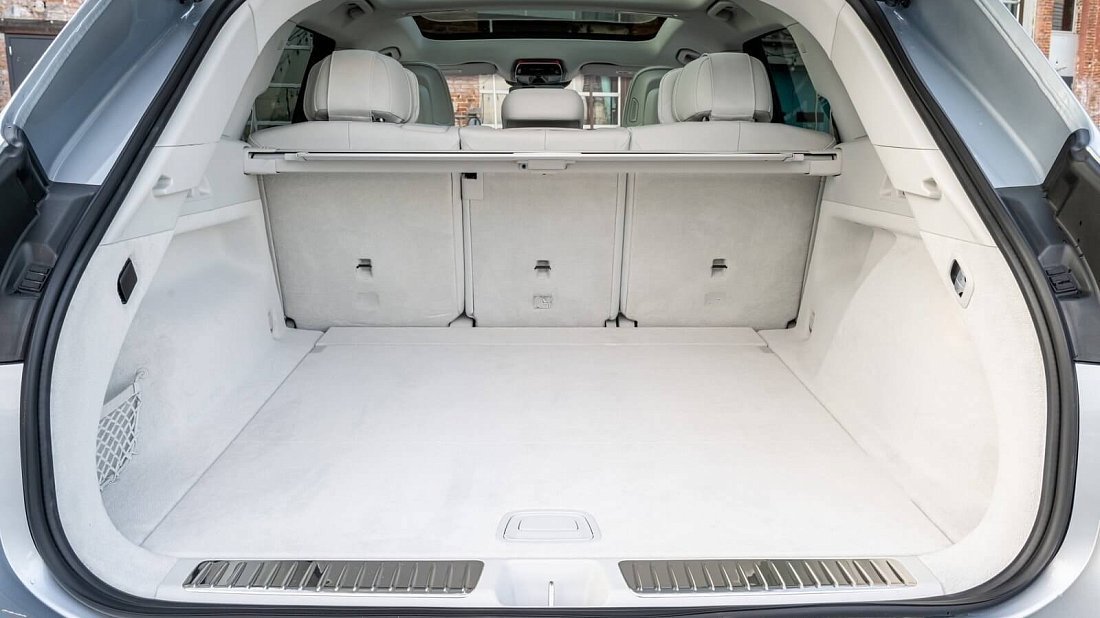

Behind the rear seats of the Mercedes EQS SUV 500 4MATIC (2023), you'll find 645 litres of storage space (ranked №106 out of 678 electric vehicles).

Folding down the rear seats expands the total cargo capacity to 2100 litres (ranked №90 out of 678 electric vehicles).

The car doesn’t have a “frunk” (front trunk).

Is it suitable for towing? What is the maximum towing capacity?

The Mercedes EQS SUV 500 4MATIC (2023) has a towing capacity (braked) of up to 1800 kg (maximum weight the car can tow safely with a trailer that has its own brakes).
