Ford F-150 Lightning Extended Range

Years of Production
When the car first came out and when they stopped making it
2022 -
Price USA (new)
Manufacturer's suggested base price
$70,090
Price USA (used)
Estimated pre-owned price
$48,962

Trims

Currently Produced
Standard Range Extended Range

Ford F-150 Lightning Extended Range

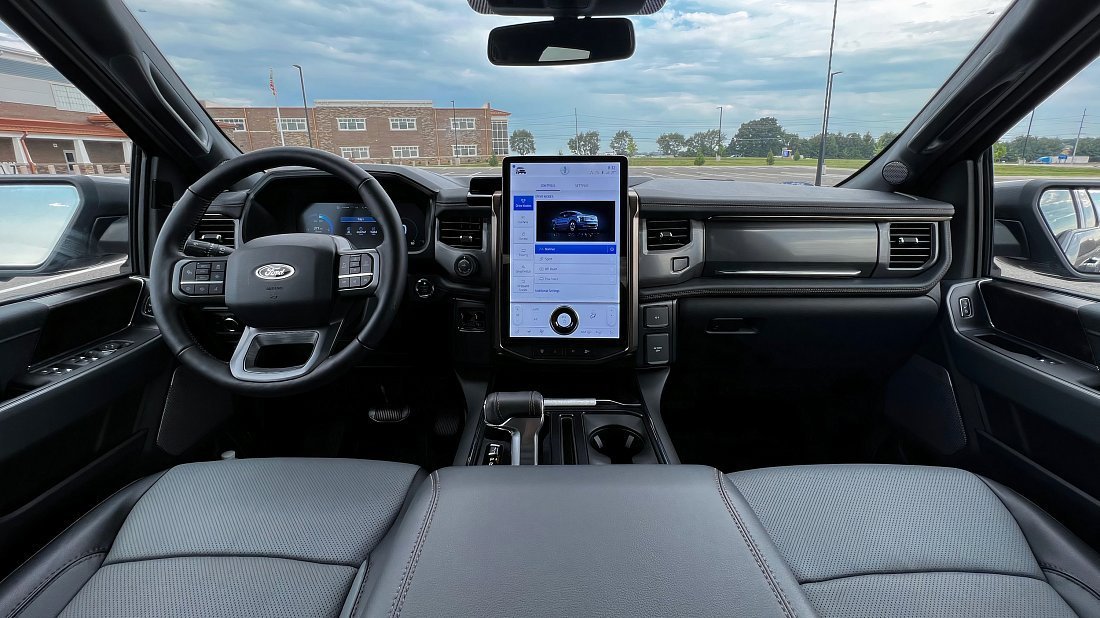

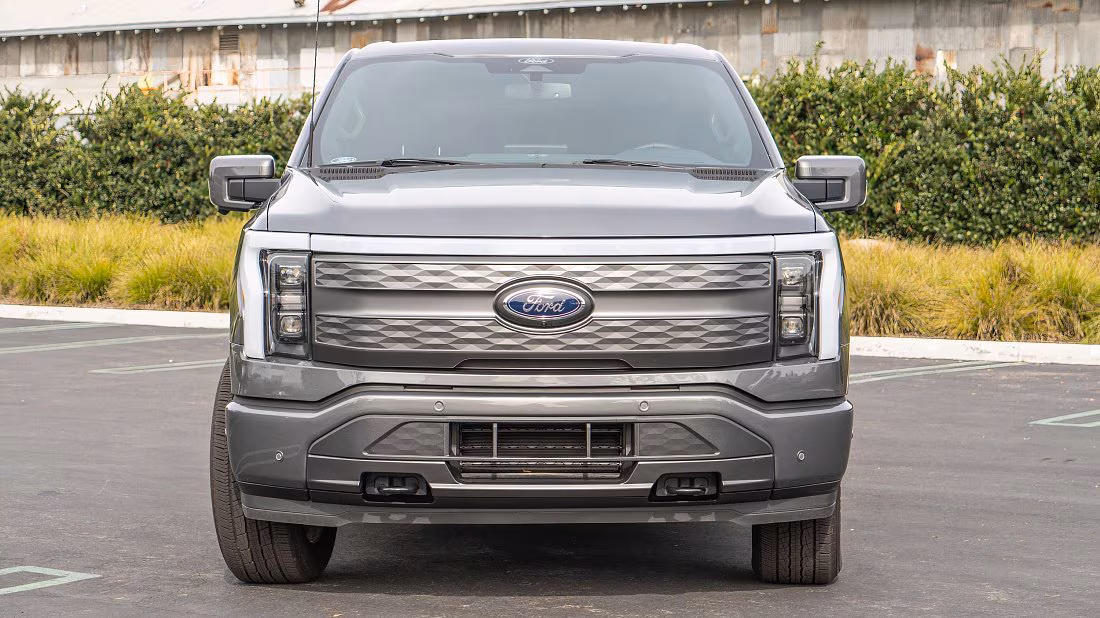

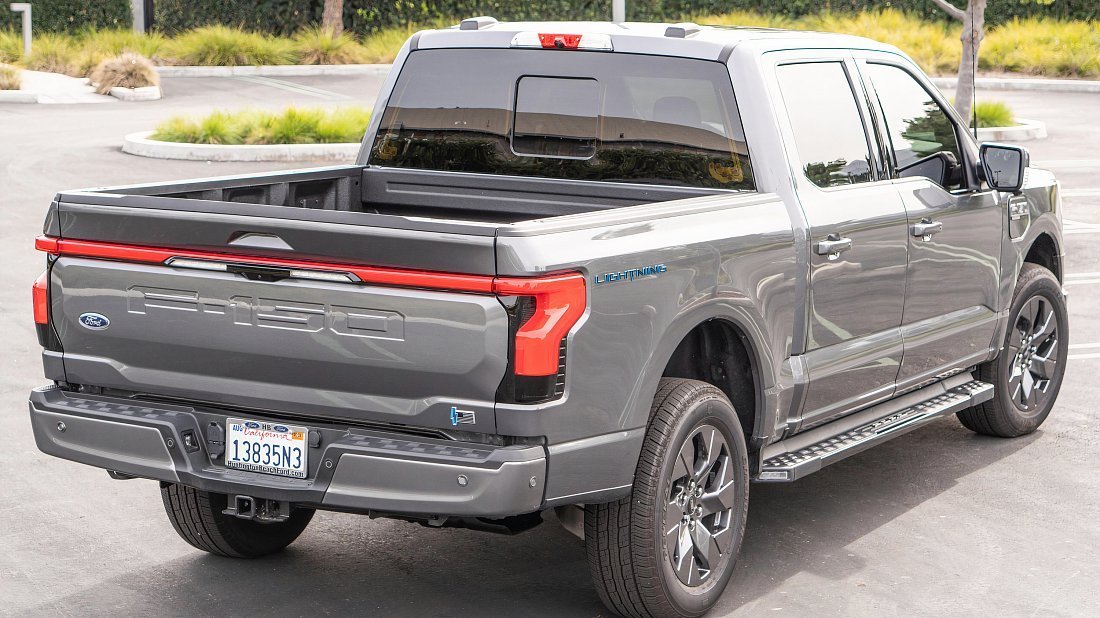

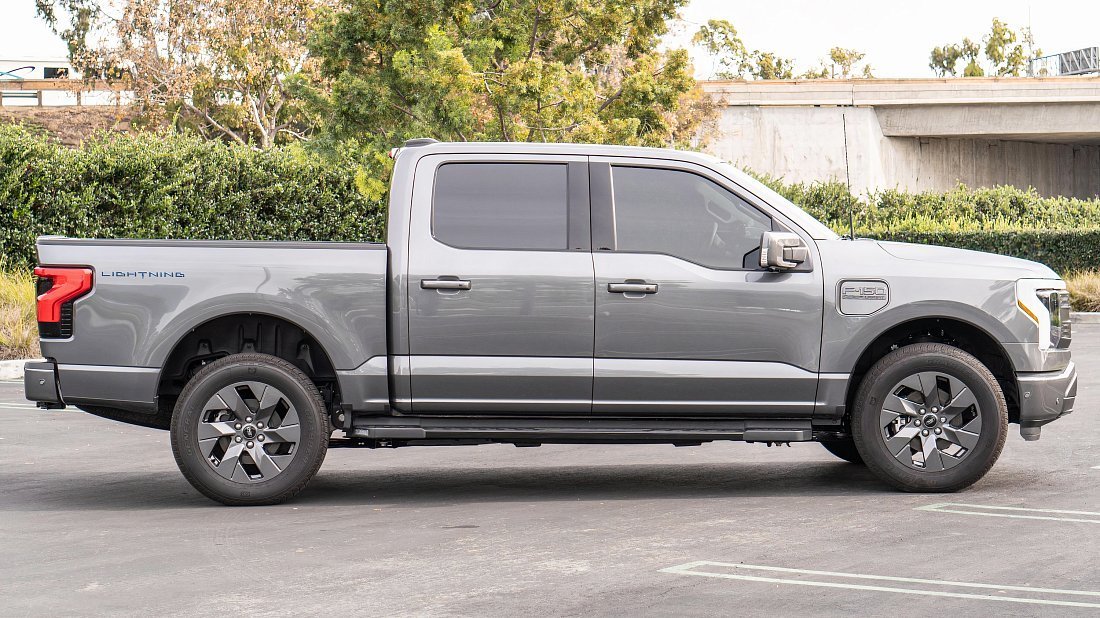

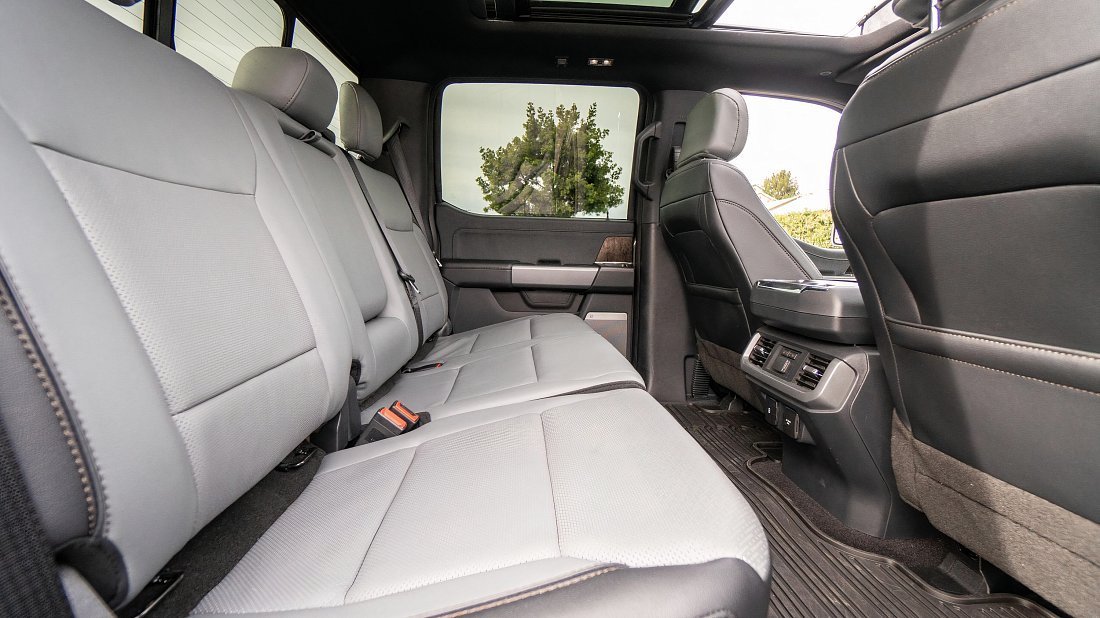

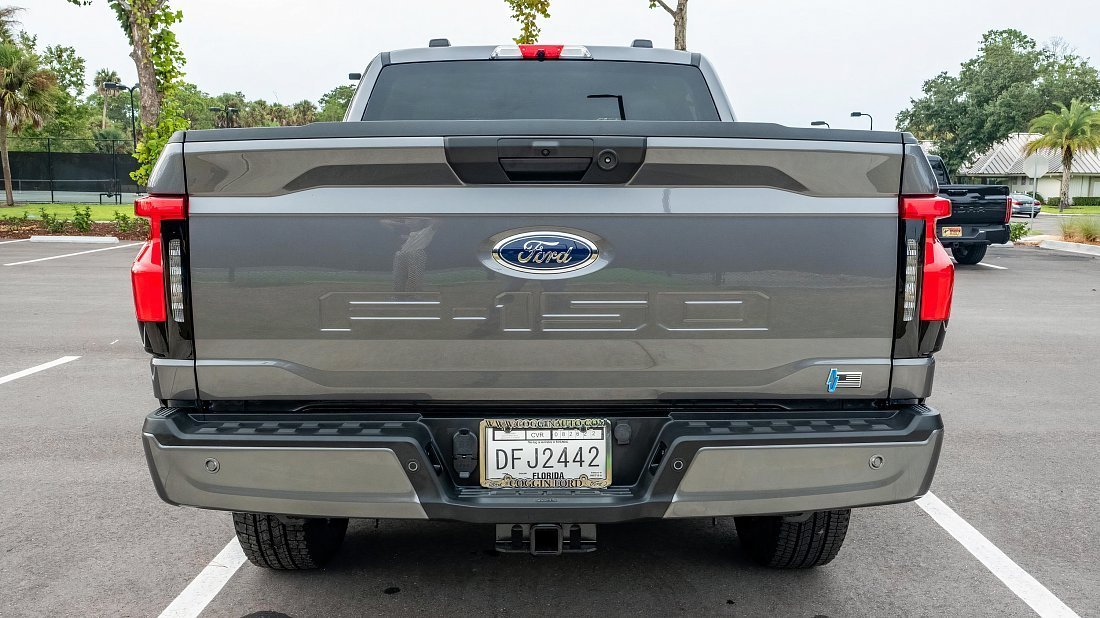

Photo of Ford F-150 Lightning Extended Range (1 slide)

Technical Specifications of Ford F-150 Lightning Extended Range

General Info

Years of Production
When the car first came out and when they stopped making it
2022 -
Country of Manufacture
Country where final assembly of the car took place.
USA
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
Pickup Ford F-150 Lightning Extended Range

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
320 mi
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
40.9 kWh 409 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
145 kWh 131 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
19.2 kW 150 kW
Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
433 kW (580 hp) 775 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3.8 s
Top Speed
The fastest the car can go (maximum speed)
110 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
232.7 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
96 in 80 in
Height
Car's body height (from ground to highest point)
78.3 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
145.5 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
6361 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
52.8 ft3 No Data 14.1 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
7700 lb
Last Updated:
June 10, 2024
Download Specs PDF

How Far Can You Go in Ford F-150 Lightning Extended Range

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Ford F-150 Lightning Extended Range

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
48 h 31 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
36 h 23 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
18 h 12 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
12 h 08 min

NEMA 14-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
07 h 17 min

NEMA 6-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
07 h 17 min

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
01 h 51 min

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 59 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 39 min

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 39 min
The car’s DC charging capability is limited to 150 kW

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 39 min
The car’s DC charging capability is limited to 150 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 39 min
The car’s DC charging capability is limited to 150 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
01 h 14 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 39 min
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 39 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 150 kW
Last Updated:
June 10, 2024
Open Charging Calculator

About Ford F-150 Lightning Extended Range

The Ford F-150 Lightning Extended Range is an all-electric all-wheel drive pickup. It came out in 2022. Brand new, the car starts around $70,090.

The Ford F-150 Lightning Extended Range has a 145 kWh battery pack, allowing it to travel up to 320 mi on a single charge. The car has an average efficiency of 40.9 kWh per 100 miles (or 409 Wh/mile) — ranked №76 out of 667 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford F-150 Lightning Extended Range can accelerate from 0 to 60 mph in 3.8 seconds (ranked №99 out of 667 electric vehicles) and reach a top speed of 110 mph.

The car’s powertrain delivers up to 433 kW (580 hp) of power and 775 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Ford F-150 Lightning Extended Range achieves a How far can it go on single charge? What is the real-world range? of 288–352 miles, placing it at №76 among 667 electric vehicles. However, this range is subject to several influences:

  • Speed: Traveling at higher speeds reduces battery life.
  • Temperature: Extreme cold or hot weather can affect range.
  • Terrain: Hilly or mountainous landscapes decrease range.
  • Driving habits: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Feature usage: Climate control and media systems also influence range.

It's important to acknowledge that these are estimations, and your actual driving range may differ. Consider these factors when planning your trip and be ready for potential charging stops.

Utilize the interactive EV Navigation map for trip planning assistance.

What charging options are available? How long does it take to charge it?

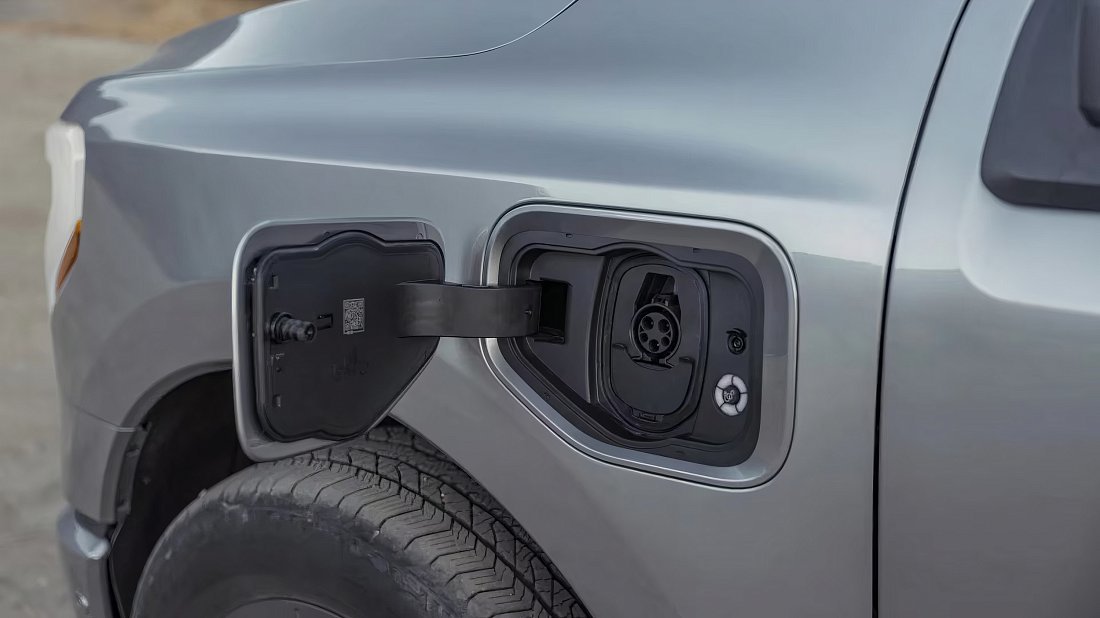

In the USA Ford F-150 Lightning Extended Range has a CCS Type 1 charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 19.2 kW, which translates to approximately 42 miles of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 150 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

Ford F-150 Lightning Extended Range comes in the following dimensions:

  • Length: 232.7 in
  • Width: 96 in (including side mirrors) or 80 in (excluding side mirrors)
  • Height: 78.3 in
  • Wheelbase: 145.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 6361 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

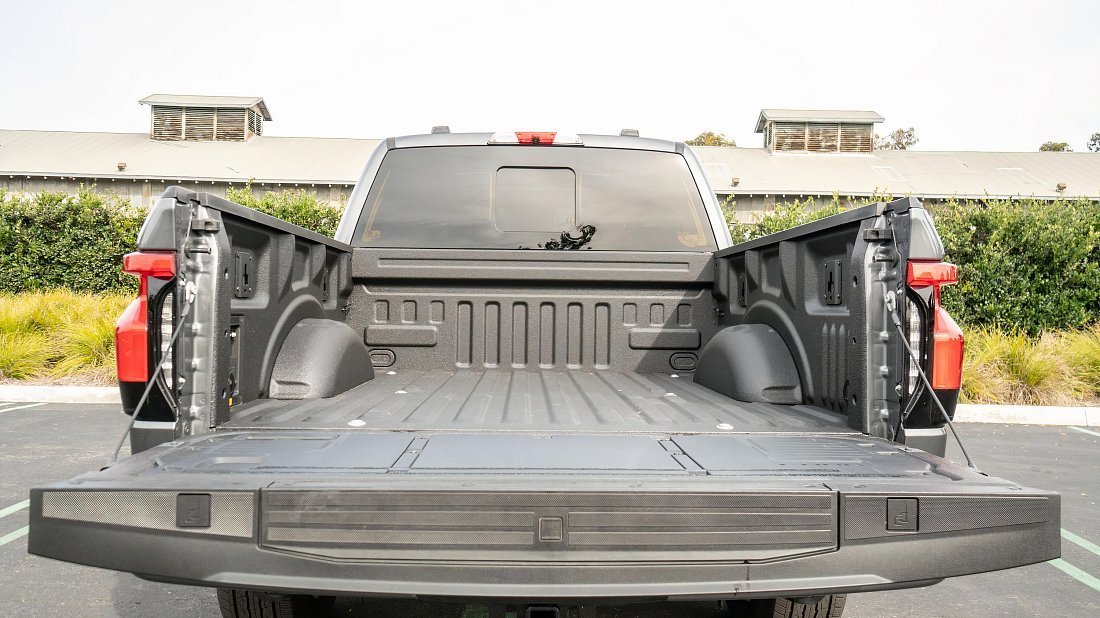

Here's a breakdown of the Ford F-150 Lightning Extended Range cargo space:

  • Trunk capacity: With the rear seats up, you get 52.8 cubic feet of cargo space in the back (ranked №18 out of 667 electric vehicles).
  • Max cargo capacity: Fold down the rear seats, and you open up N/A cubic feet of total cargo space (ranked №N/A out of 667 electric vehicles).

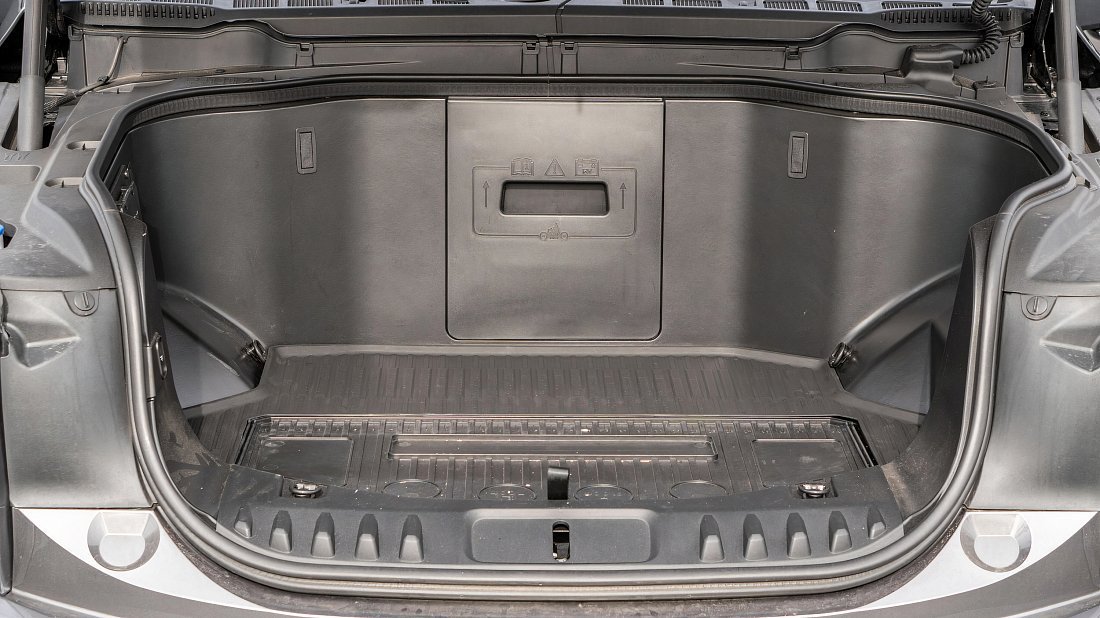

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 14.1 cubic feet for storing small items.
Is it suitable for towing? What is the maximum towing capacity?

The Ford F-150 Lightning Extended Range can safely tow up to 7700 lbs, provided that the trailer has its own braking system.
