Rivian R1S QM Large

Years of Production When the car first came out and when they stopped making it: 2022 -

Compare

Currently Produced

QM Large DM Large Performance DM Large DM Max Performance DM Max DM Standard DM Standard+ Performance DM Standard+

Explore by Section

Photo of Rivian R1S Quad Motor AWD Large (1 slide)

Technical Specifications of Rivian R1S Quad Motor AWD Large

General Info

Years of Production When the car first came out and when they stopped making it: 2022 -

Country of Manufacture Country where final assembly of the car took place

Current Status Announced (planned), Produced (on sale), Discontinued (no longer made): Produced

Body Style Refers to the car's shape & design (sedan, SUV, hatchback): SUV

Range and Efficiency

Range EPA Estimated range on a full battery according to official EPA ratings (USA): 517 km

Efficiency Energy consumption per distance driven. Lower figures indicate better efficiency.: kWh/100 km

Wh/km

25.3 kWh 253 Wh

Battery and Charging

Battery Capacity Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.: Nominal

Usable

137.9 kWh 131 kWh

Max Charging Power Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC): AC

DC

11.5 kW 215 kW

Charge Port The car's charge port type. It affects charging speed and station compatibility.: CCS Type 1

Performance

Drive Type PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor: AWD: 2 PMSM (front), 2 PMSM (rear)

Motor Total power and torque of the car's electric motor(s): Power

Torque

623 kW (835 hp) 1231 Nm

0-100 km/h Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe): 3.2 s

Top Speed The fastest the car can go (maximum speed): 177 km/h

0.00 s

000 km/h

Dimensions

Length Car's body length (front to back bumper): 5100 mm

Width Car's body width including or excluding side mirrors: with Mirrors

w/o Mirrors

2210 mm 2014 mm

Height Car's body height (from ground to highest point): 1963 mm

Wheelbase Distance between centers of front and rear wheels (affects ride and handling): 3076 mm

Cargo and Towing

Number of Seats Total passenger capacity of the car (including driver): 5, 7

Curb Weight Car's weight without passengers or cargo: No Data

Cargo Volume Trunk: cargo capacity (rear seats up). Max: cargo capacity (rear seats folded). Frunk: cargo capacity in the front hood.: Trunk

Max

Frunk

144 l 2262 l 314 l

Towing Capacity Maximum weight the car can tow safely with a trailer that has its own brakes: 3492 kg

Last Updated:

May 31, 2024

Download Specs PDF

How Far Can You Go in Rivian R1S Quad Motor AWD Large

The map shows how far you can go with a fully-charged battery:

Light green area: Round-trip
Dark green area: One-way

For the most accurate results, please allow the widget to use your location.

Charging Rivian R1S Quad Motor AWD Large

Slow (AC)

Fast (DC)

Home and Office (AC) Charging

Fast (DC) Charging

Last Updated:

May 31, 2024

Open Charging Calculator

About Rivian R1S Quad Motor AWD Large

The Rivian R1S Quad Motor AWD Large is an all-electric all-wheel drive SUV. It came out in 2022.

The Rivian R1S Quad Motor AWD Large has a 137.9 kWh battery pack, allowing it to travel up to 517 km on a single charge. The car has an average efficiency of 25.3 kWh per 100 km (or 253 Wh/km) — ranked №75 out of 667 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Rivian R1S Quad Motor AWD Large is equipped with a powertrain that delivers up to 623 kW (835 hp) of power and 1231 Nm of torque.

This enables a 0 to 100 km/h acceleration in 3.2 seconds (ranked №34 out of 667 electric vehicles) and a top speed of 177 km/h.

How far can it go on single charge? What is the real-world range?

The estimated How far can it go on single charge? What is the real-world range? for Rivian R1S Quad Motor AWD Large falls between 465–569 km, ranking it №75 out of 667 electric vehicles. Several conditions can influence this range:

Speed: The battery drains faster at higher speeds.
Temperature: Extreme temperatures can impact range.
Terrain: Range is reduced on hilly or mountainous terrain.
Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

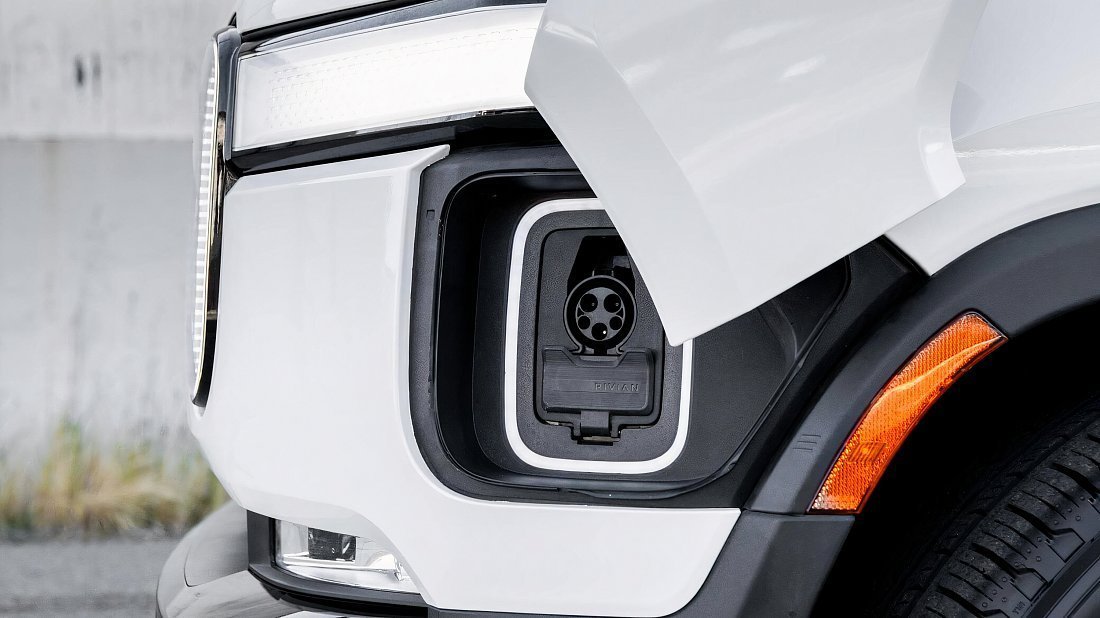

In Europe Rivian R1S Quad Motor AWD Large has a CCS Type 1 charge port.

You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11.5 kW, which translates to approximately 41 km of range added per hour of charging.
For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 215 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using our Charging calculator.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Rivian R1S Quad Motor AWD Large are as follows:

Length: 5100 mm
Width: 2210 mm (including side mirrors) or 2014 mm (excluding side mirrors)
Height: 1963 mm
Wheelbase: 3076 mm (distance between the center of the front and rear wheels)
Curb weight: N/A kg (weight of the empty car, no people or cargo)

How much cargo space does it offer? Does it have a front trunk?

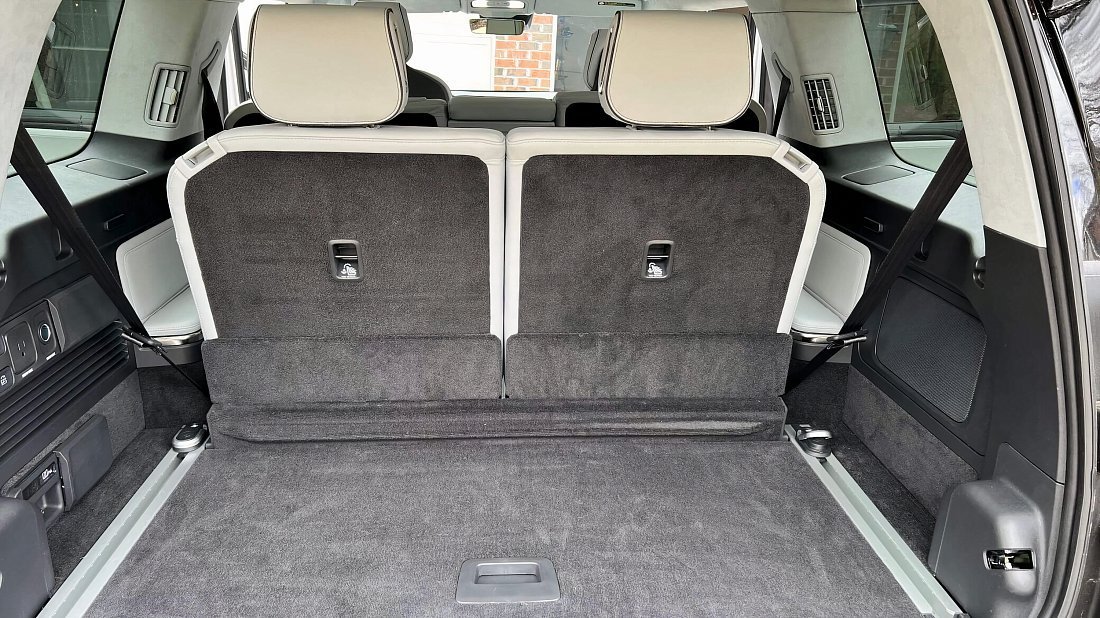

The rear cargo area of the Rivian R1S Quad Motor AWD Large provides 144 litres of space when the rear seats are upright (ranked №620 out of 667 electric vehicles).

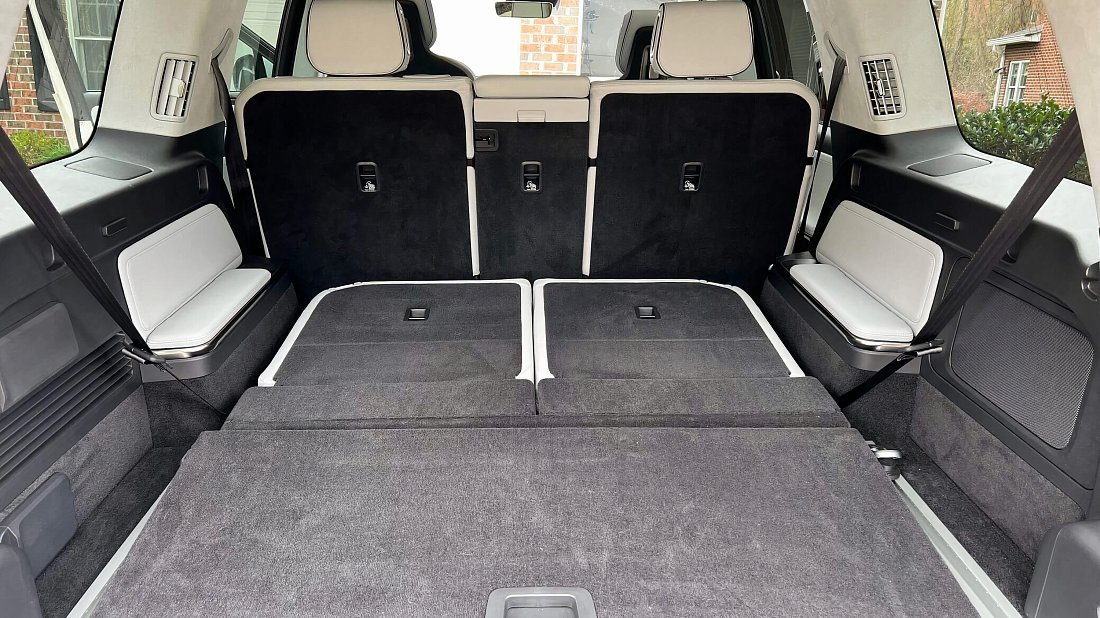

Folding these seats down unlocks a maximum cargo capacity of 2262 litres (ranked №620 out of 667 electric vehicles).

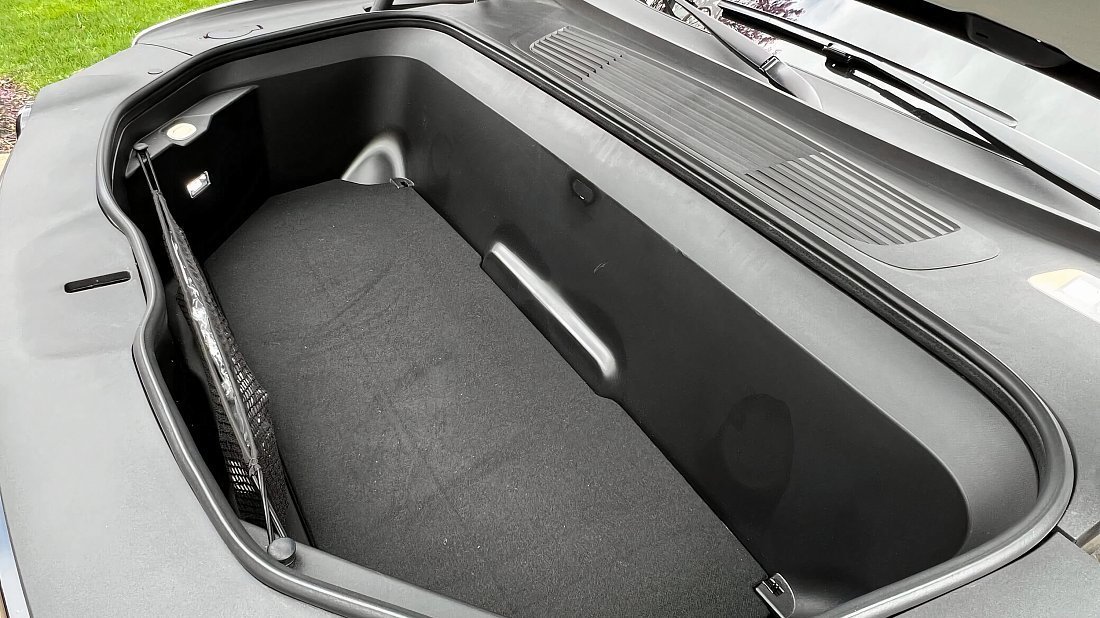

In addition, the car has a frunk, a front compartment with 314 litres dedicated to smaller items.

Is it suitable for towing? What is the maximum towing capacity?

The Rivian R1S Quad Motor AWD Large has a towing capacity (braked) of up to 3492 kg (maximum weight the car can tow safely with a trailer that has its own brakes).
