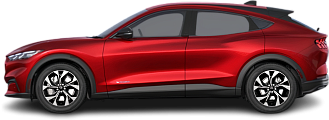

Technical Specifications of Ford Mustang Mach-E Standard Range AWD (2020)

General Info

Years of Production
When the car first came out and when they stopped making it
2020 - 2022
Country of Manufacture
Country where final assembly of the car took place.
Mexico
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Discontinued
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Ford Mustang Mach-E Standard Range AWD (2020)

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
211 mi
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
249 mi No Data
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
32.2 kWh 322 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
75.7 kWh 68 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 115 kW

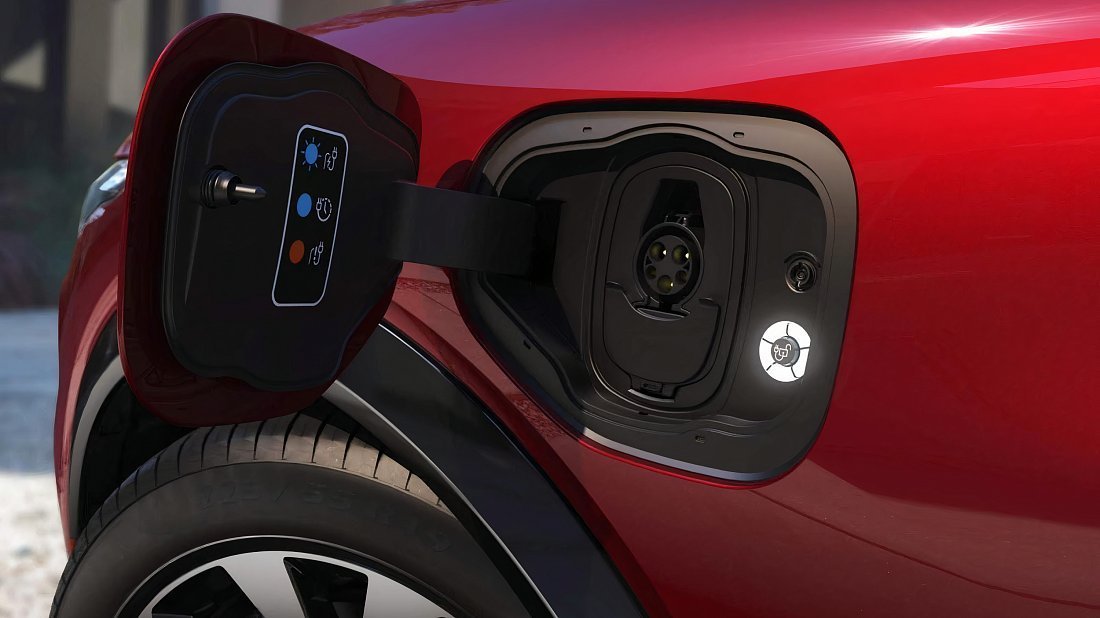

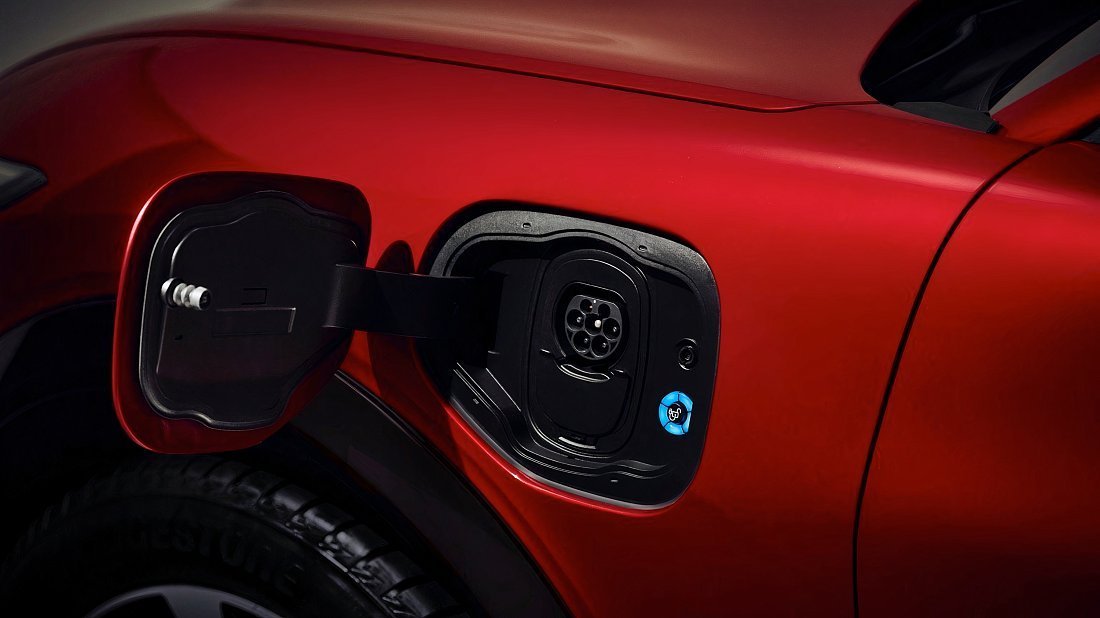

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
190 kW (255 hp) 417 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
5.2 s
Top Speed
The fastest the car can go (maximum speed)
111 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
186 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
82.6 in 74 in
Height
Car's body height (from ground to highest point)
63 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
117 in

Cargo and Towing

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4587 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
29 ft3 59.6 ft3 4.8 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
May 22, 2024
Download Specs PDF

How Far Can You Go in Ford Mustang Mach-E Standard Range AWD (2020)

The map shows how far you can go with a fully-charged battery:
  • Light green area: Round-trip
  • Dark green area: One-way
For the most accurate results, please allow the widget to use your location.

Charging Ford Mustang Mach-E Standard Range AWD (2020)

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
25 h 11 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
18 h 53 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
09 h 27 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
06 h 18 min

NEMA 14-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
04 h 07 min
Charging power is limited by the car’s on-board charger (11 kW)

NEMA 6-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
04 h 07 min
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
00 h 58 min

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 31 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 115 kW

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 115 kW

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 115 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 115 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
00 h 38 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 27 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 115 kW

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 27 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 115 kW
Last Updated:
May 22, 2024
Open Charging Calculator

About Ford Mustang Mach-E Standard Range AWD (2020)

The Ford Mustang Mach-E Standard Range AWD (2020) is an all-electric all-wheel drive SUV. It came out in 2020. Ford stopped making the SR AWD (2020) in 2022 and replaced it with the Ford Mustang Mach-E Standard Range AWD (2022). You can still find Ford Mustang Mach-E Standard Range AWD (2020) on the used car market, with prices starting around $21,950.

The Ford Mustang Mach-E Standard Range AWD (2020) has a 75.7 kWh battery pack, allowing it to travel up to 211 mi on a single charge. The car has an average efficiency of 32.2 kWh per 100 miles (or 322 Wh/mile) — ranked №452 out of 662 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford Mustang Mach-E Standard Range AWD (2020) achieves a 0 to 60 mph acceleration in 5.2 seconds (placing it at №231 among 662 electric vehicles) and attains a maximum speed of 111 mph.

Its powertrain provides a power output of up to 190 kW (255 hp) and a torque of 417 lb-ft.

How far can it go on single charge? What is the real-world range?

The estimated How far can it go on single charge? What is the real-world range? for Ford Mustang Mach-E Standard Range AWD (2020) falls between 190–232 miles, ranking it №452 out of 662 electric vehicles. Several conditions can influence this range:

  • Speed: The battery drains faster at higher speeds.
  • Temperature: Extreme temperatures can impact range.
  • Terrain: Range is reduced on hilly or mountainous terrain.
  • Driving style: Aggressive driving behaviors, such as frequent acceleration and braking, decrease efficiency.
  • Feature utilization: Climate control and media system usage also affect range.

These figures are approximations, and your actual driving range may vary. When planning trips, consider these factors and be prepared for potential charging stops.

For trip planning assistance, utilize the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

In the USA Ford Mustang Mach-E Standard Range AWD (2020) has a CCS Type 1 charge port.

  • You can charge it at home using a standard domestic socket or plug into any public AC charging station using the right cable. Keep in mind that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, which translates to approximately 31 miles of range added per hour of charging.
  • For quicker charging, consider using a compatible DC fast-charging station. The car boasts a maximum charging rate of 115 kW, but remember that battery temperature and charge level can influence the actual speed you'll experience.

Estimate charging time, rate and cost using Green Cars Compare Charging Calculator.

How big is it? What are the dimensions (length, width, height)?

The size and weight specifications for Ford Mustang Mach-E Standard Range AWD (2020) are as follows:

  • Length: 186 in
  • Width: 82.6 in (including side mirrors) or 74 in (excluding side mirrors)
  • Height: 63 in
  • Wheelbase: 117 in (distance between the center of the front and rear wheels)
  • Curb weight: 4587 lbs (weight of the empty car, no people or cargo)

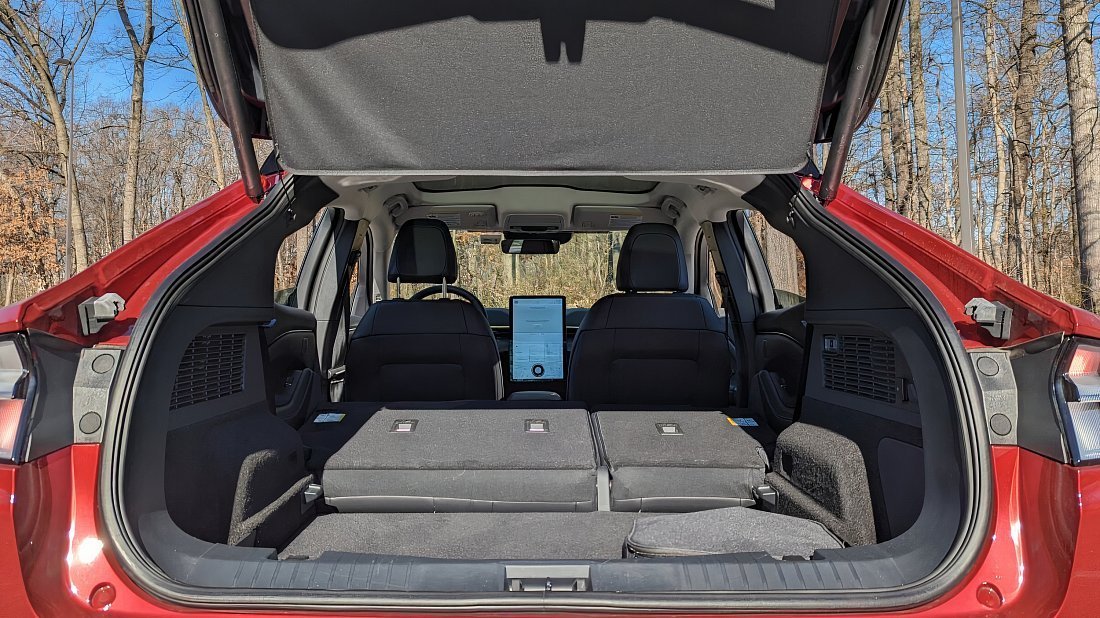

How much cargo space does it offer? Does it have a front trunk?

Here's a breakdown of the Ford Mustang Mach-E Standard Range AWD (2020) cargo space:

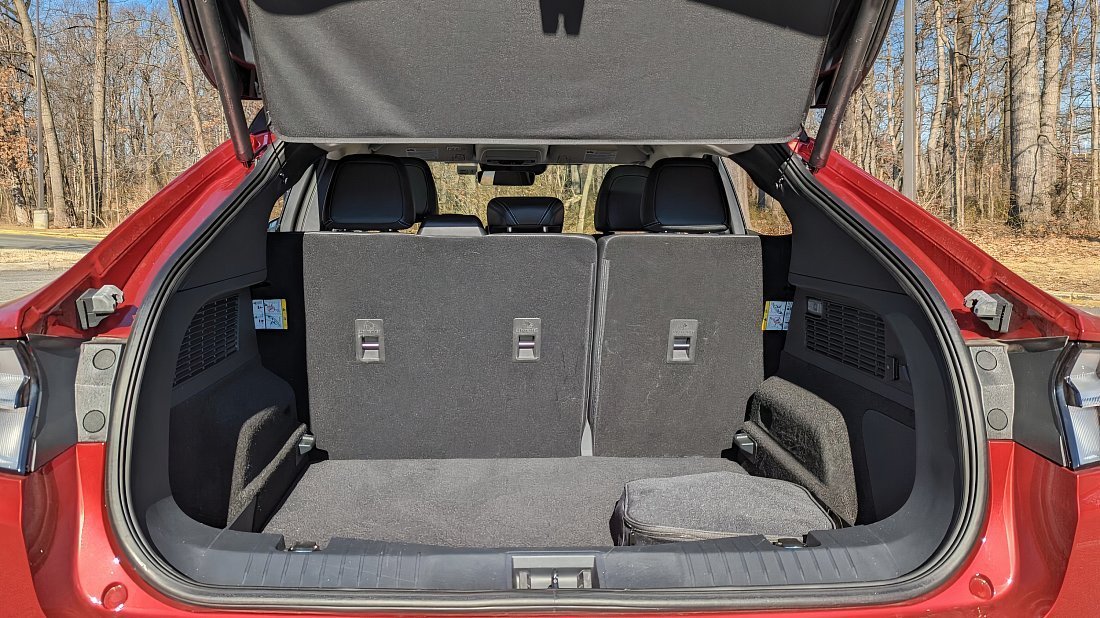

  • Trunk capacity: With the rear seats up, you get 29 cubic feet of cargo space in the back (ranked №86 out of 662 electric vehicles).
  • Max cargo capacity: Fold down the rear seats, and you open up 59.6 cubic feet of total cargo space (ranked №179 out of 662 electric vehicles).

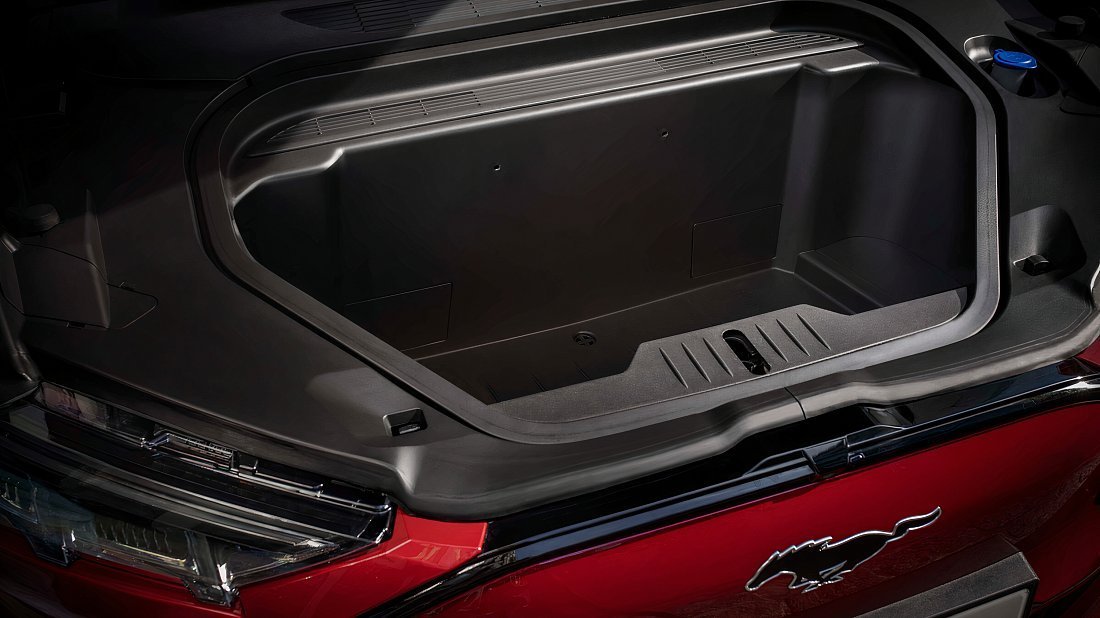

  • Frunk capacity: The front trunk is called a "frunk", and it offers an additional 4.8 cubic feet for storing small items.
Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
