Technical Specifications of Ford Mustang Mach-E Rally

General Info

Years of Production
When the car first came out and when they stopped making it
2024 -
Country of Manufacture
Country where final assembly of the car took place.
Mexico
Current Status
Announced (planned), Pre-order (reservations open), Produced (on sale), Discontinued (no longer made)
Produced
Body Style
Refers to the car's shape & design (sedan, SUV, hatchback)
SUV Ford Mustang Mach-E Rally

Range and Efficiency

Range EPA
Estimated range on a full battery according to official EPA ratings (USA)
265 mi
Range WLTP
Range according to WLTP ratings.
TEL: car in its lightest configuration.
TEH: car in its heaviest configuration.
TEL
TEH
317 mi No Data
Efficiency
Energy consumption per distance driven. Lower figures indicate better efficiency.
kWh/100 mi
Wh/mi
34.1 kWh 341 Wh

Battery and Charging

Battery Capacity
Nominal: total amount of energy the car’s battery can hold. Usable: actual amount of energy you can access.
Nominal
Usable
98.8 kWh 91 kWh
Max Charging Power
Max electric power the car can accept for charging, determined by its on-board charger (AC) and battery (DC)
AC
DC
11 kW 150 kW

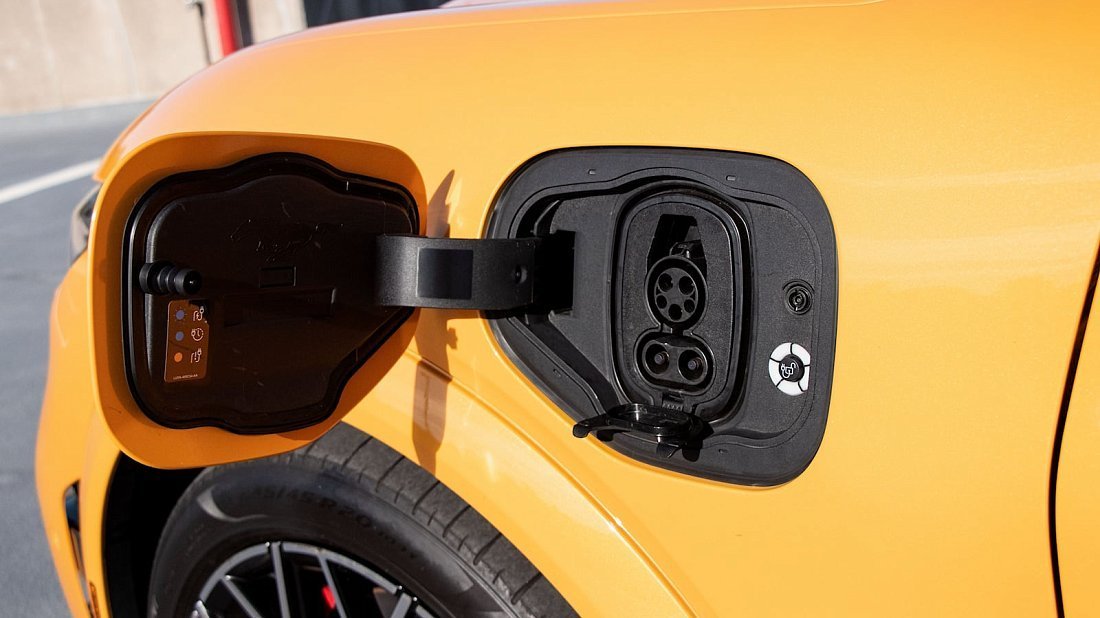

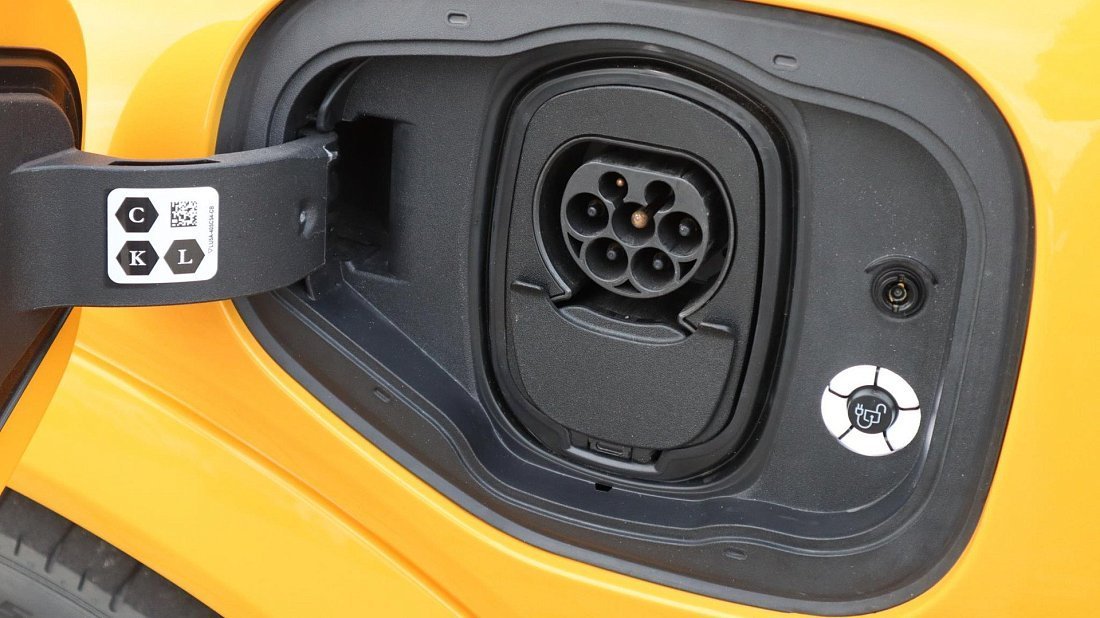

Charge Port
The car's charge port type. It affects charging speed and station compatibility.
CCS Type 1
CCS Type 1 charge port

Performance

Drive Type
PMSM: Permanent Magnet Synchronous Motor. IM: AC Induction Motor
AWD: PMSM (front), PMSM (rear)
Motor
Total power and torque of the car's electric motor(s)
Power
Torque
358 kW (480 hp) 700 lb-ft
0-60 mph
Acceleration time from 0 to 60 mph (USA) or 0 to 100 km/h (Europe)
3.4 s
Top Speed
The fastest the car can go (maximum speed)
124 mph
0.00 s
00 mph

Dimensions

Length
Car's body length (front to back bumper)
187 in
Width
Car's body width including or excluding side mirrors
with Mirrors
w/o Mirrors
82.6 in 74.1 in
Height
Car's body height (from ground to highest point)
64.9 in
Wheelbase
Distance between centers of front and rear wheels (affects ride and handling)
117.5 in

Cargo and Towing

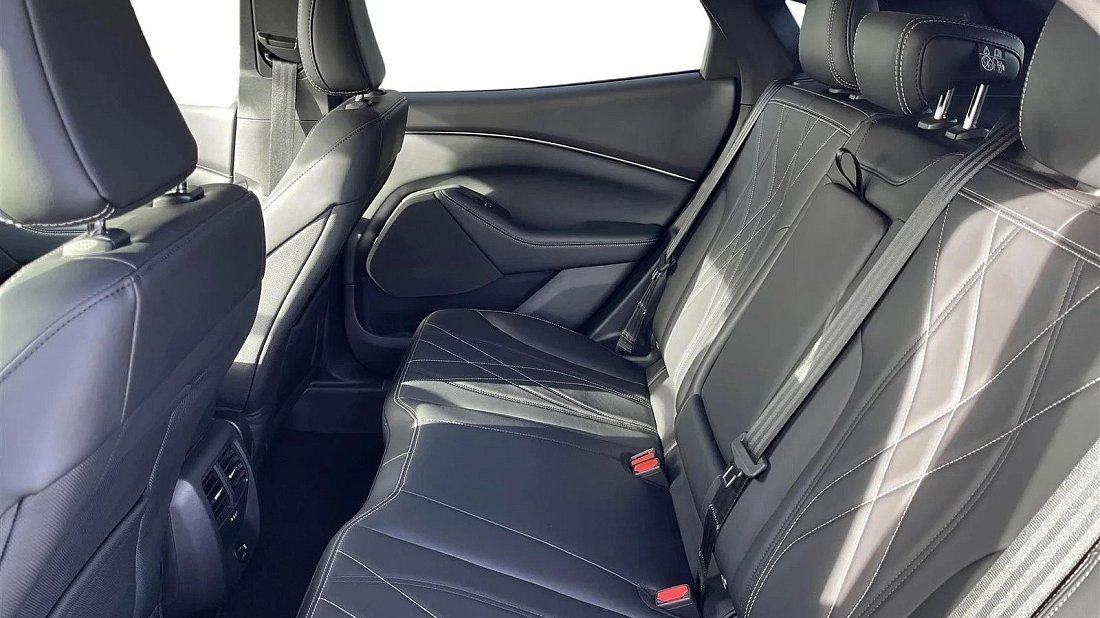

Number of Seats
Total passenger capacity of the car (including driver)
5
Curb Weight
Car's weight without passengers or cargo
4979 lb
Cargo Volume
Trunk: cargo capacity (rear seats up).
Max: cargo capacity (rear seats folded).
Frunk: cargo capacity in the front hood.
Trunk
Max
Frunk
29.7 ft3 59.7 ft3 4.7 ft3
Towing Capacity
Maximum weight the car can tow safely with a trailer that has its own brakes
No Data
Last Updated:
May 29, 2024
Download Specs PDF

Charging Ford Mustang Mach-E Rally

Slow (AC)
Fast (DC)

Home and Office (AC) Charging

NEMA 5-15

Output:
1.8 kW
120 V, 15 A, 1-phase
20-80%:
33 h 42 min

NEMA 5-20

Output:
2.4 kW
120 V, 20 A, 1-phase
20-80%:
25 h 17 min

NEMA 6-20

Output:
4.8 kW
240 V, 20 A, 1-phase
20-80%:
12 h 38 min

NEMA 14-30

Output:
7.2 kW
240 V, 30 A, 1-phase
20-80%:
08 h 26 min

NEMA 14-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
05 h 31 min
Charging power is limited by the car’s on-board charger (11 kW)

NEMA 6-50

Output:
12 kW
240 V, 50 A, 1-phase
20-80%:
05 h 31 min
Charging power is limited by the car’s on-board charger (11 kW)

Fast (DC) Charging

CCS DC 50 kW

Output:
50 kW
20-80%:
01 h 17 min

CCS DC 100 kW

Output:
100 kW
20-80%:
00 h 41 min

CCS DC 150 kW

Output:
150 kW
20-80%:
00 h 27 min

CCS DC 200 kW

Output:
200 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 150 kW

CCS DC 250 kW

Output:
250 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 150 kW

CCS DC 350 kW

Output:
350 kW
20-80%:
00 h 27 min
The car’s DC charging capability is limited to 150 kW

Supercharger V2 Split 75 kW

Output:
75 kW
20-80%:
00 h 51 min
Not all Superchargers support non-Tesla vehicles

Supercharger V2 150 kW

Output:
150 kW
20-80%:
00 h 27 min
Not all Superchargers support non-Tesla vehicles

Supercharger V3 250 kW

Output:
250 kW
20-80%:
00 h 27 min
Not all Superchargers support non-Tesla vehicles The car’s DC charging capability is limited to 150 kW
Last Updated:
May 29, 2024
Open Charging Calculator

About Ford Mustang Mach-E Rally

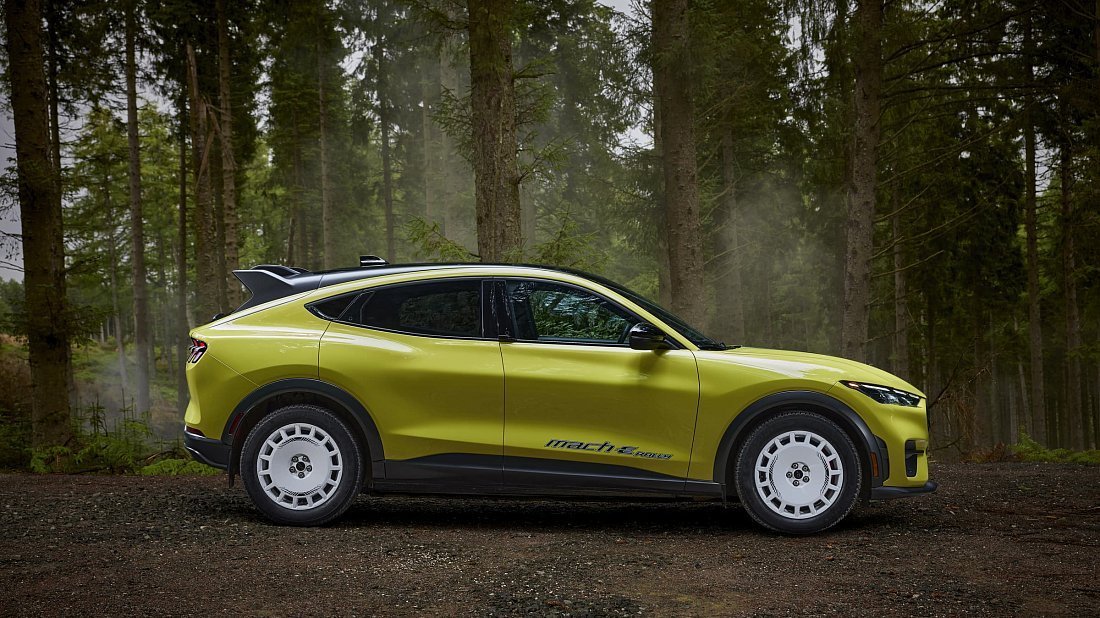

The Ford Mustang Mach-E Rally is an all-electric all-wheel drive SUV. It came out in 2024. Brand new, the car starts around $61,890.

The Ford Mustang Mach-E Rally has a 98.8 kWh battery pack, allowing it to travel up to 267 mi on a single charge. The car has an average efficiency of 34.1 kWh per 100 miles (or 341 Wh/mile) — ranked №241 out of 662 electric vehicles.

Frequently Asked Questions

How powerful is it? How fast does it accelerate?

The Ford Mustang Mach-E Rally can accelerate from 0 to 60 mph in 3.4 seconds (ranked №52 out of 662 electric vehicles) and reach a top speed of 124 mph.

The car’s powertrain delivers up to 358 kW (480 hp) of power and 700 lb-ft of torque.

How far can it go on single charge? What is the real-world range?

Real-world range of the Ford Mustang Mach-E Rally is 240–294 miles (ranked №241 out of 662 electric vehicles) — depending on several factors, including:

  • Speed: Higher speeds deplete the battery faster.
  • Temperature: Extreme cold and hot weather impacts range.
  • Terrain: Hilly or mountainous terrain reduces range.
  • Driving style: Aggressive driving with frequent acceleration and braking consumes more energy.
  • Use of features: Features like climate control and media system also affect range.

It's important to remember that these are just estimates, and your actual range may vary. It's always best to factor in these various factors when planning your trip and be prepared for potential charging stops.

Plan your trips using the EV Navigation interactive map.

What charging options are available? How long does it take to charge it?

The Ford Mustang Mach-E Rally in the USA comes with a CCS Type 1 charging port. It can be charged at home using a standard domestic socket or at any public AC charging station with the compatible cable. It's important to note that the car's on-board charger (inverter) limits the maximum AC charging rate to 11 kW, resulting in approximately 29 miles of range added per hour of charging.

For significantly faster charging, public DC fast-charging stations are available. Although the car can achieve a maximum DC charging rate of 150 kW, factors such as battery temperature and charge level may affect the actual charging speed.

Use Green Cars Compare Charging Calculator to estimate charging time, rate, and cost.

How big is it? What are the dimensions (length, width, height)?

Ford Mustang Mach-E Rally comes in the following dimensions:

  • Length: 187 in
  • Width: 82.6 in (including side mirrors) or 74.1 in (excluding side mirrors)
  • Height: 64.9 in
  • Wheelbase: 117.5 in (distance between the center of the front and rear wheels)
  • Curb weight: 4979 lbs (weight of the empty car, no people or cargo)
How much cargo space does it offer? Does it have a front trunk?

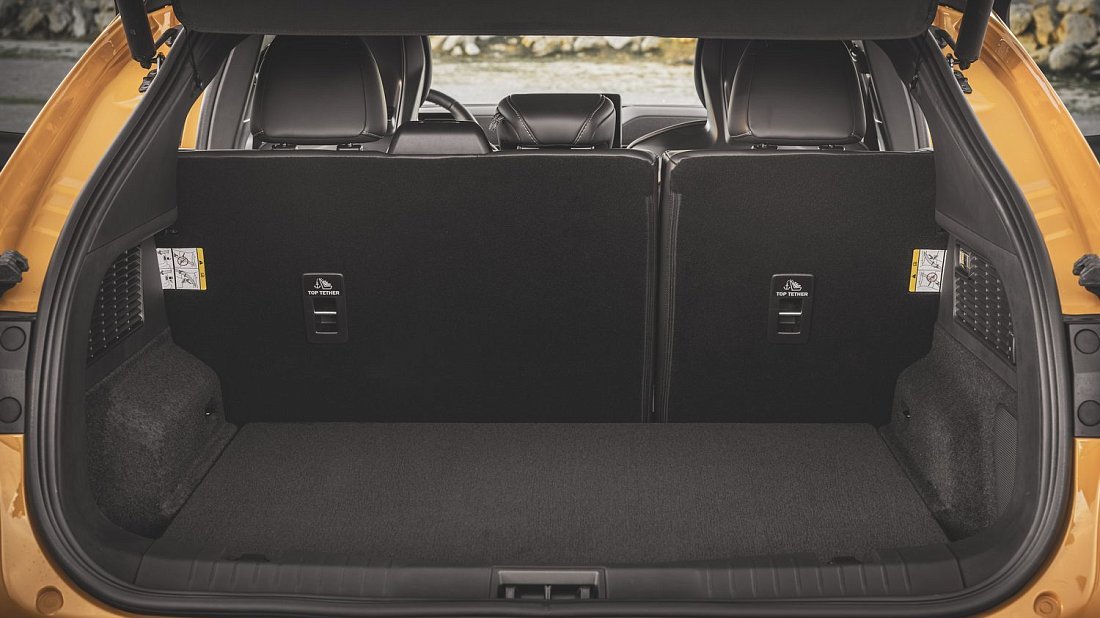

Behind the rear seats of the Ford Mustang Mach-E Rally, you'll find 29.7 cubic feet of storage space (ranked №75 out of 662 electric vehicles).

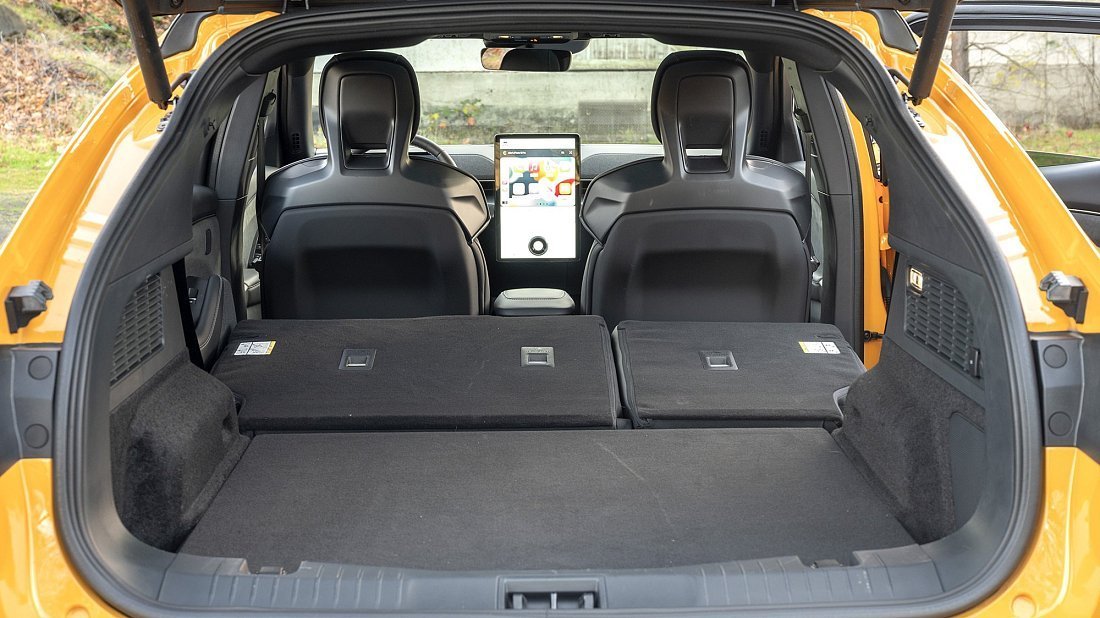

Folding down the rear seats expands the total cargo capacity to 59.7 cubic feet (ranked №168 out of 662 electric vehicles).

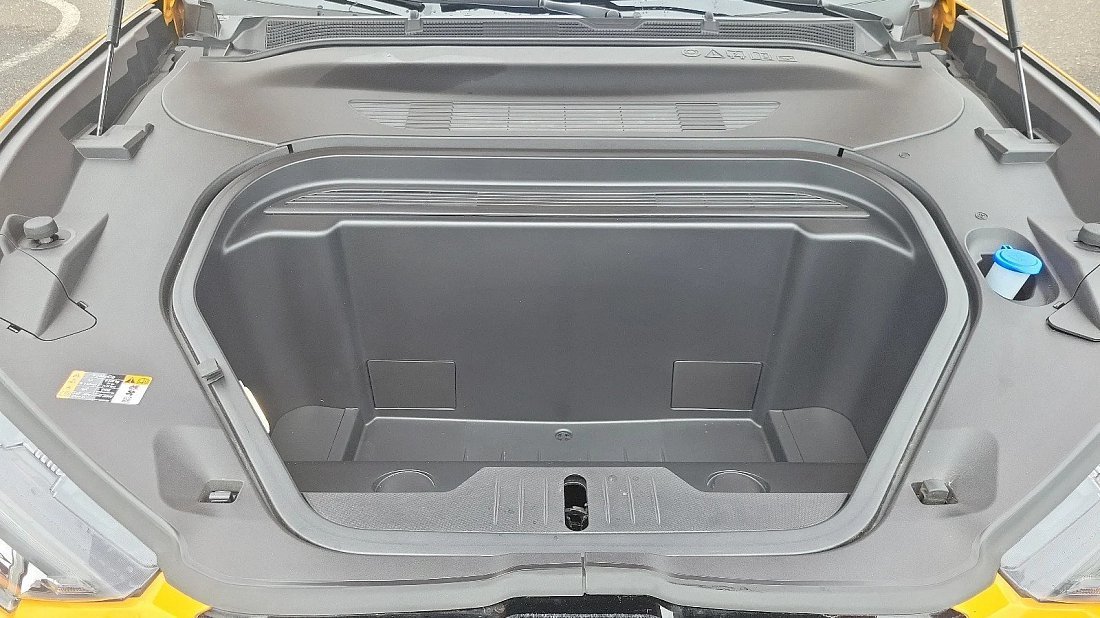

Frunk capacity: The front trunk is called a "frunk", and it offers an additional 4.7 cubic feet for storing small items.

Is it suitable for towing? What is the maximum towing capacity?

The car isn’t officially rated for towing.
